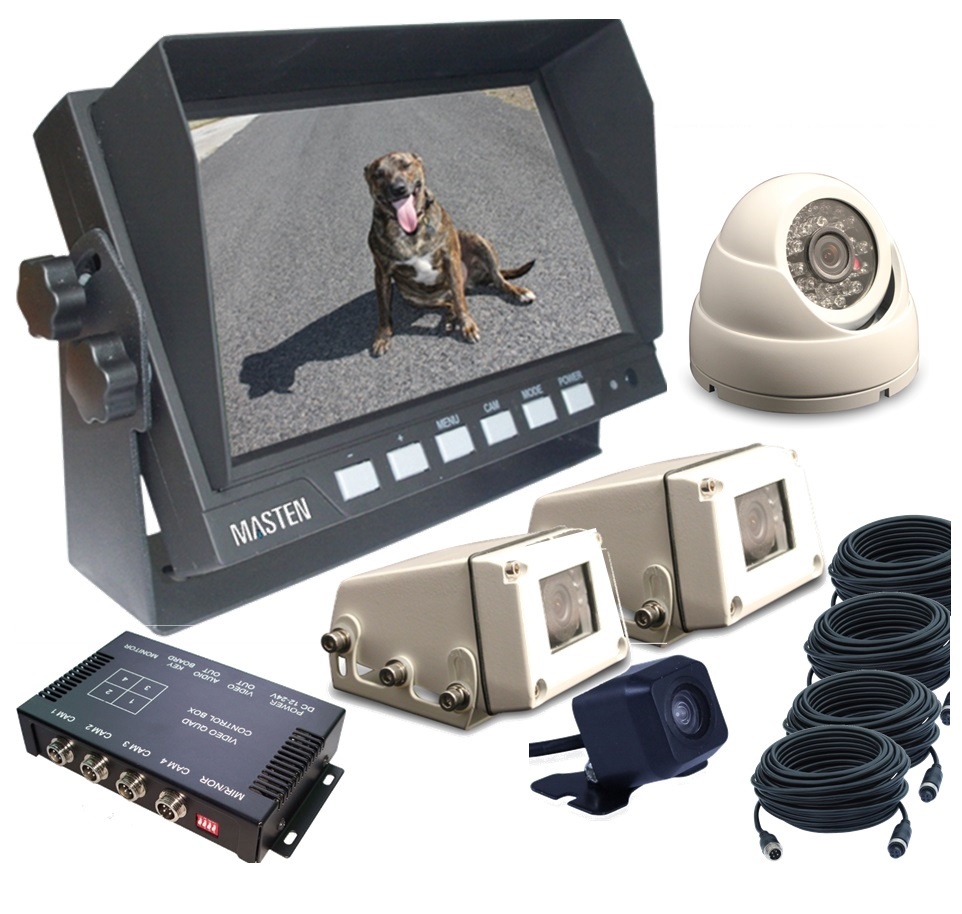

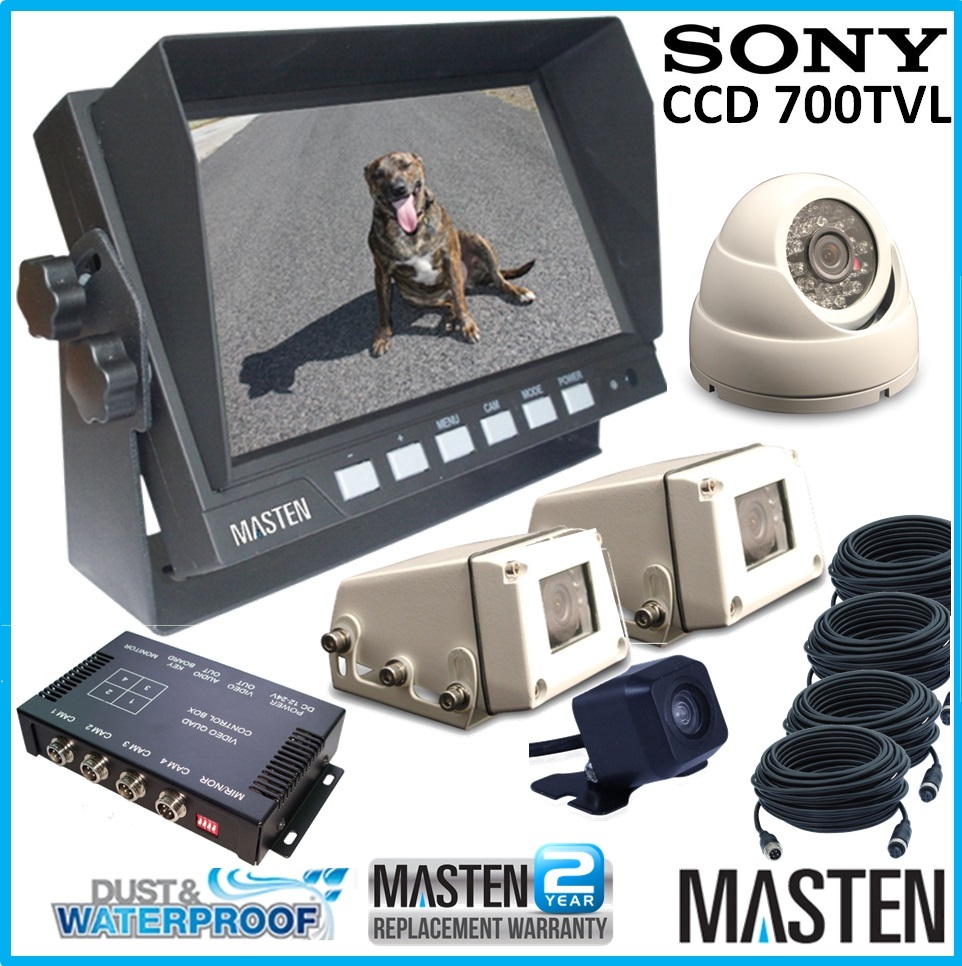

Premium All-round CCD Sony 700TVL 4 Camera Safety Kit. Includes Masten 7" Full Colour Monitor, Left and Right Blind Spot Cameras, Caravan Camera, Mini Camera for the vehicle, 4-Camera Switch Box and all Cabling.



Product Description

Overview

Caravan Heavy Duty Reversing Camera Kit

Introducing the industry-first Masten Caravan Reverse Camera Kit from Masten with unbeatable IP69K Water/Dust Proof Certification and Two-Year Replacement Warranty.

Included in this kit:

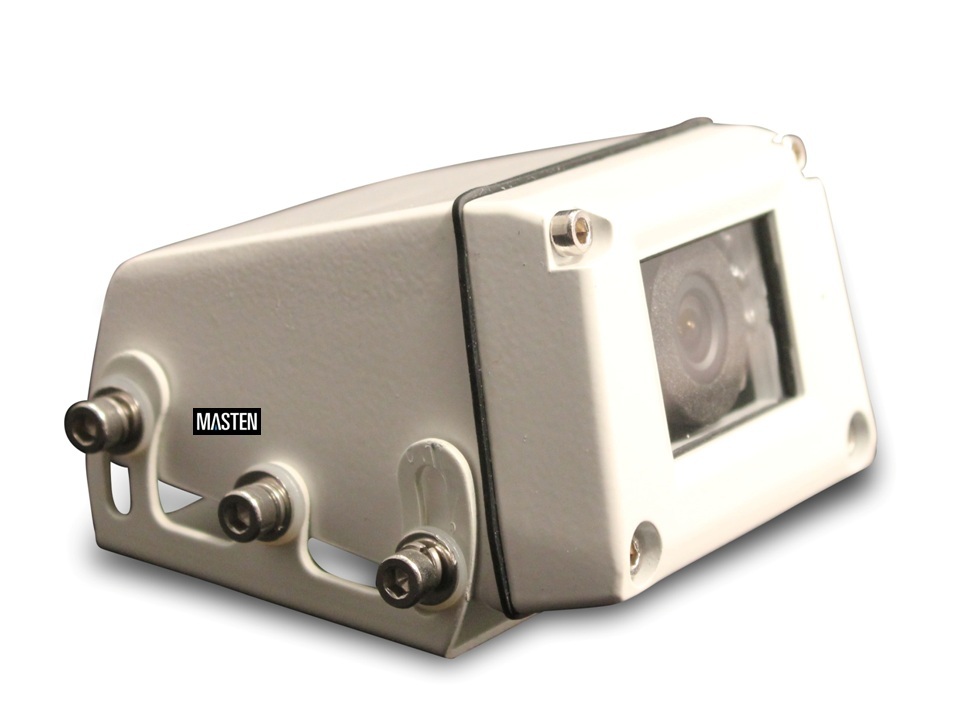

- White Masten Left Blind Spot Heavy Duty Camera with 700TVL HD Sony Image Sensors (Masten CMOS 420TVL Optional)

- White Masten Right Blind Spot Heavy Duty Camera with 700TVL HD Sony Image Sensors (Masten CMOS 420TVL Optional)

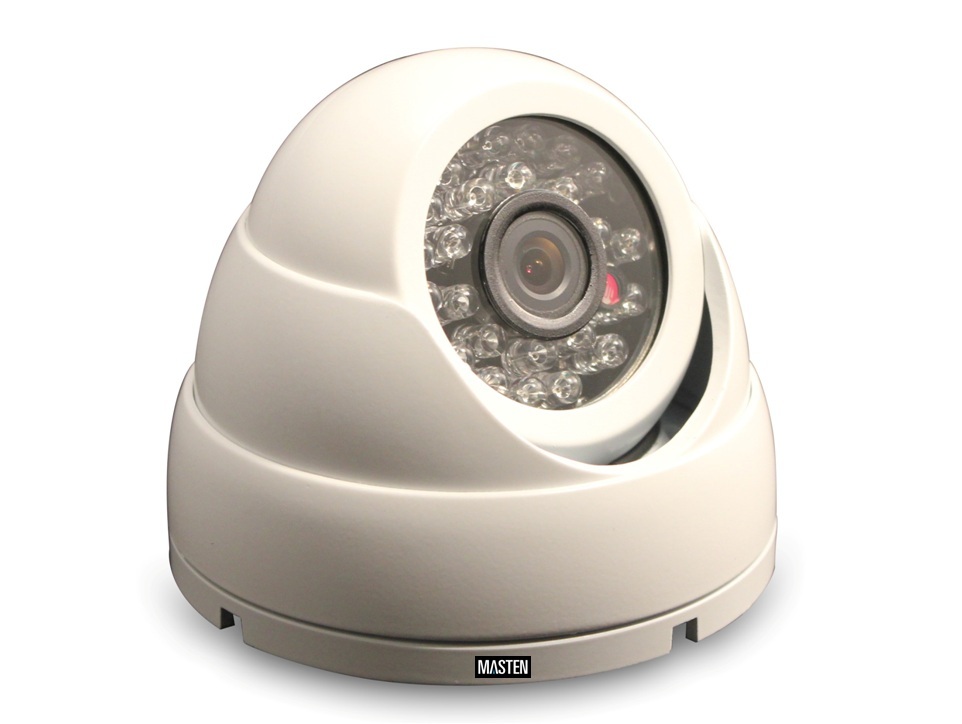

- White Masten Premium Heavy Duty Dome Camera with 700TVL HD Sony Image Sensors (Masten CMOS 420TVL Optional)

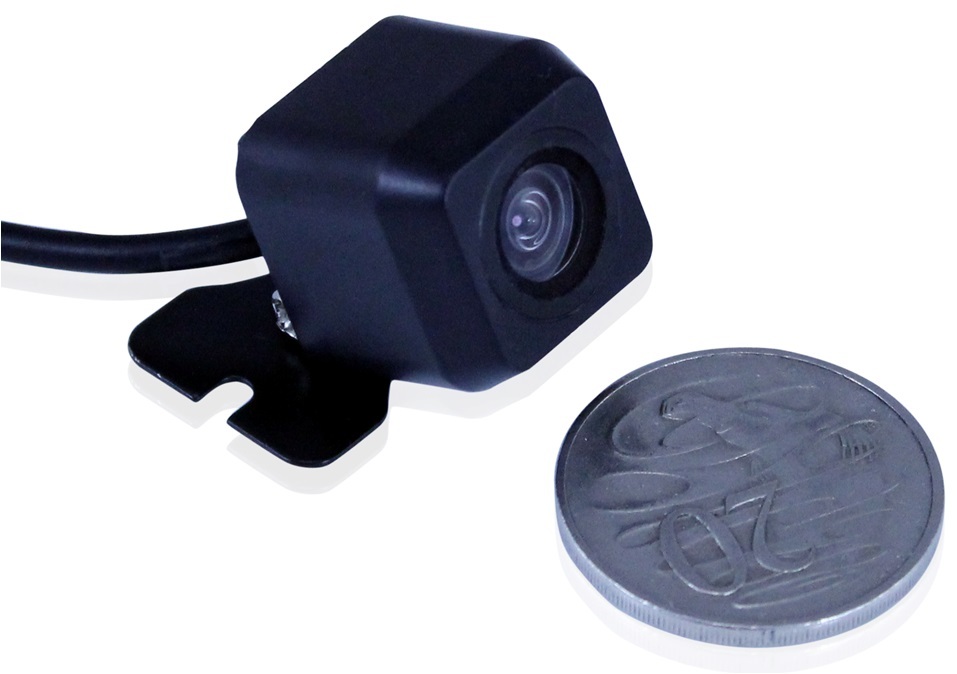

- 1 x Mini CCD Reverse Camera

- 1 x Premium 4-Camera Switch Box

- 1 x Four Pin Female to RCA Plug Adapter

- 1 x Twin 7.5m 4-Pin Shielded Camera Extension Cable

- 3 x Single 7.5m 4-Pin Shielded Camera Extension Cable

- 1 x Single 15m 4-Pin Shielded Camera Extension Cable

- Masten Premium 7" HD LCD Full Colour Monitor

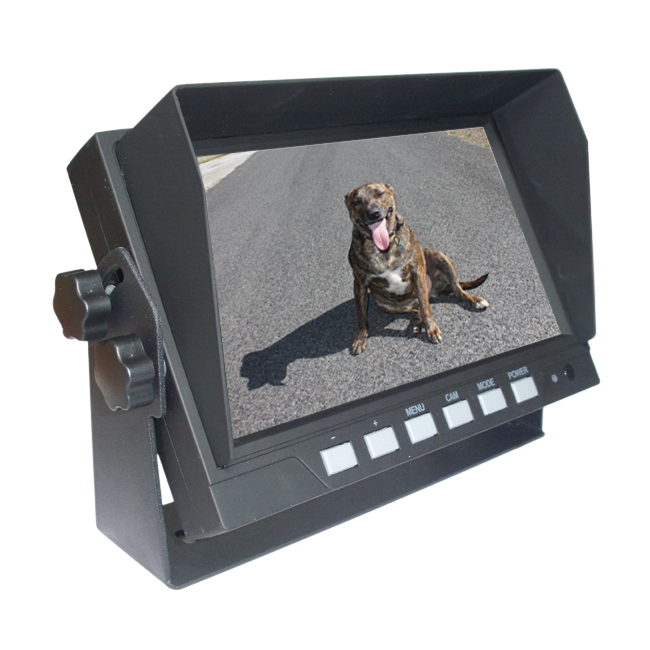

Masten Premium 7” HD LCD Full Colour Monitor

  • 7” High-Quality LCD LED Colour Monitor with Highl Resolution for maximum visibility
  • 2 Camera Video/Audio Heavy-Duty 4-Pin Inputs for a secure connection
  • Separate power trigger control wire for each camera allowing automatic display of cameras when required. The monitor will automatically switch-over to the image of the corresponding triggered camera, then back to the original mode when the trigger stops
  • Convenient Normal/Mirror View switch allows you to assign cameras to a forward facing position (Normal View) or rear facing position (Mirror View) at the touch a button
  • Convenient Day/Night Mode Switch
  • Adjustable trigger camera view (0-4 seconds) for each camera
  • Built-in Speaker perfect for linking your Masten Premium Camera with Audio for greater safety
  • Compatible with PAL and NTSC
  • Neat hideaway proprietary Masten module allows you to hide all the connections behind the dash
  • Masten Steel Pro Fit Universal Mounting System for a secure fit that won’t budge
  • Multi-language On-Screen Display
  • Working Voltage 12V-32V for greater application compatibility without the need for expensive adapters



Camera Features

  • World-class and Certified IP69K Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications
  • Stylish Patented Design
  • PixelPerfect® High-Grade image sensors feature Masten CCD 700TVL for clear viewing day and night

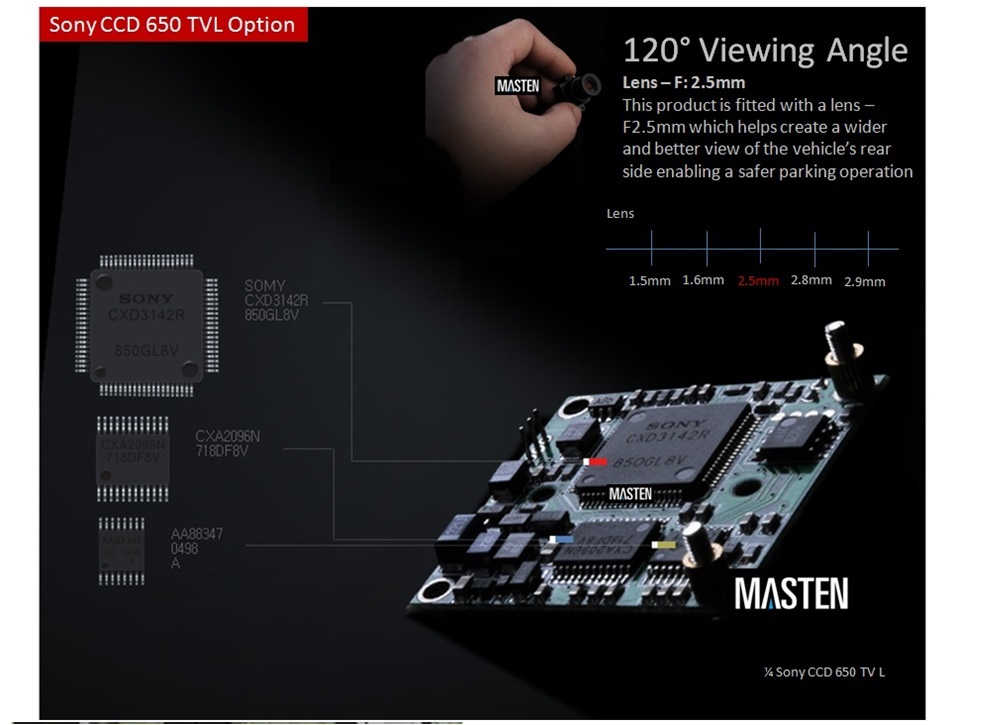

  • Perfectly adjusted 120° viewing angle for safer reversing and more accurate imagery
  • Safer driving at night with a long 15m night vision viewing distance supported by 18 infrared LED lights
  • Wide working temperature of Working temperature: -20°C~70°C.
  • Unique IR-CUT effectively avoids color aberration in daylight

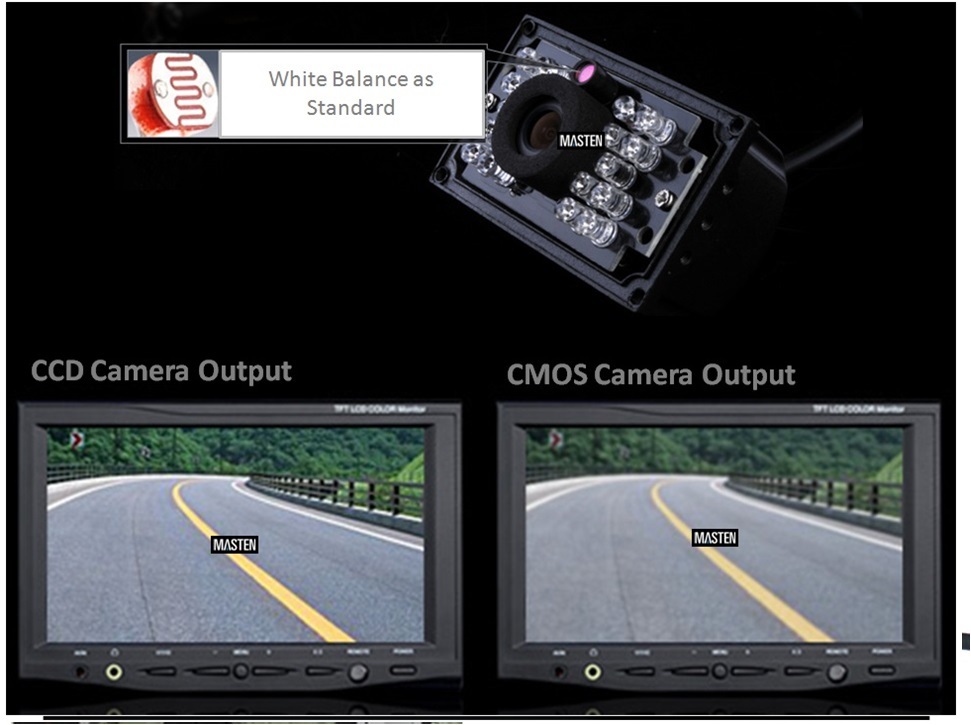

  • Equipped with a White Balance sensor which enables the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor
  • Suitable for all applications including buses, mini vans, caravans, trailers, trucks, agriculture equipment and much more

Unbeatable Melbourne-Based 2-Year Warranty!



Cable Features

Industrial-grade Shielded 4-Pin DIN extension cables from DIG Options are the ideal choice when looking for a long lasting Rear View Camera Video/Audio/Power cable.

The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.

Camera Specifications
Critical Specifications
Description: CMOS Heavy Duty Camera - optional downgrade Premium HD CCD Heavy Duty Camera - Included in this kit
Image Device: CMOS 1/4 SONY CCD
Resolution: 420TV lines 700TV lines
Lens: 2.5mm 2.5mm
Lens Angle: 120 Degrees 120 Degrees
Infrared LED light: 18 LEDs 18 LEDs
IR Distance: 15m 15m
Waterproof Rating: IP69K IP69K
Audio Microphone: Yes Yes
Technical Specifications
TV System: PAL/ NTSC PAL/ NTSC
Manual Mirror Image Switch Yes Yes
Effective Pixels: 512 x 582 pixels / 512 x 492 pixels 512 x 582 pixels / 512 x 492 pixels
Sensing Area: 3.6mm x 2.7mm 3.6mm x 2.7mm
Scanning System: 2:1 Interlace 2:1 Interlace
Sync. System: Internal Internal
Horizontal Sync. Frequency: 15.625 KHz / 15.734KHz 15.625 KHz / 15.734KHz
Vertical Sync. Frequency: 50Hz / 60Hz 50Hz / 60Hz
Minimum Illumination: 0Lux (Infrared lamps on)
0 .1Lux(day) / F1.2 0Lux (Infrared lamps on)
0 .1Lux(day) / F1.2
Video Output: 1.0vp-p, 75Ohm 1.0vp-p, 75Ohm
Gamma Consumption: 0.45 0.45
AGC: Auto Auto
S/N Ratio: Better than 48dB Better than 48dB
White Balance: Auto Auto
Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto Auto
Shell material: Aluminum alloy Aluminum alloy
Current Consumption: Max. 180mA Max. 180mA
Power Supply: DC12V DC12V
Operating Temperature: -20°C~70°C MAX -20°C~70°C MAX
Storage Temperature: -40°C~80° MAX -40°C~80° MAX



General Monitor Specifications

Display/Monitor Size: 7 Inch
Monitor Panel Type: Digital LCD LED Panel
Display Colour: Full
Waterproof Rating (with Certification): NA
Camera Inputs: 2
Quad Camera View: NA
TV System:  NTSC/PAL
Resolution: 800 X 3 X(RGB)X 480 Pixels
Aspect ratio: 16:09
Viewing angle: U: 50°/ D:60°, R/L:70°
Brightness: 400cd/.
Contrast: 500:01:00
Lattice Distance: 0.192(H) x 0.1805(V)
Monitor Housing Material: Plastic
Monitor Bracket Type: Dash Mount
Monitor Bracket Material: Iron
Camera Connection Type: Industrial-Grade 4-Pin Connectors
Automatic Camera Display: Yes - 2 Cameras via Trigger Line from Power Source
Built-in Speaker: Yes - Requires connected camera to have microphone
Bilingual Menu System: Yes - English, Dutch, French, Portuguese, Spanish, Russian and German
Day/Night Mode Switch: Yes - Manually
Mirror/Natural Camera View: Yes - Switchable for each camera
Remote Control: Yes
Working voltage: 12-32V
DC Power Overload Protection: Yes
Working Current: 800MA (with 2 came
Operating Temperature  -10℃~+65℃
Storage Temperature  -30℃~+80℃
Operating humidity: 10%
Product Net Weight: 1KG

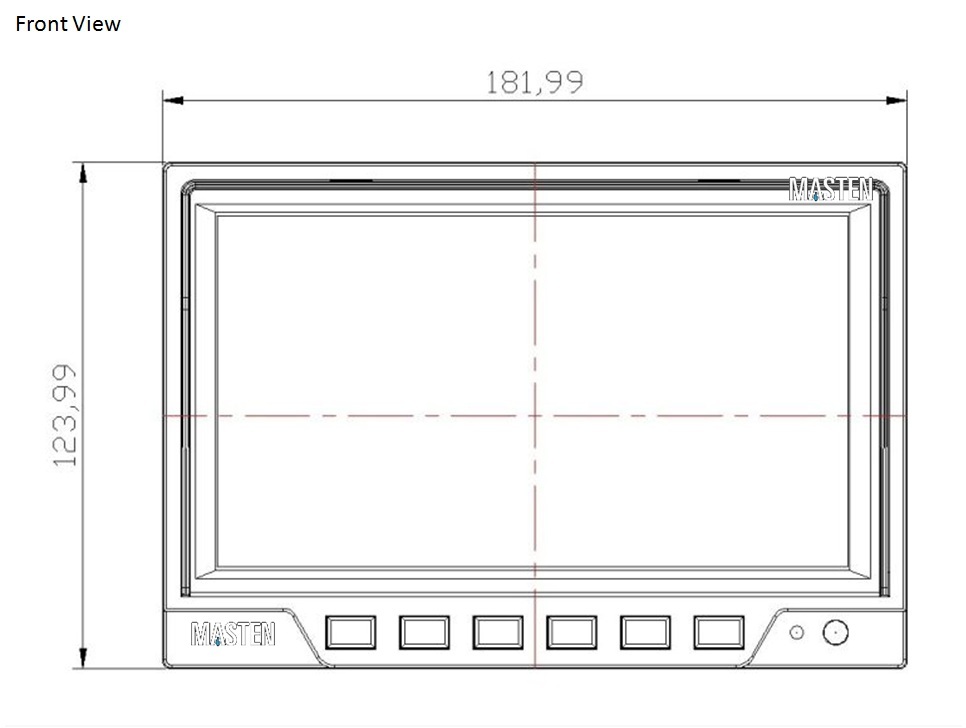

Product Dimensions: 182mm*99mm*124mm

SKU KIT-CAM5-M
Barcode # 9357423016561
Brand Masten
Shipping Weight 2.0000kg
Shipping Width 0.265m
Shipping Height 0.070m
Shipping Length 0.198m
Shipping Cubic 2.000000000m3

Unbeatable Masten 2 Year Replacement Warranty
