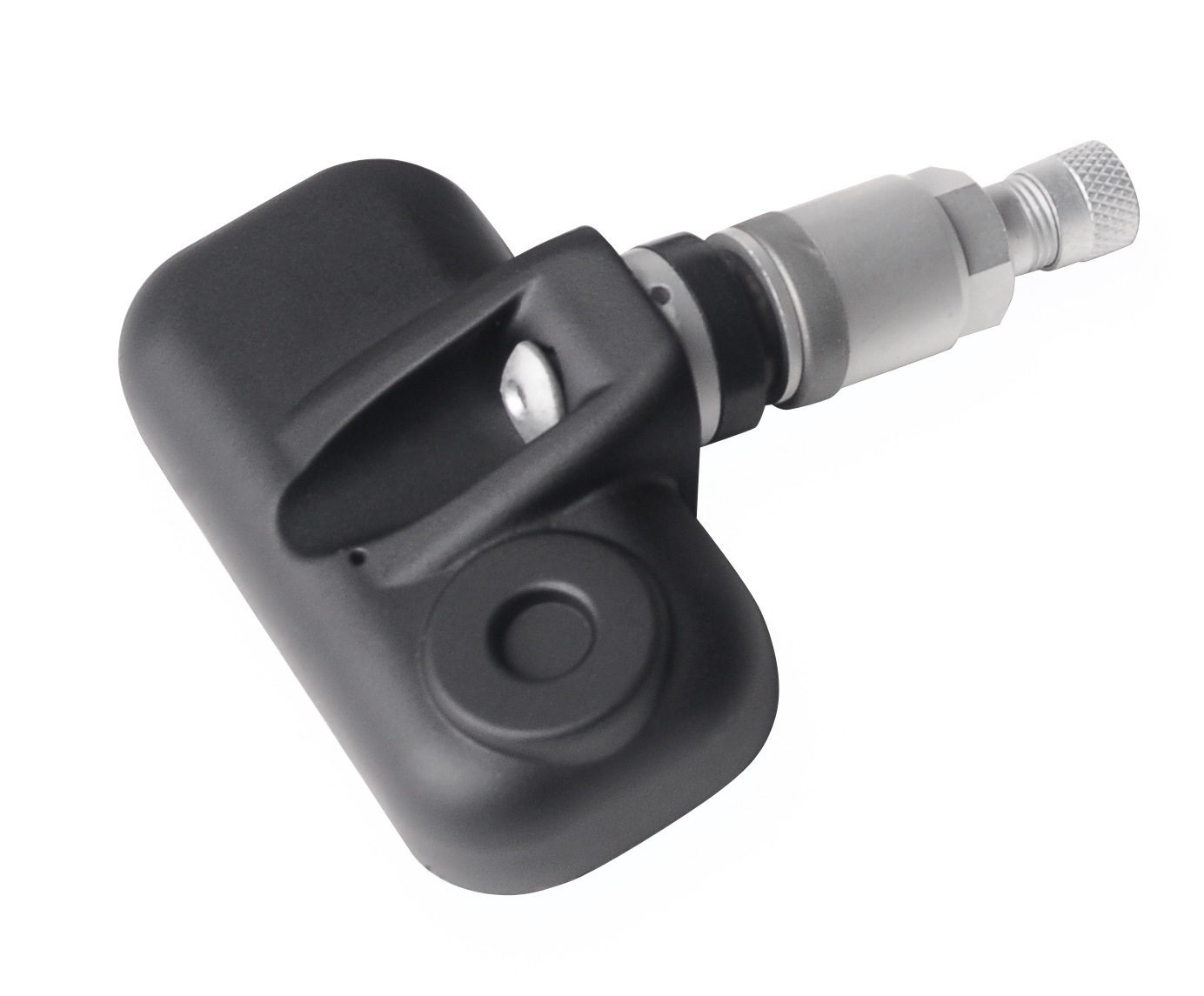

Spare Part - TPMS Sensor for TP-09 Internal Tyre Pressure Monitoring System for Trucks Caravans

This premium sensor can be added to TP-09 and TP-10

$53.00
RRP $55.95
SAVE $2.95 (5%)

Item Number: TP-09S

In Stock

One 433.92MHz Masten Valve Sensor is a Premium, High-End TPMS (Tyre Pressure Monitoring System) with color LCD display

Have Questions? Contact Us Here

Calculate Shipping


Sensor Specifications:

Working temperature: - 30 ℃ ~ 120 ℃

Storage temperature: - 40 ℃ ~ 125 ℃

Pressure accuracy: + / - 1.5 PSI (0.1 bar) -

Temperature accuracy: + / - 3 ℃

Transmission power: < 10 DBM

Transmission frequency: 433.92 MHz

Battery life: 5 years

Size: 60 31 (W) (L) * * 21 (H) mm



Weight: 48 g

User Manual:

https://www.dropbox.com/s/zglqy8v9ojqo0jv/TP-09.pdf?dl=0



Install Guide:

Internal Sensors

https://www.dropbox.com/s/9jmm8ptr0ga99c2/internal%20sensor%20install.jpg?dl=0



External Cap Sensors

https://www.dropbox.com/s/5mk9gdc8qdcs3k8/External%20Sensor%20Installation.jpg?dl=0

https://www.dropbox.com/s/99y23qlv93dhsdg/External%20Sensor%20Battery%20Replacement%20Process.jpg?dl=0



FAQ's:

Will this system work with my In Dash Car DVD?

Yes. If your current system has an RCA camera input, and a trigger line input (used for sending power from the reverse lamp to the stereo), it will work.



What are Tyre Pressure Monitor Systems?

Passenger vehicles in the 1980s and today is a mandatory feature in the United States.

Benefits of a Masten TPMS?



The dynamic behavior of a pneumatic tire is closely connected to its inflation pressure. Key factors like braking distance and lateral stability require the inflation pressures to be adjusted and kept as specified by the vehicle manufacturer. Extreme under-inflation can even lead to thermal and mechanical overload caused by overheating and subsequent, sudden destruction of the tire itself. Additionally, fuel efficiency and tire wear are severely affected by under-inflation. Tires do not only leak air if punctured, they also leak air naturally, and over a year, even a typical new, properly mounted tire can lose from 20 to 60 kPa (3 to 9 psi), roughly 10% or even more of its initial pressure.

The significant advantages of TPMS are summarized as follows:

Fuel savings: According to the GITI, for every 10% of under-inflation on each tire on a vehicle, a 1% reduction in fuel economy will occur. In the United States alone, the Department of Transportation estimates that under inflated tires waste 2 billion US gallons (7,600,000 m3) of fuel each year.

Extended tire life: Under inflated tires are the #1 cause of tire failure and contribute to tire disintegration, heat buildup, ply separation and sidewall/casing breakdowns. Further, a difference of 10 lbs. in pressure on a set of duals literally drags the lower pressured tire 13 feet per mile. Moreover, running a tire even briefly on inadequate pressure breaks down the casing and prevents the ability to retread. It is important to note that not all sudden tire failures are caused by under-inflation. Structural damages caused, for example, by hitting sharp curbs or potholes, can also lead to sudden tire failures, even a certain time after the damaging incident. These cannot be proactively detected by any TPMS.

Decreased downtime and maintenance: Under-inflated tires lead to costly hours of downtime and maintenance.

Improved safety: Under-inflated tires lead to tread separation and tire failure, resulting in 40,000 accidents, 33,000 injuries and over 650 deaths per year. Further, tires properly inflated add greater stability, handling and braking efficiencies and provide greater safety for the driver, the vehicle, the loads and others on the road.

Environmental efficiency: Under-inflated tires, as estimated by the Department of Transportation, release over 57.5 billion pounds of unnecessary carbon-monoxide pollutants into the atmosphere each year in the United States alone.

6 Good Reasons to Install a TPMS

1. Prevent tire puncture

When the tire is high or low, or high temperature, the system will send a trigger warning in time to reduce the puncture possibility

2. Tire leaking warning

When the tire is leaking, the system will immediately send a trigger warning

3. Reduce tire wear

It will accelerate tire wear when the tire pressure is too high or too low. Keep the tire pressure correct to extend tire life.

4. Tire balance

Vehicle deviation will easily occur if tires are unbalanced. Maintain the pressure balance of the 4 tires to improve vehicle handling and shorten the braking distance

5. Save fuel

When the tire pressure is low, the fuel consumption will be increased due to the high rolling resistance of the tire.

6. Govenment Legislation

In 2007 the US government legislated the mandatory installation of TPMS to new vehicles.

In 2012, 27 countries in the European Union plus Japan and Korea legistalted the mandatory installation of a TPMS to new vehicles.

In 2016, China, Australia and several South East Asian countries will legislate the mandatory installation of TPMS to new vehicles.

SKU TP-09S
Barcode # 792019218353
Brand Masten
Shipping Weight 0.4900kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Assembled Width 0.050m

2 Year Warranty on Module

1 Year Warranty on Sensors
