MASTEN 3D 360 Degree View

Supports 3 Different Car/Van Sizes including VW Sprinter and so on.

  • 5.5 x 2M
  • 6.5 x 2.5M
  • 7.5 x 2.5M

Masten 3D 360 Degree Full Around View Camera System with:

  • Intelligent Masten-Engineered Clever-Stitch Algorithm
  • 4 x High Definition Masten Ultra-Wide Angle Cameras
  • DVR Camera Recorder (16GB will take 8 hours of recording and 32GB around 16 hours)
  • G-Sensor to record if your car is knocked while parked



Features

• Four 180 degrees ultra wide fish-eye cameras
• Seamless video merging based on dual core ARM CPU and hardware high efficiency
acceleration engine.

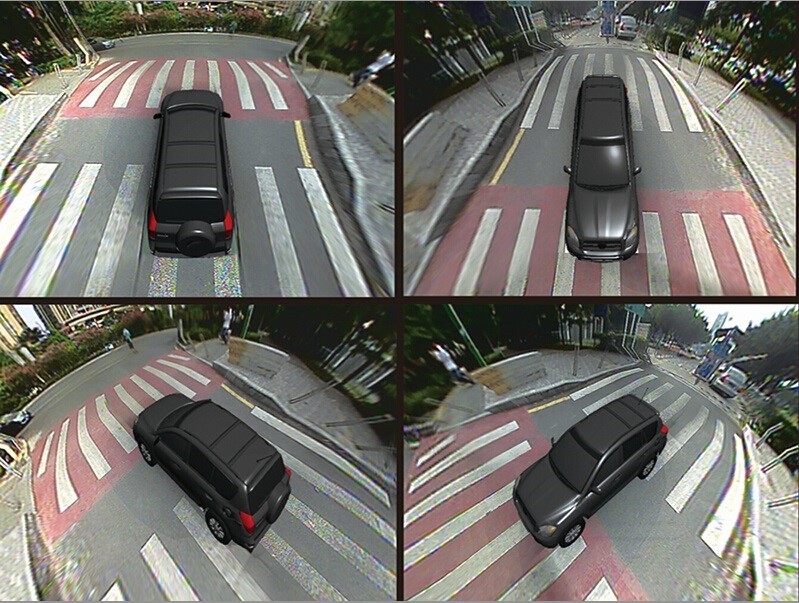

• Arbitrary and dynamic 3D mode view angle switching for better surrounding envi-
ronment observation
• Independent Fish-eye calibration parameter and algorithm for each camera.
• Pixel statistic engine for auto-brightness and balance for all four cameras.
• 3D video de-interlacing and noise reduction technology for CVBS signal decoding.
• Support alternative recording media for TF card and USB disk
• The simplest calibration steps with calibration tape and packing box,and system
applicable for almost all types of vehicle which including Buses, Trucks, Lorries, Limou-
sines, Typical length of the vehicle is 5.5m, 6.5m.
• Smart power managements to save automobile’s battery
• High video recording resolution up to 1080p
• OE quality for main chipset with well protected circuit and devices in order to
achieve the best system performance and stability.

Short description

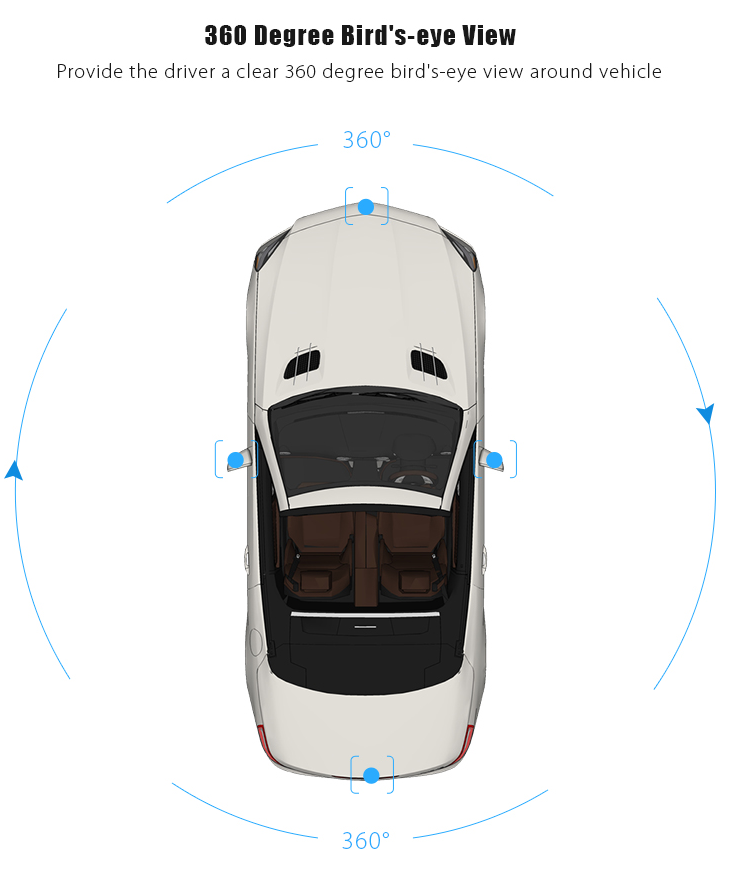

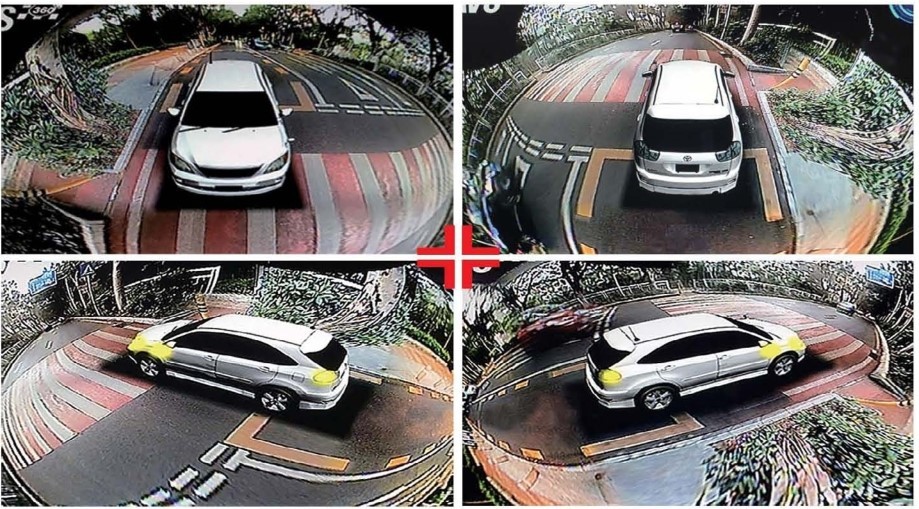

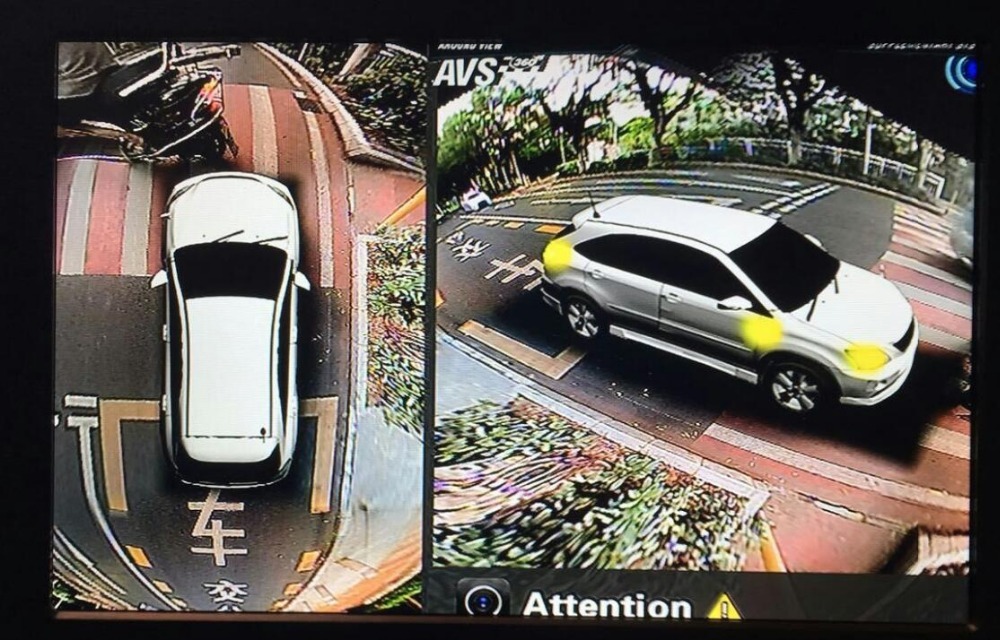

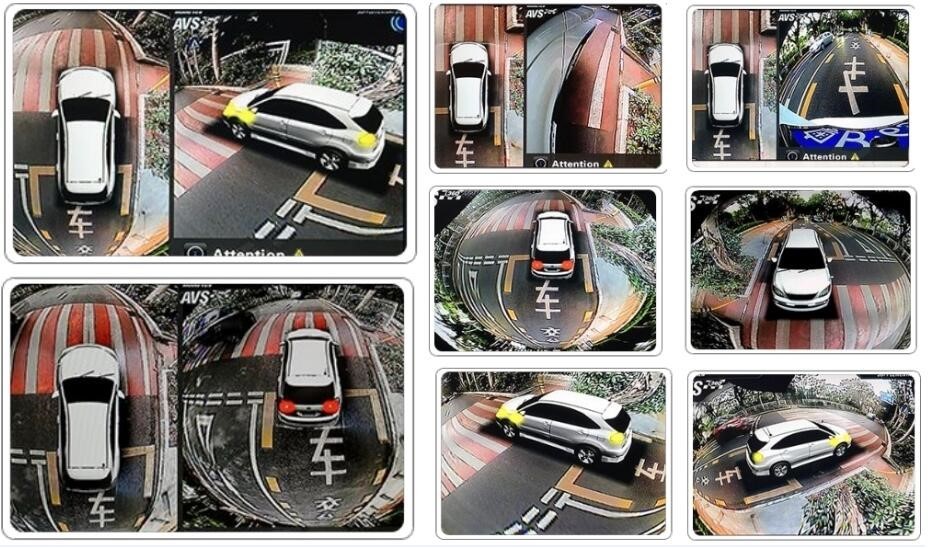

The Masten 3D 360 Degree Surround View Monitoring System Utlises Four High Definition 180 degree Ultra Wide angle fish eye cameras with Advanced Masten-Engineered Auto-Stitching Technology. The Decoder Box combines images from the four cameras to give you a unique 3D seamless and panoramic bird's eye view image on your car monitor screen.

DIG Options has become the "Installer's Choice" for car audio equipment. We listen to our customers so that they keep listening with us. DIG Options provide the automotive electronics, dash kits, cables, adapters and more so you can keep your vehicle updated with the latest technology.

Cameras from DIG Options are vigorously tested in harsh Australian conditions and backed by an Australian 24 month warranty.

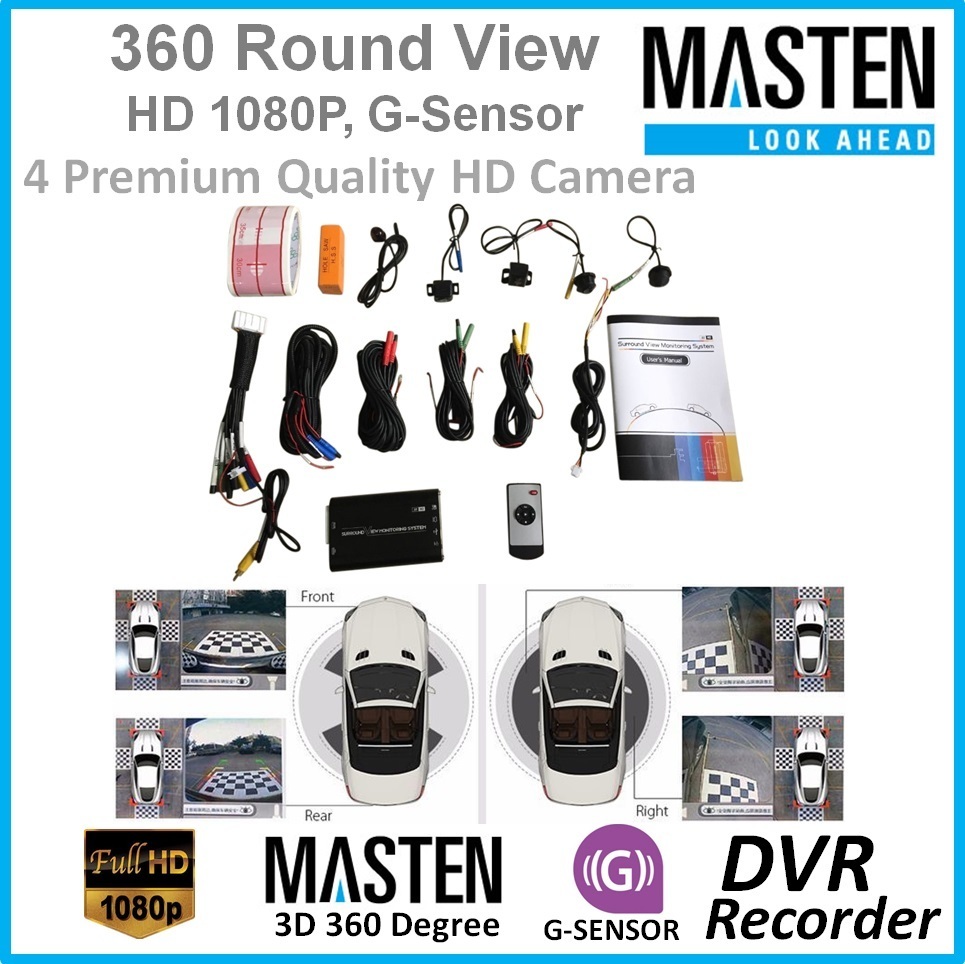

What's Included

This product is a full, ready to go system; all you need is the monitor (also available from Masten):

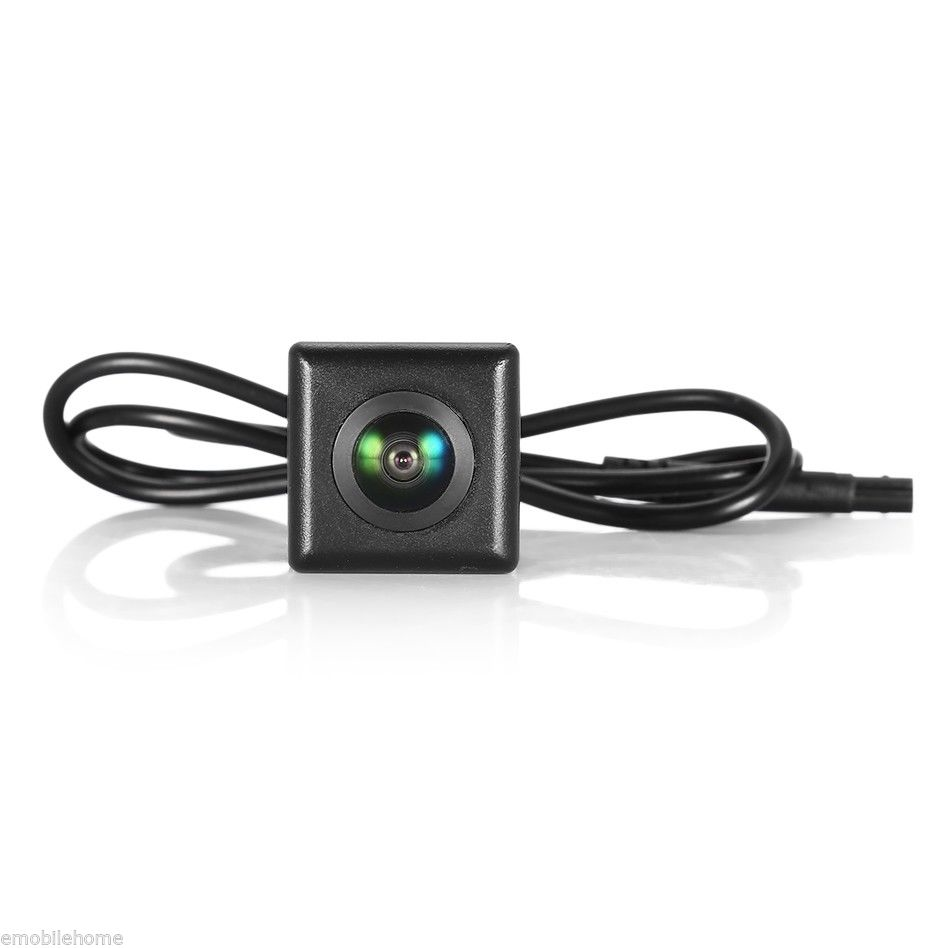

  • 4 Premium Quality HD Cameras with 180 degree Ultra Wide Angle
  • Interface Module with Crash Cam Recorder and G-Sensor
  • All wiring and cables
  • Hole Saw
  • Remote Control

Key Features of the Masten Around View System

G-Sensor Function:
The system will enter into standby mode after the engine is switch off within 1 minute. After 1 minute the system of the engine being switched off the Masten Around View System switches into Sleep Mode. If the Around View System feels a knock, collision, vandalism, and/or vibration, the the system will start to record the footage of the four cameras placed around your viehicle.

Vehicle Compatibility

This part is suitable for all vehicles. Please note that due to this being an aftermarket accessory, some minor work may be required however, you will end up with a good result.



Looking for a Premium Navigation DVD Bluetooth IN-DASH System? Checkout our store categories for a suitable solution or contact us.

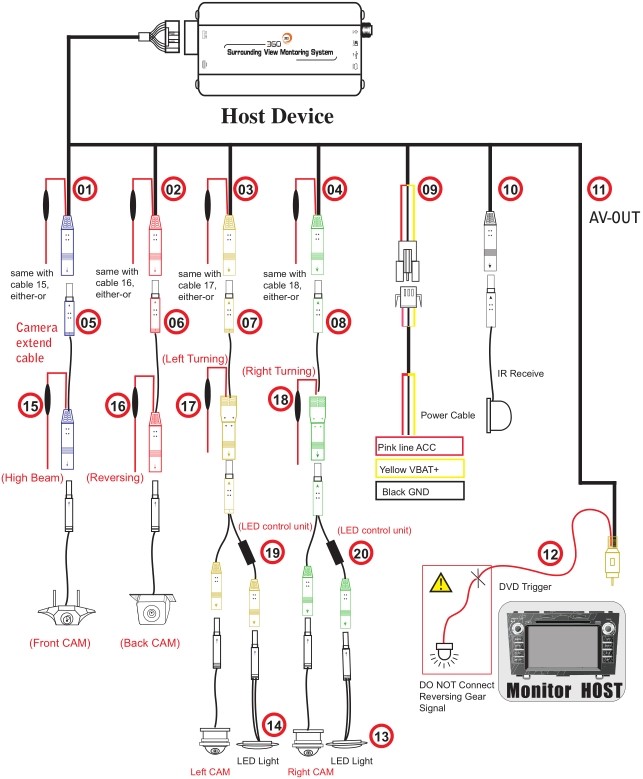

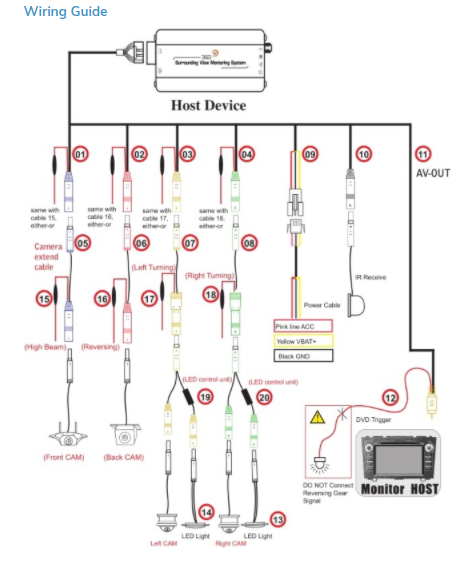

Wiring Guide



Calibration Guide

Please click here to view the Calibration Guide which is required for all vehicles after installation.

/assets/files/3D Camera Calibration User's Manual Rev1_0.pdf

Other Accessories for your Vehicle are in our store including:

  1. Plug and Play Premium Integrated Navigation DVD Bluetooth System
  2. Fascia Stereo Surround
  3. Premium Reverse Camera
  4. In-Car Entertainment Monitors
  5. Dash Removal Tools
  6. Tyre Pressure Monitor Systems
  7. Off Road Navigation Software
  8. Home Electronics and much more



UPDATE



Total Pixels 976 (H) X 496(V)
Effect Pixels 960 (H) X 480 (V)
Pixel size 5.00 um X 7.40 um
Image Area 4.88 mm X 3.67 MM
Image Sensor 1/3 inch CCD
Resolution 720TV
Dark Signal 48.8[mv/sec]@60℃
Illuminance 9.67[V/Lux.sec]
Max Gain 0.5-16 Times
Datarate Both:27 MB / S
NTSC :60 MB/S
PAL :50 MB/S
Power Supply 12V DC (3.3V  IN)
Current 3.3V/60mA,  12V/120mA
Capacity 〈350mw
Working Temperature –30°C to 80°C
Store Temperature –50°C to +105°C
S/N Ratio >45.3dB
Pixel dynamic range  > 63.2dB
IP Rating IP67
Lens Angle 130 degree (Horizontal) ; 170 degree (diagonal)
SKU AV-360-B
Barcode # 2000000001883
Brand Masten
Shipping Weight 3.0000kg
Shipping Width 0.100m
Shipping Height 0.300m
Shipping Length 0.100m
Assembled Width 0.100m

2 YEAR WARRANTY
