IMPORTANT. This camera uses a Sony Image Sensor component. The quality of image is what you would expect from Sony but without the high price tag for Sony Branded cameras. This is a Masten branded camera.

Dome CCD, HD Camera, Waterproof, Rear View, Night Vision, Heavy Duty, Wi-Fi, Voice Control, SD Card, Wireless, Motion Sensor, Security Cam, Auto Tracking, Compatible, High Resolution, weather proof, greater range, clear viewing, LED lights

Premium full-colour quality doesn't come at a premium price with the new range of Masten Heavy Duty Cameras with a world-class 2 year Replacement Warranty.


Product Description

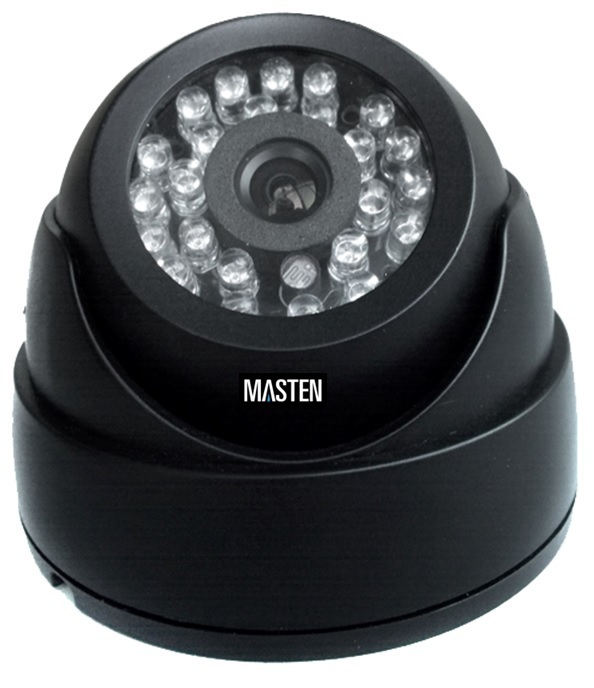

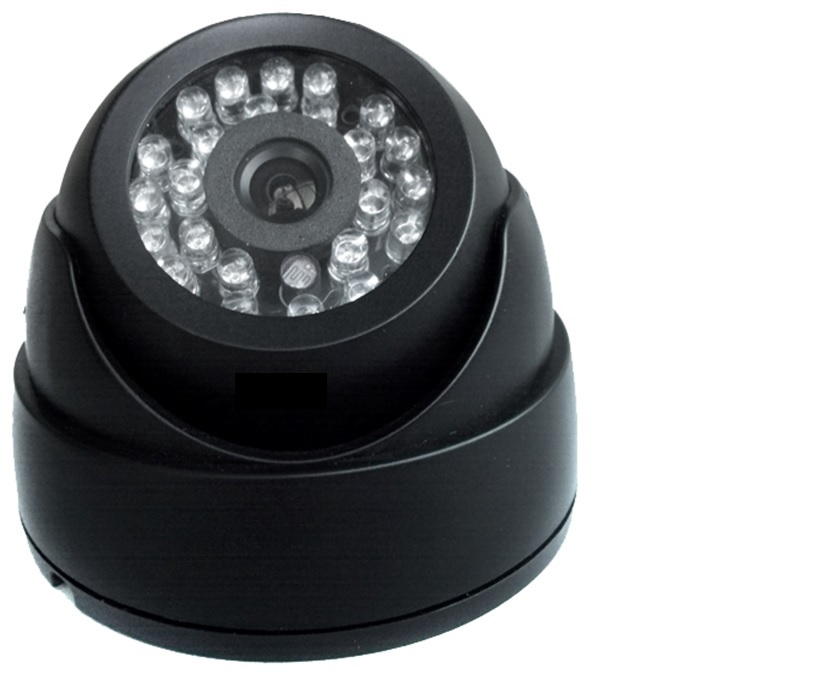

Camera Style: Dome
Camera Image Sensor: Sony CCD 700 TV Lines of Resolution
Camera Colour: Black
Waterproof Rating Certification: IP68
Infrared Night Vision LED Lights: Yes - 24 LEDs
Night Vision Distance: 10 metres
Viewing Angle: 120°
White Balance Sensor: Yes
Application: Ideal for Caravans and Motor Homes

VIdeo Format: PAL

  • World-class and Certified Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications
  • Stylish Design available in White or Black
  • PixelPerfect® High-Grade image sensors feature 420 TV Lines with Masten CMOS Image Sensor or massive 700 TV Lines with Sony® 1/4 CCD Sensor for clear viewing in day and night (check Specs)
  • Perfectly adjusted viewing angle for safer reversing and more accurate imagery
  • Safer driving at night with the built-in high quality infrared LED lights and long range viewing distance
  • Wide working temperature of Working temperature: -20°C~70°C.
  • Unique IR-CUT effectively avoids color aberration in daylight
  • Equipped with a White Balance sensor which enables the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor
  • Suitable for all applications including buses, mini vans, caravans, trailers, trucks, agriculture equipment and much more

Unbeatable Melbourne-Based 2-Year Warranty!


Understanding reverse cameras

The difference between CMOS cameras and CCD cameras can be likened to the difference between analogue and digital. CCD cameras deliver a sharper picture with more image lines and delivers clearer night vision in extremely low light conditions.

Although a super wide viewing angle such as 180° is appealing, it should be noted that a wider angle distorts the image and provides insufficient depth of field. For safer and optimum performance 92°-120° should only be considered.


Copyright® DIG Options 2015

Critical Specifications
Description: Premium CMOS Metal Dome Camera

Premium CCD Metal Dome Camera

Also Available

Image Device: CMOS 1/4 SONY CCD
Resolution: 420TV lines 700TV lines
Lens: 2.5mm 2.5mm
Lens Angle: 120 Degrees 120 Degrees
Infrared LED light: 24 LEDs 24 LEDs
IR Distance: 10m 10m
Waterproof Rating: IP68 IP68

Technical Specifications
TV System: PAL/ NTSC PAL/ NTSC
Manual Mirror Image Switch N/A N/A
Effective Pixels: 512 x 582 pixels / 512 x 492 pixels  512 x 582 pixels / 512 x 492 pixels
Sensing Area: 3.6mm x 2.7mm 3.6mm x 2.7mm
Scanning System: 2:1 Interlace 2:1 Interlace
Sync. System: Internal Internal
Horizontal Sync. Frequency: 15.625 KHz / 15.734KHz 15.625 KHz / 15.734KHz
Vertical Sync. Frequency: 50Hz / 60Hz 50Hz / 60Hz
Minimum Illumination: 0Lux (Infrared lamps on)  0Lux (Infrared lamps on)
0 .1Lux(day) / F1.2 0 .1Lux(day) / F1.2
Video Output: 1.0vp-p, 75Ohm 1.0vp-p, 75Ohm
Gamma Consumption: 0.45 0.45
AGC: Auto Auto
S/N Ratio: Better than 48dB Better than 48dB
White Balance: Auto Auto
Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto Auto
Shell material: Aluminum alloy Aluminum alloy
Current Consumption: Max. 220mA Max. 220mA
Power Supply: DC12V DC12V
Operating Temperature: -20°C~70°C , RH95% MAX -20°C~70°C , RH95% MAX
Storage Temperature: -40°C~80°C,RH95% MAX -40°C~80°C,RH95% MAX
Dimensions : 90mm Diameter x 75mm Height 90mm Diameter x 75mm Height
SKU RC-DC03-B
Barcode # 729436060814
Brand Masten
Shipping Weight 0.3500kg
Shipping Width 0.093m
Shipping Height 0.099m
Shipping Length 0.074m
Assembled Width 0.093m

2 Year Replacement Warranty
