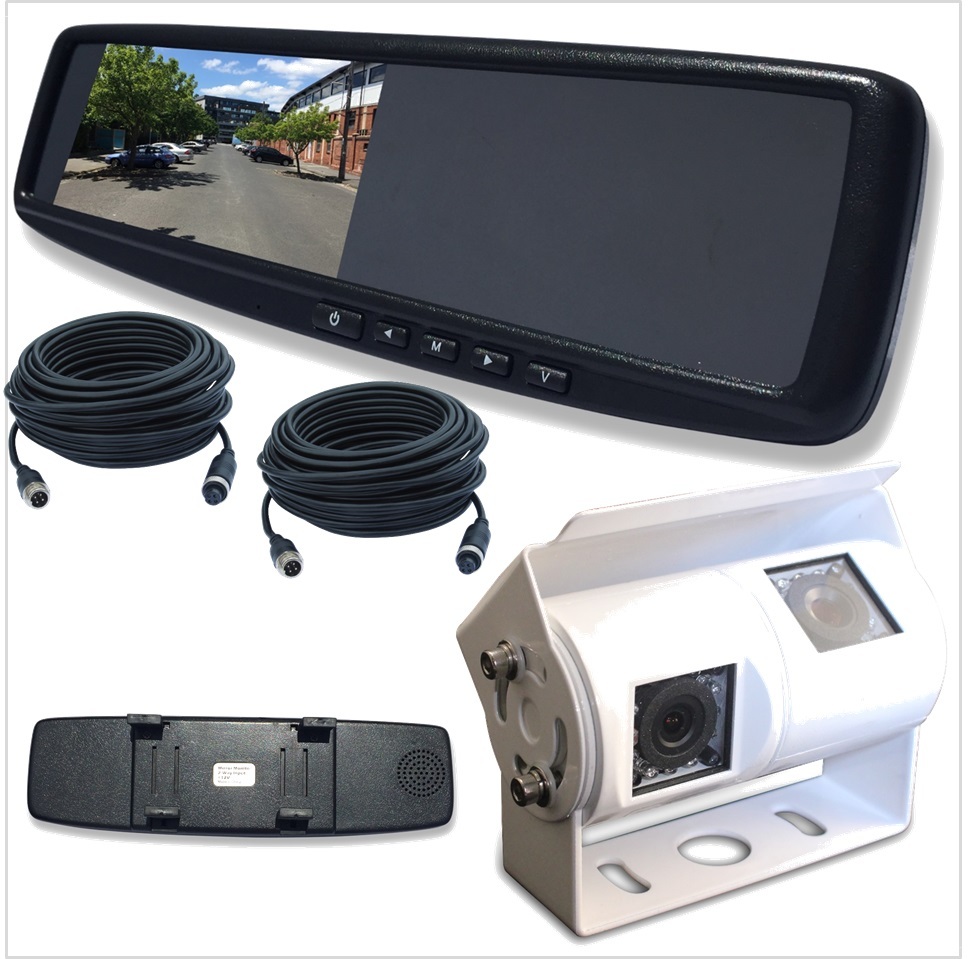

This premium rear camera safety kit combines versatile and durable cables with a 4.3" full colour replacement mirror monitor and heavy duty dual CCD camera,  this kit is a one-stop shop for all your needs.

This kit includes:

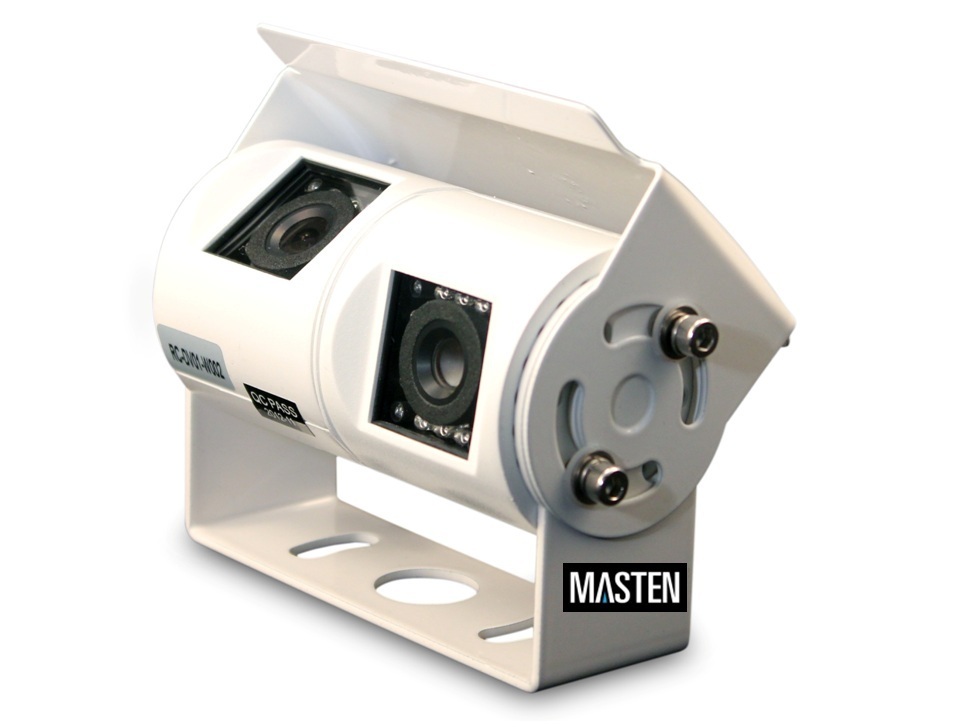

Heavy Duty Twin View Masten White Rear Camera

Camera Style: Dual Camera Housing / Dual View Heavy Duty
Camera Image Sensor: Sony 1/4 CCD 700 TV Lines of Resolution
Camera Colour: White
Waterproof Rating Certification: IP69K
Infrared Night Vision LED Lights: Yes - 30 LEDs
Night Vision Distance: 15 metres
Viewing Angle: 120° and 45°
White Balance Sensor: Yes
Application: Ideal for Caravans, Trucks and Motor Homes

  • World-class and Certified Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications
  • Stylish Design available in White or Black
  • PixelPerfect® High-Grade image sensors feature 420 TV Lines with Masten CMOS Image Sensor or massive 700 TV Lines with Sony® 1/4 CCD Sensor for clear viewing in day and night (check Specs)
  • Perfectly adjusted viewing angle for safer reversing and more accurate imagery
  • Safer driving at night with the built-in high quality infrared LED lights and long range viewing distance
  • Wide working temperature of Working temperature: -20°C~70°C.
  • Unique IR-CUT effectively avoids color aberration in daylight
  • Equipped with a White Balance sensor which enables the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor
  • Suitable for all applications including buses, mini vans, caravans, trailers, trucks, agriculture equipment and much more


7.5m 4-Pin Shielded Camera Extension Cable (Twin)

Industrial-grade Shielded 4-Pin DIN extension cables from DIG Options are the ideal choice when looking for a long lasting Rear View Camera Video/Audio/Power cable.
The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.
This cable combines video, audio and power within the same wire and is designed to simplify the rear view camera installation process.
Ideal for connecting cameras to monitors for a range of applications: cars, buses, trucks, farm machinery, mining and much more.

15m 4-Pin Shielded Camera Extension Cable (Twin)

Industrial-grade Shielded 4-Pin DIN extension cables from DIG Options are the ideal choice when looking for a long lasting Rear View Camera Video/Audio/Power cable.
The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.
This cable combines video, audio and power within the same wire and is designed to simplify the rear view camera installation process.
Ideal for connecting cameras to monitors for a range of applications: cars, buses, trucks, farm machinery, mining and much more.

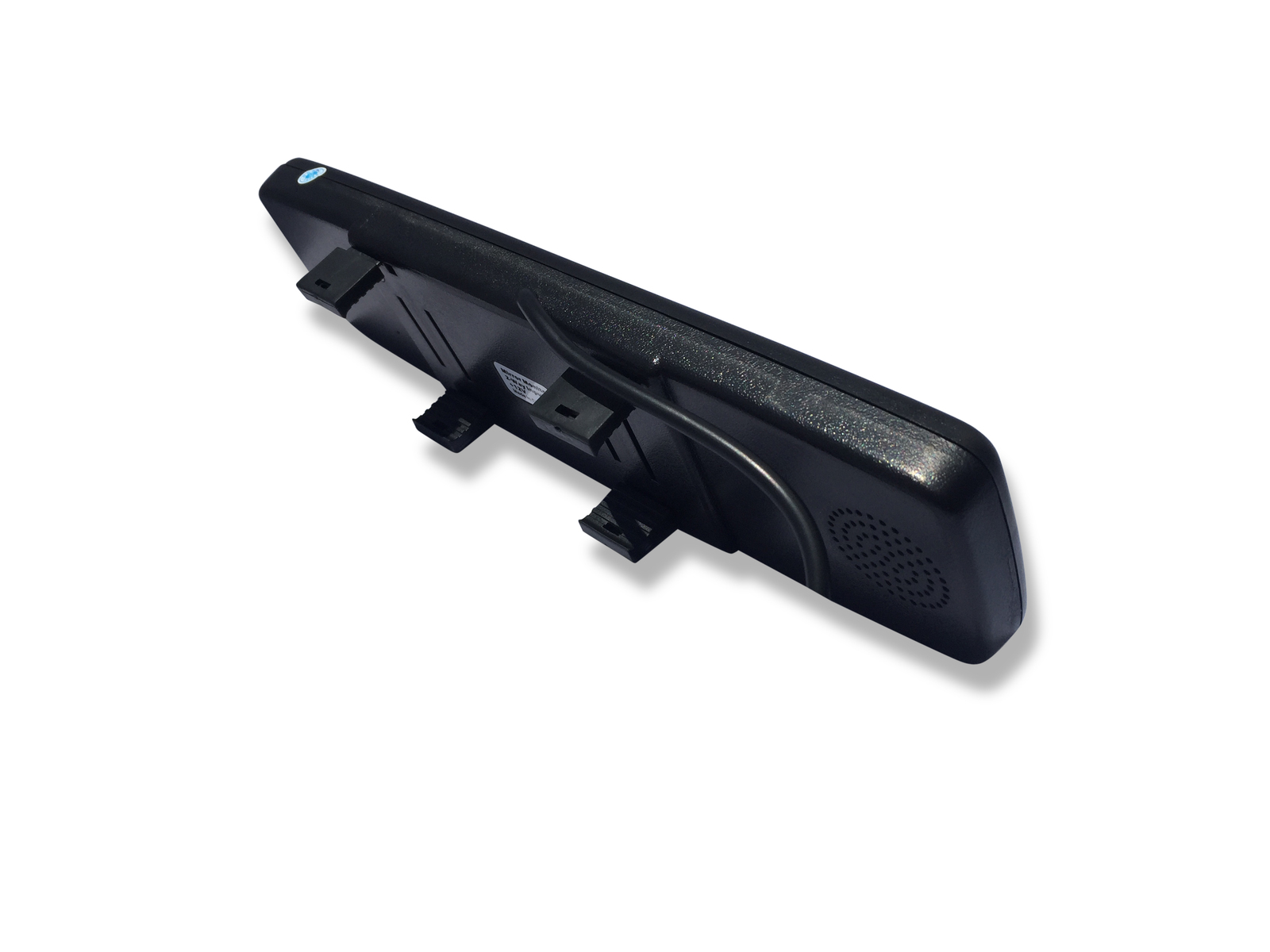

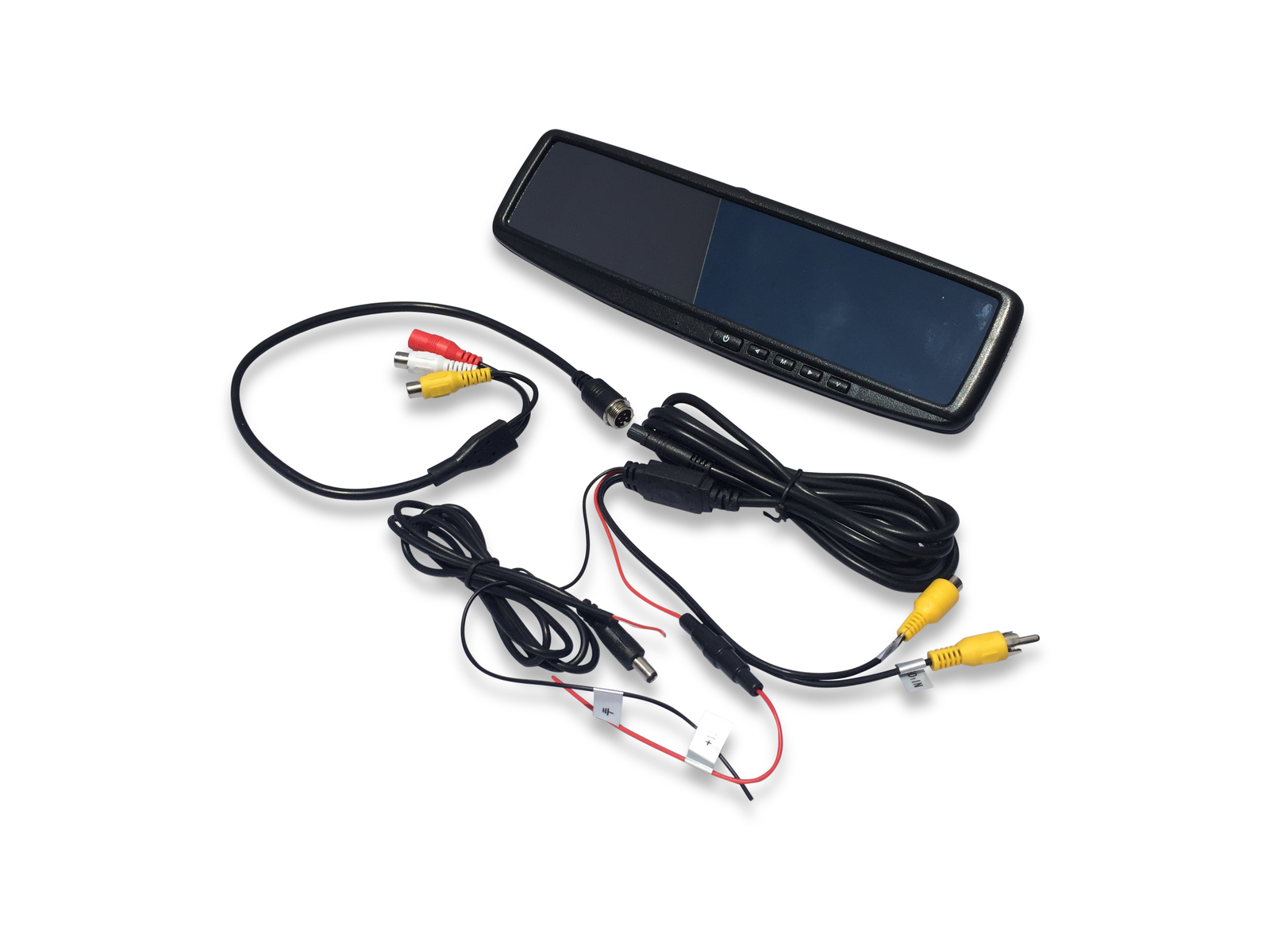

4.3" LCD Replacement Rearview mirror monitor with 2 Inputs - Universal Clip-on Style

The Premium Masten Rear View Camera Mirror replacement displays your camera image conveniently to the side of a highly reflective mirror. Avoid the clutter of screens on your dash, by simply upgrading your existing mirror to the Masten rear view camera mirror and connecting to power. The screen can be switched on automatically when your vehicle is put into reverse or can be left on while driving. Also features 2 Inputs meaning you can add 2 cameras for additional safety.

  • Left-Side 4.3” High-Quality LCD Colour HD Monitor for maximum visibility
  • Large highly reflective mirror
  • 2 Camera Video/Audio Inputs
  • Automatic Camera Display. Both camera inputs have a separate power trigger control wire allowing automatic display of cameras when required. The monitor will automatically switch-over to the image of the corresponding triggered camera, then back to the original mode when the trigger stops
  • Upgraded universal clamps for a durable and quality install
  • 350CD/m2 Bright Upgraded Digital LCD Panel Built-In
  • Convenient Normal/Mirror View switch allows you to assign cameras to a forward facing position (Normal View) or rear facing position (Mirror View) at the touch a button
  • Compatible with PAL and NTSC



Intruction Manual.

Please download by clicking here.

Parts included

  • RC-DV02-W - Masten CCD Heavy Duty Camera White
  • EC-72 - 7.5m 4-Pin Shielded Camera Extension Cable (Single)
  • EC-152 - 15m 4-Pin Shielded Camera Extension Cable (Single)
  • MM-01 Masten Premium 4.3" HD LCD Full Colour Mirror Monitor
  • 2 x EC-4M RCA Adapters



Panel Specifications
Display/Monitor Size: 4.3 Inch
Monitor Panel Type: Digital LCD Panel
Display Colour: Full Colour
Waterproof Rating (with Certification): Not applicable
TV System:  NTSC/PAL AUTO
Resolution: 480 x R.G.B x 272 Pixels
Aspect ratio: 16:9
Viewing angle: U:50°/ D:60°, R/L: 70°
Brightness: 350cd/㎡
Contrast: 500:1
Lattice Distance:
Physical Specifications
Monitor Housing Material: Plastic
Monitor Bracket Type: Clip onto existing mirror
Monitor Bracket Material: High-Grade ABS Plastic
Other Specifications
Mirror Size: 247*53
Built-in Speaker: No
Bilingual Menu System: Yes
Day/Night Mode Switch: NA
Mirror/Natural Camera View Selection: NA
Remote Control: Yes
Working voltage: 12V
DC Power Overload Protection Yes
Working Current: 0.12
Operating Temperature -10℃'~+50℃
Storage Temperature -30℃~+70℃
Operating humidity: 20-85%
Product Net Weight: 0.40KG
Product Dimensions: 275*80*30



Camera Specifications

Critical Specifications
Description:

Premium CMOS Dual Lens/View Camera

Also Available

Premium CCD Dual Lens/View Camera
Image Device: CMOS 1/4 SONY CCD
Resolution: 420TV lines 700TV lines
Lens: 2.5mm 2.5mm
Lens Angle: 120 Degrees / 45 Degrees 120 Degrees / 45 Degrees
Infrared LED light: 30 LEDs 30 LEDs
IR Distance: 15m 15m
Waterproof Rating: IP69K IP69K

Technical Specifications
TV System: PAL/ NTSC PAL/ NTSC
Manual Mirror Image Switch N/A N/A
Effective Pixels: 512 x 582 pixels / 512 x 492 pixels 512 x 582 pixels / 512 x 492 pixels
Sensing Area: 3.6mm x 2.7mm 3.6mm x 2.7mm
Scanning System: 2:1 Interlace 2:1 Interlace
Sync. System: Internal Internal
Horizontal Sync. Frequency: 15.625 KHz / 15.734KHz 15.625 KHz / 15.734KHz
Vertical Sync. Frequency: 50Hz / 60Hz 50Hz / 60Hz
Minimum Illumination: 0Lux (Infrared lamps on)
0 .1Lux(day) / F1.2
0Lux (Infrared lamps on)
0 .1Lux(day) / F1.2
Video Output: 1.0vp-p, 75Ohm 1.0vp-p, 75Ohm
Gamma Consumption: 0.45 0.45
AGC: Auto Auto
S/N Ratio: Better than 48dB Better than 48dB
White Balance: Auto Auto
Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto Auto
Shell material: Aluminum alloy Aluminum alloy
Current Consumption: Max. 180mA Max. 180mA
Power Supply: DC12V DC12V
Operating Temperature: -20°C~70°C , RH95% MAX -20°C~70°C , RH95% MAX
Storage Temperature: -40°C~80°C,RH95% MAX -40°C~80°C,RH95% MAX
Dimensions : 98 (L) ×67 (w) ×82(H) mm 98 (L) ×67 (w) ×82(H) mm
SKU KIT-CAM17-M
Barcode # 729436060487
Brand Masten
Shipping Weight 2.8900kg
Shipping Width 0.060m
Shipping Height 0.300m
Shipping Length 0.170m
Shipping Cubic 0.000350000m3

2 Year Warranty
