7" HD Monitor Premium CCD 700TVL Camera Kit RCA Adapter 7.5 &15m Cable

Heavy Duty Masten White Rear Camera

$270.00
RRP $310.50
SAVE $40.50 (13%)

Item Number: KIT-CAM6-M

In Stock

The best caravan camera on the market.

Have Questions? Contact Us Here

Customise Your Purchase:

Total cost for customisations will be added on the cart page

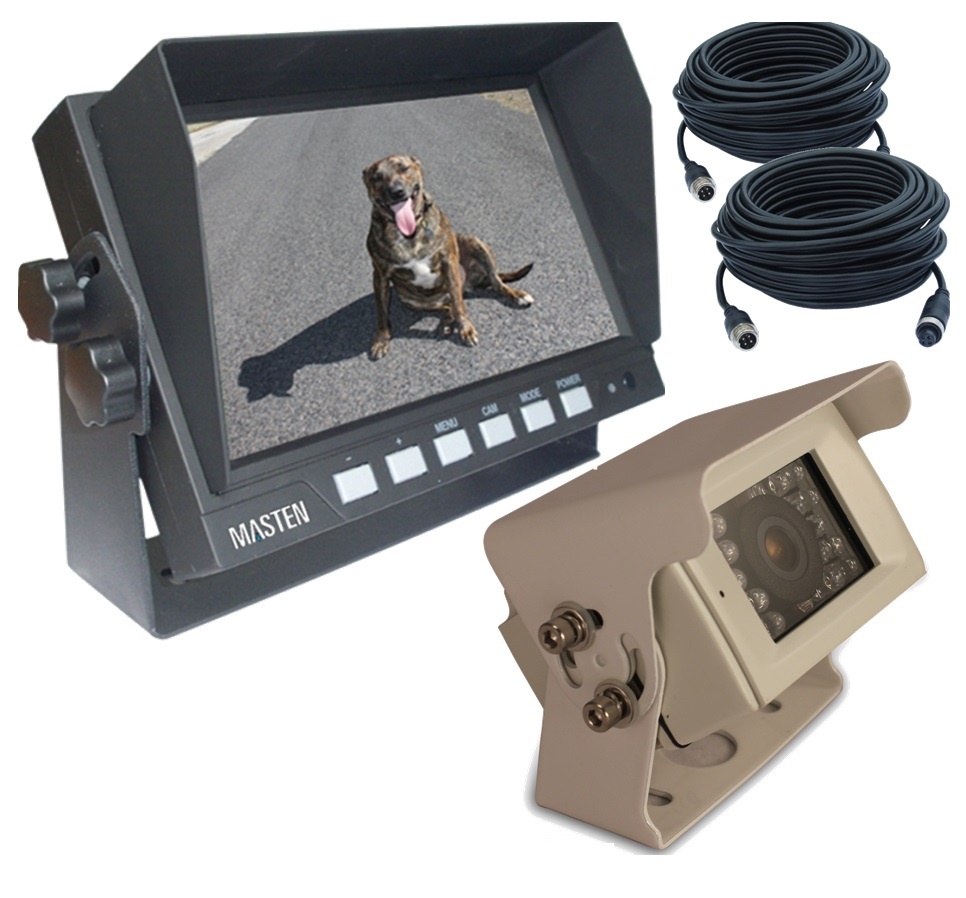

This premium rear camera safety kit combines versatile and durable cables with a 7" full colour monitor and heavy duty CCD camera,  this kit is a one-stop shop for all your needs.

This kit includes:

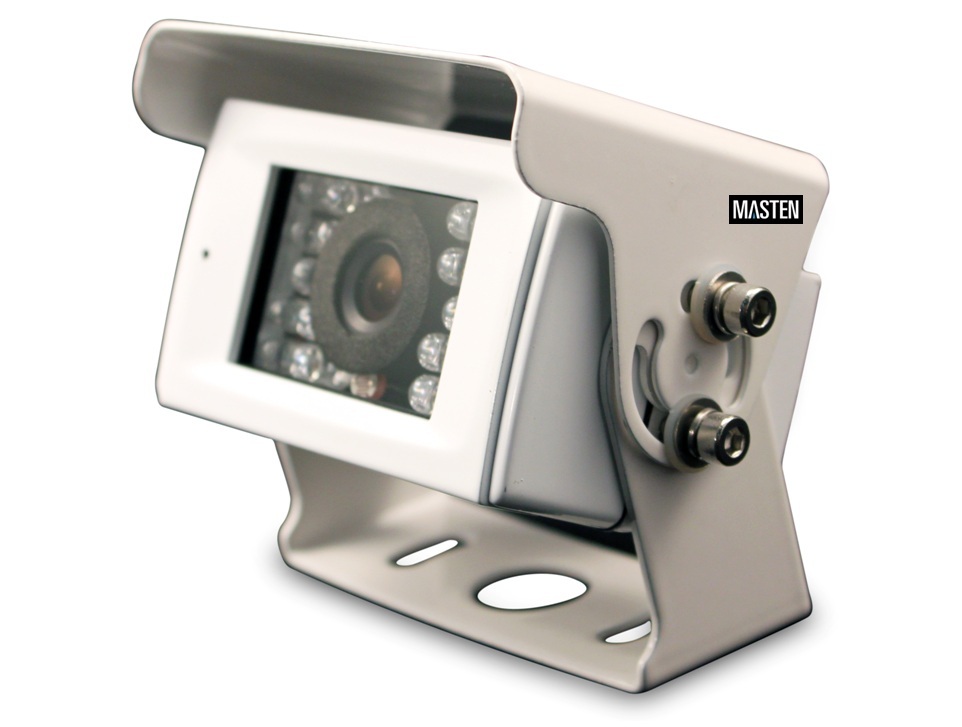

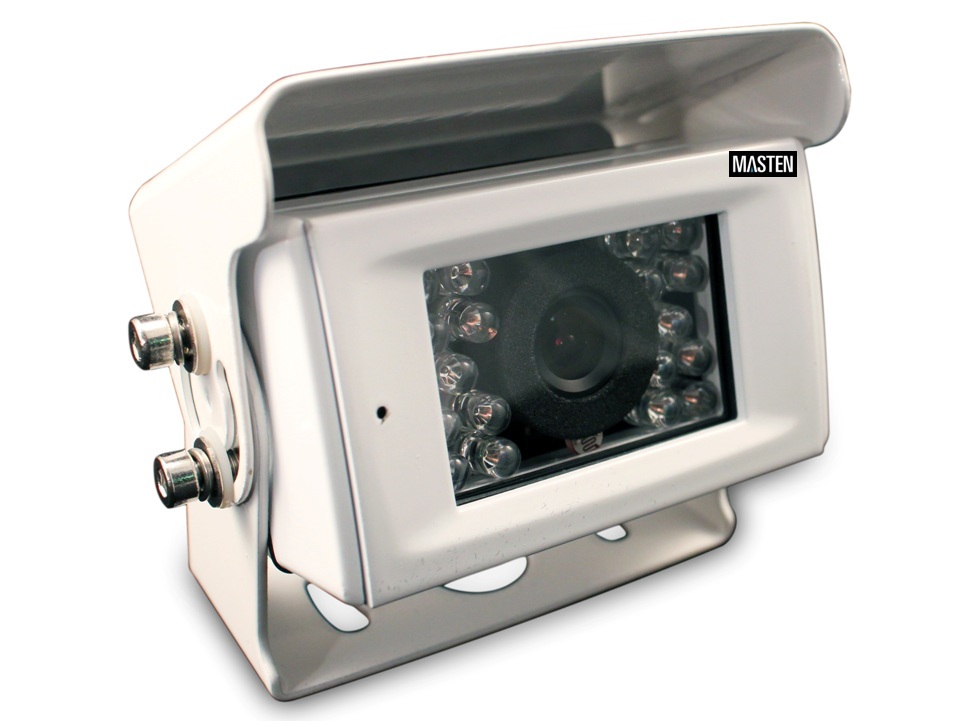

Heavy Duty Masten White Rear Camera

  • World-class and Certified IP69K Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications
  • PixelPerfect® High-Grade image sensors feature 700 TV Lines with Sony® 1/4 CCD Sensor for clear viewing in day and night
  • Perfectly adjusted 120° viewing angle for safer reversing and more accurate imagery
  • Safer driving at night with a long 15m night vision viewing distance supported by 5 infrared LED lights
  • Built to withstand and work in any temperature range between : -20°C~70°C.
  • Unique IR-CUT effectively avoids color aberration in daylight
  • Equipped with a White Balance sensor enabling the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor
  • Industrial-grade 4-Pin Aviation Connectors for a firm, water-tight connection
  • Suitable for all applications including utes, buses, mini vans, caravans, trailers, trucks, agriculture equipment and much more

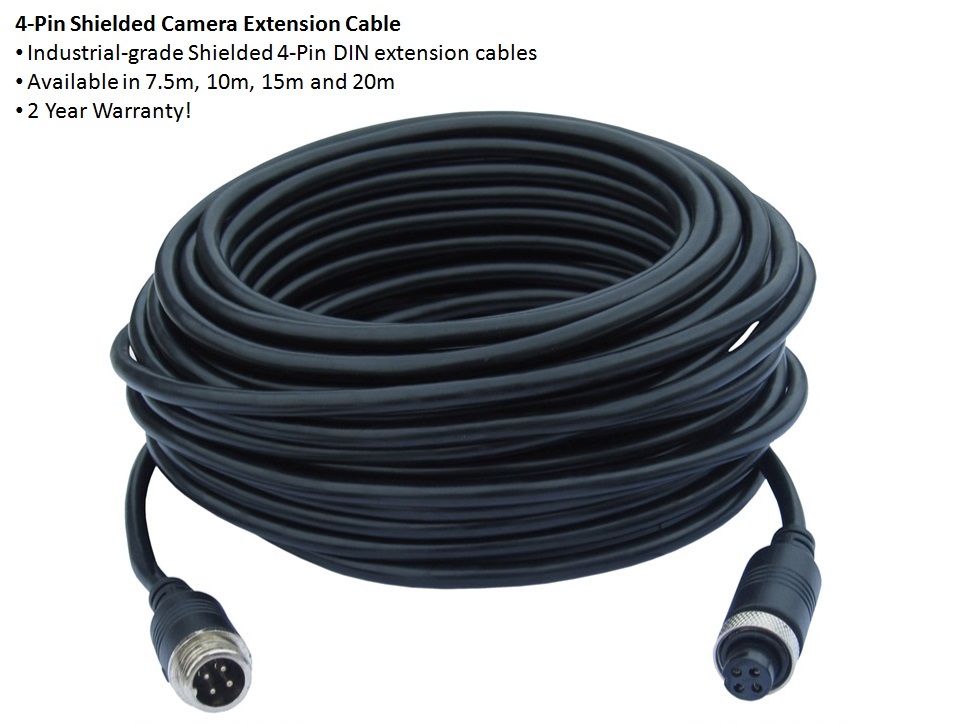

7.5m 4-Pin Shielded Camera Extension Cable (Single)

Industrial-grade Shielded 4-Pin DIN extension cables from DIG Options are the ideal choice when looking for a long lasting Rear View Camera Video/Audio/Power cable.
The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.
This cable combines video, audio and power within the same wire and is designed to simplify the rear view camera installation process.
Ideal for connecting cameras to monitors for a range of applications: cars, buses, trucks, farm machinery, mining and much more.

15m 4-Pin Shielded Camera Extension Cable (Single)

Industrial-grade Shielded 4-Pin DIN extension cables from DIG Options are the ideal choice when looking for a long lasting Rear View Camera Video/Audio/Power cable.
The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.
This cable combines video, audio and power within the same wire and is designed to simplify the rear view camera installation process.
Ideal for connecting cameras to monitors for a range of applications: cars, buses, trucks, farm machinery, mining and much more.

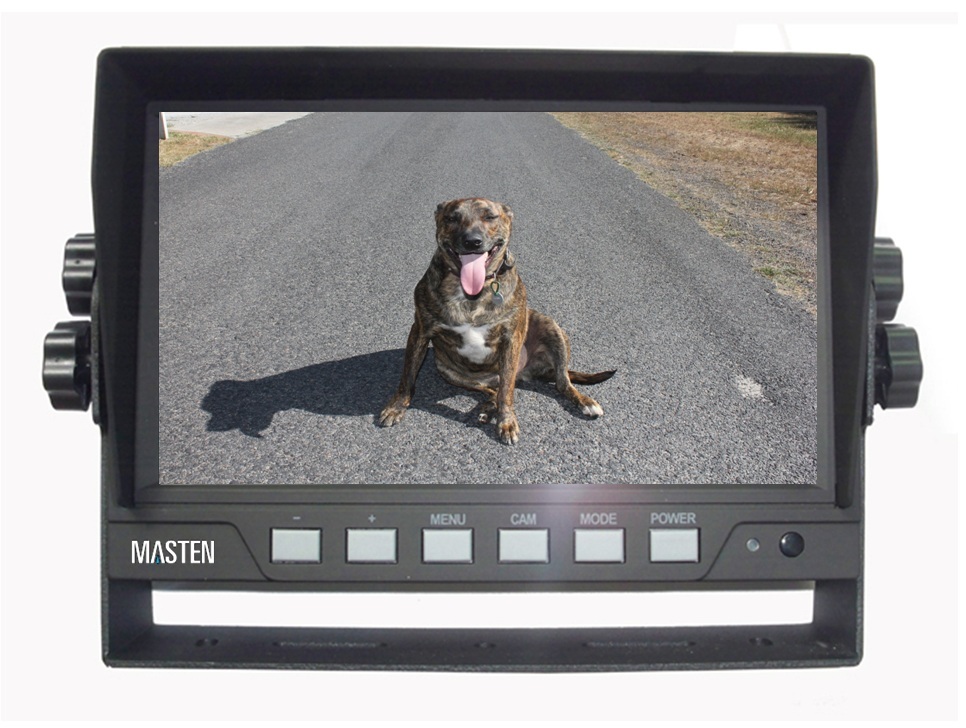

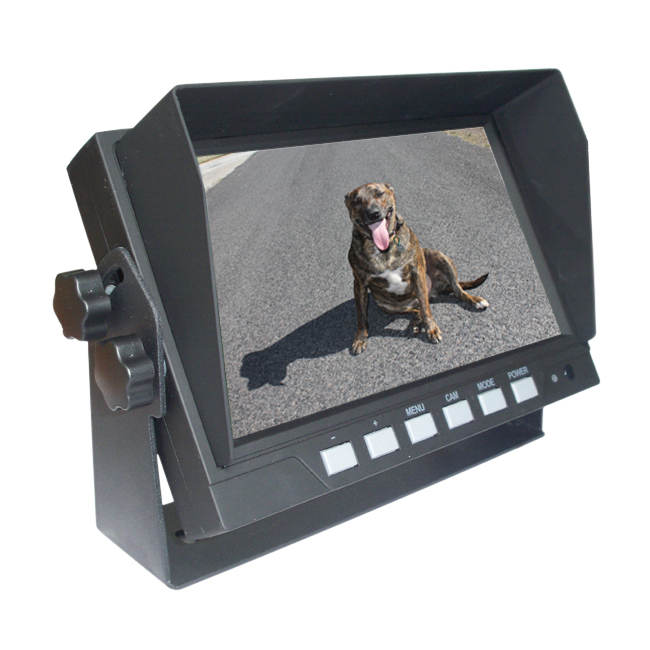

Masten Premium 7” HD LCD Full Colour Monitor

  • 7” High-Quality LCD LED Colour Monitor with Highl Resolution for maximum visibility
  • 2 Camera Video/Audio Heavy-Duty 4-Pin Inputs for a secure connection
  • Separate power trigger control wire for each camera allowing automatic display of cameras when required. The monitor will automatically switch-over to the image of the corresponding triggered camera, then back to the original mode when the trigger stops
  • Convenient Normal/Mirror View switch allows you to assign cameras to a forward facing position (Normal View) or rear facing position (Mirror View) at the touch a button
  • Convenient Day/Night Mode Switch
  • Adjustable trigger camera view (0-4 seconds) for each camera
  • Built-in Speaker perfect for linking your Masten Premium Camera with Audio for greater safety
  • Compatible with PAL and NTSC
  • Neat hideaway proprietary Masten module allows you to hide all the connections behind the dash
  • Masten Steel Pro Fit Universal Mounting System for a secure fit that won’t budge
  • Multi-language On-Screen Display
  • Working Voltage 12V-32V for greater application compatibility without the need for expensive adapters


Parts included

  • Masten CCD Heavy Duty Camera White                                                    - RC-HD06-W
  • 7.5m 4-Pin Shielded Camera Extension Cable (Single)                                  - EC-71
  • 15m 4-Pin Shielded Camera Extension Cable (Single)                                   - EC-151
  • Masten Premium 7" HD LCD Full Colour Monitor                                           - RCM-71
Camera Specifications (Sony CCD Camera also available from Dig Options)
Critical Specifications
Description: Premium CMOS Heavy Duty Camera (optional) Premium CCD Heavy Duty Camera - Included in this kit
Image Device: CMOS 1/4 SONY CCD
Resolution: 420TV lines 700TV lines
Lens: 2.5mm 2.5mm
Lens Angle: 120 Degrees 120 Degrees
Infrared LED light: 18 LEDs 18 LEDs
IR Distance: 15m 15m
Waterproof Rating: IP69K IP69K
Audio Microphone: Yes Yes
Technical Specifications
TV System: PAL/ NTSC PAL/ NTSC
Manual Mirror Image Switch Yes Yes
Effective Pixels: 512 x 582 pixels / 512 x 492 pixels 512 x 582 pixels / 512 x 492 pixels
Sensing Area: 3.6mm x 2.7mm 3.6mm x 2.7mm
Scanning System: 2:1 Interlace 2:1 Interlace
Sync. System: Internal Internal
Horizontal Sync. Frequency: 15.625 KHz / 15.734KHz 15.625 KHz / 15.734KHz
Vertical Sync. Frequency: 50Hz / 60Hz 50Hz / 60Hz
Minimum Illumination: 0Lux (Infrared lamps on)
0 .1Lux(day) / F1.2 0Lux (Infrared lamps on)
0 .1Lux(day) / F1.2
Video Output: 1.0vp-p, 75Ohm 1.0vp-p, 75Ohm
Gamma Consumption: 0.45 0.45
AGC: Auto Auto
S/N Ratio: Better than 48dB Better than 48dB
White Balance: Auto Auto
Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto Auto
Shell material: Aluminum alloy Aluminum alloy
Current Consumption: Max. 180mA Max. 180mA
Power Supply: DC12V DC12V
Operating Temperature: -20°C~70°C MAX -20°C~70°C MAX
Storage Temperature: -40°C~80° MAX -40°C~80° MAX



General Monitor Specifications

Display/Monitor Size: 7 Inch
Monitor Panel Type: Digital LCD LED Panel
Display Colour: Full
Waterproof Rating (with Certification): NA
Camera Inputs: 2
Quad Camera View: NA
TV System:  NTSC/PAL
Resolution: 800 X 3 X(RGB)X 480 Pixels
Aspect ratio: 16:09
Viewing angle: U: 50°/ D:60°, R/L:70°
Brightness: 400cd/.
Contrast: 500:01:00
Lattice Distance: 0.192(H) x 0.1805(V)
Monitor Housing Material: Plastic
Monitor Bracket Type: Dash Mount
Monitor Bracket Material: Iron
Camera Connection Type: Industrial-Grade 4-Pin Connectors
Automatic Camera Display: Yes - 2 Cameras via Trigger Line from Power Source
Built-in Speaker: Yes - Requires connected camera to have microphone
Bilingual Menu System: Yes - English, Dutch, French, Portuguese, Spanish, Russian and German
Day/Night Mode Switch: Yes - Manually
Mirror/Natural Camera View: Yes - Switchable for each camera
Remote Control: Yes
Working voltage: 12-32V
DC Power Overload Protection: Yes
Working Current: 800MA (with 2 came
Operating Temperature  -10℃~+65℃
Storage Temperature  -30℃~+80℃
Operating humidity: 10%
Product Net Weight: 1KG

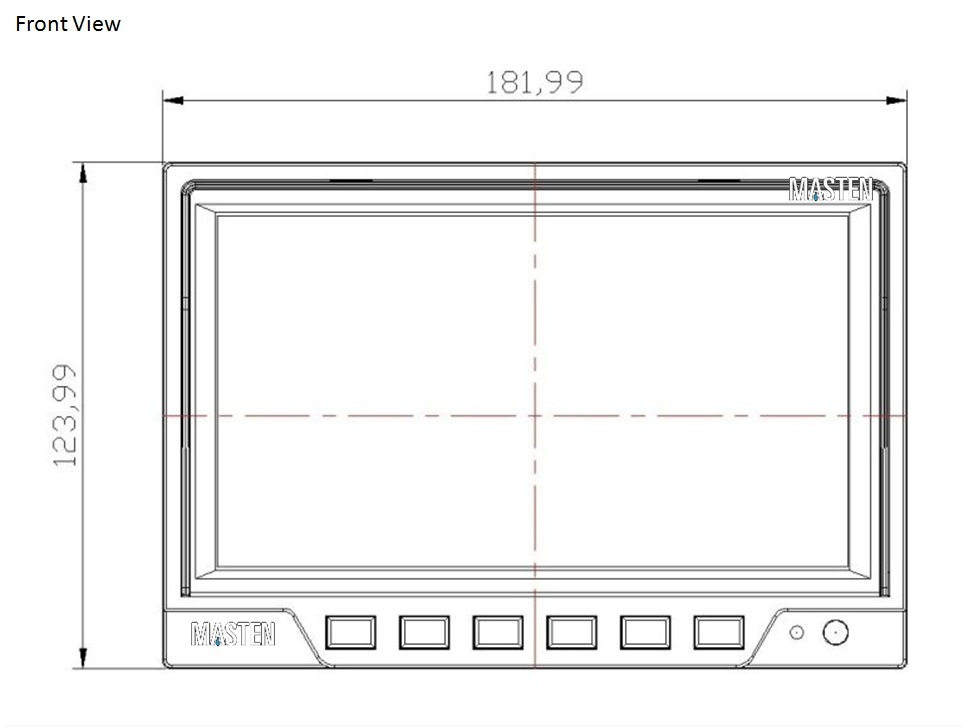

Product Dimensions: 182mm*99mm*124mm

SKU KIT-CAM6-M
Barcode # 729436059993
Brand Masten
Shipping Weight 2.0000kg
Shipping Width 0.265m
Shipping Height 0.070m
Shipping Length 0.198m
Shipping Cubic 0.003673000m3

Unbeatable Masten 2 Year Replacement Warranty
