4 Channel/Camera Video and Audio Recording DVR Drive Recorder with GPS, 1TB HDD, 4 x CCD Cameras

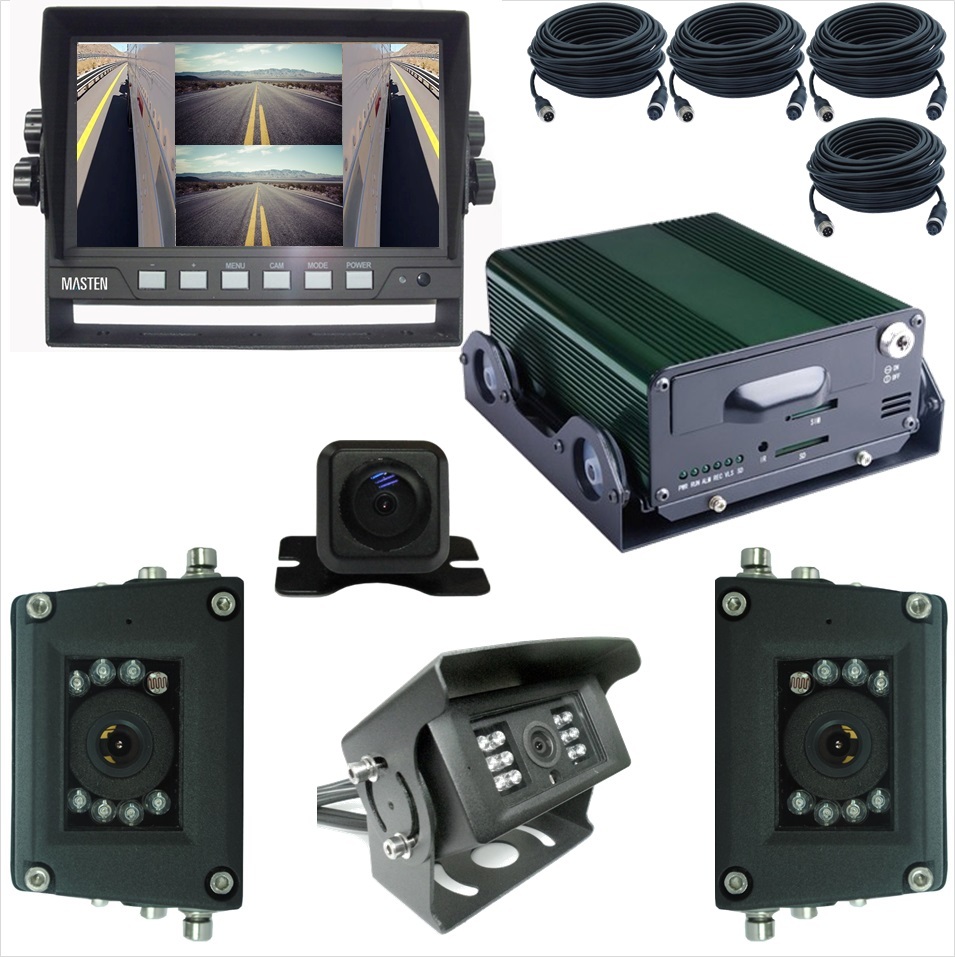

Kit Includes:

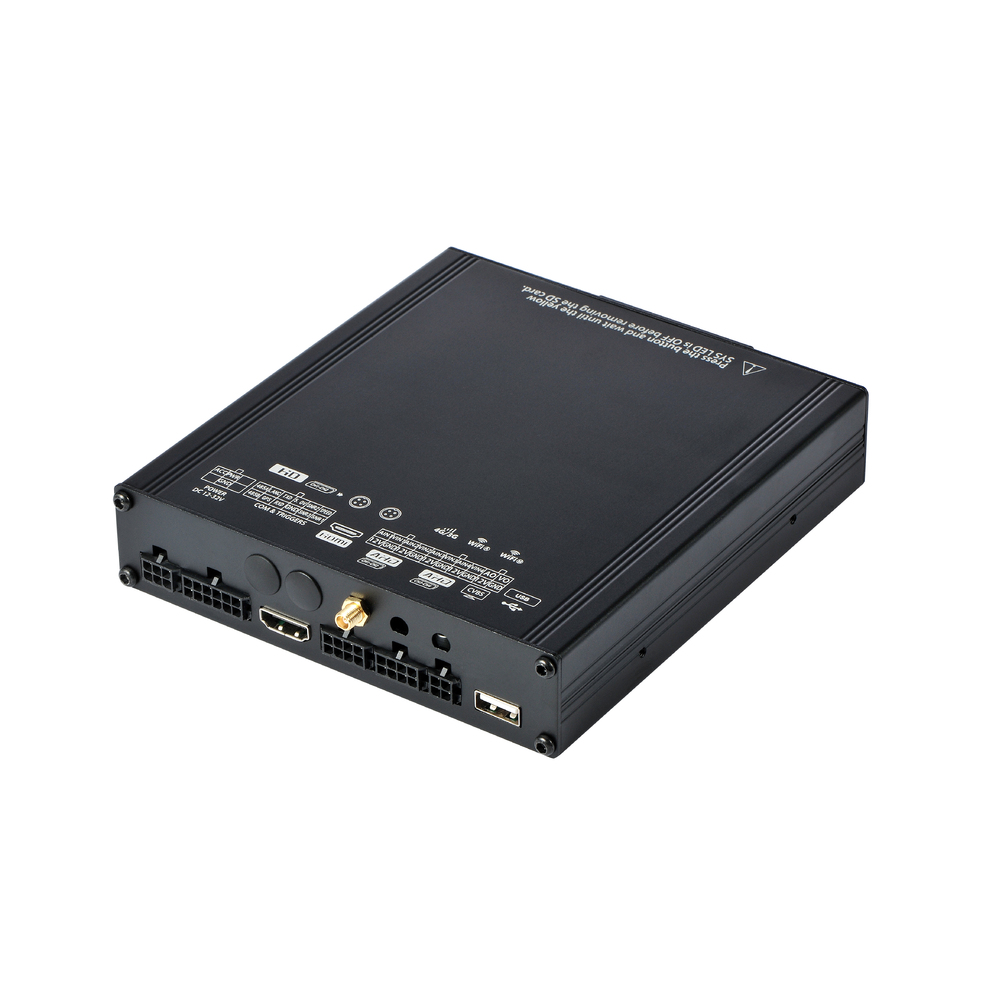

1. 4CH Car Mobile DVR with Wifi 3G GPS + Remote Control
2. 2 x CCD 700TVL Heavy Duty Waterproof Night Vision Side Mount Cameras (with Sony CCD Image Sensor)
3. 1 x CCD 700TVL Heavy Duty Waterproof Night Vision Rear View Camera (with Sony CCD Image Sensor)
4. 1 x CCD Mini 720TVL Waterproof Front View Camera (with Sony CCD Image Sensor)
5. 1 x 5M Video Cable for Front Mini Camera

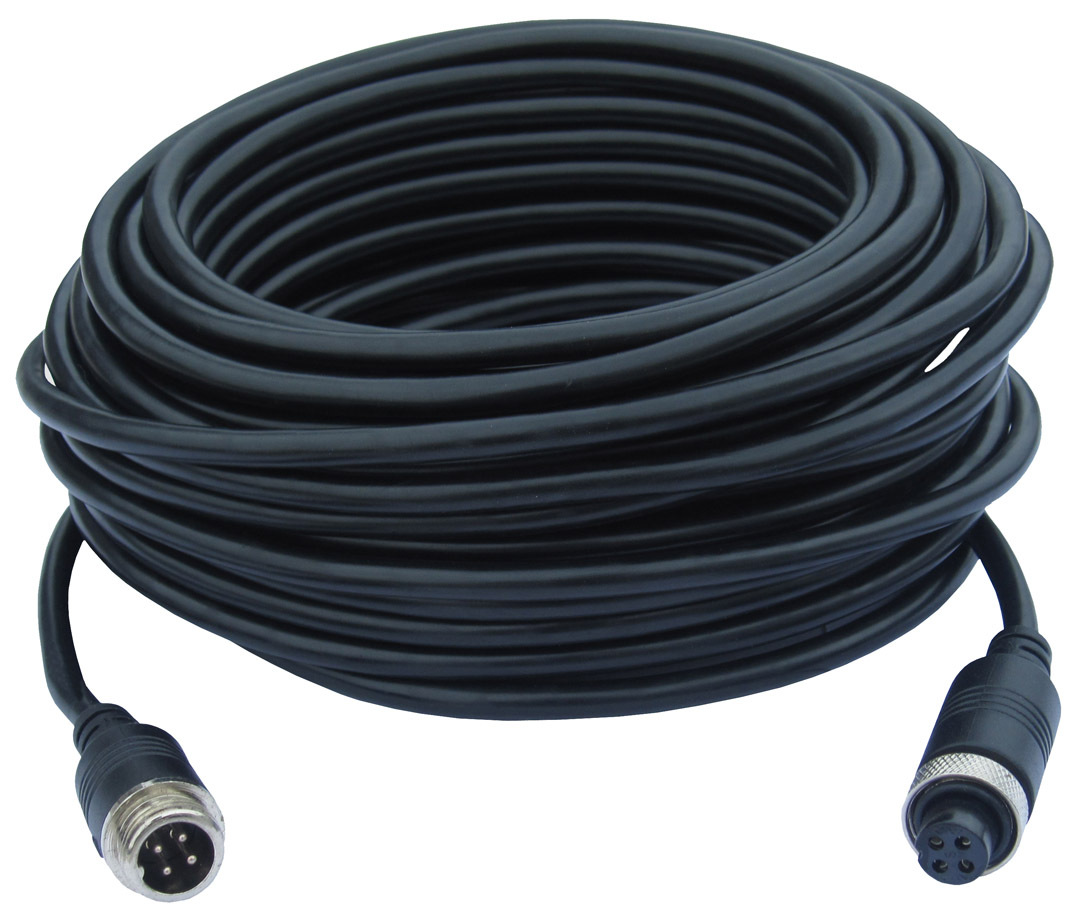

6. 2 x 7M 4Pin Male to Female Video Power Cable with Heavy Duty Aviation Style Plugs
7. 1 x 15M 4Pin Male to Female Video Power Cable with Heavy Duty Aviation Style Plugs

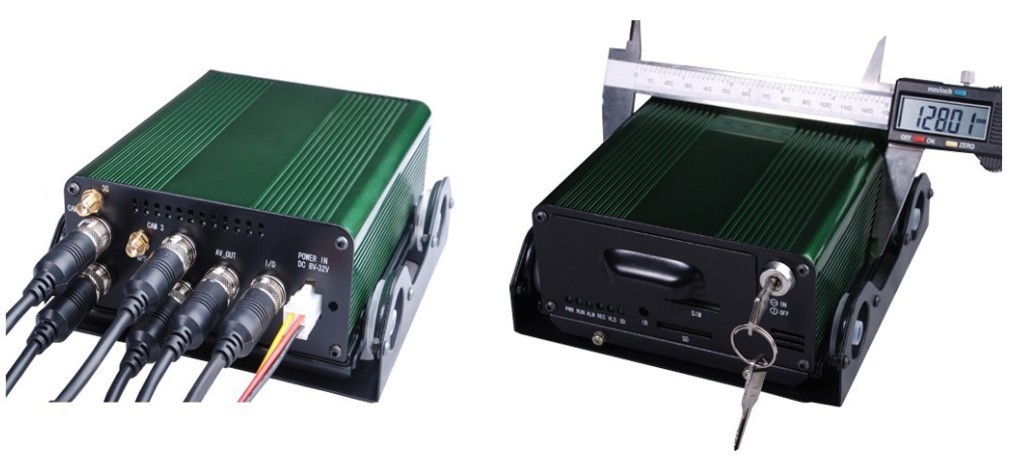

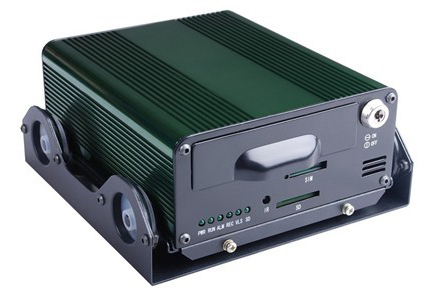

4CH Truck/Bus/Caravan DVR Drive Recorder Description

Video Format: 1D1(25fps) + 3CIF(25fps)

Alarm output: 1 alarm output

Compression: H.264

Transmission: Built-in 3G model

Data Storage: 1TB HDD Included

Special Features: Motion Detection/ timer switch/ alarm recording

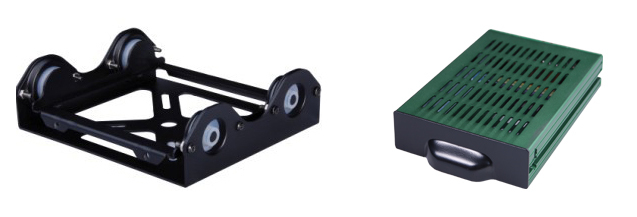

Shock Proof: Dual shockproof

Operating Environment: -35C to 85C

Power Voltage: DC8-36V

Application: Ideal for Caravans, Trucks, Mining, Farming and more

Recorder Features:

• Seamless Recording technology.
• Supports also SD card (not included) up to 64GB - greater shock resistance compared to hard disk
• Supports Four 4pin video and audio connectors
• Support IR remote control - Included
• Special design of encrption to protect recorded files
• Supports wide range of voltage input from 8V to 36V

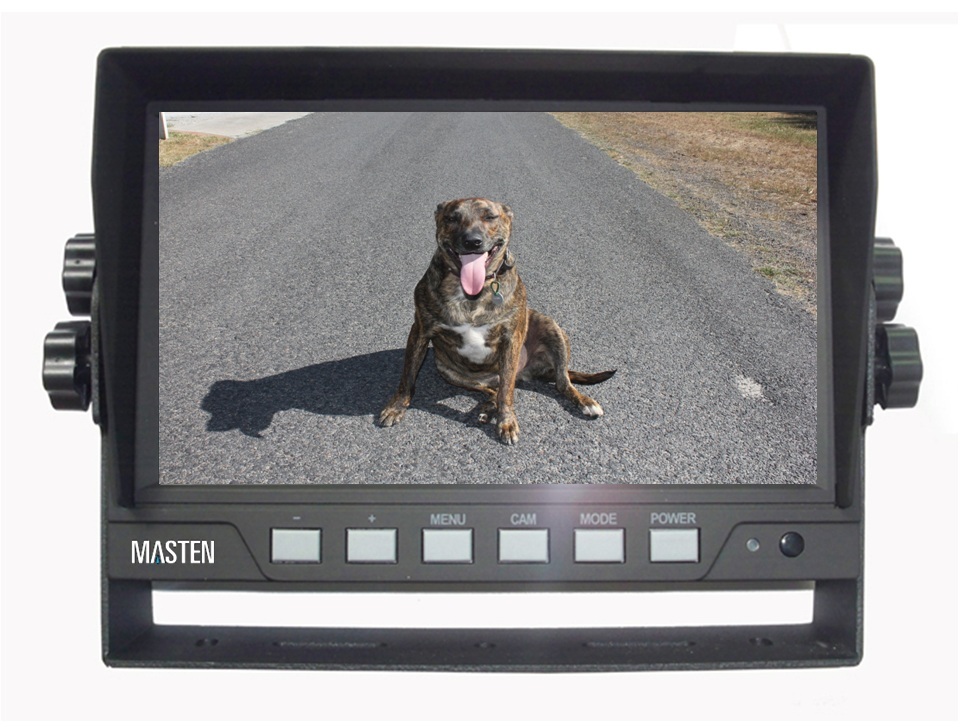

Masten Premium 7” HD LCD Monitor Description

• 7” High-Quality LCD LED Colour Monitor with 800 x 480 Pixel Resolution for maximum visibility
• 2 Camera Video/Audio Heavy-Duty 4-Pin Inputs for a secure connection
• Separate power trigger control wire for each camera allowing automatic display of cameras when required. The monitor will automatically switch-over to the image of the corresponding triggered camera, then back to the original mode when the trigger stops
• Convenient Normal/Mirror View switch allows you to assign cameras to a forward facing position (Normal View) or rear facing position (Mirror View) at the touch a button
• Convenient Day/Night Mode Switch
• Adjustable trigger camera view (0-4 seconds) for each camera
• Built-in Speaker perfect for linking your Masten Premium Camera with Audio for greater safety
• Compatible with PAL and NTSC
• Neat hideaway proprietary Masten module allows you to hide all the connections behind the dash
• Masten Steel Pro Fit Universal Mounting System for a secure fit that won’t budge
• Multi-language On-Screen Display
• Working Voltage 12V-32V for greater application compatibility without the need for expensive adapters
• Unbeatable Melbourne-Based 2-Year Warranty!

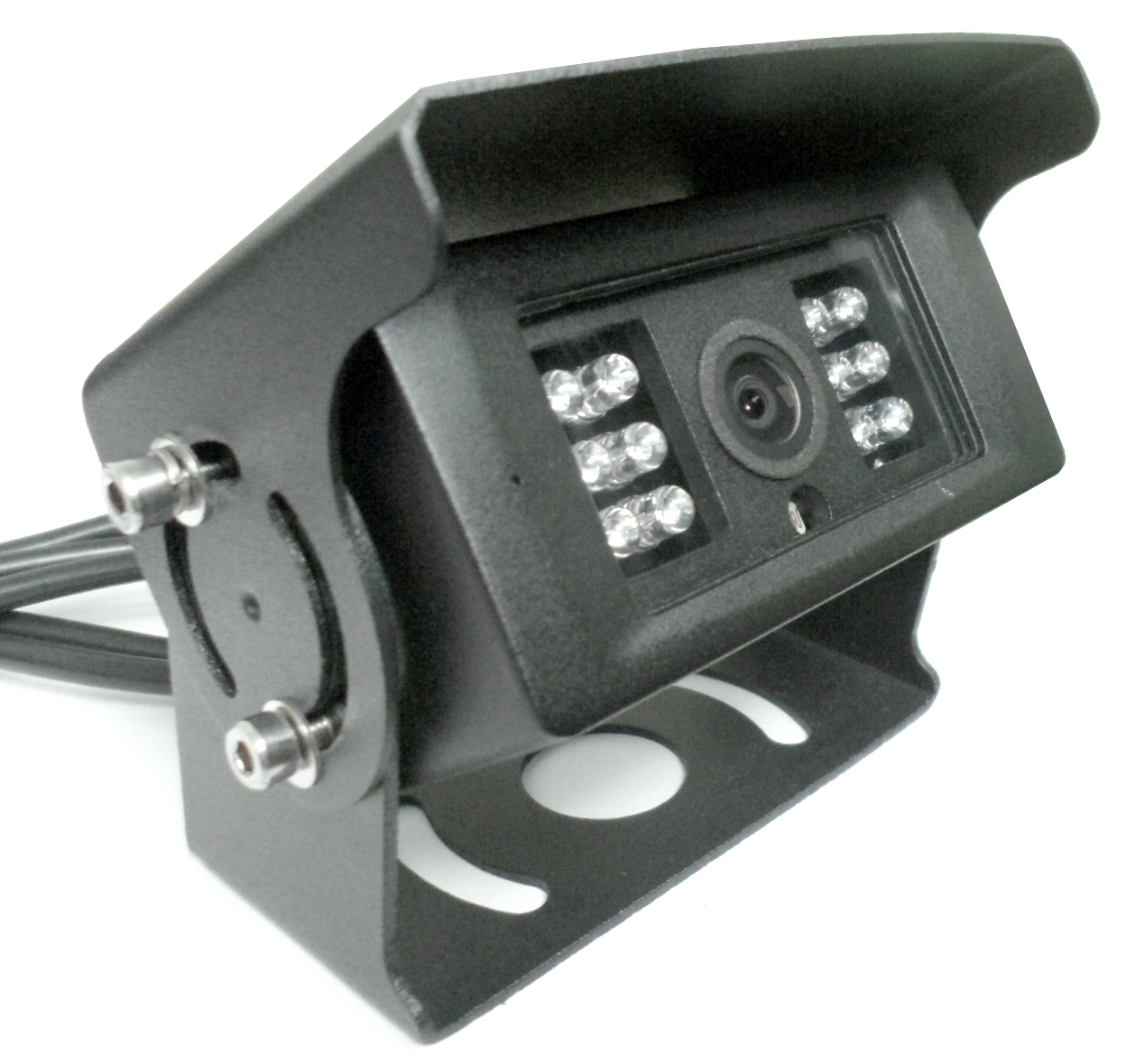

Rear View Camera Description

Camera Style: Heavy Duty Square
Camera Image Sensor: Sony CCD 1/4 700 TV Lines of Resolution
Camera Colour: Black
Waterproof Rating Certification: IP69K
Infrared Night Vision LED Lights: Yes - 18 LEDs
Night Vision Distance: 15 metres
Viewing Angle: 120°
White Balance Sensor: Yes
Application: Ideal for Caravans, Trucks, Mining, Farming and more

• World-class and Certified Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications
• Stylish Design available in White or Black
• PixelPerfect® High-Grade image sensors feature 420 TV Lines with Masten CMOS Image Sensor or massive 700 TV Lines with Sony® 1/4 CCD Sensor for clear viewing in day and night (check Specs)
• Perfectly adjusted viewing angle for safer reversing and more accurate imagery
• Safer driving at night with the built-in high quality infrared LED lights and long range viewing distance
• Wide working temperature of Working temperature: -20°C~70°C.
• Unique IR-CUT effectively avoids color aberration in daylight
• Equipped with a White Balance sensor which enables the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor
• Suitable for all applications including buses, mini vans, caravans, trailers, trucks, agriculture equipment and much more

Side View Camera Description

Camera Style: Side Camera / Blind Spot Camera
Orientation: Right Side & Left Side
Camera Image Sensor: Sony CCD 1/4 700 TV Lines of Resolution
Camera Colour: Black
Waterproof Rating Certification: IP69K
Infrared Night Vision LED Lights: Yes - 7 LEDs
Night Vision Distance: 10 metres
Viewing Angle: 120°
White Balance Sensor: Yes
Application: Ideal for Caravans, Trucks, Mining and more

• World-class and Certified Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications
• Stylish Design available in White or Black
• PixelPerfect® High-Grade image sensors feature 420 TV Lines with Masten CMOS Image Sensor or massive 700 TV Lines with Sony® 1/4 CCD Sensor for clear viewing in day and night (check Specs)
• Perfectly adjusted viewing angle for safer reversing and more accurate imagery
• Safer driving at night with the built-in high quality infrared LED lights and long range viewing distance
• Wide working temperature of Working temperature: -20°C~70°C.
• Unique IR-CUT effectively avoids color aberration in daylight
• Equipped with a White Balance sensor which enables the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor
• Suitable for all applications including buses, mini vans, caravans, trailers, trucks, agriculture equipment and much more

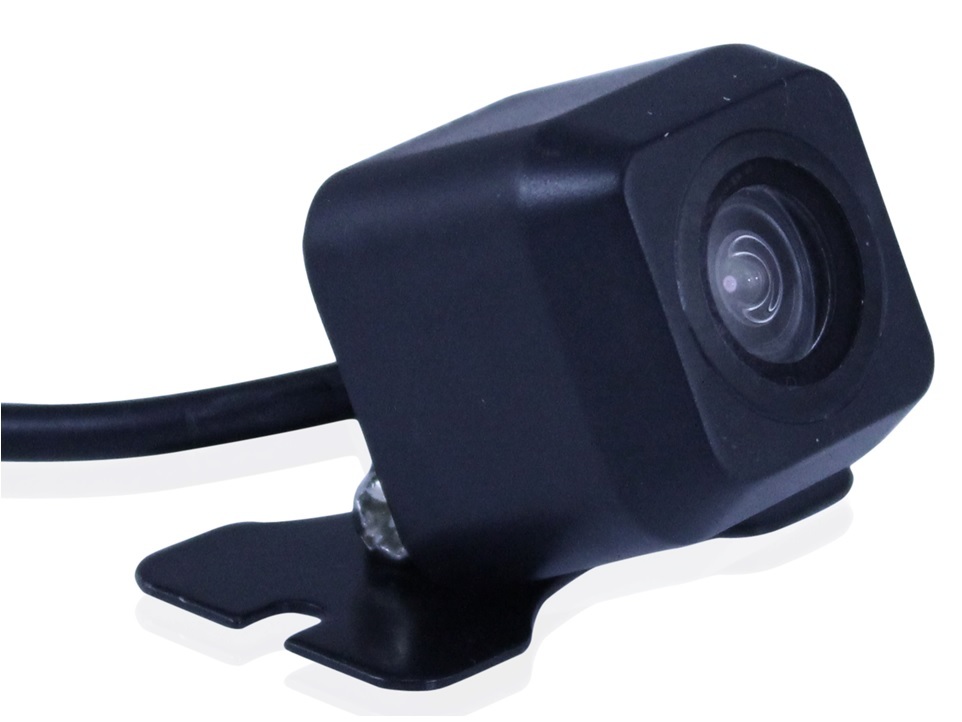

Mini Front View View Camera Description

• 170° (vertical viewing angle) High Resolution Mini CCD Reversing Park Camera
• High Resolution Colour CCD Image Sensor with crisp colour display and the latest sensor technology for improved visibility
• Best-in-Class PAL 976 (H) 496 (V) pixel Resolution

• Special trouble-free micro 4-pin connector means you don’t need to drill huge holes and it makes the install easier
• High Water/Dust Proof Rating
• Distance guidelines are built into the camera to offer approximate distance grid lines which range from safe to STOP THE CAR!
• The 170 degree viewing range with advanced CCD Image Sensor provides the latest technology in reverse cameras.
• Due to the cameras low light properties it works brilliantly at night using the light generated from your reverse lights and the camera is water resistant.
• The camera features an RCA plug for connection into your monitor video input as well as built in trigger line which means you won't need to run a separate wire for the reverse power trigger input.
• Cutting the in-built connectors allows the camera to be both a reverse camera (mirror image) or front view camera (True view)

Unbeatable Melbourne-Based 2-Year Warranty!

Understanding reverse cameras

The difference between CMOS cameras and CCD cameras can be likened to the difference between analogue and digital. CCD cameras deliver a sharper picture with more image lines and delivers clearer night vision in extremely low light conditions.

Although a super wide viewing angle such as 180° is appealing, it should be noted that a wider angle distorts the image and provides insufficient depth of field. For safer and optimum performance 92°-120° should only be considered.
