For Toyota

For Toyota - Hilux 2009 / 2012 onwards

The steering wheel plug doesn't match up for 2009 Toyota Hilux

Your steering wheel wires in your vehicle are on the plug with the purple, red, white and blue wires. On the DIG Options steering harness connect Black to Blue, White to White and White/Black to Red.

The speaker wires need to be extended from the footwell to the radio. Some Hilux models do not have the wires running past the footwell.

The steering wheel plug doesn't match up for 2012 Toyota Hilux

DIG Options Harness Connector -- for Hilux Connector

Black -- Blue/Grey
White/Black -- White/Grey
White -- Red/Grey

Cut the connector off the main harness supplied and wire the other harness with P/N 30725025000 to the appropriate wires. This will be simple with a pin removal tool but cut and solder will also work.



Poor Radio Reception

Finding the power wire to the factory radio amp:

1. You need to connect the original radio and test the wires going into the radio to see what gives 12V power output.
2. Other than this the radio should receive 12V input for ignition power and constant power. This 12V output needs to connect to either accessories power to power the amp for antenna or the blue power antenna wire from our radio.



For Toyota - 200 Series Land Cruiser

How can i connect an aftermarket camera adapter to the DIG Options System?

On the DIG Options System you just need two inputs; The yellow Camera RCA input, and the Blue wire labelled BACK.

Step 1:
After removing the original Toyota radio, locate the Grey coloured camera lead with the white four pin connector, normally towards the passengers side of radio cavity. See Figure 1.

Step 2:

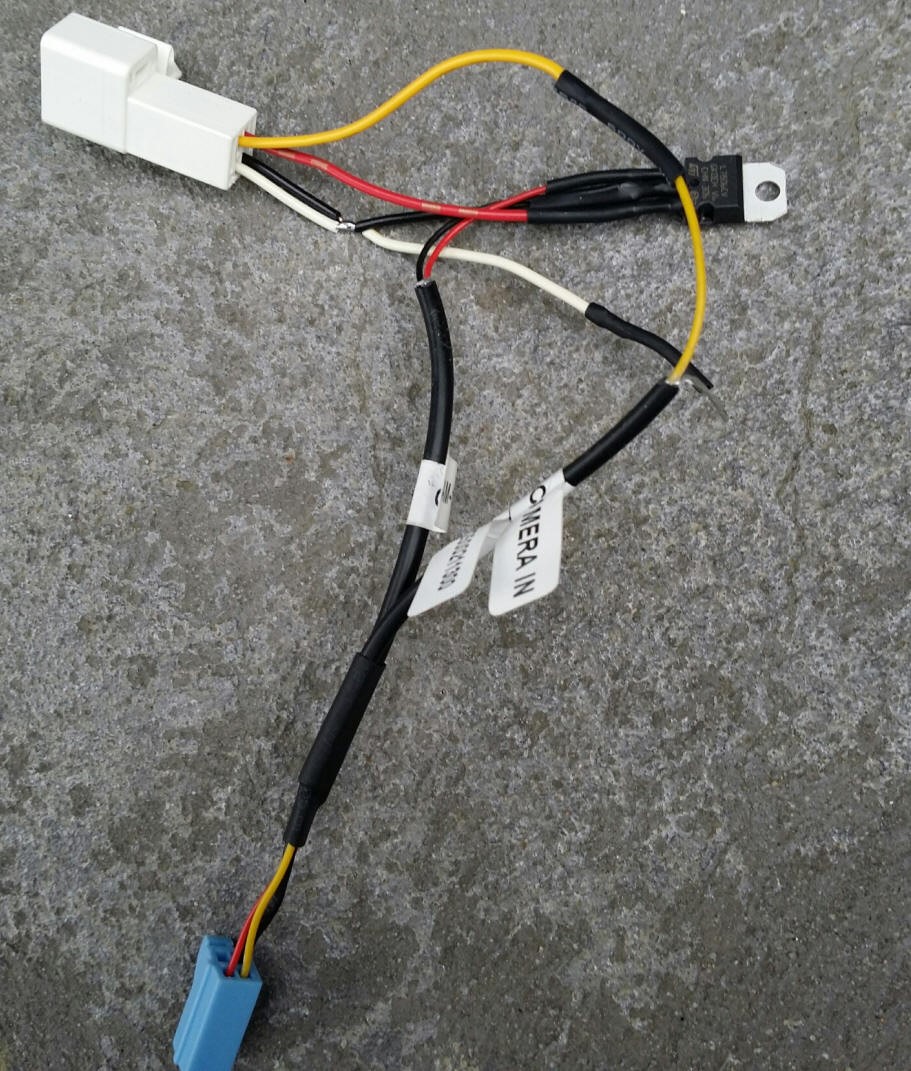

Plug in the Aftermarket OE camera adapter lead for Toyota (eg. PN P0501-0020) see Figure 2.

Step 3:
Connect the red (could also be brown) tethered cable from the camera adapter lead into the blue DIG Options system camera trigger wire marked "Back". Then connect the black cable to earth/ground in your car. See Figure 3.

Step 4:
Locate the four pin connector with Blue Purple Green and yellow wires originating from the main Toyota loom at the rear of radio cavity as shown. See Figure 4.

Connect the red (could also be brown) untethered cable from the camera adapter lead to the blue 12 volt reverse wire located on the 4 pin connector as seen in Figure 4. The Handbrake switch can also be obtain from the yellow wire in the same connector. You can test the reverse wire on the plug with a multimeter and by going into reverse to find this power source.

Step 5:

Plug the yellow RCA connector from camera adapter lead into the DIG Optins camera RCA.


For Toyota - General

How to connect a Toyota 6V camera to the DIG Options system without a patch lead
