The most advanced in-vehicle digital video recorder from DIG Options

With Motion Dection! (Setup in MENU----REC SETTING---MOTION DETECTION)

The DVR-04 from Masten is designed to deal with the unpredictability of the road. For the best result connect up to a wide angle high resolution camera from Masten. With smart recording modes and a large 32GB TF SD storage capacity, the DVR-04 not only provides evidence of responsibility and clarification of car accidents, surveillance or investigations, but also monitors the drivers behavior and encourages safer driving.

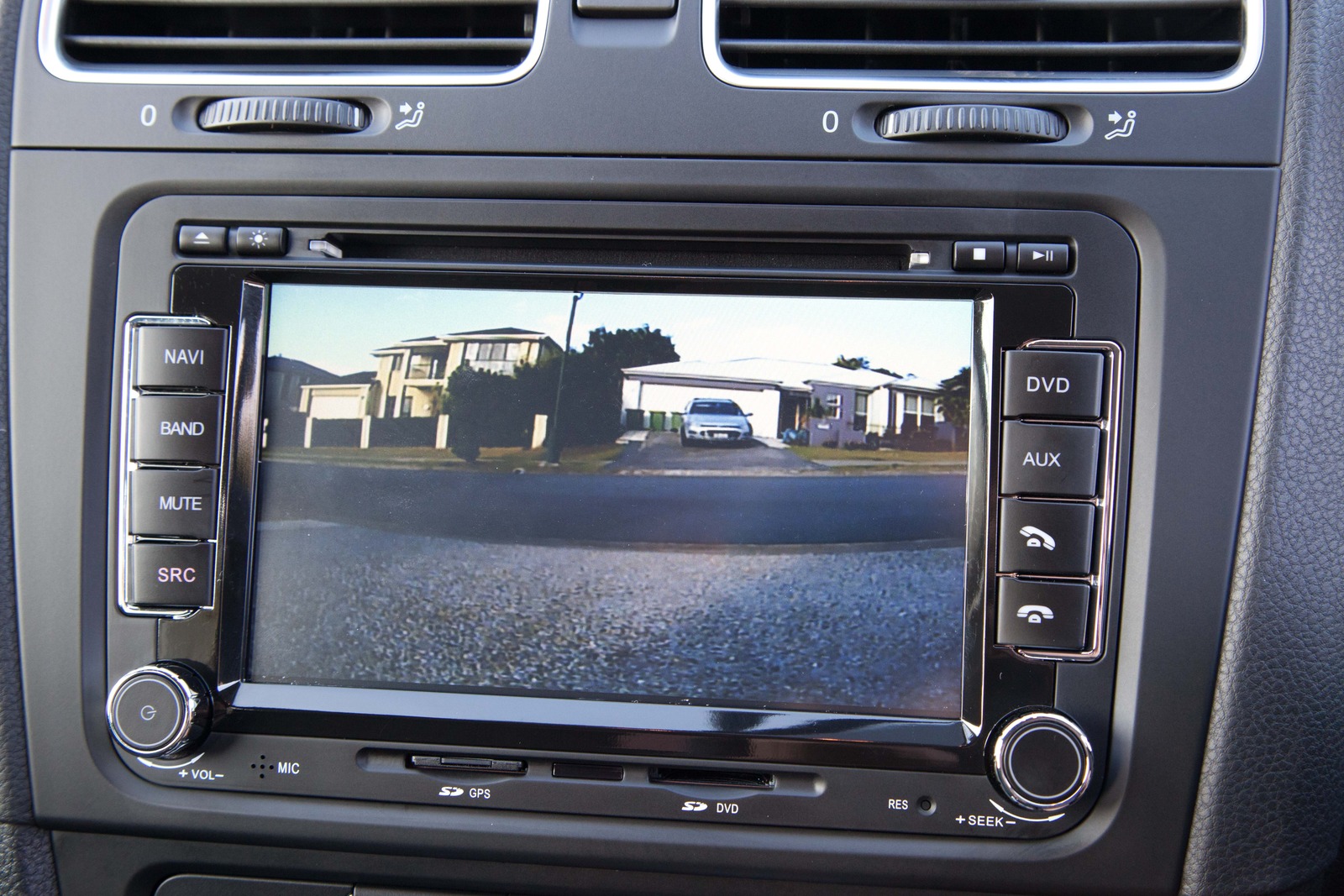

Unique AV-OUT Support
See what you are recording instantly with the unique AV-out port which outputs video and audio seamlessly to your car monitor or other external monitor.
Recording Modes

No need to switch the DVR-04 on, it can automatically start to record once correctly installed. If you select motion detect recording mode the DVR will start to record when motion has been detected.

The Recording timespan depends on the Recording mode, TF card size, and TV Format.

There are 3 recording mode, Continuous Recording, Motion detect Recording, and Mixing Recording mode.

If you select Mixing Recording mode and use 32G TF (SDHC) card and select VGA, 30fps, it can record up to 60 hours.


General Features:

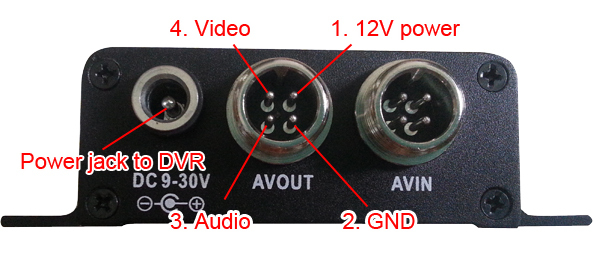

  • 4-Pin Aviation connectors for camera
  • D1 resolution at 704*576. DVD picture quality up to 500 TV line.
  • Video format: MPEG4/ASF, audio format: MP3
  • Time stamp on video/pictures
  • Continuous Recording (overwrites old data when memory card is full)
  • Record video or snap shot optional
  • 5, 15, 30 frame per second optional
  • Supports 32GB SD card memory (SDHC card supported)
  • 1 channel Audio and Video output and input
  • Motion detection

View the Instruction Manual Here



Item  Data
Format  Mpeg-4, Video for ASF
Resolution  704*576
Frame  30f/s, 15f/s, 5f/s
Video input  1V,75Ω
Video output  1V,75Ω
Remote Control yes
Media  SD/ SDHC Card for 32GB
Manual recording  yes
Schedule recording  yes
Motion detective recording  yes
Power up recording  yes
Electricity Input  DC 8V-32V
Working electricity  <150MA
Power expend  <2W
G.W./Set  350g
Barcode # 729436059177
Brand DIG Options
Shipping Weight 0.4000kg
Shipping Width 0.145m
Shipping Height 0.100m
Shipping Length 0.085m
Assembled Width 0.145m

1 Year Replacement Warranty
