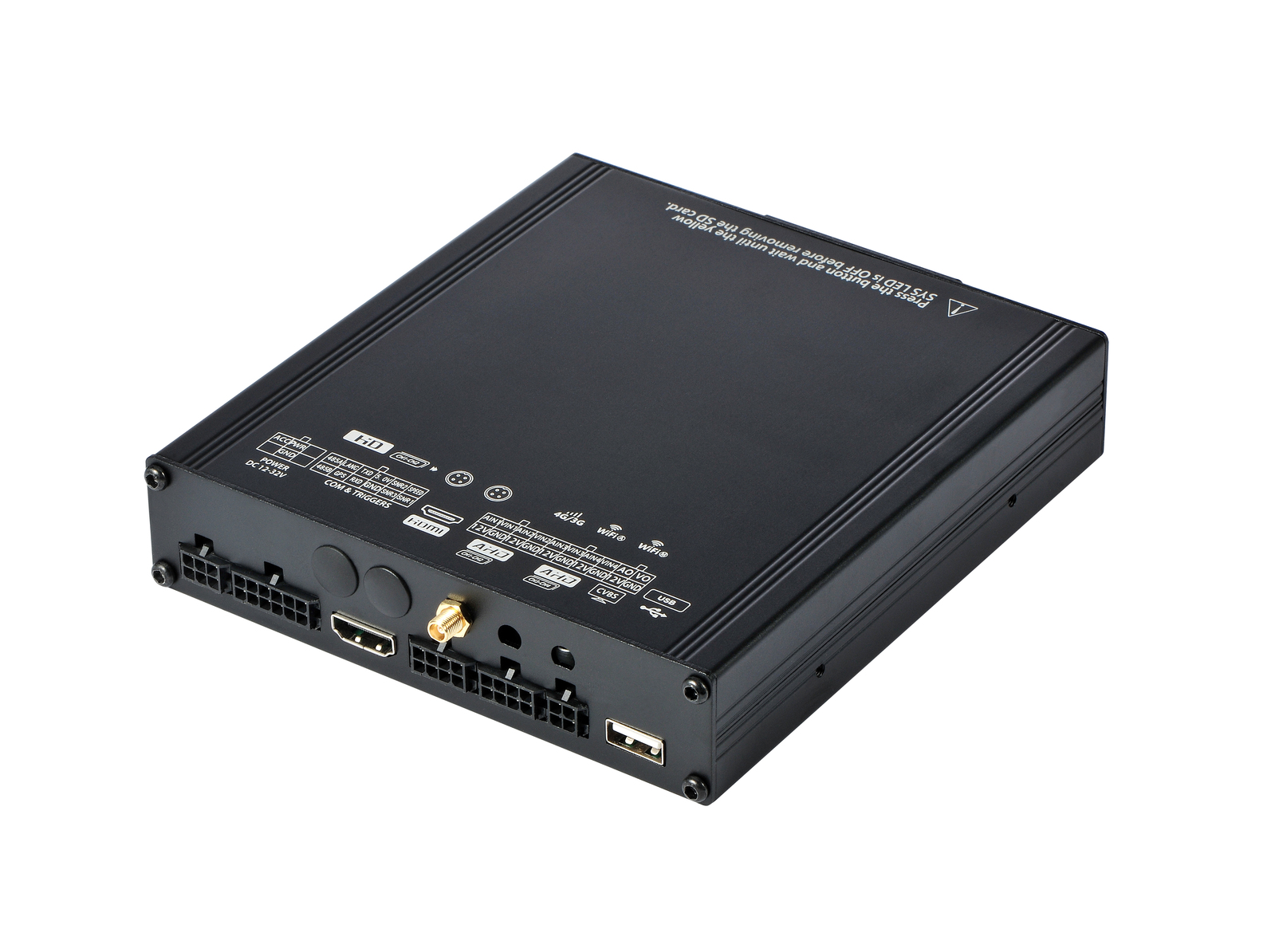

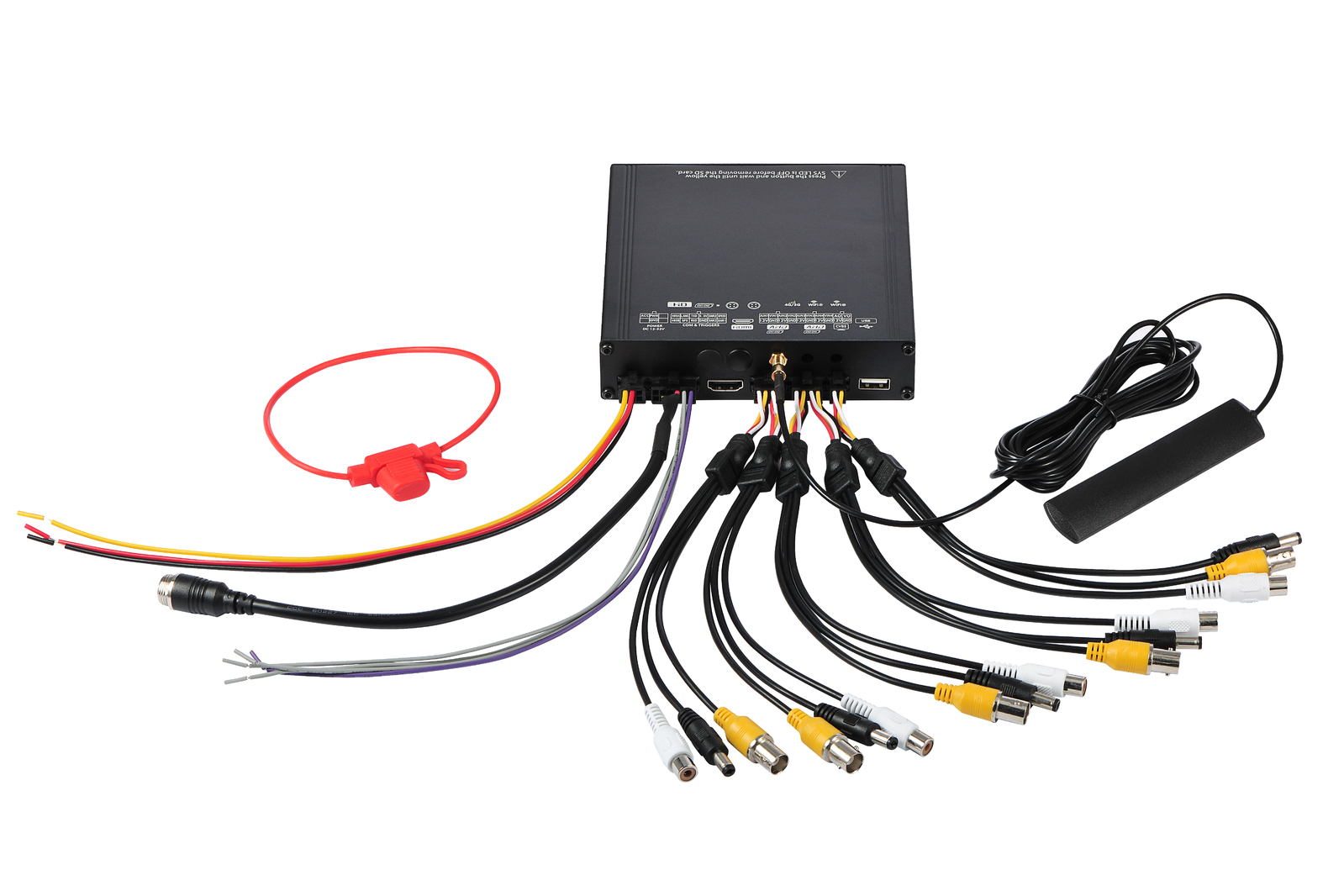

4CH Truck/Bus/Caravan DVR Drive Recorder Description

Product Main Features
 Embedded operating system, assuring reliability and system integrity.
 Records up to nine channels of full-motion color video with corresponding audio tracks.
 H.264 and H.265 High Profile video compression.
 Total Record resource up to 30 frame/second for each channel.
 Lockable security enclosure.
 Front panel USB2.0 port for recording to a flash card as an optional storage device.
 Ignition sense that provides DVR power-on in recording mode when the bus is started.
 Power-off delay record when the bus is shut-down with operator-selected delay times.
 Support SAMBA function to share files.

Video And Audio
 H.264 and H.265 High Profile video compression, real time recording 30 fps for each channel. Frame rate adjustable for each channel.
 Audio compression: G.711 codec. This codec offers high compression with high quality audio.
 4 channels 1080P resolution for analog camera.
 Local video and audio real time playback.

GPS Time Synchronization & Time Zone
 Synchronize the DVR system time with GPS automatically
 Support All Time Zones Worldwide
 Support DST (Daylight Saving Time)

Power Management
 Reliable power management, wide voltage: +8VDC~+32VDC; The power input is protected against short positive transient (1500 watts peak pulse power capability with a 10x1000 us waveform); The power input is protected against negative voltage. Applicable for vehicles with +12V or +24V battery.
 The recorder provides each camera with stable +12V DC power; DVR can protect the internal components damage from short circuit.
 Can use ignition to control the power.
 DVR can monitor battery voltage after Ignition off, and auto into sleep mode when voltage is bellow specified level.

Recording mode
 Continuous record.
 Support schedule recording.
 Support alarm recording.
 Support motion detection recording.

Speed and Vehicle status recording
 Record vehicle speed and car id with audio and video.
 Support 3 sensors, can be connected to return, right turn, left turn light etc.
 Over-speed alarm.
 Specified screen can be full screen displayed when return(or left, right) sensor trigged.

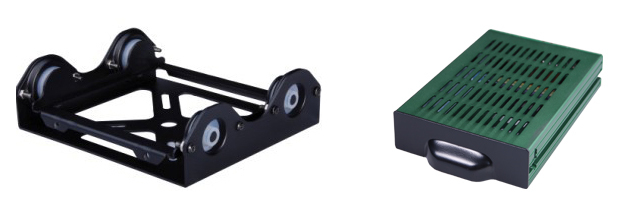

Double Anti-vibration Mechanical Proof For HDD
 Patent pending anti-vibration design, full floating construction with rubber, 100% mechanical protection for HDD.
 Removable HDD box, convenient HDD collection for recorded content browse..

Hard Disk
 Support hard disk up to 6T. Please note, the inside height of the hard disk case is 10.2mm, please select the hard disk whose height is less than 9.5mm.
