IMPORTANT. This camera uses a Image Sensor component. The quality of the image is what you would expect from but without the high price tag for Branded cameras. This is a Masten-branded camera.

Premium full-colour quality doesn't come at a premium price with the new range of Masten Heavy Duty Cameras with a world-class 2-year Replacement Warranty.


Product Description

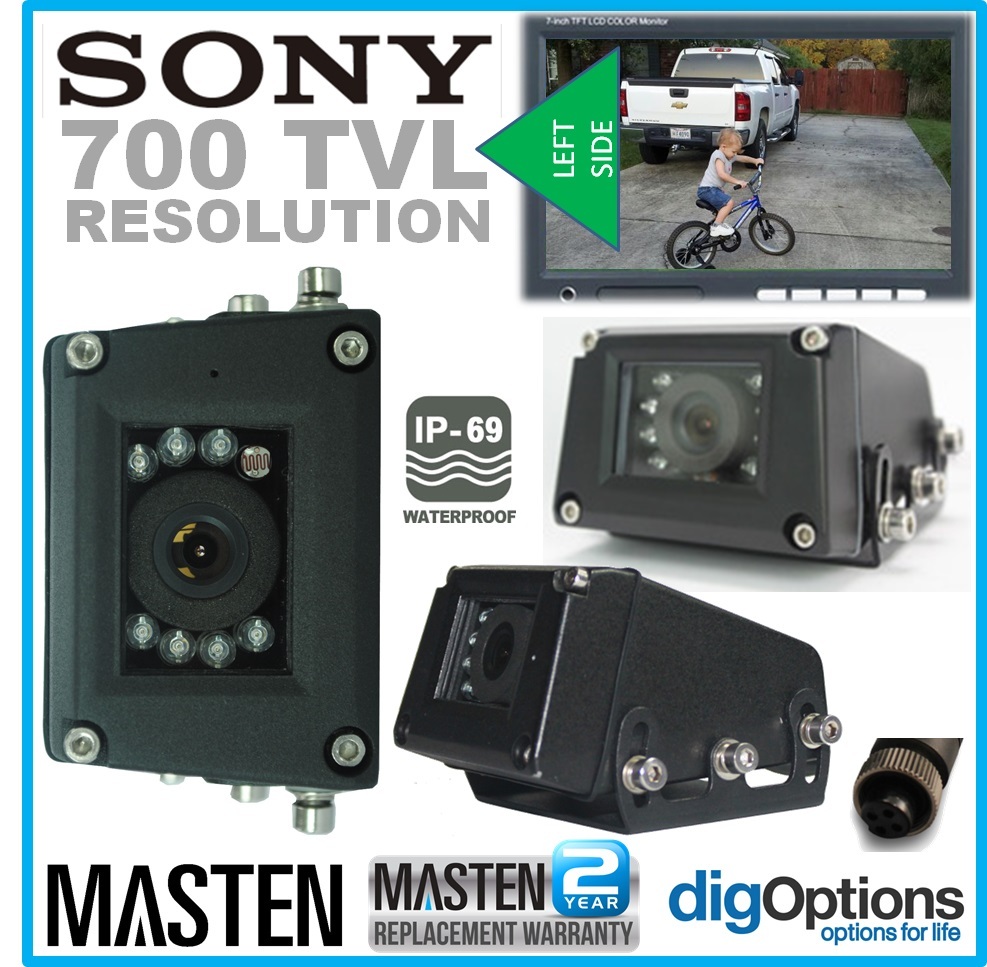

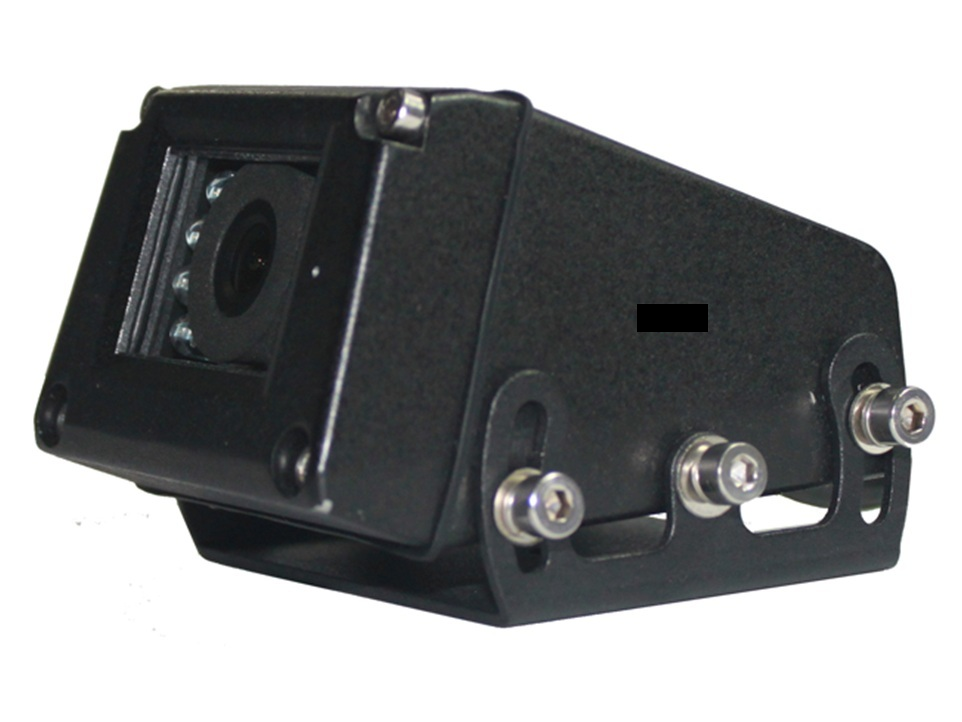

Camera Style: Side Camera / Blind Spot Camera
Orientation: Left Side

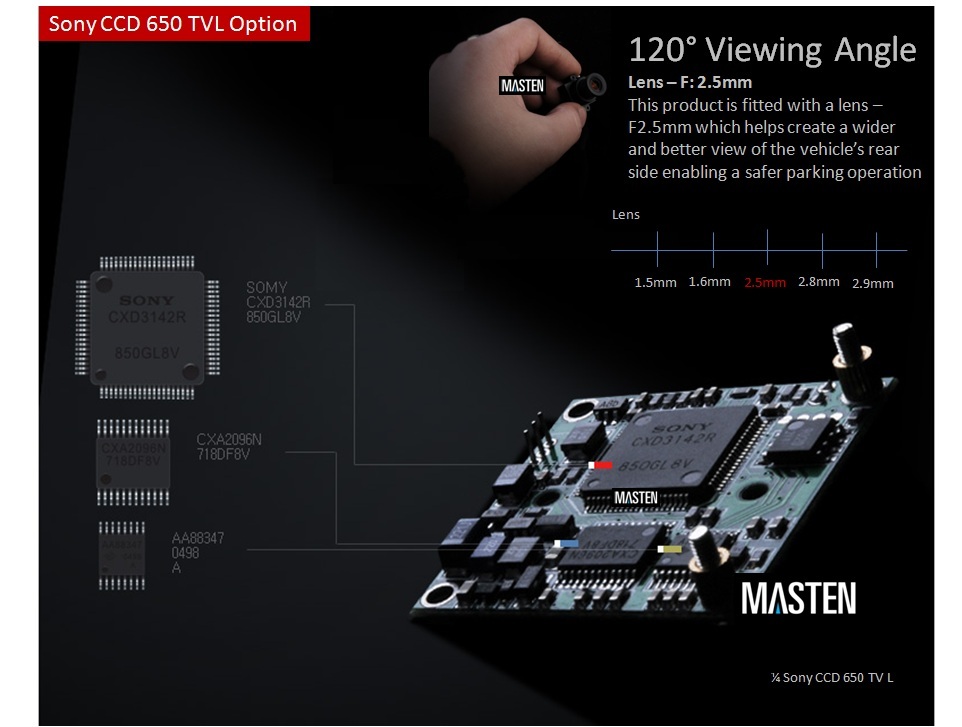

Camera Image Sensor: CCD 1/4 700 TV Lines of Resolution
Camera Colour: Black
Waterproof Rating Certification: IP69K
Infrared Night Vision LED Lights: Yes - 7 LEDs
Night Vision Distance: 10 metres
Viewing Angle: 120°
White Balance Sensor: Yes
Application: Ideal for Caravans, Trucks, Mining and more

Video Format: PAL

  • World-class and Certified Waterproof (fully submersible) and weather-resistant housing for extended durability and a greater range of applications

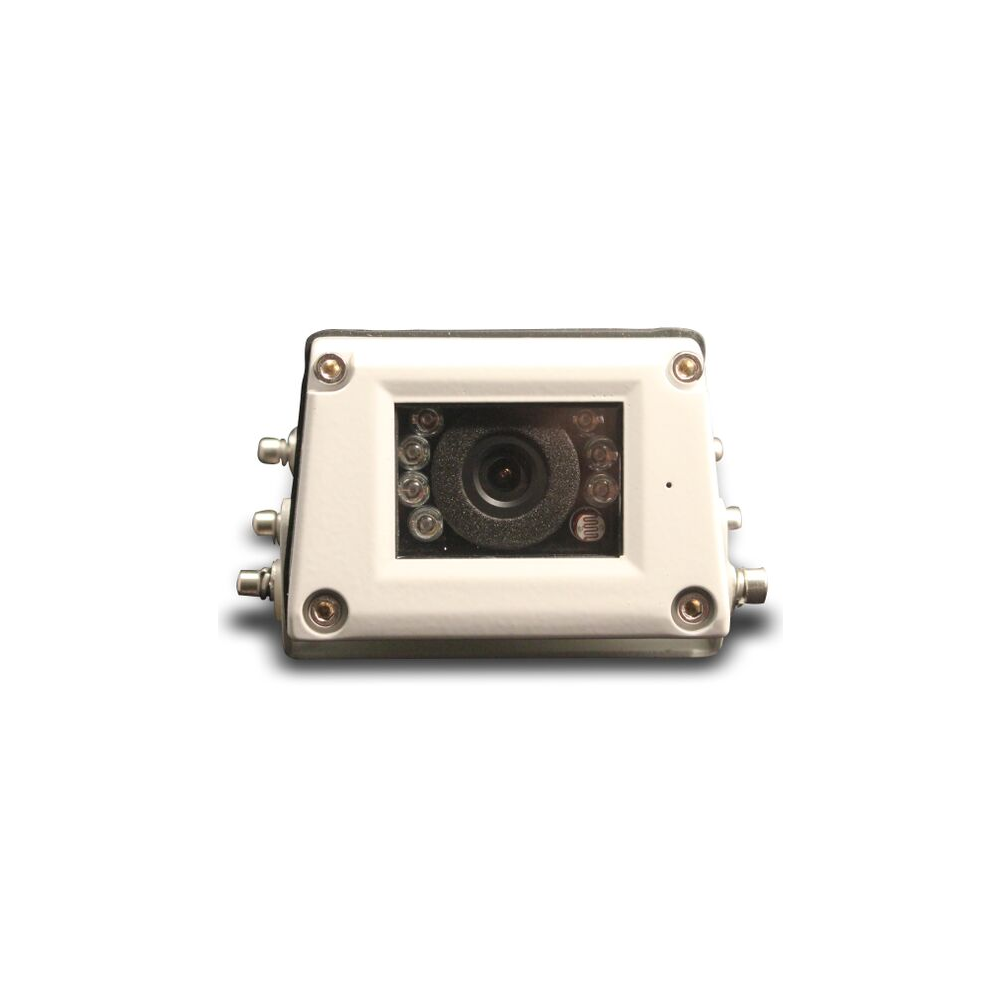

  • Stylish Design available in White or Black
  • PixelPerfect® High-Grade image sensors feature 420 TV Lines with Masten CMOS Image Sensor or massive 700 TV Lines with 1/4 CCD Sensor for clear viewing in day and night (check Specs)
  • Perfectly adjusted viewing angle for safer reversing and more accurate imagery
  • Safer driving at night with the built-in high quality infrared LED lights and long-range viewing distance
  • The wide working temperature of Working temperature: -20°C~70°C.
  • Unique IR-CUT effectively avoids colour aberration in daylight

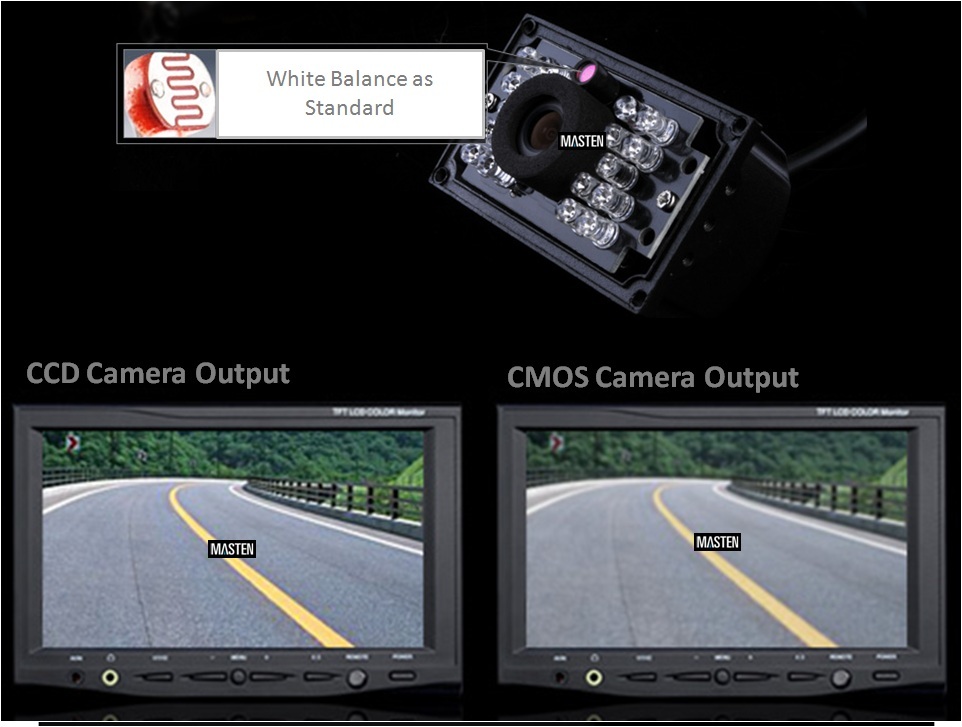

  • Equipped with a White Balance sensor which enables the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor
  • Suitable for all applications including buses, minivans, caravans, trailers, trucks, agriculture equipment and much more

Unbeatable Melbourne-Based 2-Year Warranty!


Understanding reverse cameras

The difference between CMOS cameras and CCD cameras can be likened to the difference between analogue and digital. CCD cameras deliver sharper pictures with more image lines and deliver clearer night vision in extremely low light conditions.

Although a super wide viewing angle such as 180° is appealing, it should be noted that a wider angle distorts the image and provides an insufficient depth of field. For safer and optimum performance 92°-120° should only be considered.


Copyright® DIG Options 2023

Critical Specifications
Description:

Premium CMOS Side View Camera

Also Available

Premium CCD Side View Camera



Image Device: CMOS 1/4 SONY CCD
Resolution: 420TV lines 700 TV lines
Lens: 2.5mm 2.5mm
Lens Angle: 120 Degrees 120 Degrees
Infrared LED light: 7 LEDs 7 LEDs
IR Distance: 10m 10m
Waterproof Rating: IP69K IP69K
Audio Microphone: Yes Yes
Technical Specifications
TV System: PAL/ NTSC PAL/ NTSC
Manual Mirror Image Switch N/A N/A
Effective Pixels: 512 x 582 pixels / 512 x 492 pixels  512 x 582 pixels / 512 x 492 pixels
Sensing Area: 3.6mm x 2.7mm 3.6mm x 2.7mm
Scanning System: 2:1 Interlace 2:1 Interlace
Sync. System: Internal Internal
Horizontal Sync. Frequency: 15.625 KHz / 15.734KHz 15.625 KHz / 15.734KHz
Vertical Sync. Frequency: 50Hz / 60Hz 50Hz / 60Hz
Minimum Illumination: 0Lux (Infrared lamps on)  0Lux (Infrared lamps on)
0 .1Lux(day) / F1.2 0 .1Lux(day) / F1.2
Video Output: 1.0vp-p, 75Ohm 1.0vp-p, 75Ohm
Gamma Consumption: 0.45 0.45
AGC: Auto Auto
S/N Ratio: Better than 48dB Better than 48dB
White Balance: Auto Auto
Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto Auto
Shell material: Aluminum alloy Aluminum alloy
Current Consumption: Max. 180mA Max. 180mA
Power Supply: DC12V DC12V
Operating Temperature: -20°C~70°C , RH95% MAX -20°C~70°C , RH95% MAX
Storage Temperature: -40°C~80°C,RH95% MAX -40°C~80°C,RH95% MAX

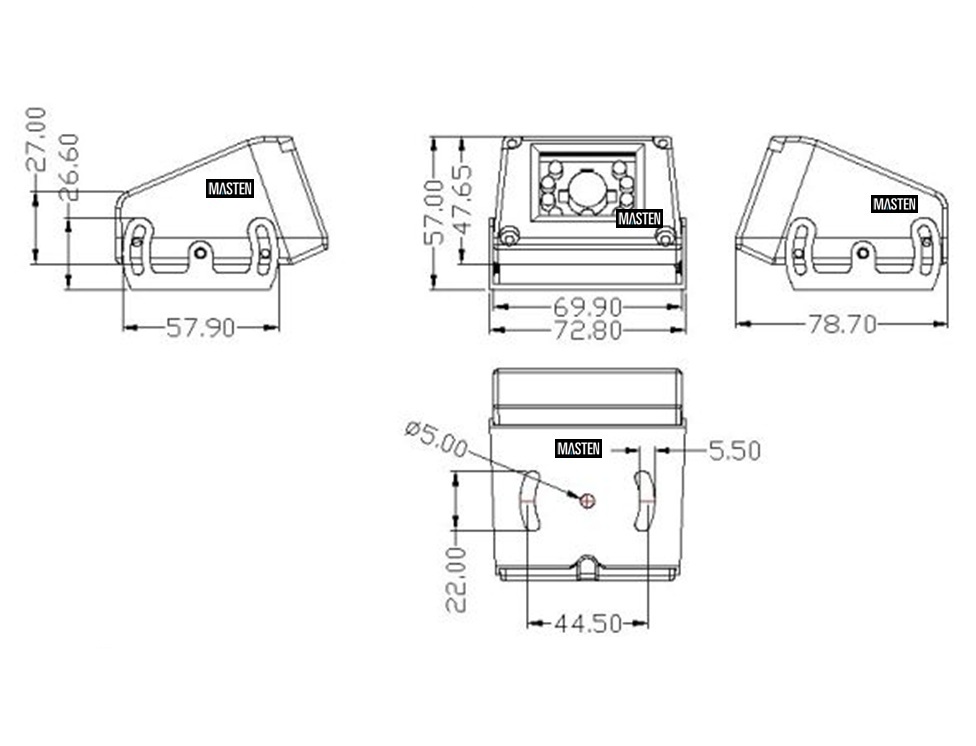

Dimensions : 79 (L) ×73 (w) ×57(H) mm 79 (L) ×73 (w) ×57(H) mm
SKU RC-SV05-BL
Barcode # 729436061088
Brand Masten
Shipping Weight 0.4500kg
Shipping Width 0.140m
Shipping Height 0.095m
Shipping Length 0.062m
Assembled Width 0.140m

2 Year Replacement Warranty
