Masten 7" Caravan Truck Car Monitor Backup Rear View Quad View Video 4 Inputs DVR

Full Colour. Premium Quality. 2 Year Warranty

RRP $249.00
SAVE $50.00 (20%)

Item Number: RCM-71Q-DVRS

In Stock

The Masten Lineup of High Definition Automotive Cameras - Unmatched Workmanship and Quality, backed by a Two Year Replacement Warranty - Suitable for Commercial, Private, Agricultural and Industrial Usage

Have Questions? Contact Us Here

Customise Your Purchase:

Total cost for customisations will be added on the cart page

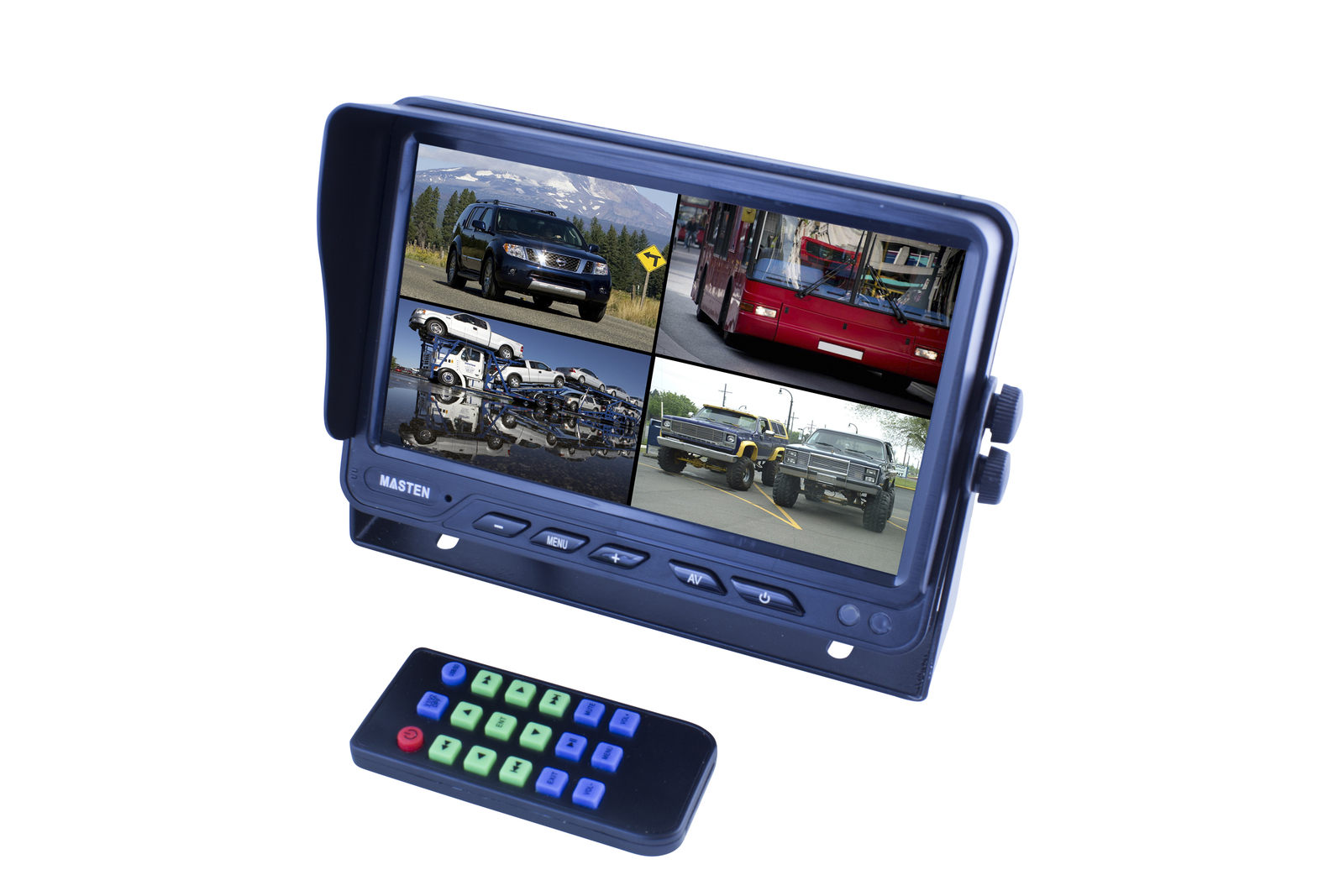

7” High-Quality LCD LED Colour Monitor with

  • Drive Recorder - takes up to a 64GB SD Card (around 168 hours of recording)
  • 4 Camera Inputs with QUAD View

Short description

Masten has become the "Installer's Choice" for car audio equipment. We listen to our customers so that they keep listening with us. DIG Options provide the automotive electronics, dash kits, cables, adapters and more so you can keep your vehicle updated with the latest technology.

Cameras from DIG Options are vigorously tested in harsh Australian conditions and backed for an Australia 24 month Replacement Warranty.

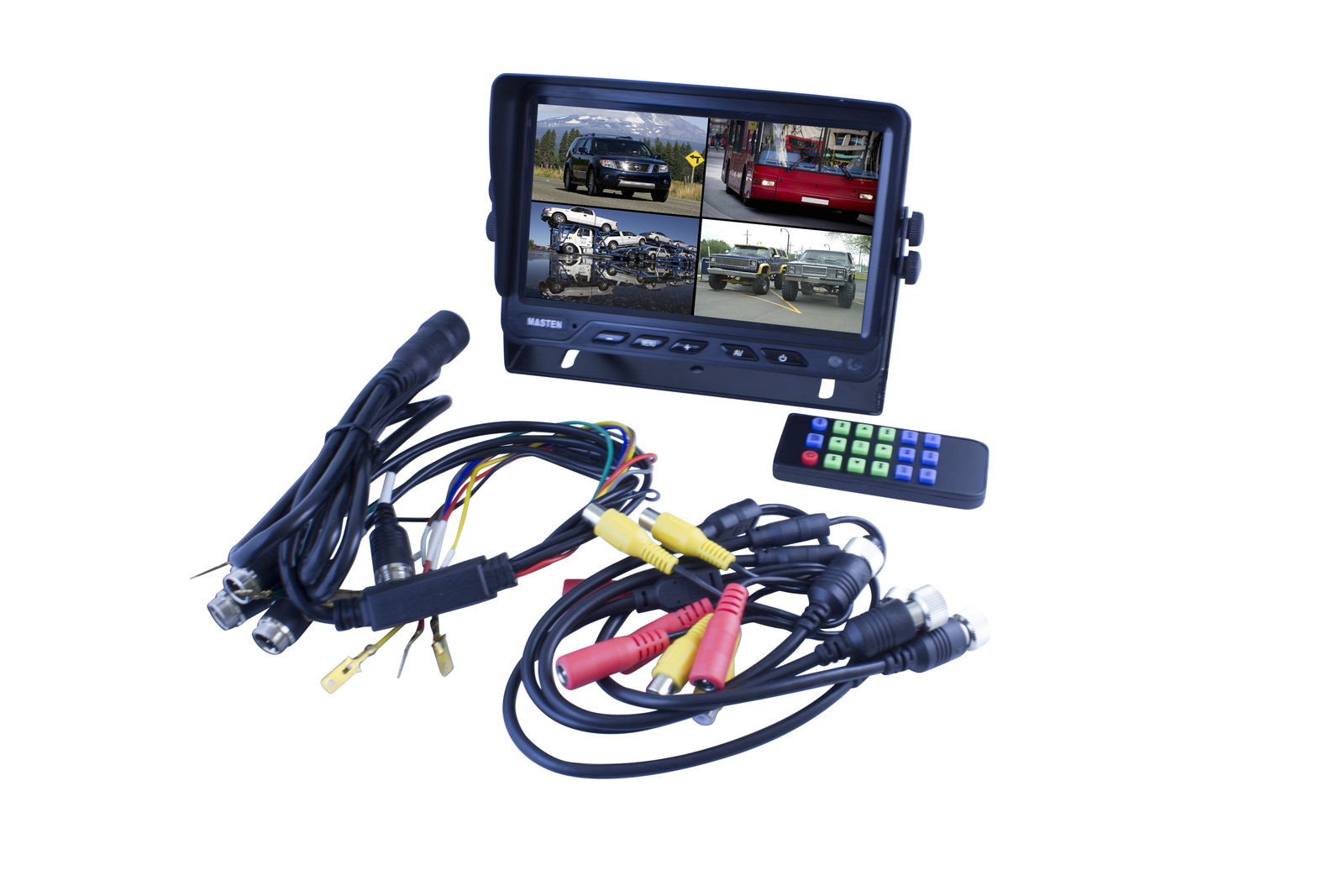

This listing includes 2 parts which are:

  • Premium Masten Monitor with 2 Year Replacement Warranty
  • All Cabling for Power

About the Monitor

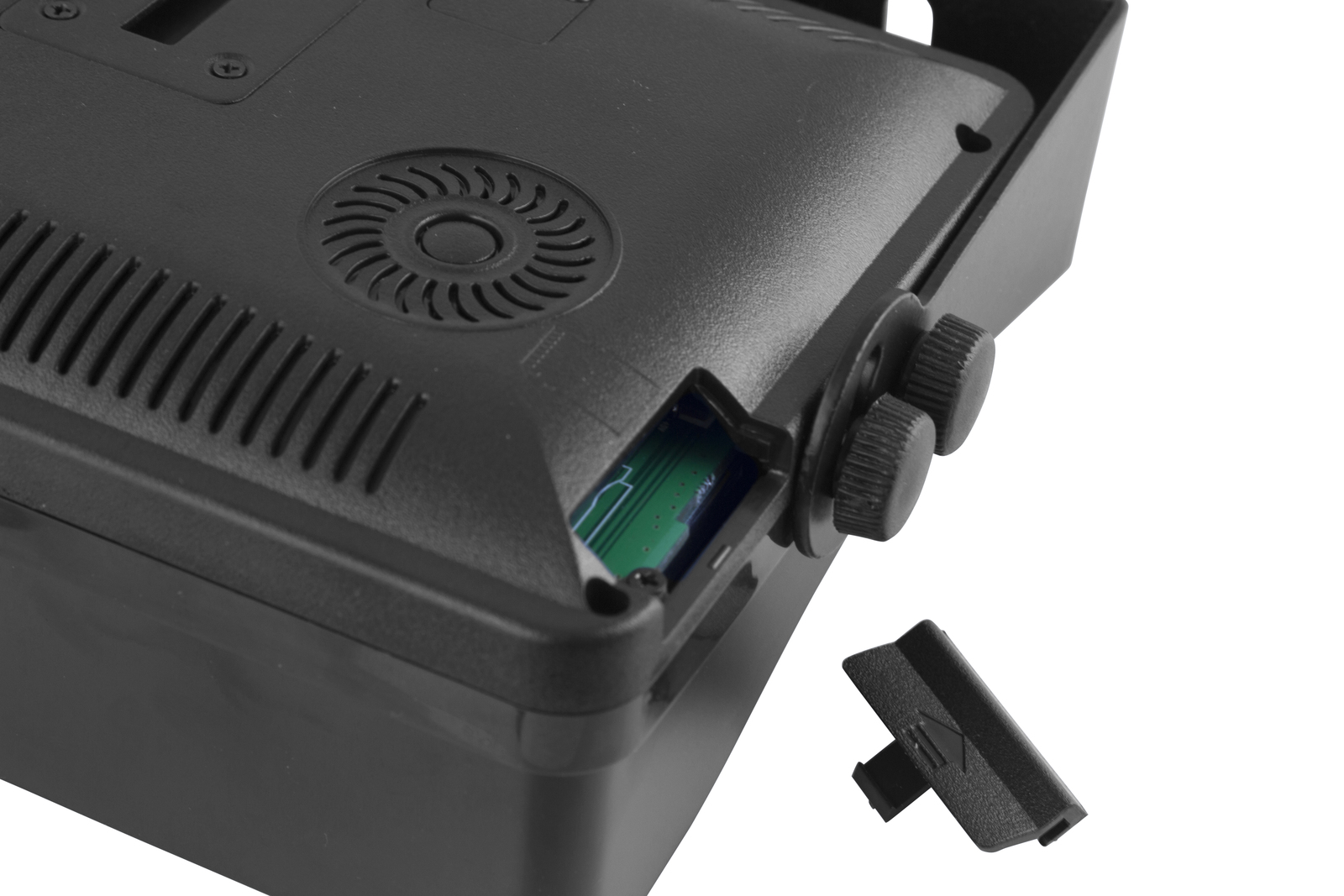

  • DVR Digital Video Recorder - Record the camera footage onto a standard 64GB SD Card - Sold Separately

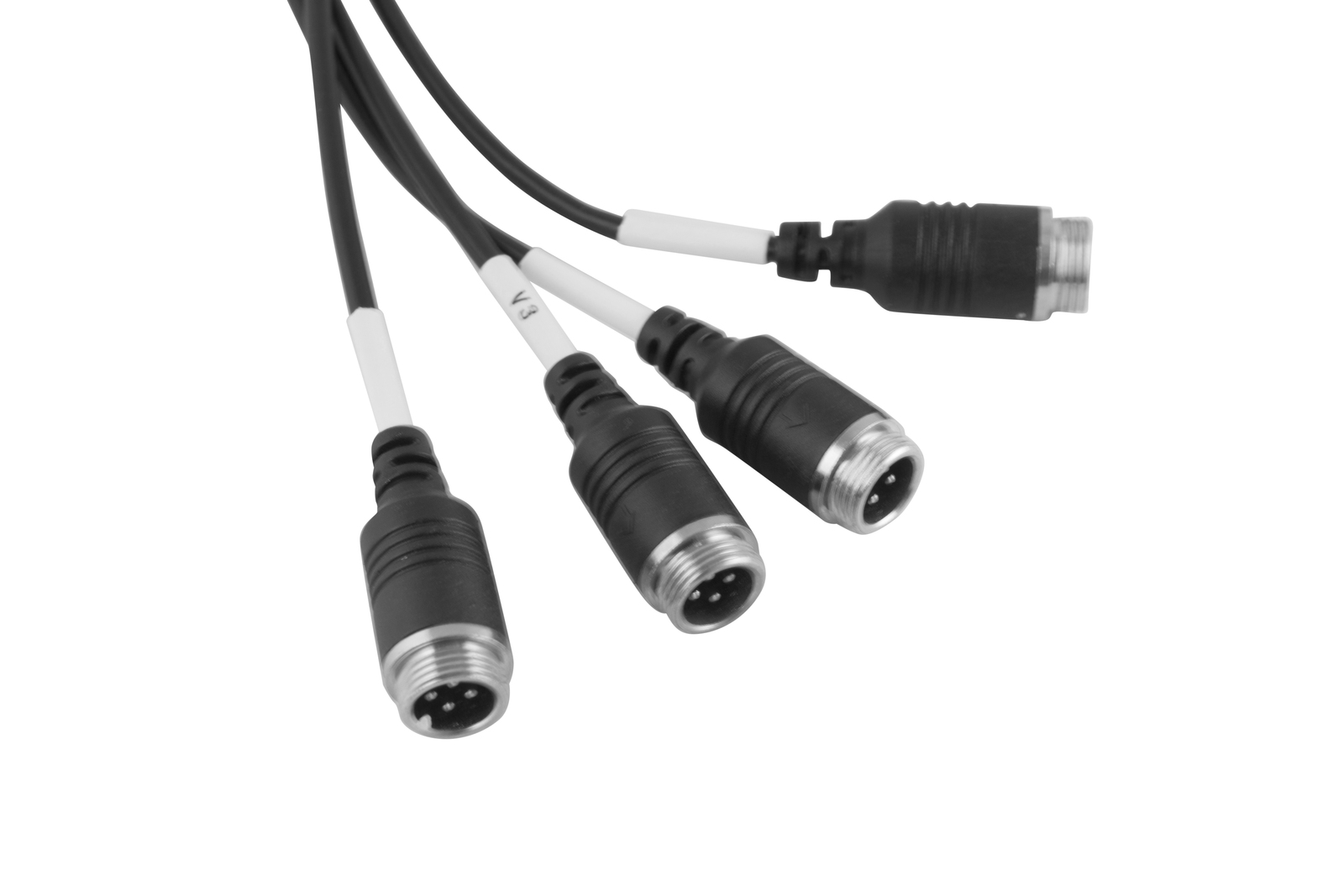

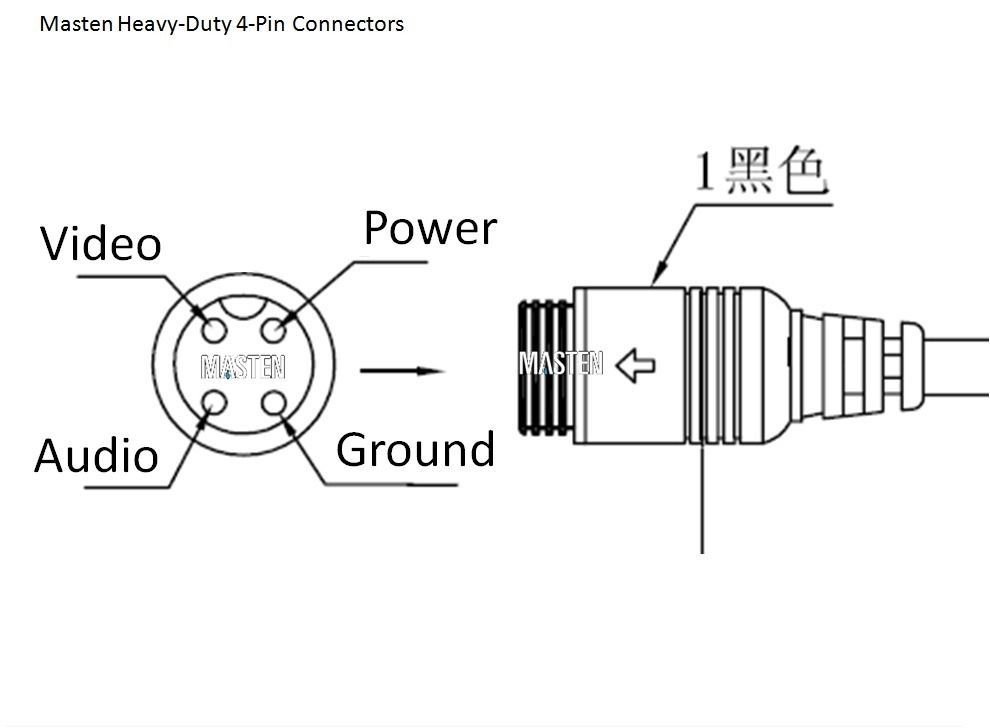

  • 4 Camera Video/Audio Heavy-Duty 4-Pin Inputs for a secure connection

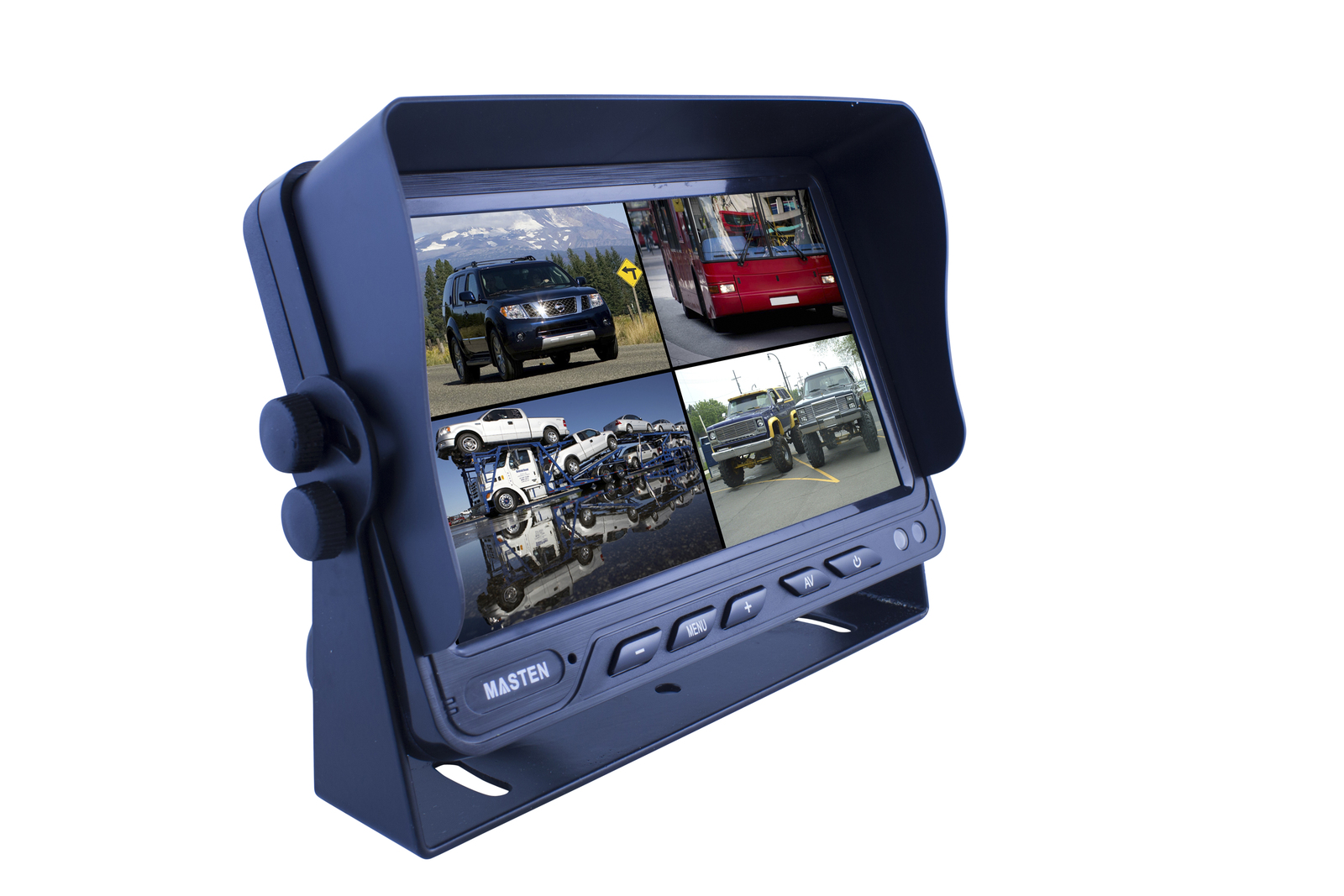

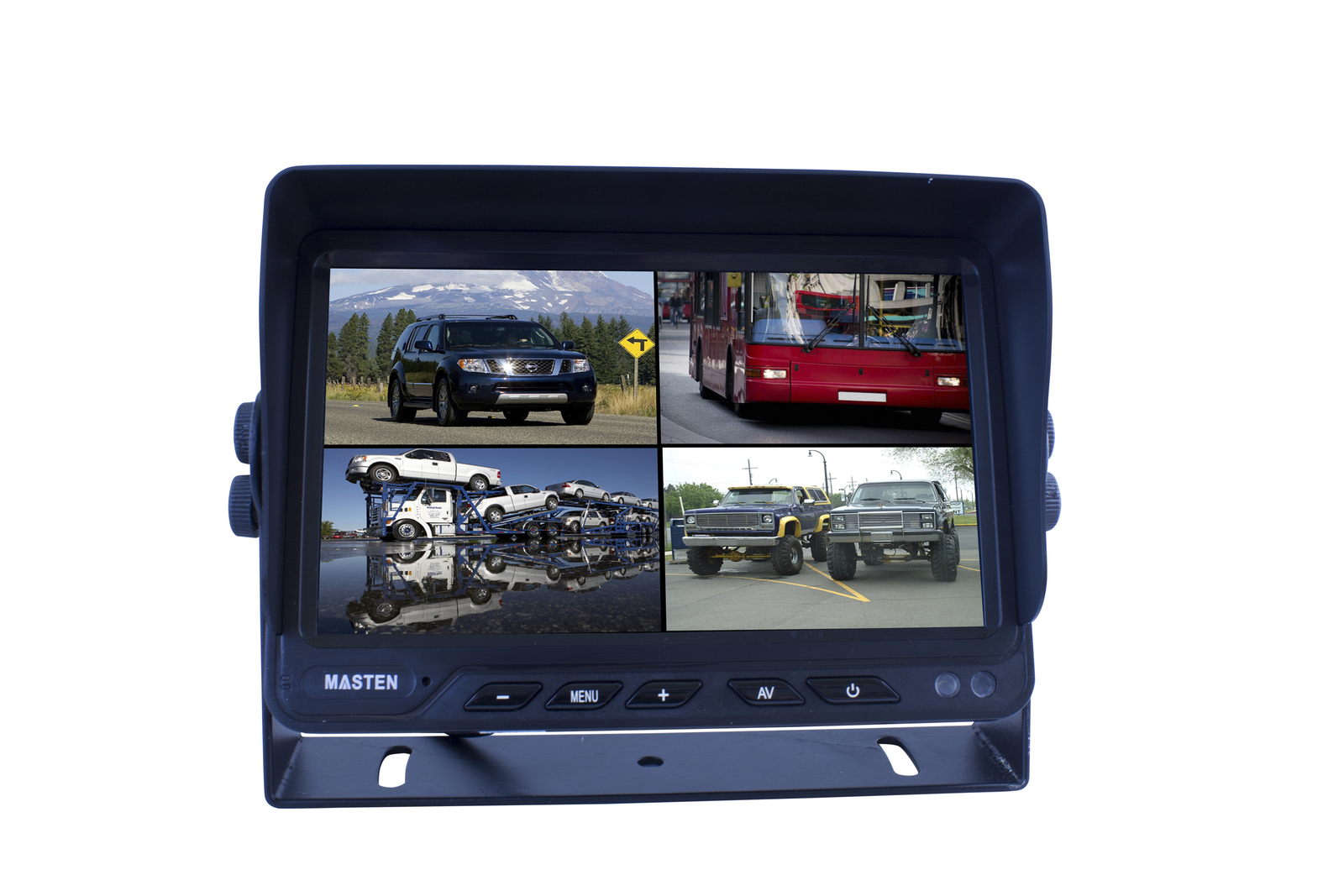

  • QUAD Camera Display Module allows you to view 4 cameras simultaneously for greater viewing safety. The monitor can also be switch to view 1, 2 or 3 cameras at one time.

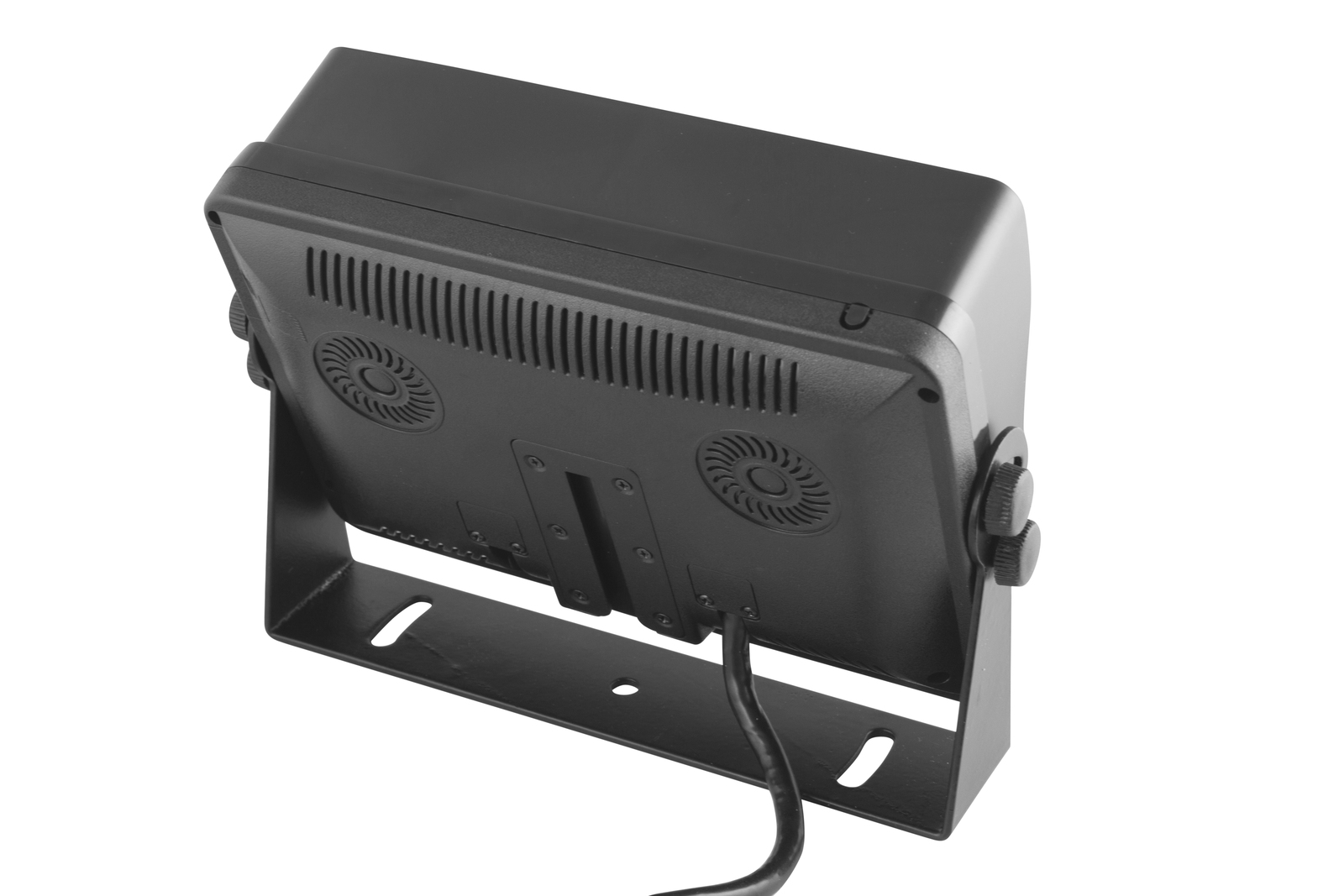

  • Solid Monitor Housing, perfect for more rugged applications
  • 4 Camera Video/Audio Heavy-Duty 4-Pin Inputs for a secure connection
  • Separate power trigger control wire for each camera allowing automatic display of cameras when required. The monitor will automatically switch-over to the image of the corresponding triggered camera, then back to the original mode when the trigger stops
  • Convenient Normal/Mirror View switch allows you to assign cameras to a forward facing position (Normal View) or rear facing position (Mirror View) at the touch a button
  • Convenient Day/Night Mode Switch
  • Adjustable trigger camera view (0-5 seconds) for each camera
  • Built-in Speaker perfect for linking your Masten Premium Camera with Audio for greater safety
  • Compatible with PAL and NTSC
  • Neat hideaway proprietary Masten module allows you to hide all the connections behind the dash
  • Masten Steel Pro Fit Universal Mounting System for a secure fit that won’t budge
  • Multi-language On-Screen Display
  • Working Voltage 12V-32V for greater application compatibility without the need for expensive adapters

User Manual

Please click this link to view the user manual


Need More Accessories for your Truck, Caravan, RV, 4X4 and so on?
Optional Reverse Cameras – If you’re investing in a Masten Premium Monitor it’s also recommended that you invest in a Masten Premium Camera for peace of mind. Masten cameras feature world-class design, waterproof rating and image quality, all this with a 2-Year Warranty (subject to specific models). Click here for more information.

Optional TPMS – For additional safety why not add the Masten Professional Tyre Pressure Monitor System (TPMS) to monitor up to 4 tyres on your vehicle or whatever you’re towing. Available with hidden valve-type sensors or convenient cap-style sensors. Click here for more information.

Optional Cables – For reliability and value you can’t go past the well-built range of cables from DIG Options.

Unbeatable Melbourne-Based 2-Year Warranty!

Vehicle Compatibility

This part is suitable for all vehicles. Please note that due to this being an aftermarket accessory, some minor work may be required however, you will end up with a good result.


Looking for a Premium Navigation DVD Bluetooth IN-DASH System? Checkout our store categories for a suitable solution or contact us.


Other Accessories for your Vehicle are in our store including:

  1. Plug and Play Premium Integrated Navigation DVD Bluetooth System
  2. Fascia Stereo Surround
  3. Premium Reverse Camera
  4. In-Car Entertainment Monitors
  5. Dash Removal Tools
  6. Tyre Pressure Monitor Systems
  7. Off Road Navigation Software
  8. Home Electronics and much more


Product Specifications

Screen Size:7"(16:9)
High Resolution: RGB 800*480 pixels
System: PAL/NTSC Auto System
Power Supply: DC12V~32V
Power Consumption: 5W
Video: Four Video Inputs / One Video Output
Audio: Four Audio inputs optional
Language: English and Chinese
Picture Mode: JPG
Coded Format: MOTION,JEPG
Brightness/Contrast: 450cd/m2/450:1
Operation Temperature:-20~70 degrees celsius

Barcode # 2000000002460
Brand Masten
Shipping Weight 1.5000kg
Shipping Width 0.265m
Shipping Height 0.198m
Shipping Length 0.070m
Assembled Width 0.265m

24 month Replacement Warranty
