Why select a Masten Product?

Masten is 100% Australian owned and engineered. Masten offers a range of high quality products to the market at very affordable prices, something the Australian market is currently missing. Masten have been developing products primarily for the Commercial and 4WD Off Road markets since 2008 so we understand how to make a product that lasts.

This commercial grade receiver and transmitter was designed with forklifts in mind. All power cables are included. The parts include all cables and connectors, just add in your Monitor, Camera and/or battery pack! This heavy duty kit is completely weatherproof with an IP66 rating which makes it durable, strong and reliable.


Receiver / Transmitter Specifications

  • Power Supply: DC 10-32V
  • TV System: Auto (PAL/NTSC)
  • Operation Frequency: 2400-2483.5MHz
  • Line of Sight Range: 120M
  • Video Codec: MPEG4
  • Receiving Sensitivity: 89dBm
  • RF Bit Rate: 4Mbps
  • Spred Spectrum: FHSS
  • Latency: 120mS
  • Waterproof: IP66
  • Operating Temperature: -20 ~ +70 degrees celsius RH90%
  • Storing Temperature: -20 ~ +80 degrees celsius RH90%



Features

  • 2.4GHz Digital Wireless Signal
  • Compatible with cameras and monitors with 4-pin aviation plug
  • 120m Range on a Line of Sight
  • Easy to Install
  • Transmitting Frequency: ISM 2,400- 2,483MHz
  • No interferance with latest digital signal technology
  • Clearest images delivered to your monitor
  • Low Power Consumption
  • Makes any monitor wireless in less than one minute

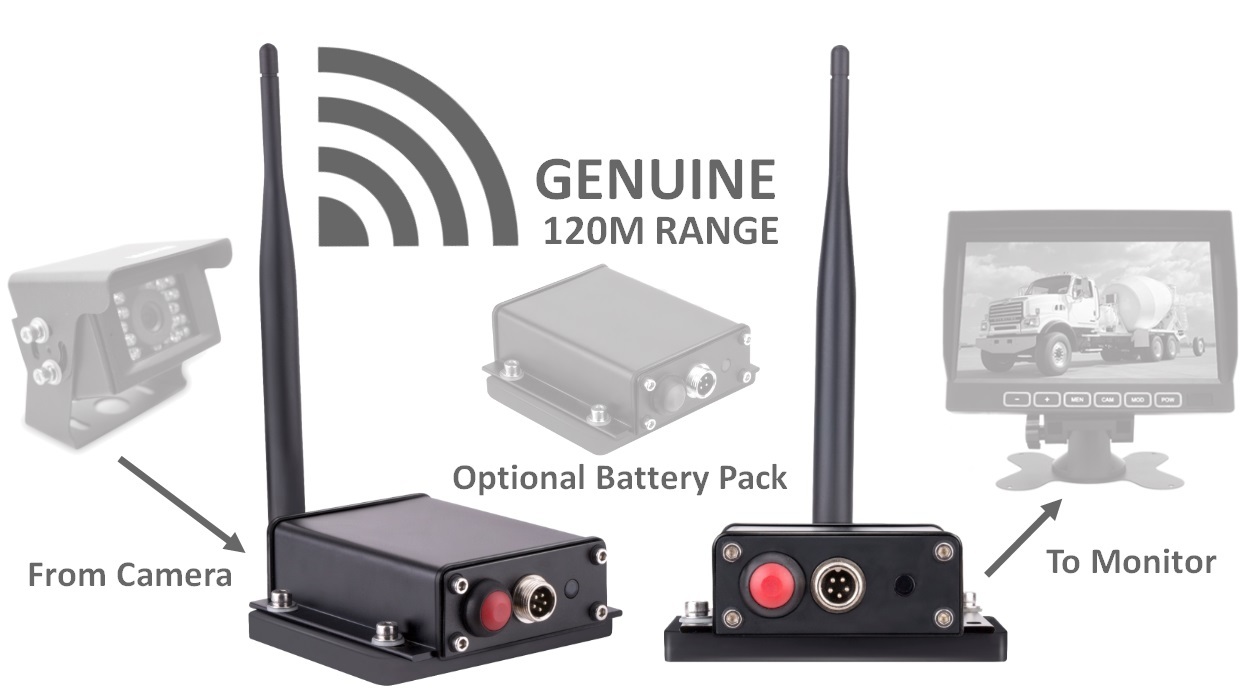

    • Just connect the transmitter to the camera plug and the receiver to the monitor plug. No wires needed!
    • Optional power Pack allows the camera to be powered without any wiring



What's Included

Waterproof Digital Wireless Receiver Box (MA-RX01)

Waterproof Digital Wireless Transmitter Box (MA-TX01)



Available Options

  1. 7" Camera Monitor (RCM-71)
  2. WATERPROOF BATTERY PACK (MA-B32)
  3. Forklift Specific CCD Camera (RC-FL01-B)



Unbeatable Melbourne-Based 2-Year Warranty!





SKU MA-RX01
Barcode # 9357423016943
Brand Masten
Shipping Weight 0.6000kg
Shipping Width 0.130m
Shipping Height 0.110m
Shipping Length 0.080m
Assembled Width 0.130m

2 Year Replacement Warranty
