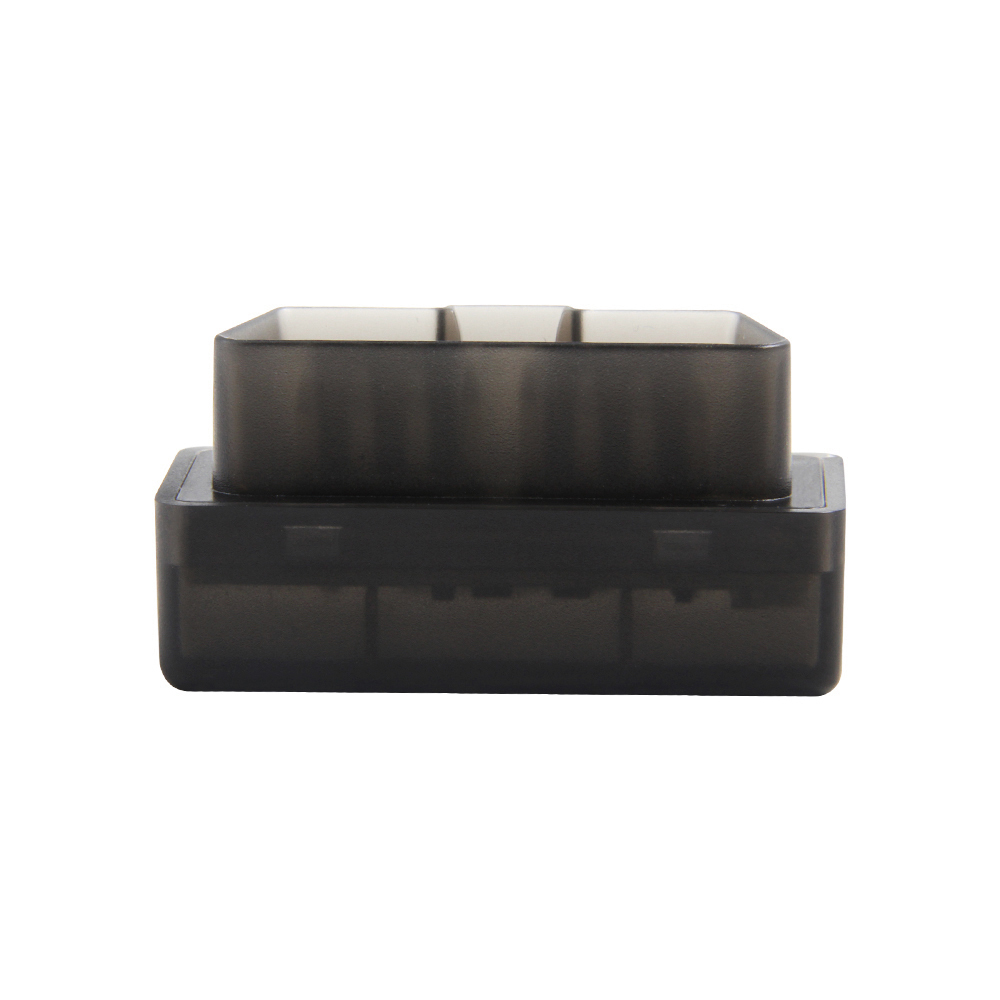

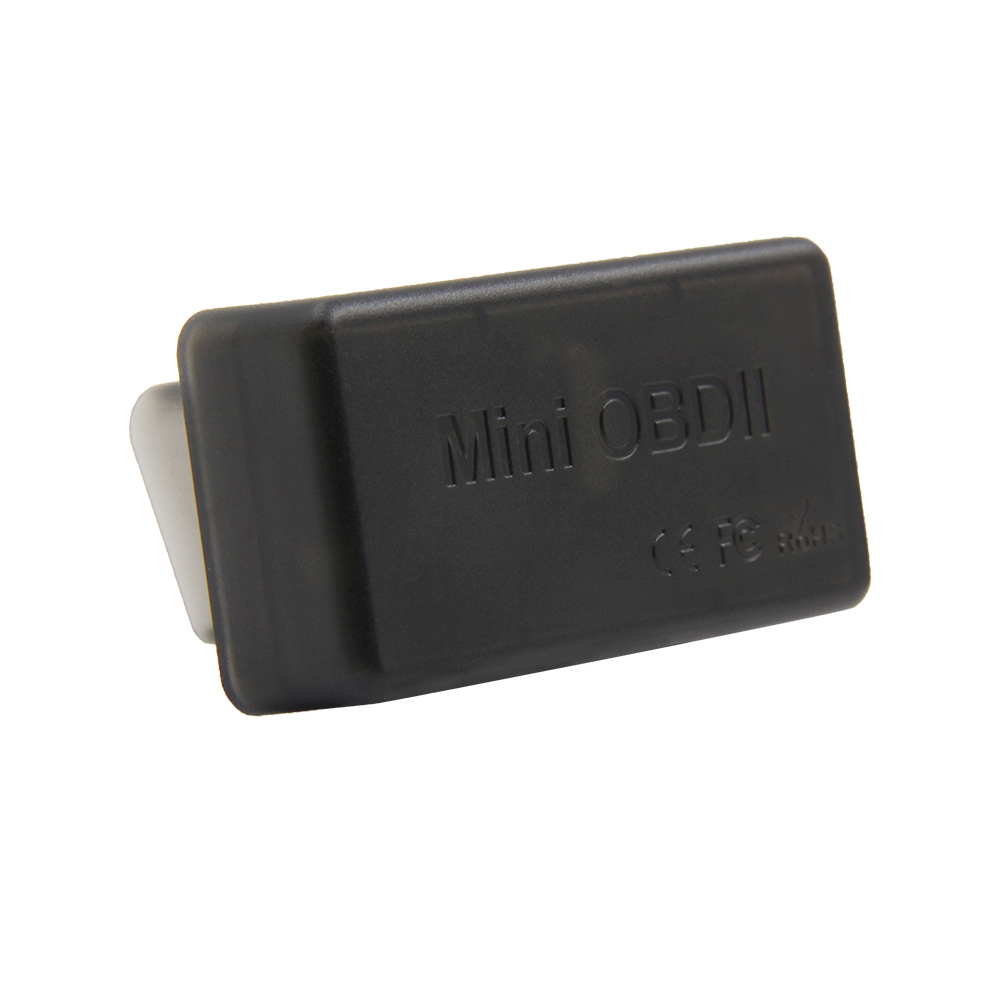

The mini OBDII WiFi interface is an engine performance and diagnostics tool for automotive professionals and enthusiasts that allows you to wirelessly connect your car's on-board computer from your any WiFi enabled device with the compatible application or software. The WiFi connectivity makes it compatible with BOTH Apple iOS (iPhone®, iPad®, iPod® Touch) and also Android devices!

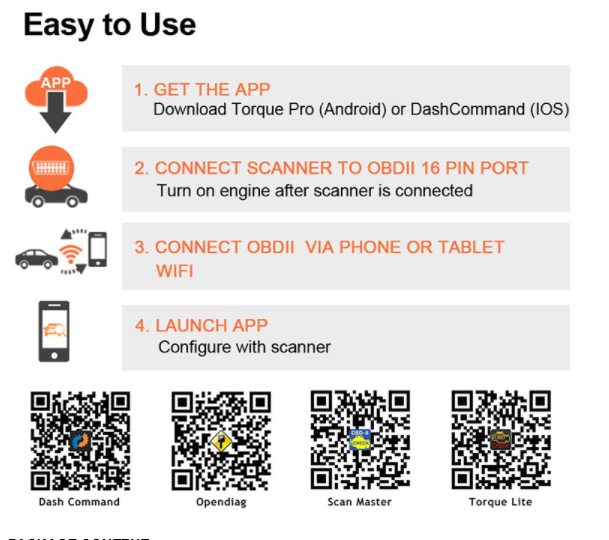

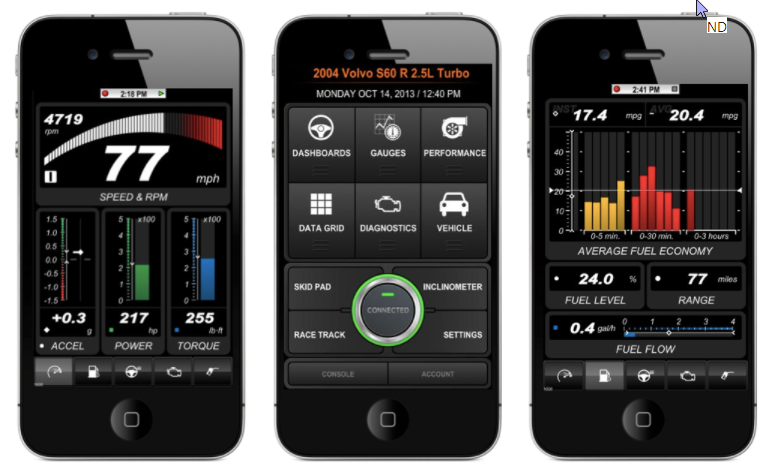

mini OBDII adapter is a powerful car diagnostic tool. It is compliant with full OBD II/EOBD specifications. Various wireless connection modes* to connect your smartphone or ipad. It reads the real-time car engine data, such as engine speed, ignition time, fuel trim, water temperature, fuel consumption. It supports a variety of OBD II Apps like Dash Command, Torque Pro, TripLog, GeekOBD, etc.

FEATURES:

  • BE YOUR CAR'S DOCTOR - Diagnose your car (ECU, engine) easily with this device and OBD apps. Save your time and money on looking for a mechanic.
  • SUPER POWER SAVING - Standby current (sleep mode): <3mA (other normal OBD devices: 30-50mA). Leave the device on the car for one year (in sleep mode)and won’t run out of the battery.
  • 1 YEARS WARRANTY
Free: Torque Lite, ScanMaster Lite, OBD2-ELM327 Car Diagnostics, OBD Dashboard (Free), Carista OBD2, OBDLink, OBD Car Doctor
Paid: Torque Pro, DashCommand, OBD Car Doctor Pro, OBD DROIDSCAN PRO, TouchScan, Efficiency Pro

HTB1VpbyeMMPMeJjy1Xbq6AwxVXaZ

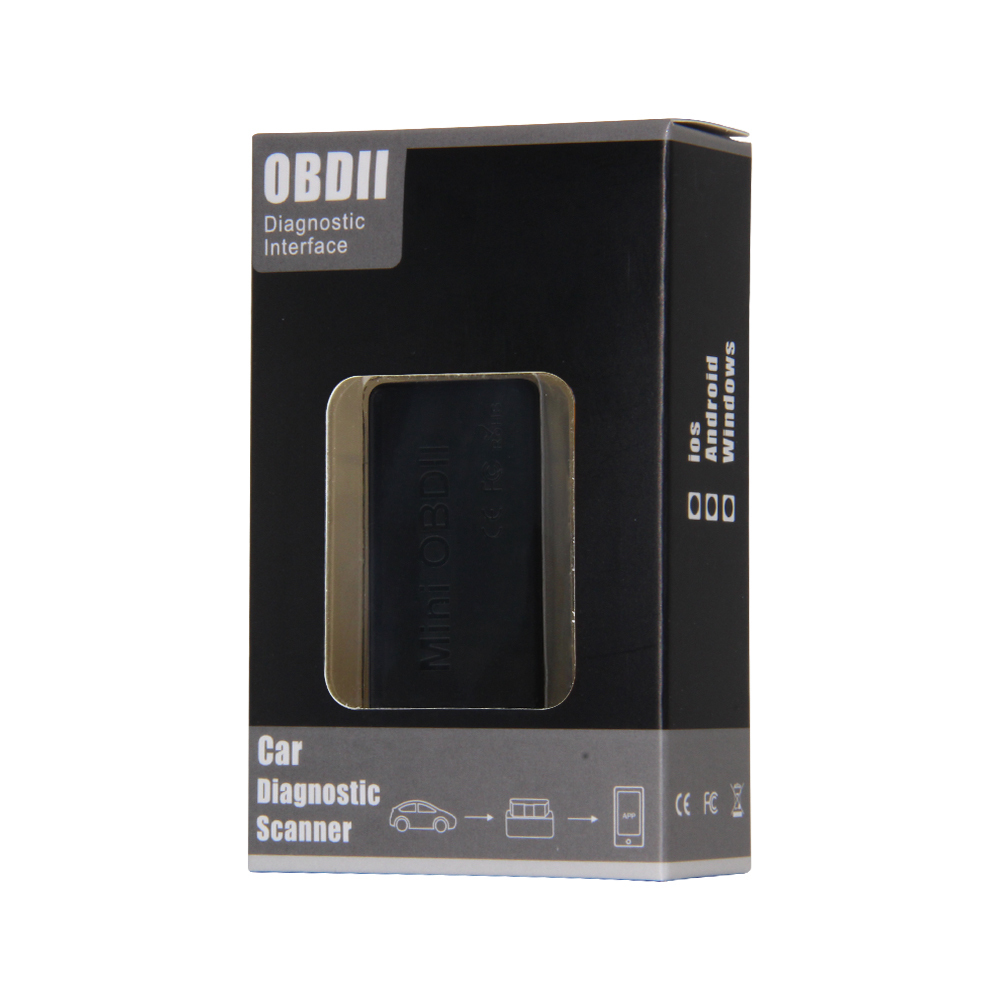

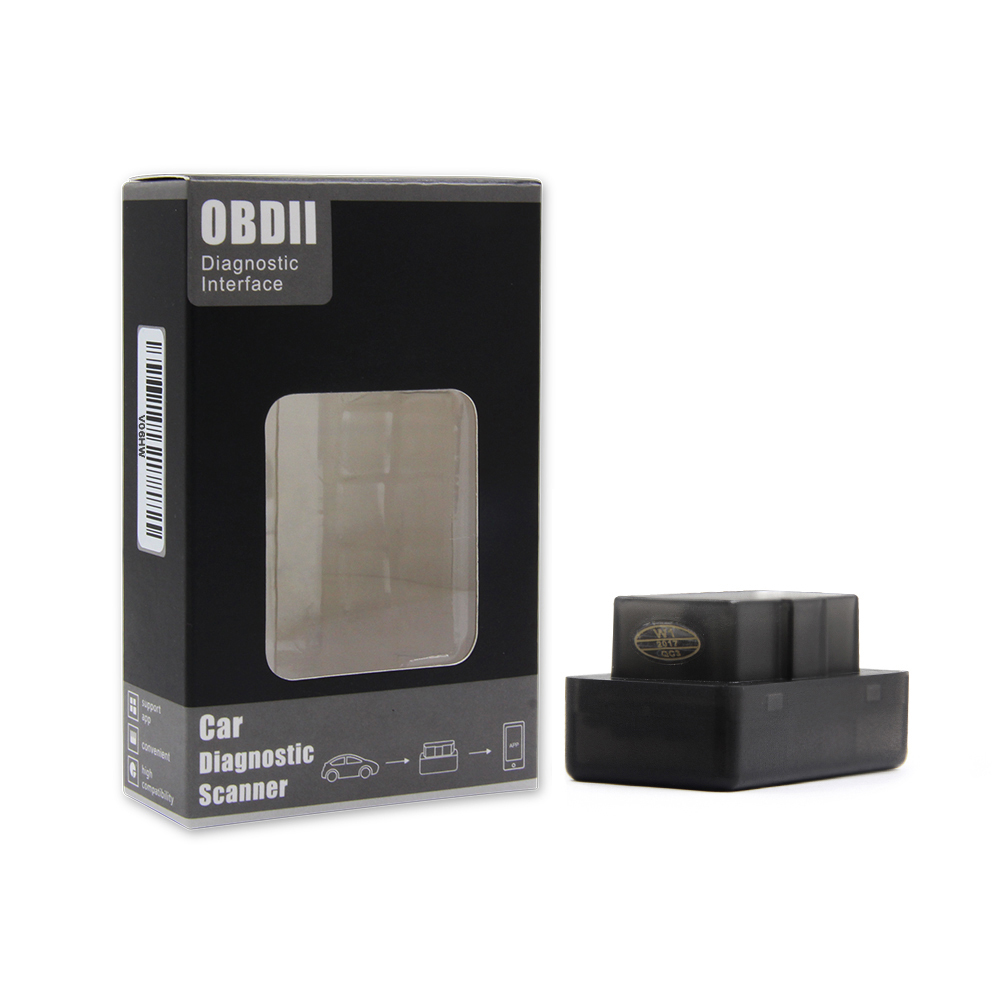

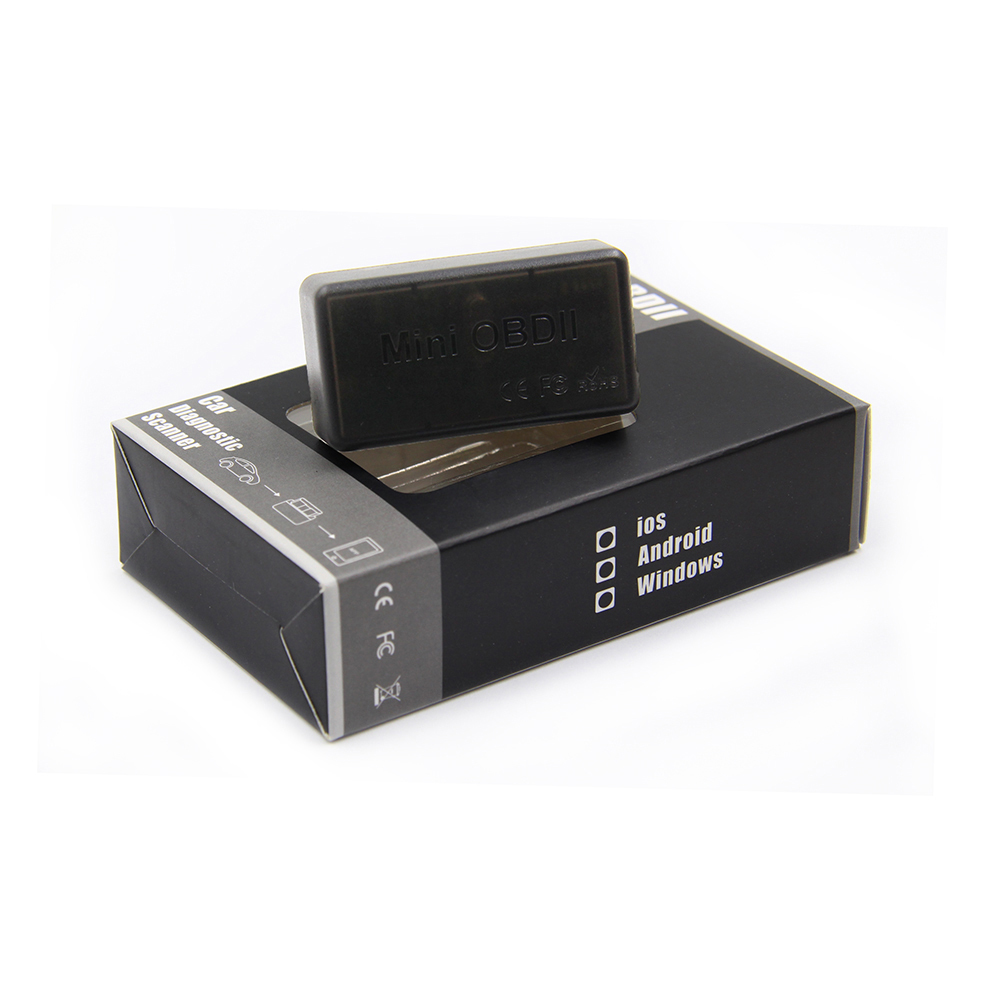

PACKAGE CONTENT:
  • 1 X MINI OBDII ELM 327 WIFI OBD2 / OBDII V1.5 AUTO DIAGNOSTIC SCANNER TOOL
  • 1 X USER MANUAL

Physical Characteristics

Dimensions

42x26x33.5mm ±0.3mm

Weight

22g±0.5g

Material

ABS

Cable length

1m

Storage temperature

-40 to 85℃

Operating temperature

-10 to 75℃

Relative humidity

max 90% at 40℃

























Electrical Characteristics(BT1200i)

Supply power

10~18V DC

Operation current

50mA max

Sleeping current

5mA max

Display

LED

Bluetooth

Class 2 ,Bluetooth 3.0 + EDR



















Bus Characteristics

CAN bus

500K/250K, 11bits/29bits

CAN V 2.0a, CAN V 2.0b

K-line

1.2 ~ 10.4 kbps

ISO9141,KWP2000

J1850

PWM VPWM

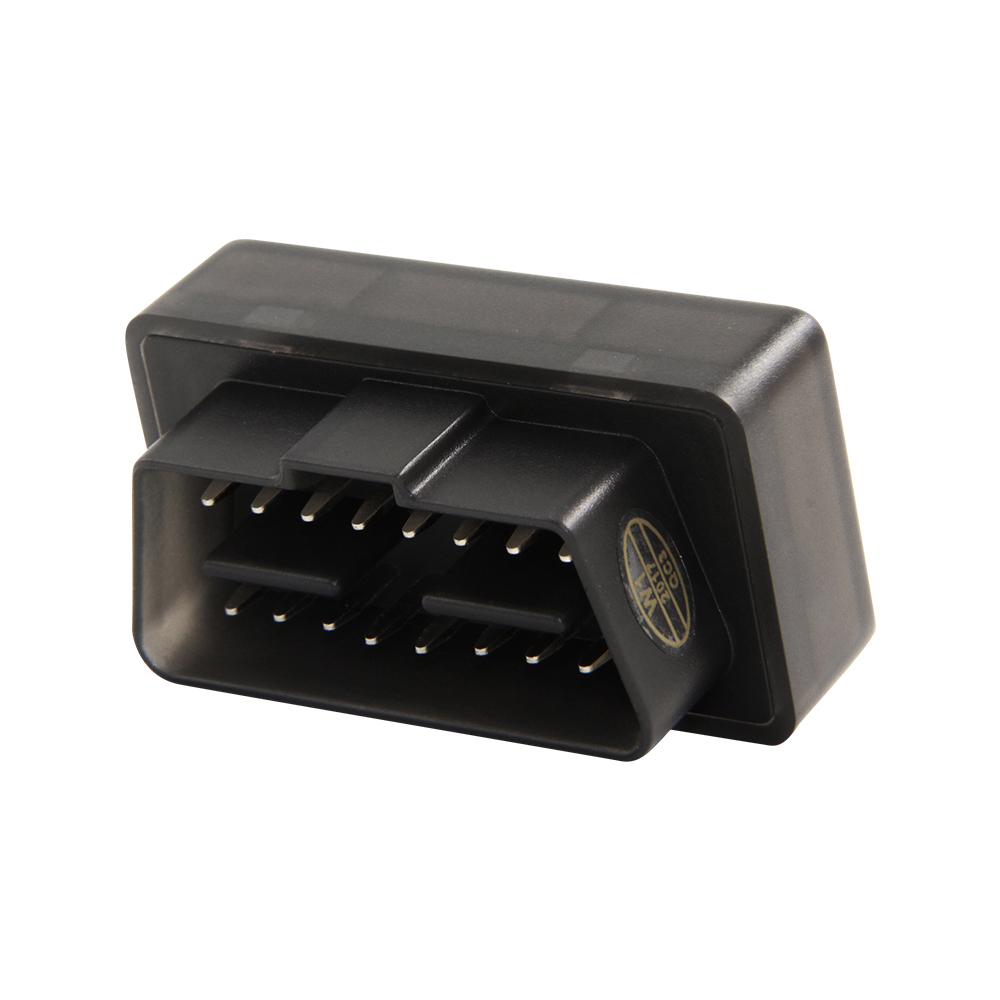

Device Connector Types

OBDII







Conformity

Computer/Smart phone support

Yes

ISO 9141

Yes

ISO 15765-4

Yes

ISO 11898

Yes

FCC CE

Yes

RoHS

Yes



SKU OBD2_NEW
Barcode # 729436060517
Brand Masten
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.240m
Shipping Length 0.200m
Assembled Width 0.200m
