THIS ITEM IS CURRENTLY OUT OF STOCK



Short description

DIG Options has become the "Installer's Choice" for car audio equipment. We listen to our customers so that they keep listening with us. DIG Options provide the automotive electronics, dash kits, cables, adapters and more so you can keep your vehicle updated with the latest technology.

Cameras from DIG Options are vigorously tested in harsh Australian conditions and backed for an Australia 12 month warranty.

Description

This listing includes 2 parts which are:

• A Premium Universal CCD Camera with 5m Video Cable and Integrated Trigger Wire
• Vehicle Specific Special Fit Camera Mount

About the Camera

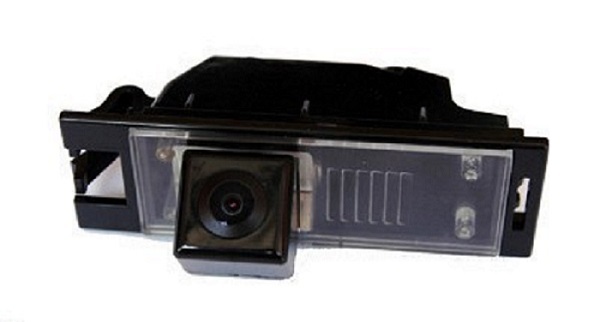

170° (vertical viewing angle) High Resolution Mini CCD Reversing Park Camera

• High Resolution Colour CCD Image Sensor with crisp colour display and the latest sensor technology for improved visibility
• Best-in-Class PAL 704x576 pixel Resolution

• Special trouble-free micro 4-pin connector means you don’t need to drill huge holes and it makes the install easier
• High Water/Dust Proof Rating
• Distance guidelines are built into the camera to offer approximate distance grid lines which range from safe to STOP THE CAR!
• The 170 degree viewing range with advanced CCD Image Sensor provides the latest technology in reverse cameras.
• Due to the cameras low light properties it works brilliantly at night using the light generated from your reverse lights and the camera is water resistant.
• The camera features an RCA plug for connection into your monitor video input as well as built in trigger line which means you won't need to run a separate wire for the reverse power trigger input.



Vehicle Compatibility

This part is suitable for the following vehicles. Please note that due to this being an aftermarket accessory, some minor work may be required however, you will end up with a good result.

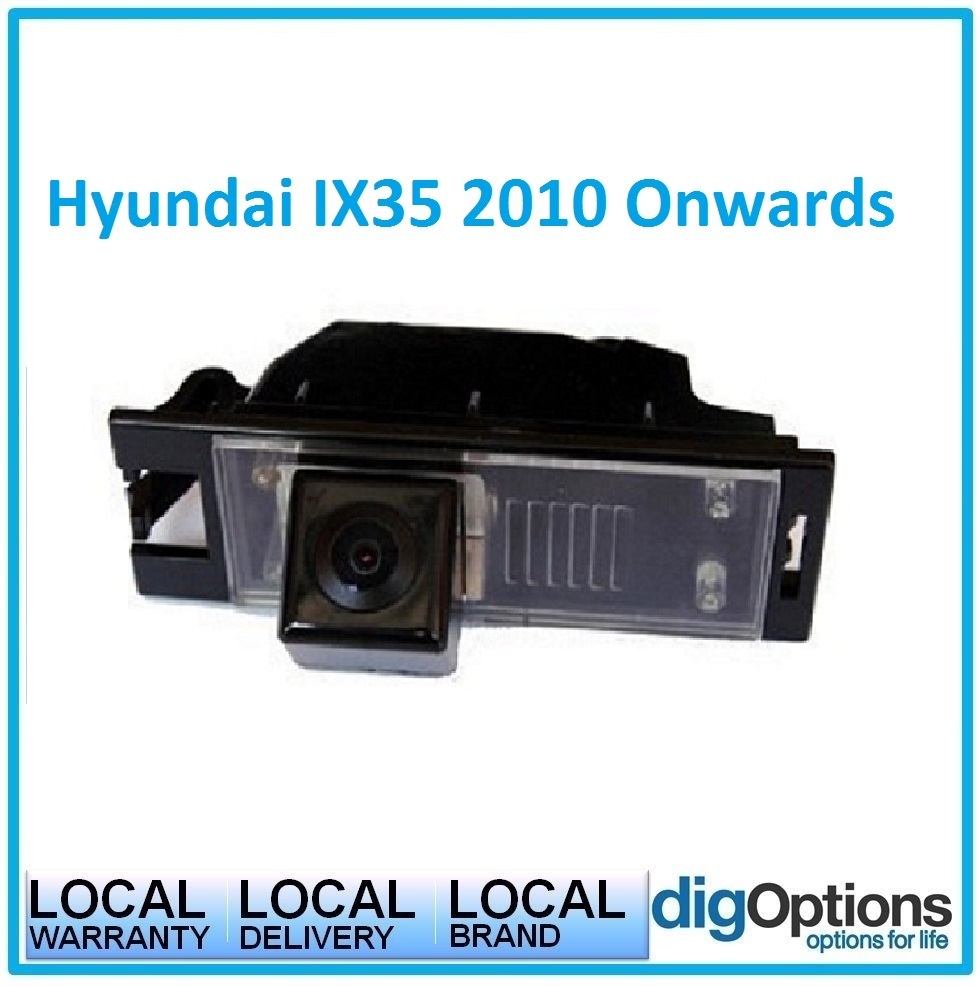

Hyundai IX35 2010 onwards



Looking for a Premium Navigation DVD Bluetooth IN-DASH System? Checkout our store categories for a suitable solution or contact us.



Other Accessories for your Vehicle are in our store including:

1. Plug and Play Premium Integrated Navigation DVD Bluetooth System
2. Fascia Stereo Surround
3. Premium Reverse Camera
4. In-Car Entertainment Monitors
5. Dash Removal Tools
6. Tyre Pressure Monitor Systems
7. Off Road Navigation Software
8. Home Electronics and much more



Camera Specifications

	CCD
IMAGE DEVICE	SHARP 1/4" CCD
SYSTEM	PAL
EFFECTIVE PIXELS	512 X 582 PIXELS
SENSING AREA	3.6MM X 2.7MM
SCANNING SYSTEM	2:1 INTERLACE
SYNC SYSTEM	INTERNAL
RESOLUTION	420 TV LINES
HORIZONTAL FREQ	17.734
VERTICAL FREQ	60HZ
MIN ILLUMINATION	1.0LUX / F2.0
VIDEO OUTPUT	1.0V 75 Ohm
GAMMA CONSUMPTION	0.45
AGC	AUTO
S/N RATIO	BETTER THAN 48DB
WHITE BALANCE	AUTO
ELECTRONIC SHUTTER	1/10,000 SECOND
BLC	AUTO
CURRENT CONSUMPTION	120mA
POWER SUPPLY	12v
OPERATING TEMP	-20C  - 70C    RH95%MAX
STORAGE TEMP	-40C - 85C    RH95% MAX
LENS	f=2.1 / F=2.0
LENS ANGLE	170 DEGREES (Vertically)
