TR-One Adjustable Gen2 Pedal Mounting System including Pre-Drilled Pedal Plate with Micro-Adjustment Slide Function

Trak Racer is the Official Simulator Supplier of Alpine F1 Team and Airbus Aircrafts.

What is TR-One? TR-One is a new range of products from Trak Racer that can be updated by only needing a single part and not the entire mount.

TR-One Pedals all share the same side plates, TR-One Wheel Mounts all share the same base kit and TR-One Shifter System allows 'piggy-backing' of new mounts to the TR-One Gen 2 Shifter Mount. The benefit is lower cost and never having an outdated mount again.

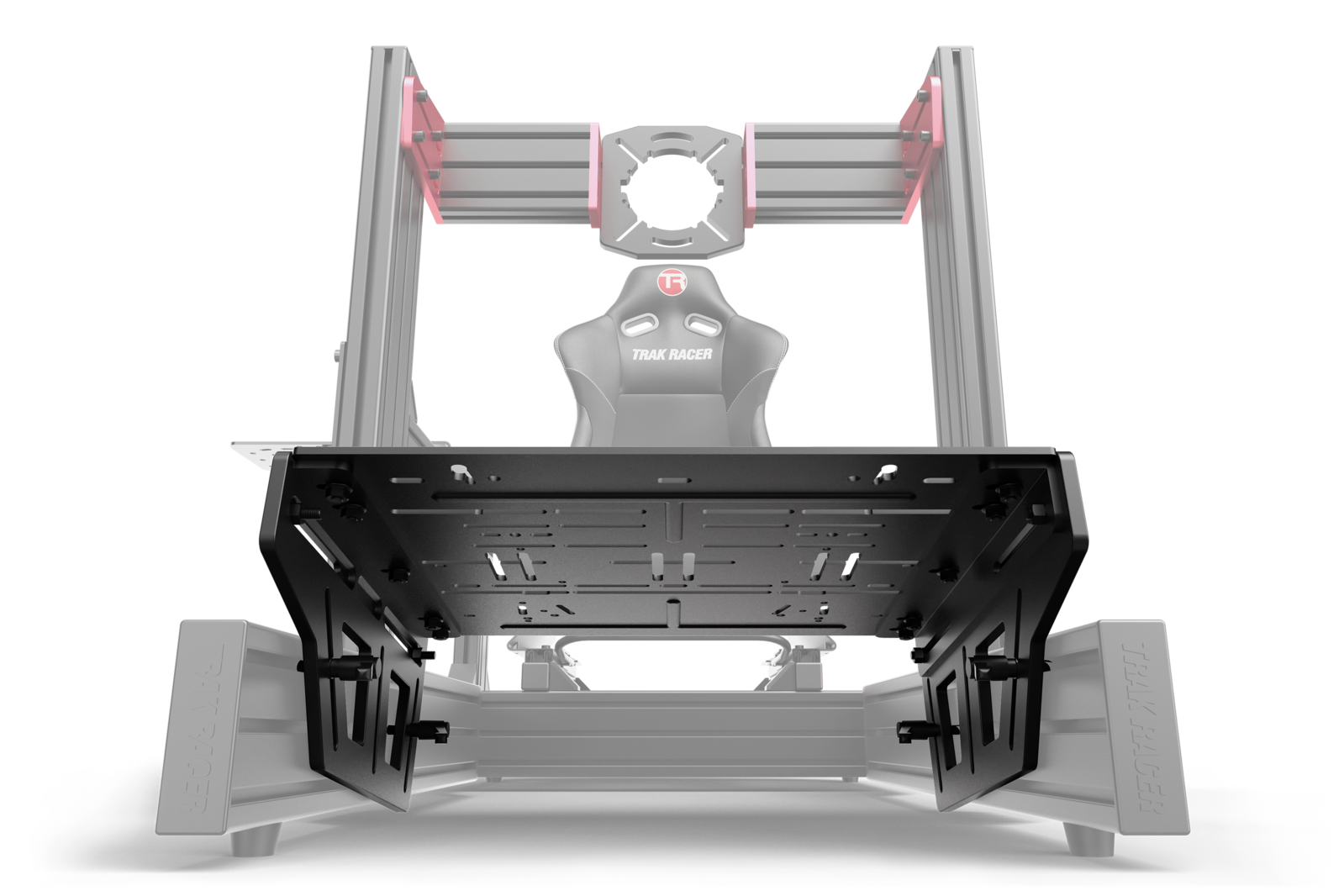

The Trak Racer Gen2 Pedal Mount can be mounted to sit above or below the 160mm high aluminium chassis and pre-drilled for all major brand pedals. The clever design mounts inside the chassis for ground-level height or outside the chassis for above chassis height.

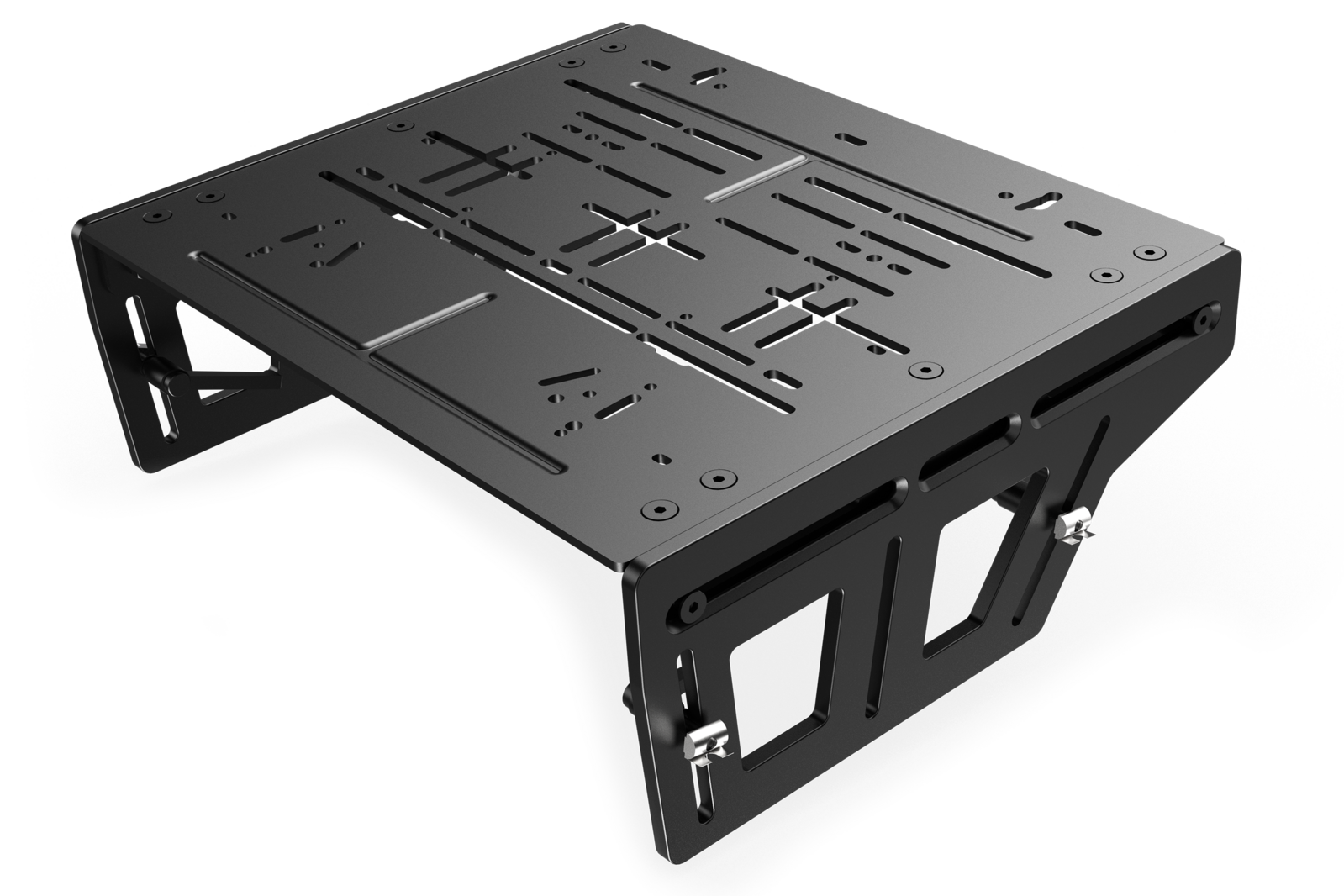

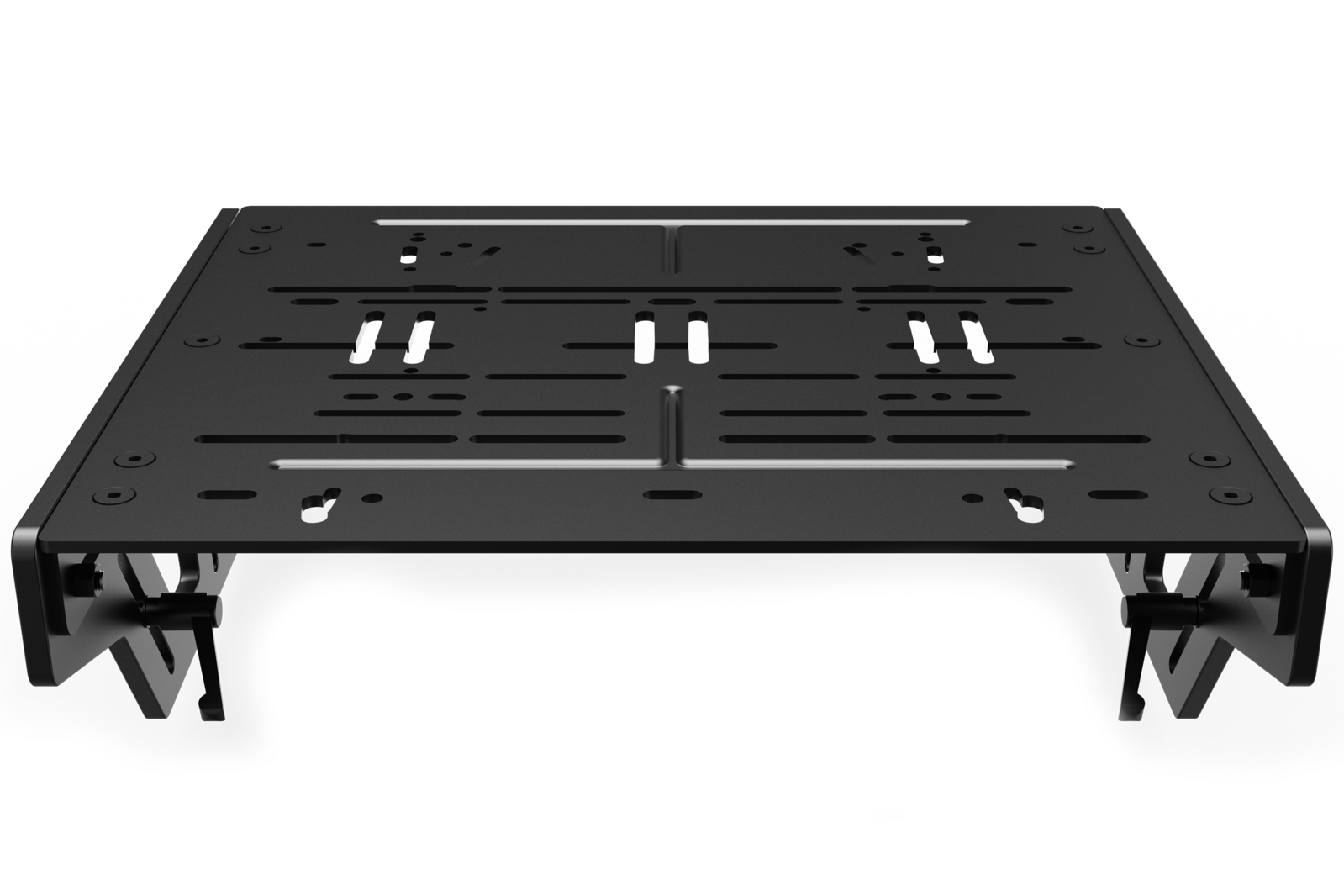

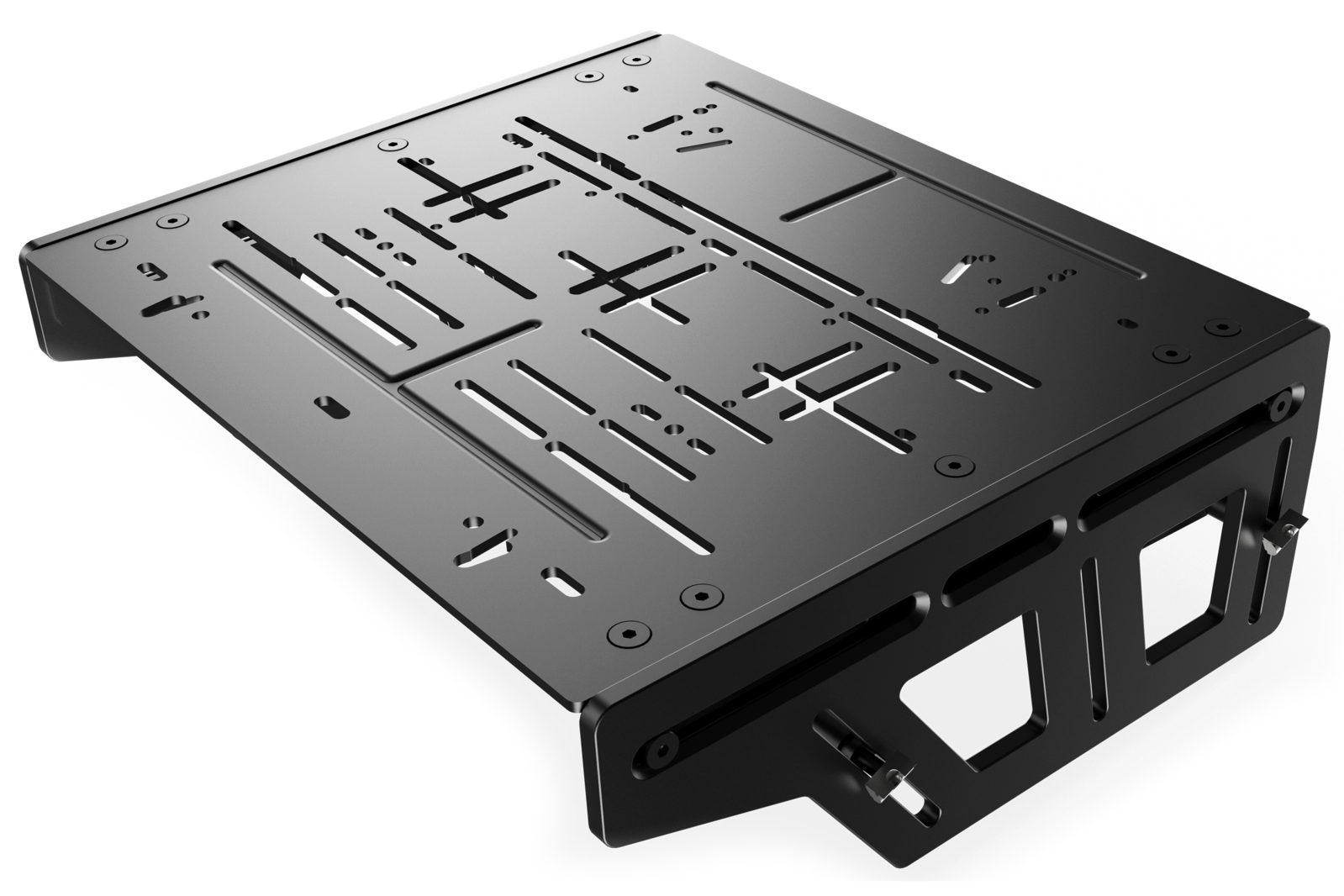

The pedal baseplate is made out of thick carbon steel and has pre-drilled holes for all major brand pedals (see list below) and slots for left/right adjustment with Heusinkveld pedals and others. The pedal plate can be angle adjusted with the locking lever and moved forwards and backward.

With the Trak Racer Pedal Plate you will not require a baseplate from your pedal supplier.

Most Rigid Adjustable Pedal Mount Features:

• Unique Bracket Design allows you to position the pedal plate above, or below the top of the chassis
• Hassle-Free Angle Adjustment with the Tool-free screw
• Fully adjustable bracket for both angle, height, and slide
• Thick, no-flex Carbon Steel Construction
• Pre-drilled mounting points for all major brand pedals

Pedal Deck Compatibility:

• Fanatec CSL Elite Pedals, ClubSport V1/V2/V3 (including Inverted Pedals)
• Thrustmaster T-LCM, T3PA, GT Ed, T3PGT, T3PA PRO add-on and T500, T150 pedals
• Trak Racer Loadcell Pro Pedals (Coming Soon)
• Heusinkveld Ultimate/Ultimate+, Sprint and Pro
• Logitech G29, G920, G923
• Meca Cup1-2, Meca Cup1-3, Clutch and Base Plate
• VRS DirectForce Pro Pedals
• HPP PRX 3P, JBV 2/3 Pedal System
• Simagic P2000-S100 Pedal Set
• BJ Sim Racing Steel Series, 1000psi Hydraulic
• DC Sim Racing DC3
• Sim Coaches P1-3
• Simtrecs ProPedal GT
• Asetek Hydraulic
• Velazquez Engineering PRO+ Hydraulic
• Simforge Mark-1
• 3DRAP Ngasa
• Protosimtech PT2
• OBP Pro Race V2 Sim Pedal System
• Simworx Pro Series
• WAVE IMPETUS
• Quaife Throttle Pedal and Brake
• Cube Controls Hydraulic

Also, Flight/Heavy Equipment

• Thrustmaster TPR: THRUSTMASTER PENDULAR RUDDER
• Thrustmaster T.Flight Rudder Pedals
• Logitech Flight Rudder Pedals
• Logitech Heavy Equipment



5 Year Warranty

What's Included:



Side Plates:

• 8 x M8 x 20mm Flat Screws
• 6 x M8 x 25mm Handle Screws
• 8 x M8 Flat Washers
• 8 x M8 Lock Washers
• 8 x M8 Sping T Nuts
• 2 x Pedal Brackets

Pre-Drilled Pedal Plate:



• 1 x Pre-Drilled TR Pedal Plate
• 2 x L Bracket Plate Supports
• 14 x M8 x 20mm Flat Screws
• 14 x M8 Flange Nuts
