TR-One Direct Drive Wheel Mount Plate

About the TR One Wheel Mounting System

The TR One Wheel System is a Future Proof Wheel Mounting System that allows you to upgrade by replacing only a part of the mount depending on what wheel base you mount. The base structure is made of thick-walled extruded aluminium and the plates are meticulously crafted from high-quality aluminium then anodized.

The design of the aluminium plates allows for angle and distance adjustment. The base kit (Part Number: TR80-NWMA) consists of 2 x High-Quality 80x40mm Aluminium Profiles and 4 Red Anodised Aluminium Plates. Optional wheel mounts include a wheel deck and direct-drive front mounting plate - but this list will expand as more wheelbase brands become available. The plates themselves are extremely rigid and have a lot of adjustment for angle and forward/backwards fine-tuning - to get a perfect position!



Note: This part also requires Trak Racer TR8020 Fully Adjustable Direct Fit Wheel Mount (Part No.: TR80-NWMA)

• This is an add-on plate that requires side supports (if you don't already have them - Trak Racer Part No. TR80-NWMA

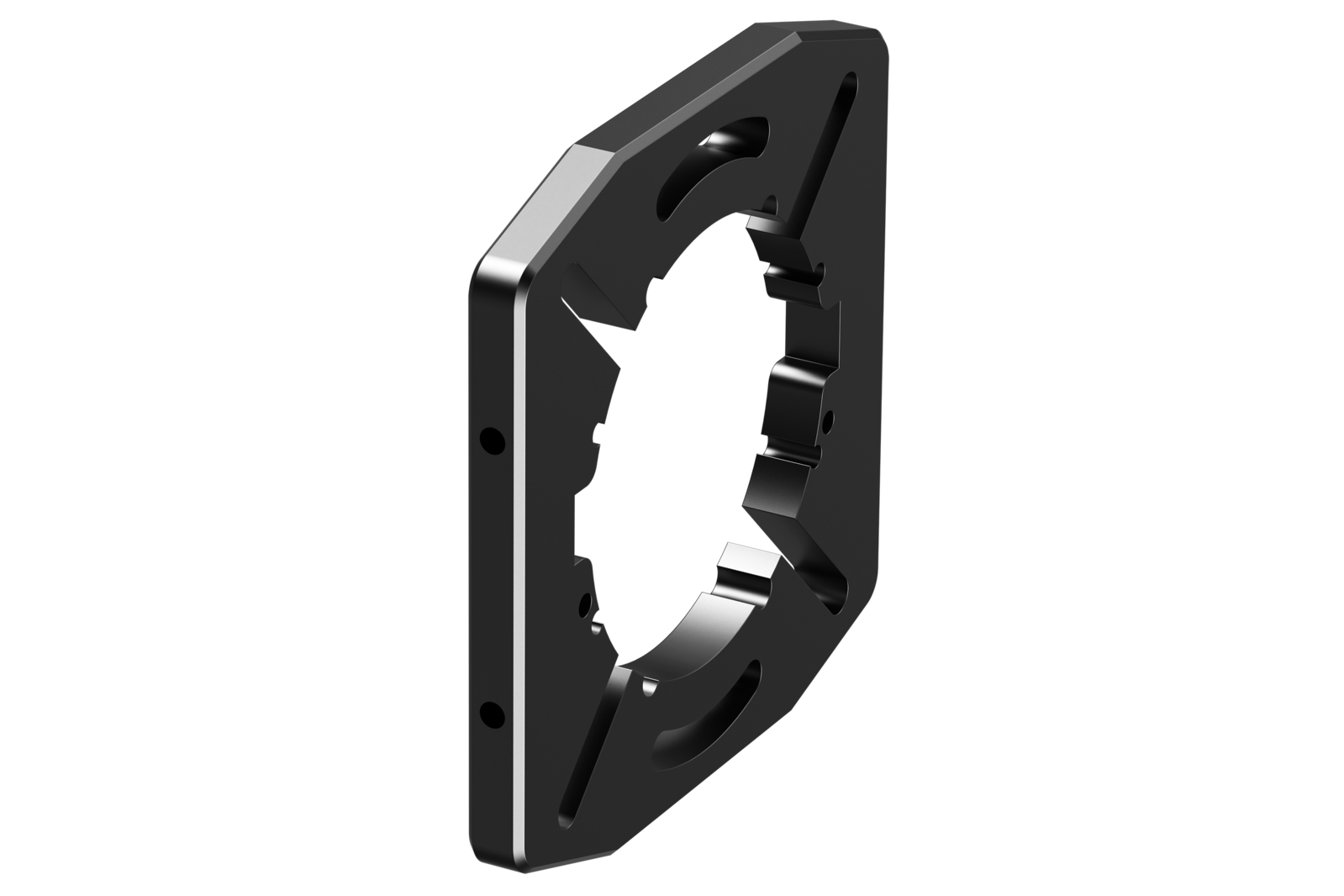

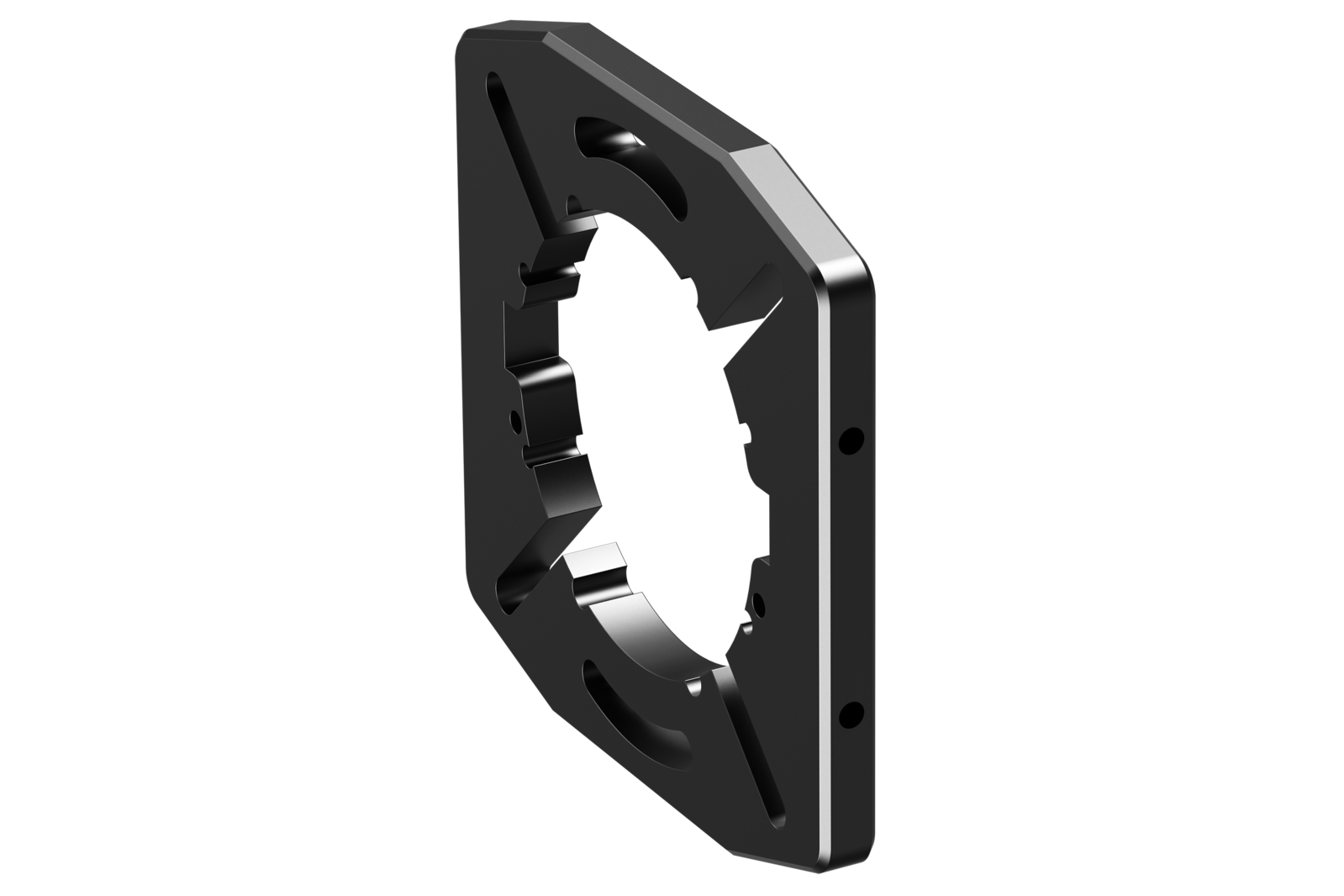

• Constructed from Tooled-Aluminium and 15mm Thick makes this plate is the most rigid on the market
• Zero flex and no weak points
• Quick and easy adjustments when fitted with the Trak Racer Side Mounts (not included)
• All the necessary mounting hardware is included for a quick and easy installation

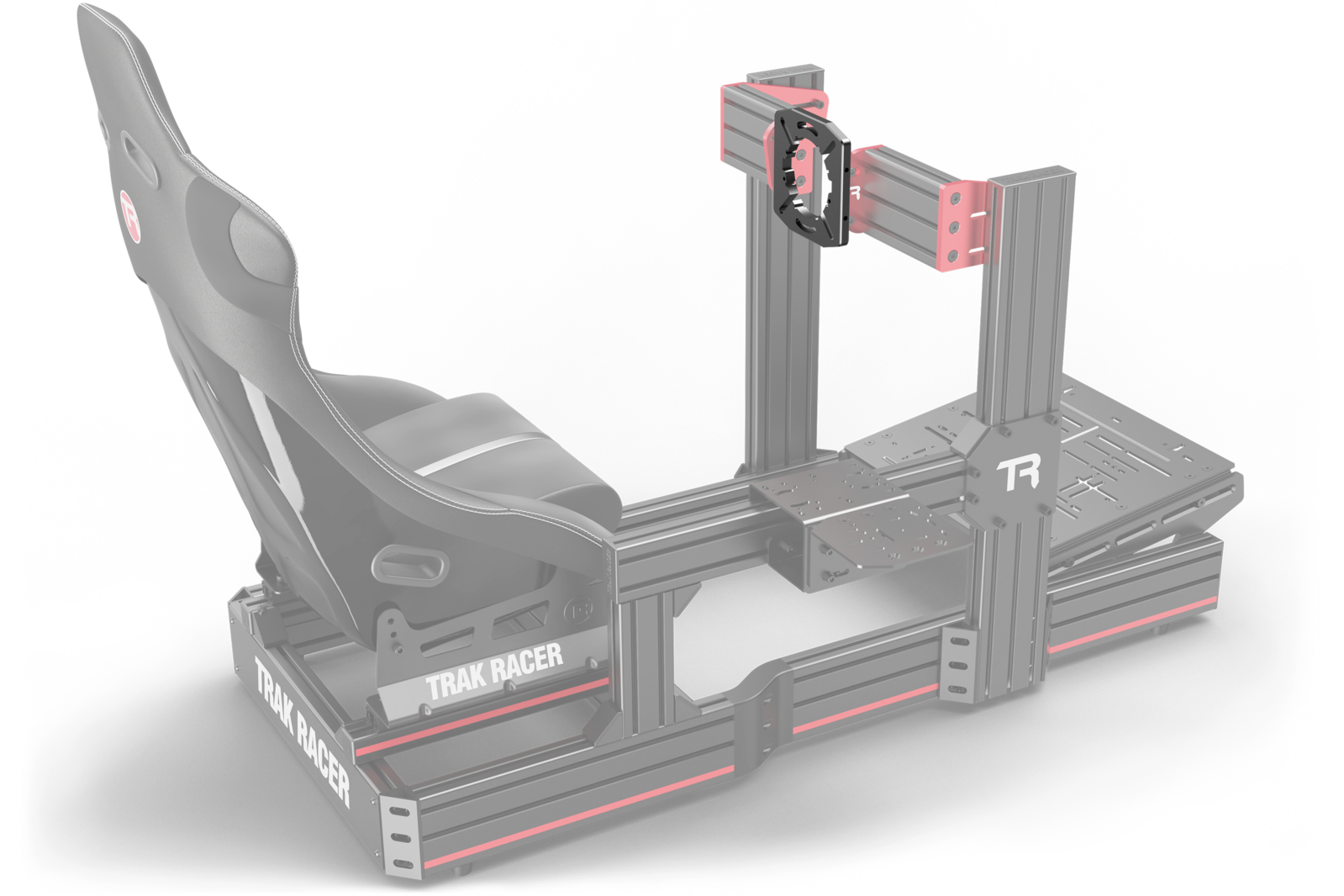

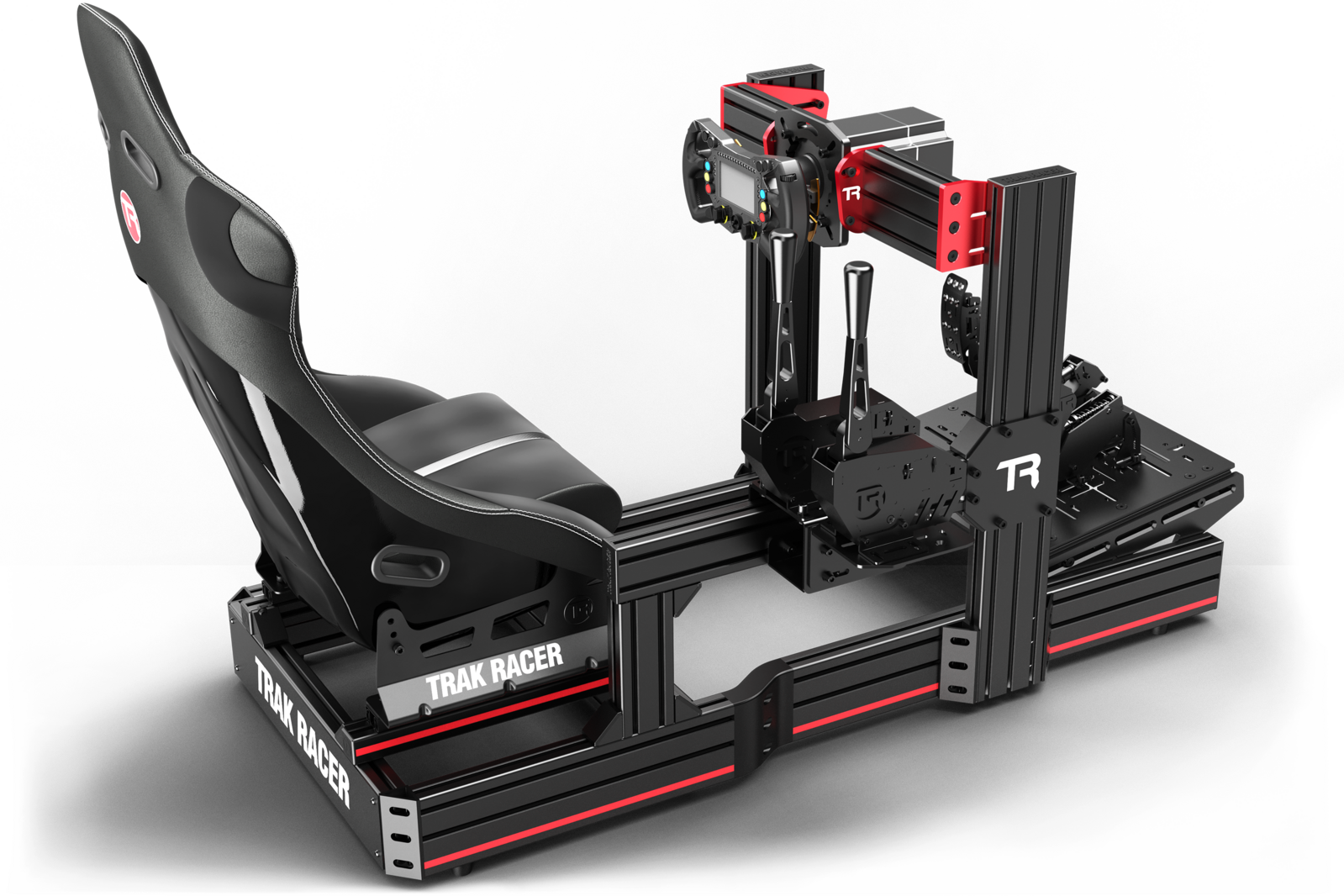

When fitted with the Side Supports (TR80-NWMA), this part is compatible with Trak Racer Extruded Aluminium Rigs and other DIY Builds and has a total width of 580mm

Compatible Wheel Bases:
• Simucube SC1 / SC2 Sport, Pro, Ultimate
• VRS Force Pro
• AccuForce V1/V2 (turn the top cover around to fit)
• MiGe 130ST(small and big)
• Bodnar 53 series
• SIMAGIC ALPHA / ALPHA Mini
• Lenze MCS12 series
• Kollmorgen AKM 52-53-54 (OSW and Leo Bodnar Simsteering systems)
• Ricmotech Mini-Mite Direct-Drive Steering System Base
Contact us if your wheel is not listed

Specifications:

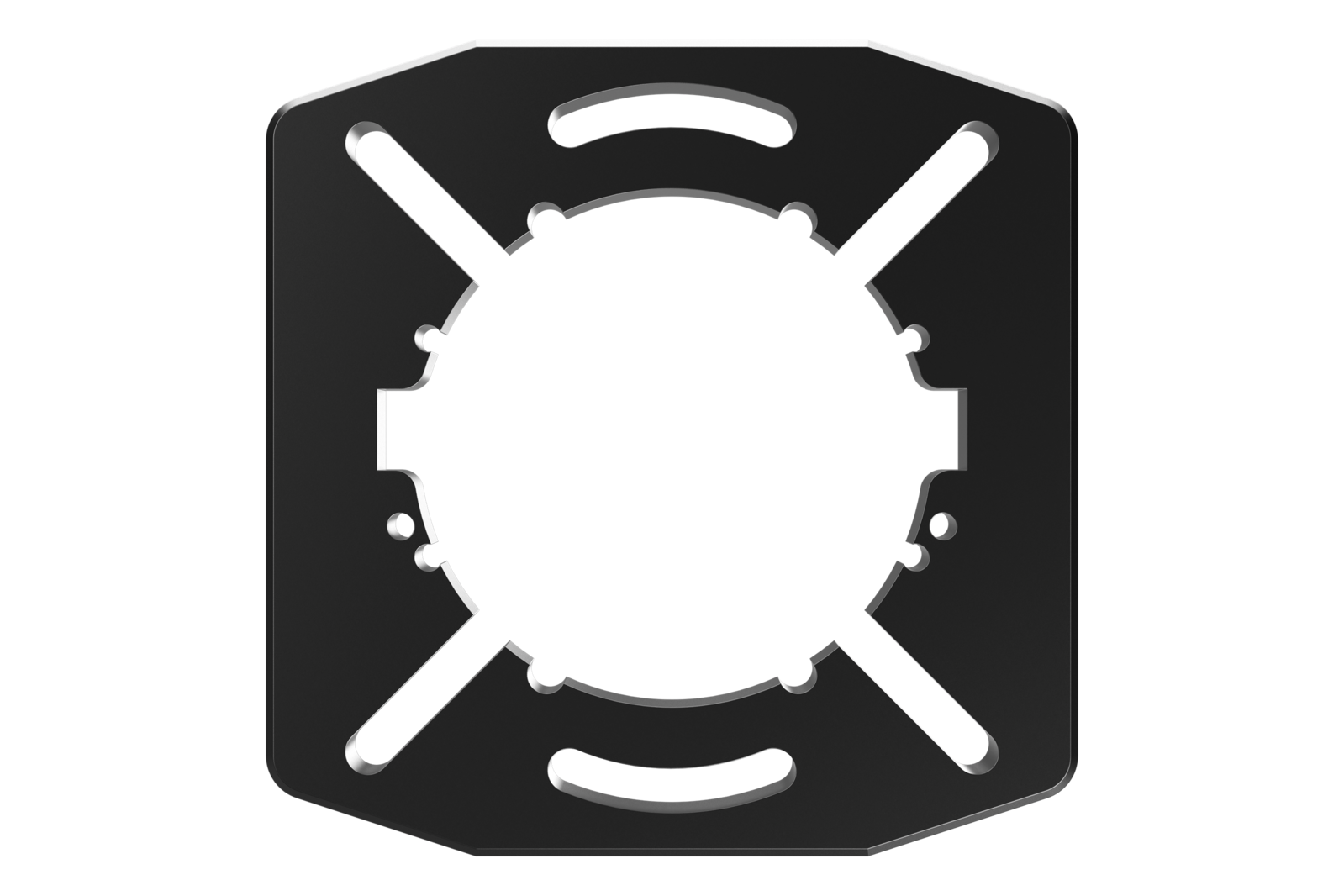

• Plate thickness: 15mm
• Material: High-Grade Aluminium
• Plate Width (without TR80-NWMA): 180mm
• Plate Width (with TR80-NWMA): 580mm

5 Year Warranty

What's Included:

• 4 x M8 x 20mm Hex Screws
• 4 x M8 x 25mm Hex Screws
• 4 x M8 Flat Washer
• 2 x 5mm x 10mm Hex Screws
• 2 x M5 Flat Washer
• 1 x DD Mount
