TR-One Universal Fully Adjustable Direct Fit Wheel Deck

About the TR One Wheel Mounting System

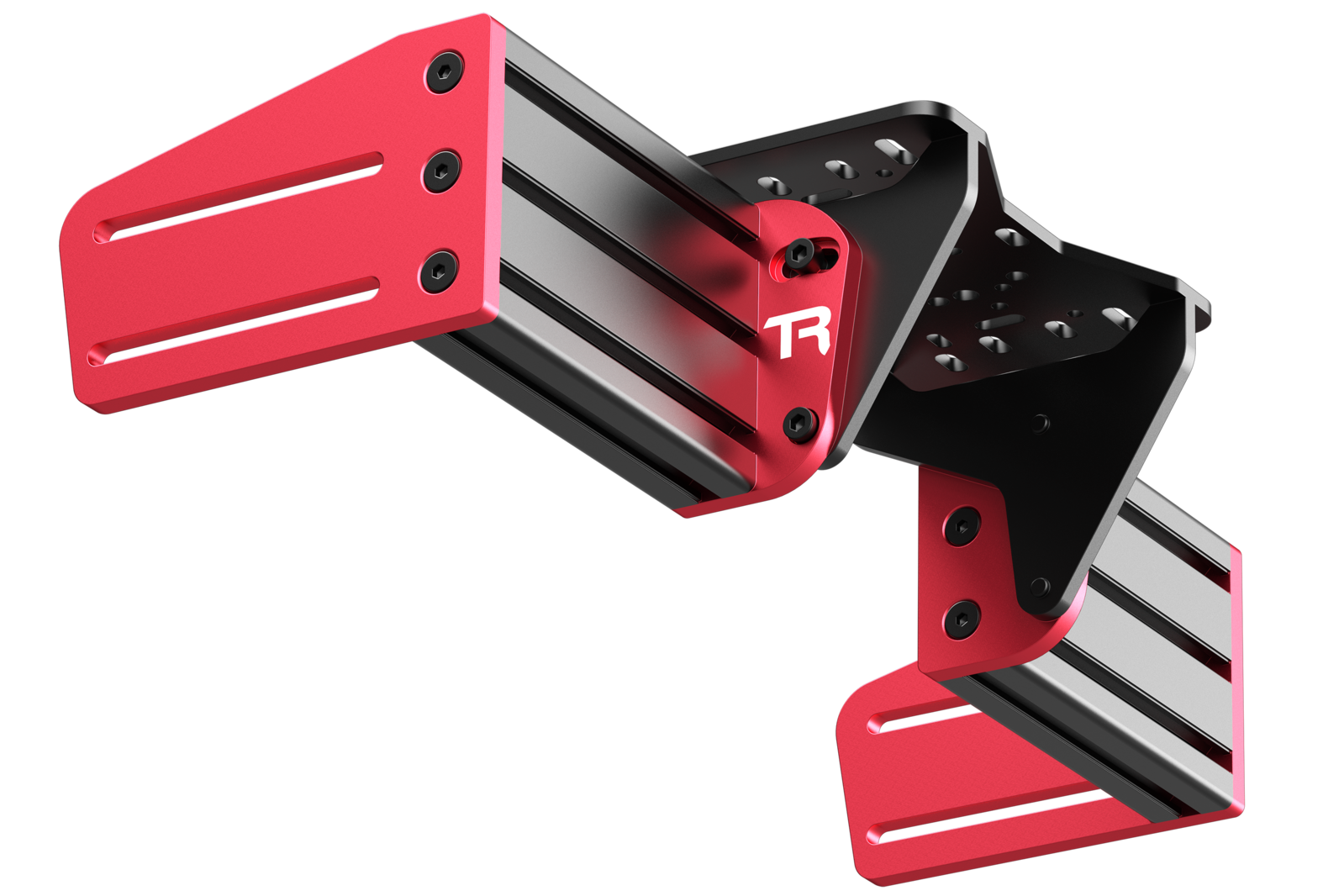

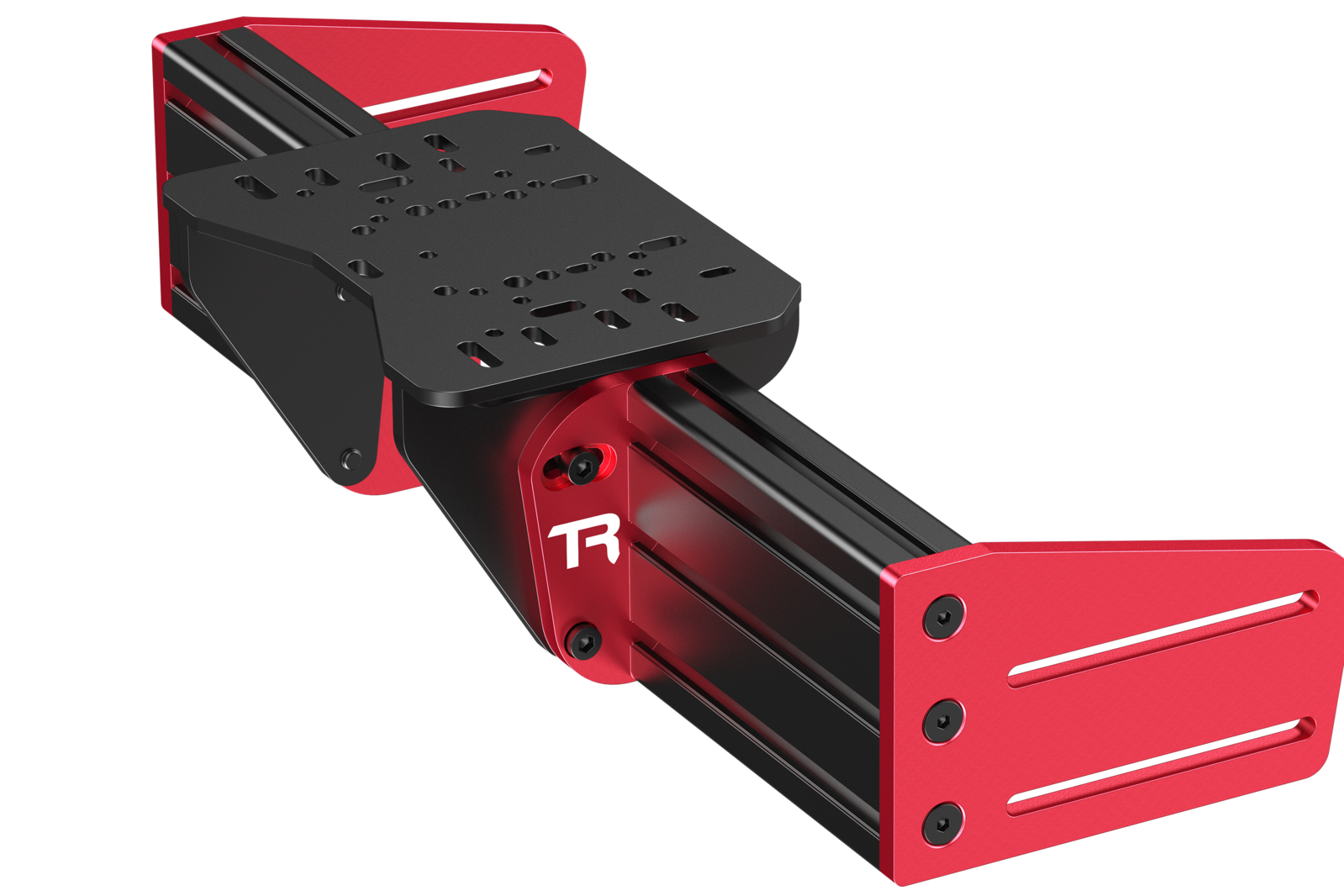

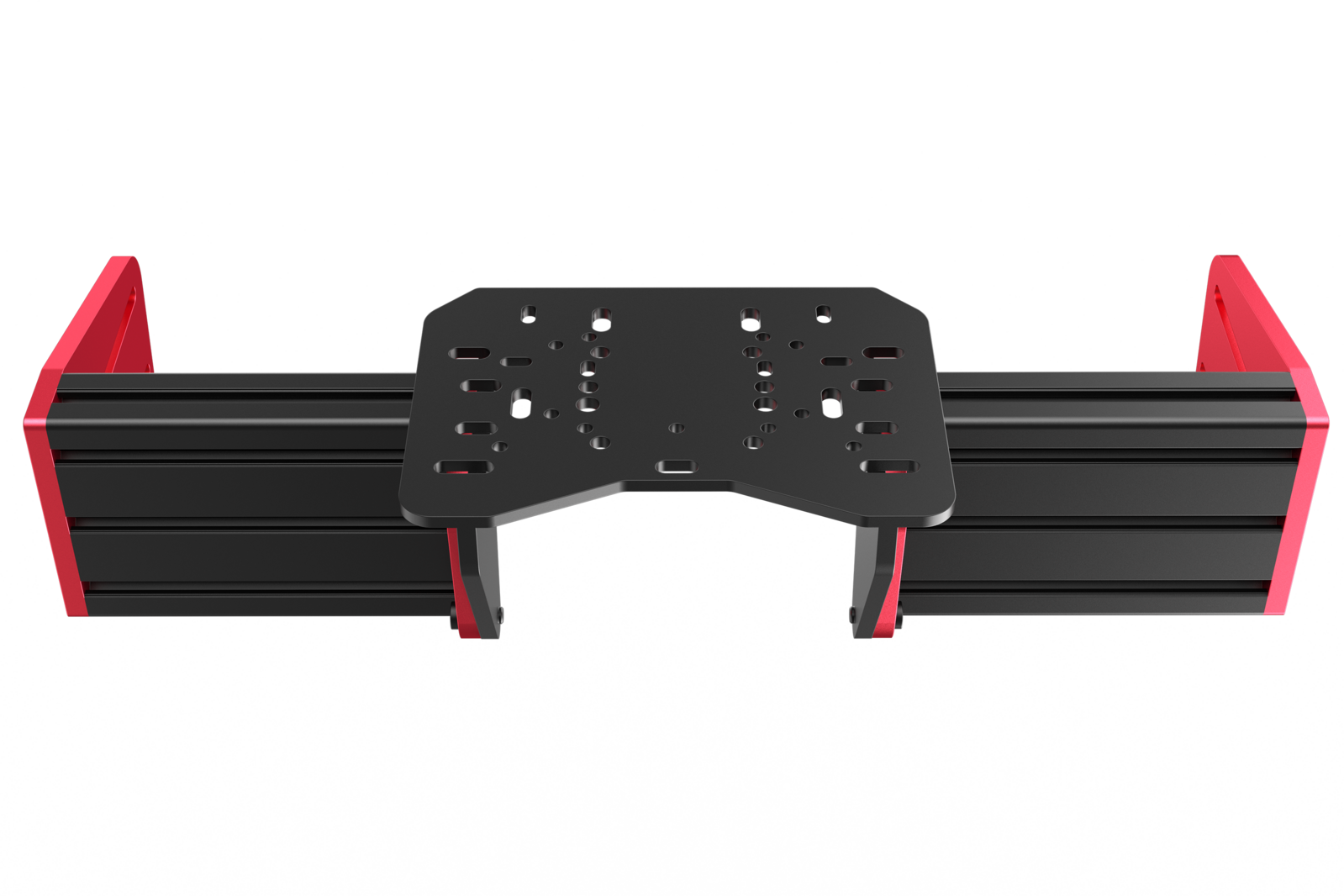

The TR One Wheel System is a Future Proof Wheel Mounting System that allows you to upgrade by replacing only a part of the mount depending on what wheelbase you mount. The base structure is made of thick-walled extruded aluminium and the plates are meticulously crafted from high-quality aluminium then anodized.

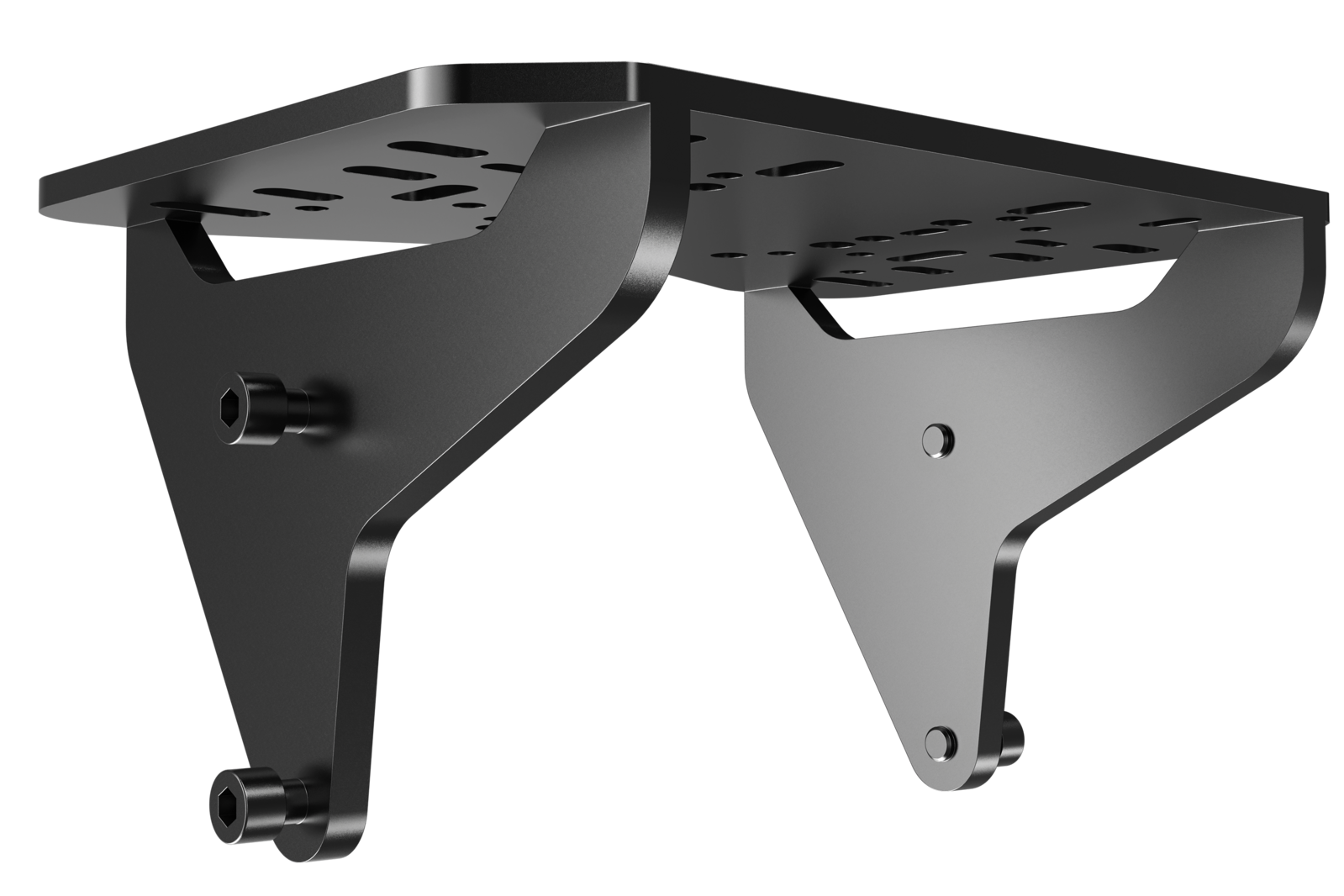

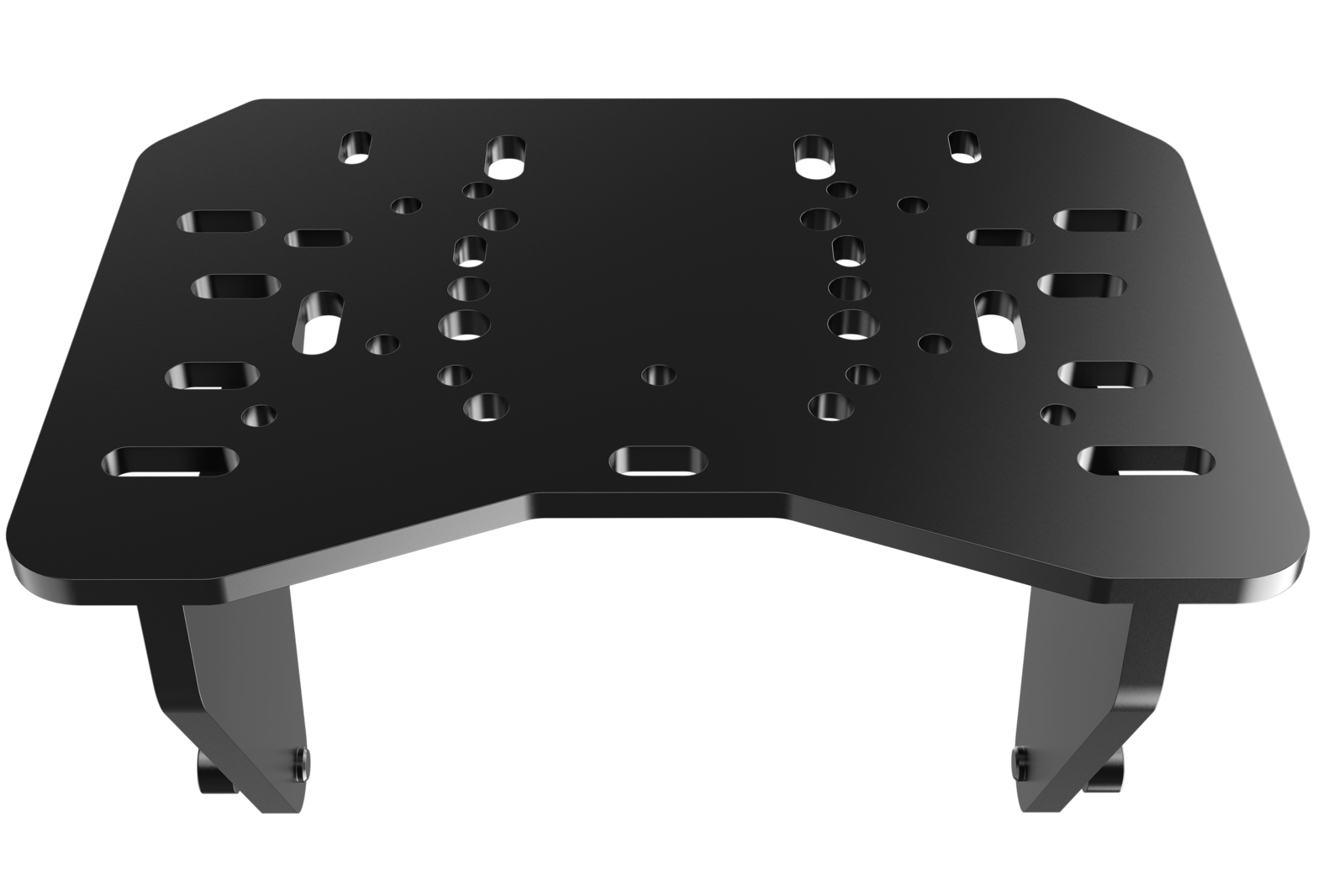

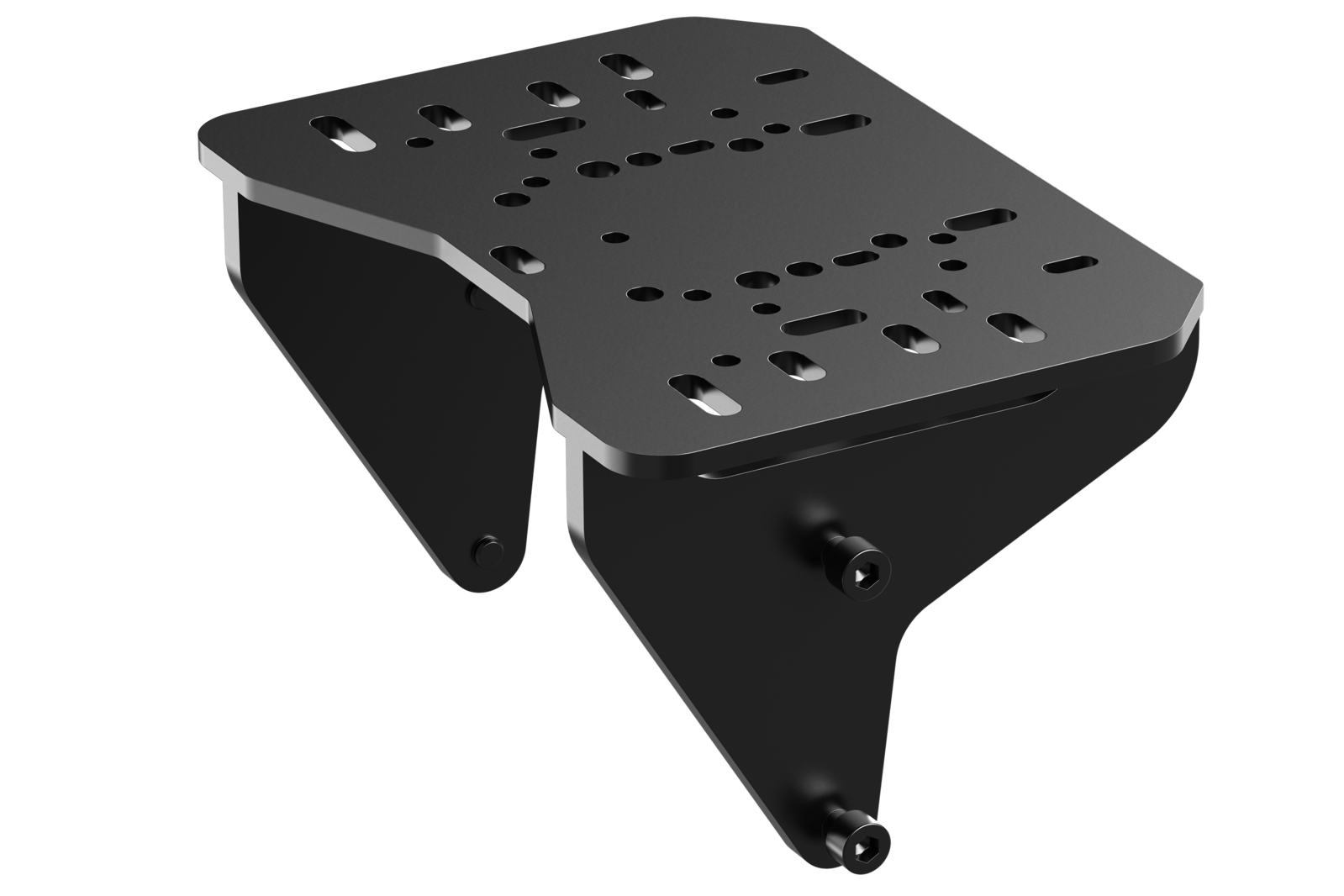

The design of the aluminium plates allows for angle and distance adjustment. The base kit (Part Number: TR80-NWMA) consists of 2 x High-Quality 80x40mm Aluminium Profiles and 4 Red Anodised Aluminium Plates. Optional wheel mounts include a wheel deck and direct-drive front mounting plate - but this list will expand as more wheelbase brands become available. The plates themselves are extremely rigid and have a lot of adjustment for angle and forward/backward fine-tuning - to get a perfect position!



Angle Adjustment: Fully Adjustable Mount with up to 12° degree tilt angle PLUS greater angle adjustments of the outer plates

Material: Anodised Red Aluminium Plates, Extruded Aluminium Profile and Carbon Steel

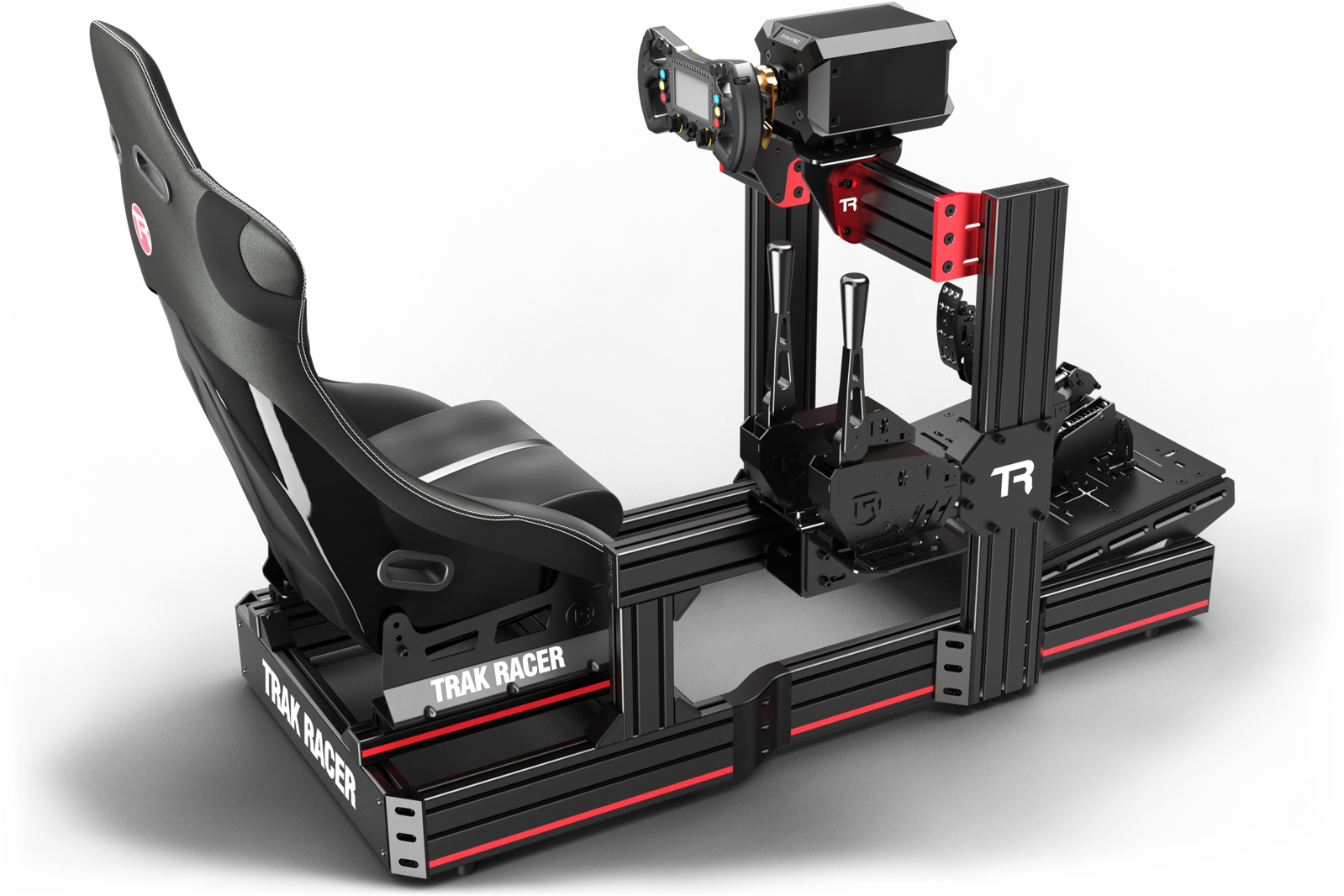

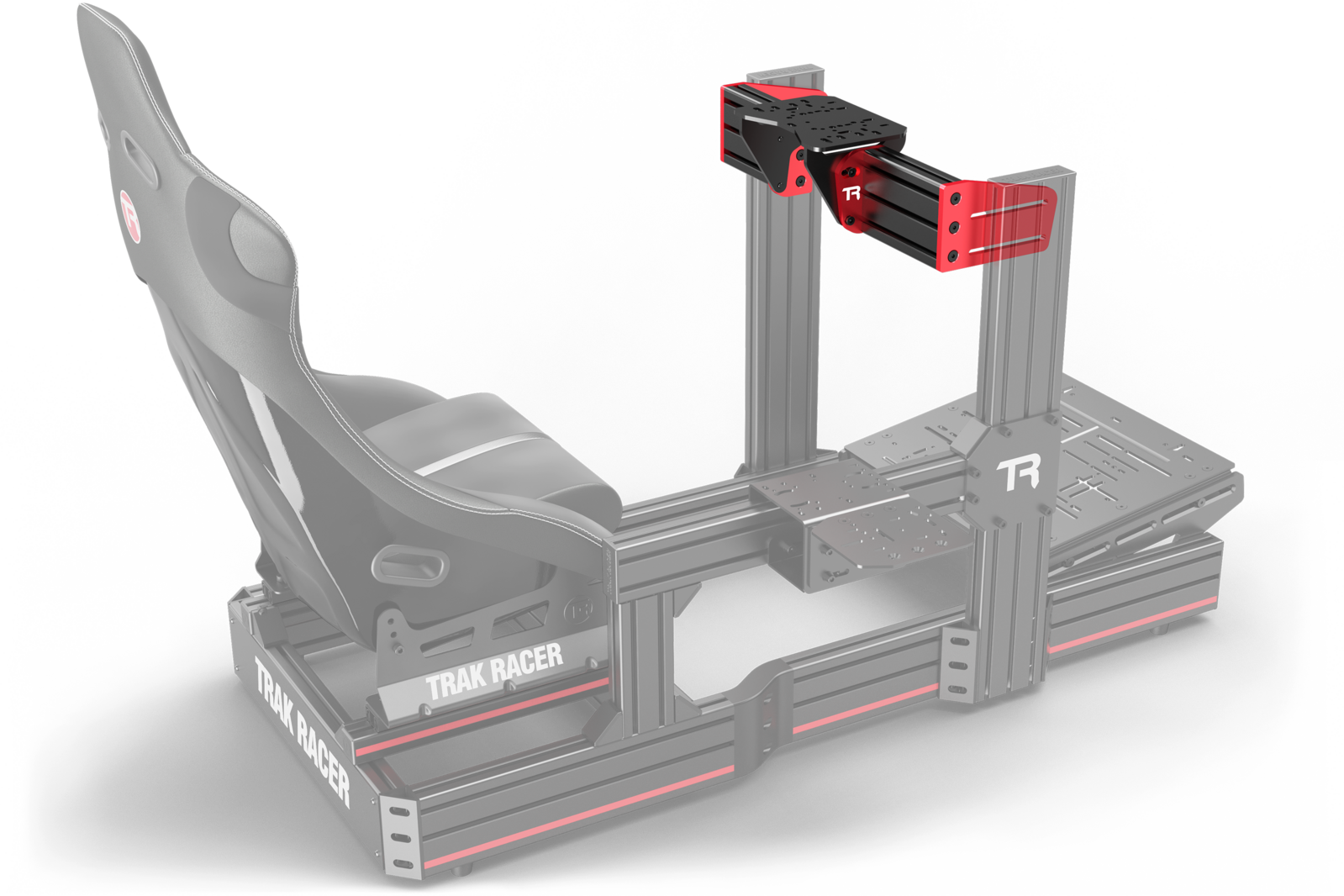

Rig Compatibility: This part is compatible with Trak Racer Extruded Aluminium Rigs and other DIY Builds.

Not Compatible with Trak Racer TR80-LITE due to the wheel uprights only being 660mm/26" tall (compared to 780mm/30.7" on the TR80, TR120, and TR160).

Full Mount Width (including 120 x 40mm profile): 580mm/22.83"

Compatible Wheel Bases:

• Thrustmaster T500, T300, T150, TC-PS, TS-XW, TX, 248, T-GT, T80, TMX and T-GT II
• Logitech G25, G27, G29, G920, G923
• Fanatec Elite, Clubsport, Podium DD1/DD2 and CSL DD
• AccuForce V1/V2
• SIMAGIC M10

Also, Flight/Heavy Equipment

• Logitech Flight Yoke System (by clamp)
• Logitech Flight Switch/Multi/Instrument Panels
• Logitech Heavy Equipment

Other Wheel Bases - may require mounting bracket (Trak Racer Direct Drive Mount recommended)

• MiGe 130ST(small and big) - additional mount required
• Bodnar 53 series - additional mount required
• Simucube SC1 / SC2 Sport, Pro, Ultimate -additional mount required
• SIMAGIC ALPHA / ALPHA Mini - additional mount required
• Fanatec Podium DD1/DD2, DD PRO and CSL DD (by removing the center mount)

Contact us if your wheel is not listed

5 Year Warranty

What's Included:

TR One Base Kit:

• 8 x M8 x 20mm Hex Screws
• 12 x M8 x 25mm Hex Screws
• 12 x M8 x 20mm Flat Screws
• 8 x M8 Flat Washer
• 8 x M8 Lock Washer
• 8 x Spring T-Nuts M8
• 2 x Fanatec Podium DD Plates
• 2 x Wheel Mounting Plates
• 4 x Side Profile Mounting Plates
• 2 x 180mm 40 x 120mm Aluminium Profile (Threaded)

TR One Wheel Base:

• 4 x M8 x 15mm Hex SCrews
• 4 x M6 x 15mm Hex Screws
• 4 x M6 Flat Washer
• 1 x Wheel Mount
