Trak Racer TR80 MK5 Overview with an Unbeatable 5 Year Warranty!

With Wheel Plate - Compatible models listed below

Trak Racer is the Official Simulator Supplier of Alpine F1 Team and Airbus Aircrafts.

Key Benefits of TR80 MK5:

1. Rigid 80mm x 40mm thicker-walled Aluminium Extrusion Profile - Anodized Black
2. Hybrid Pedal Plate - Adjust the pedal height and angle between GT (low) and Formula (high)
3. Side-Mounted Wheel Uprights with 80 x 40mm Heavy Duty Brackets
4. 780mm High Wheel Mount Uprights
5. Seat Slider Rails Included
6. Over 30 optional accessories
7. Compatible with TR One Shifter Mounting Systems

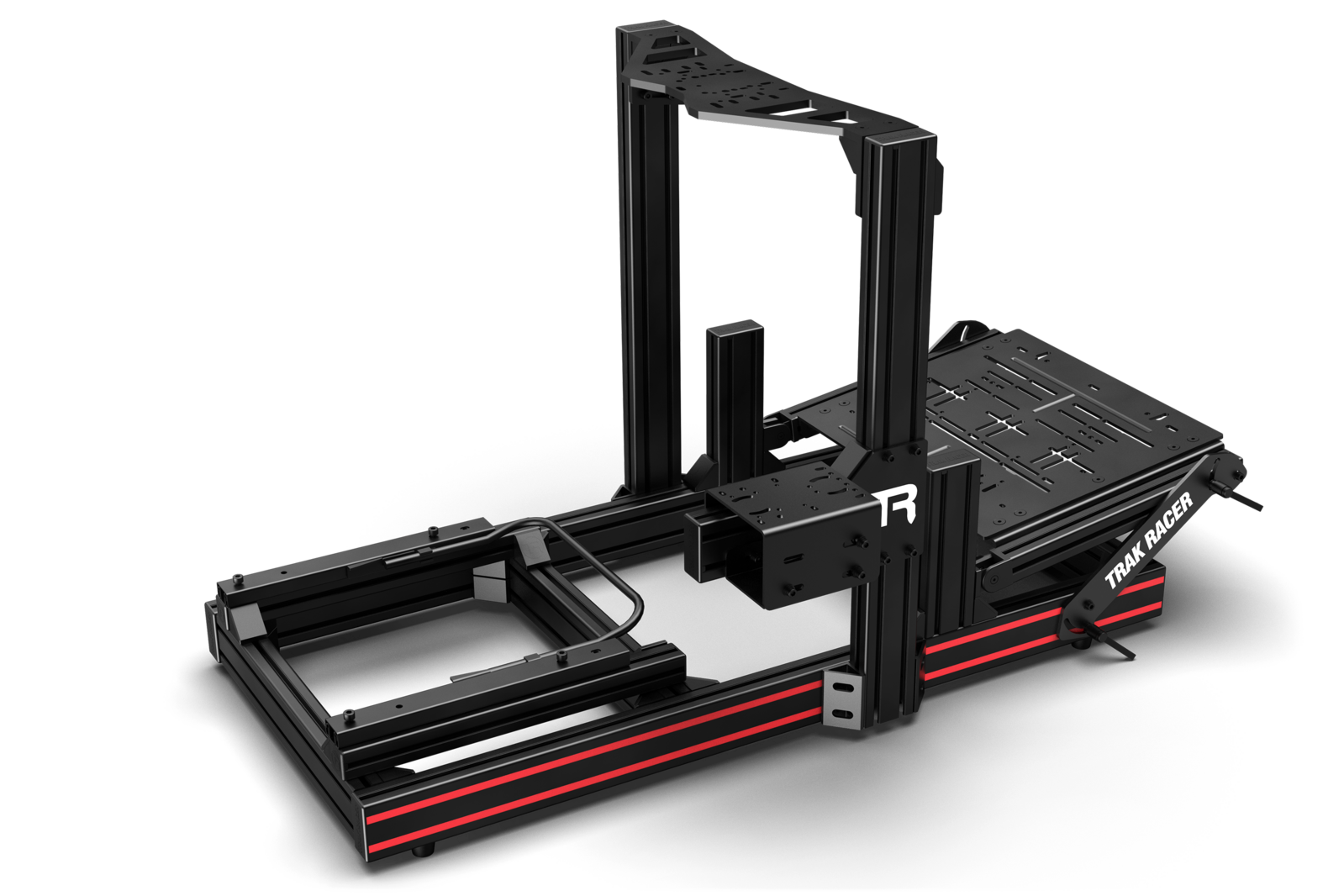

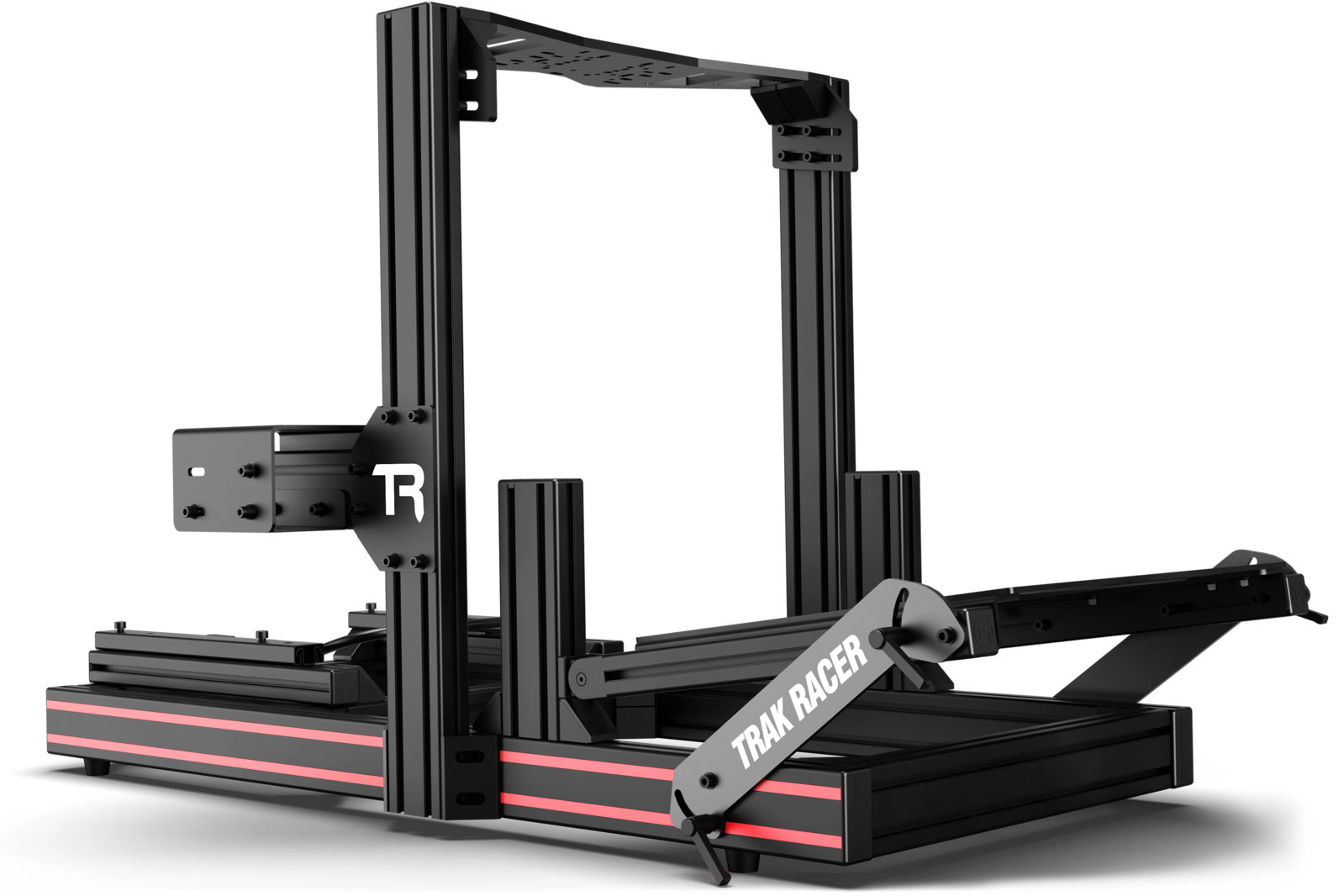

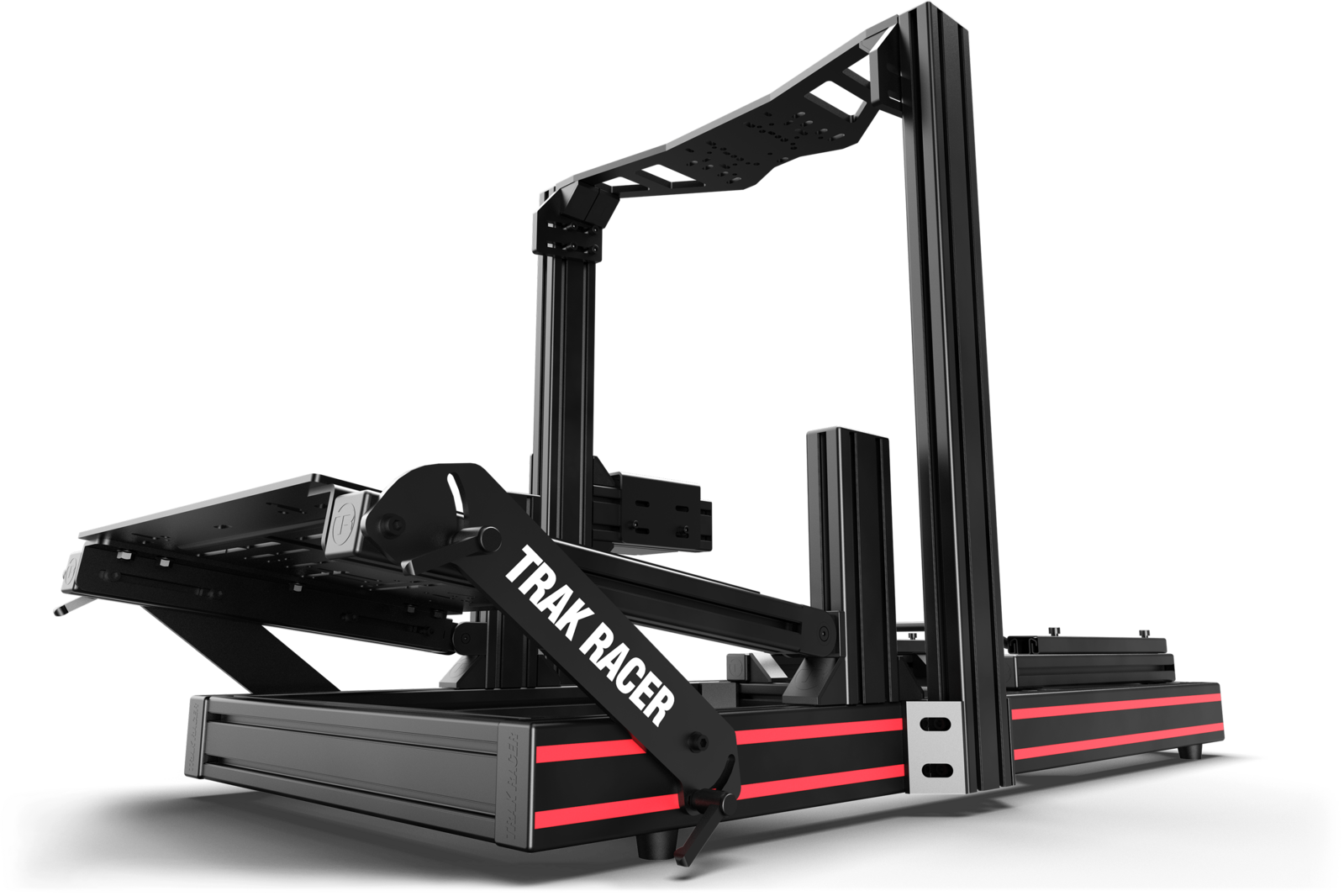

The TR80 has been designed with experience gained since Trak Racer started in 2008. The base structure is 80 × 40mm high-end aluminium T-Slot extruded profile, anodized in black. Your choice of wheel mount will be supported by 80 × 40mm high-end aluminium T-Slot extruded profile wheel uprights, also anodized in black and supported with Trak Racer-Signature Corner Brackets - mounted to the side for additional support.

Heavy-duty anodized black 90-degree brackets connect the frame and laser cut carbon steel plates allow you to attach your peripherals. The TR80 is an entry level cockpit that is also capable of supporting Direct Drive Force Feedback systems, and of course, is also Belt Drive Wheel Ready.

The TR80 is pre-drilled and for all popular steering wheels, pedals and shifters on the market and comes with your choice of 5 Stiffened Wheel Mounts for No-Flex Racing as well as options for pedal deck, shifter mount and more.

The Trak Racer accessory range is also constantly evolving to offer over 30 add-on options including speaker mounts, monitor stands, bass shaker mounts, keyboard mounts and more. Designed and Engineered in Australia.

What's Included

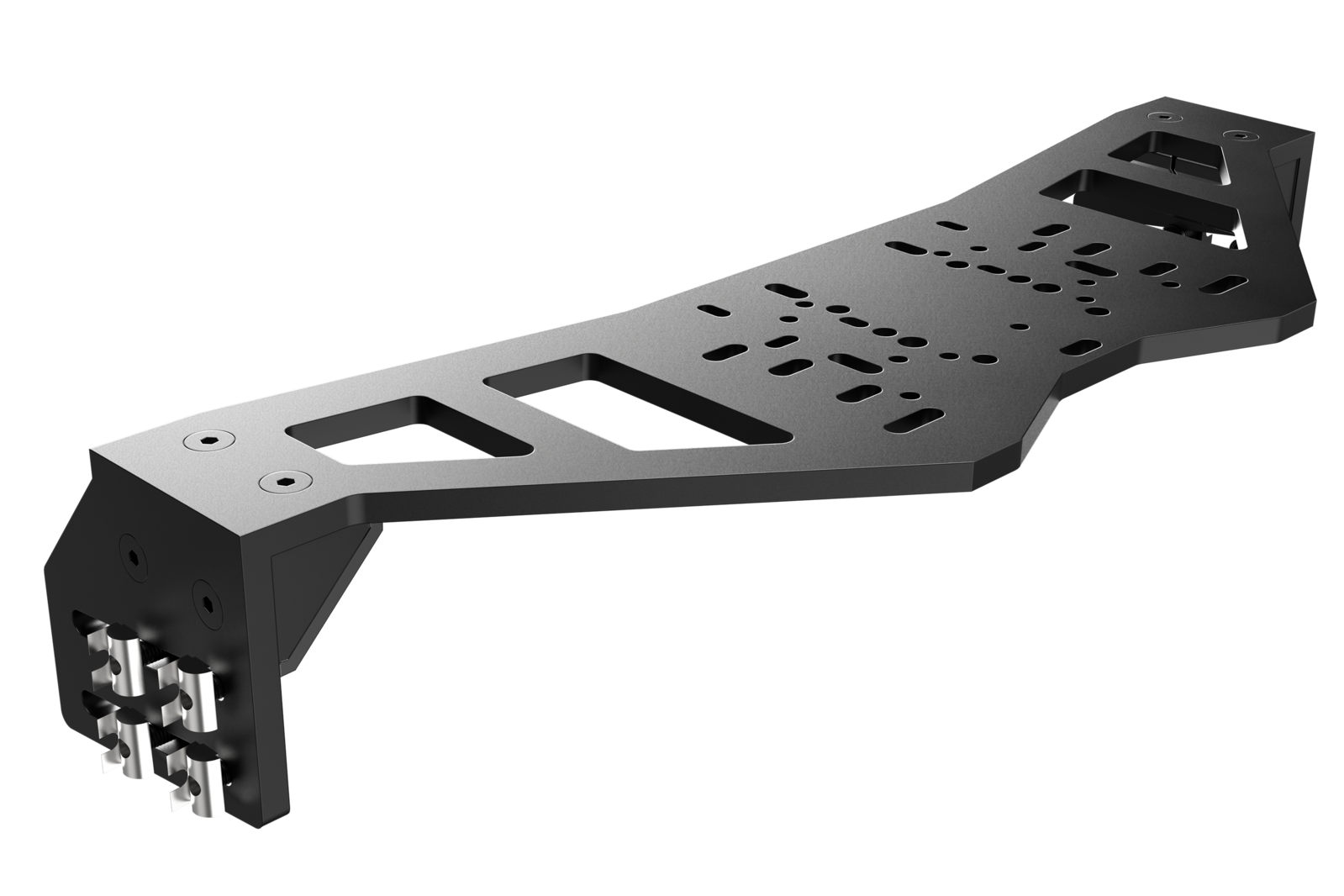

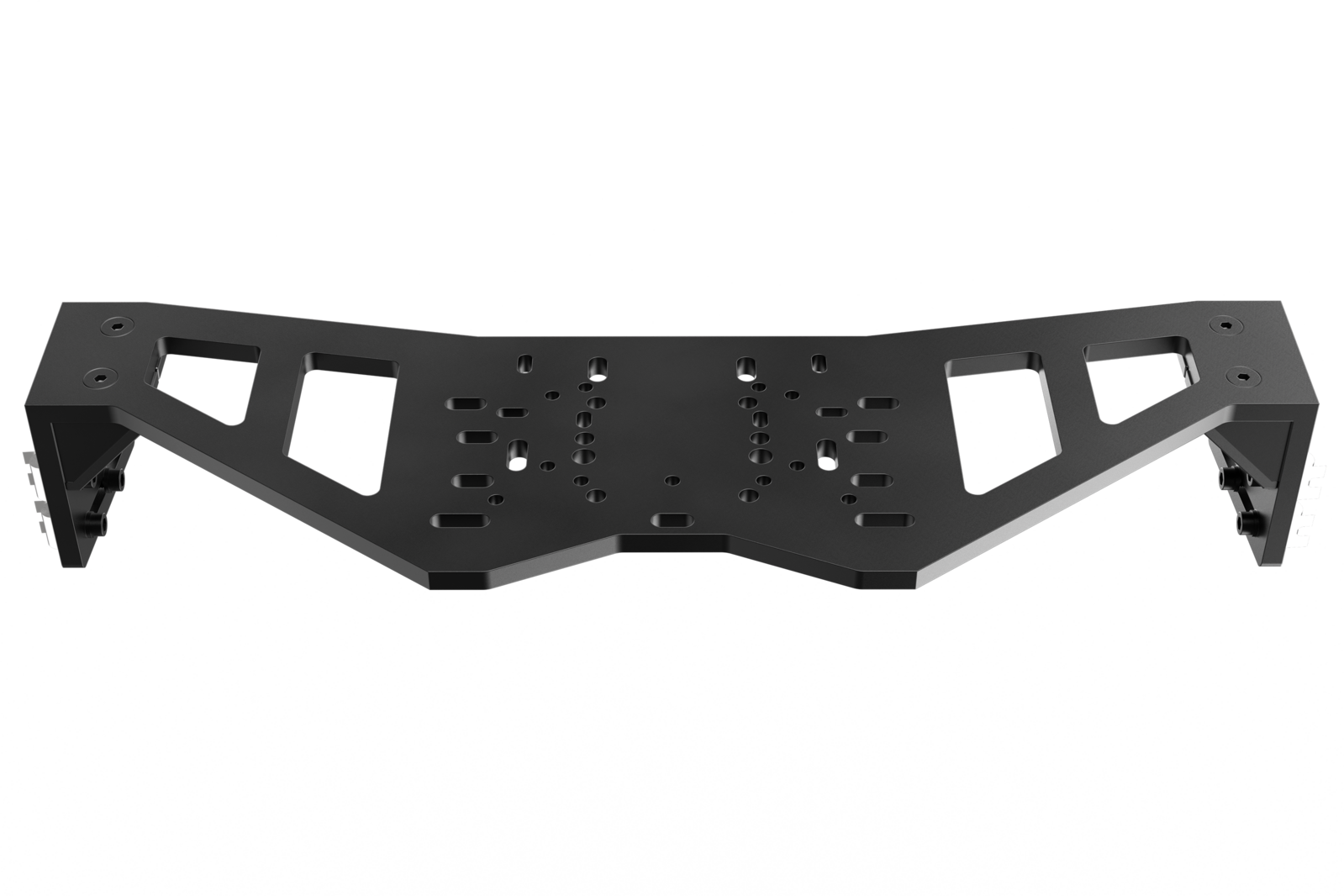

• Wheel Mount - Heavy-duty Wheel Plate (SKU: TR80-WMPLATE)
• Pre-Drilled Hybrid Adjustable Pedal Mount
• BONUS Rubber Feet to protect floors
• Set of 10 Cable Ties
• Red Coloured Strips
• 80mmm x 40mm Black Anodized Aluminium Chassis
• 80mm x 40mm Black Anodized Aluminium Wheel Supports
• All Mounting Screws, Brackets and Fixtures included
• Assembly Tool Kit Included

Optional - Select from Drop Down Menu

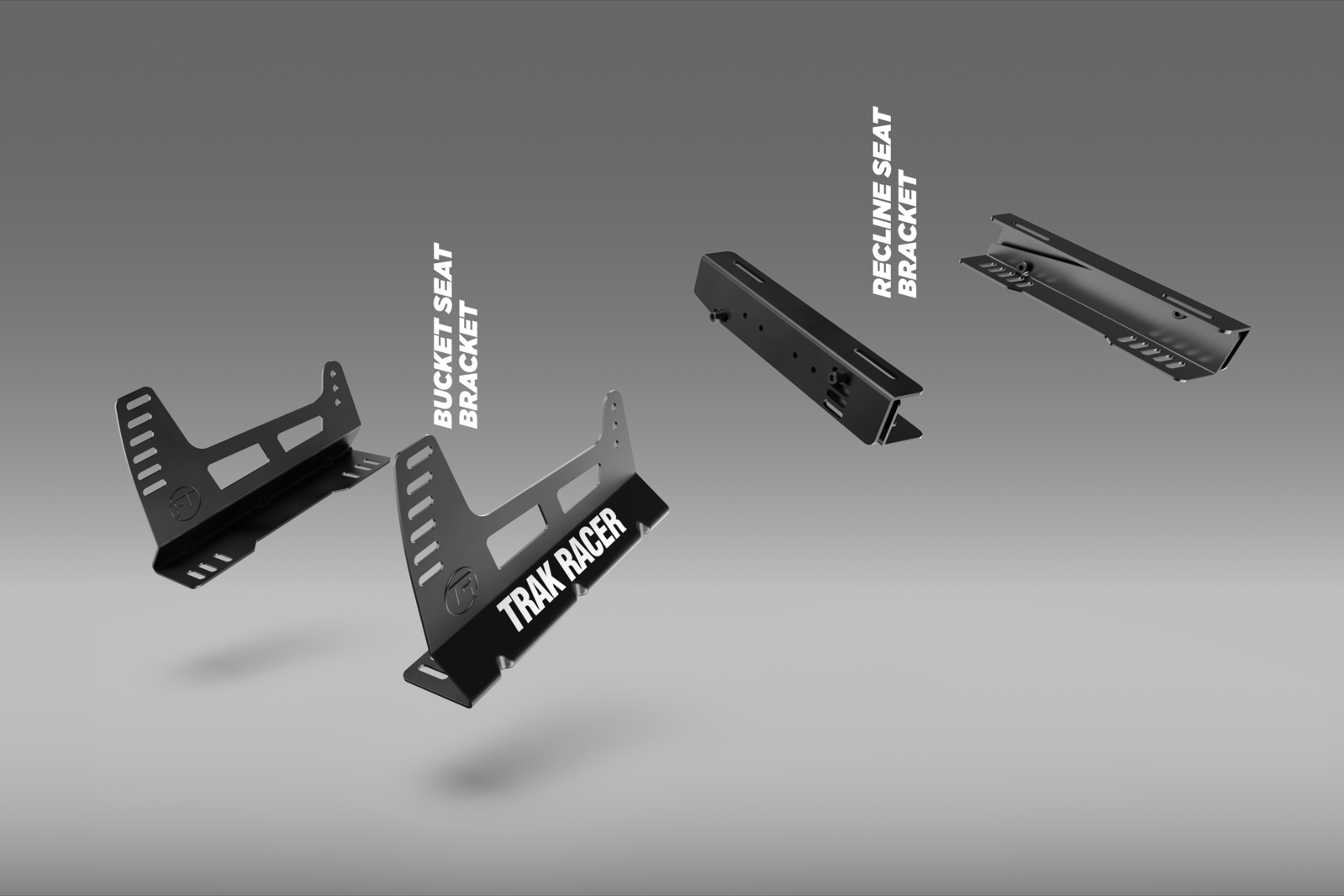

• Seat Mounting Brackets
• Recommended Accessories
• Trak Racer Premium Race Seat

Customise your Rig with an Unbeatable Product Range

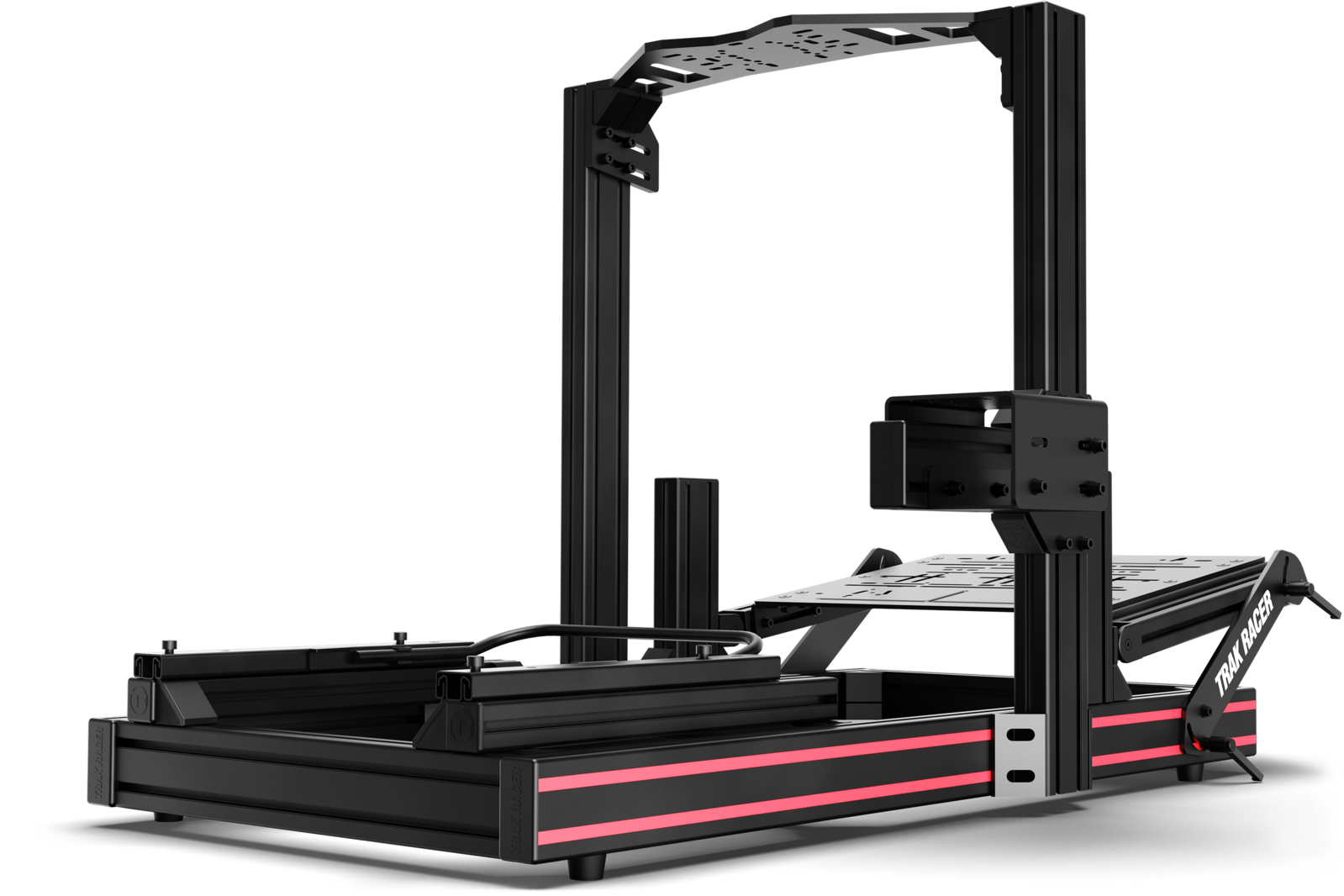

Frame/Chassis Features

• Constructed from high quality extruded aluminium in different profiles sizes including 6-Slot 80 x 40mm
• 580mm wide and 1,200mm long for firm stance when racing
• Low ground clearance with hard wood rubber floor protectors
• Finished in black anodized high quality aluminium

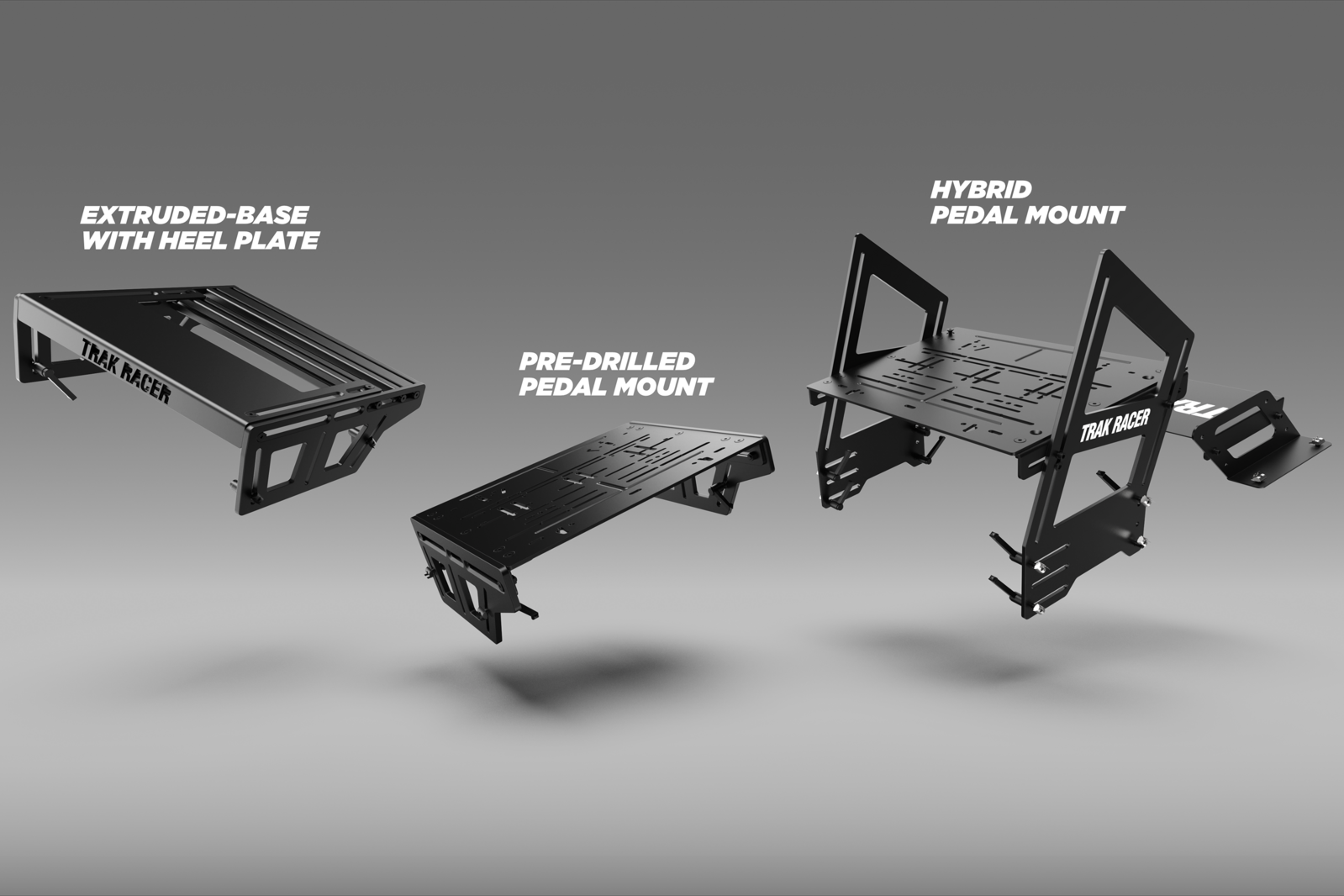

Hybrid Adjustable Pedal Mount Features

• Unique Bracket Design allows you to position the pedal low or in a high position
• Hassle-Free Angle Adjustment with the Tool-free screw
• Fully adjustable bracket for both angle, height and slide
• Thick, no-flex Carbon Steel Construction
• Pre-drilled mounting points for all major brand pedals

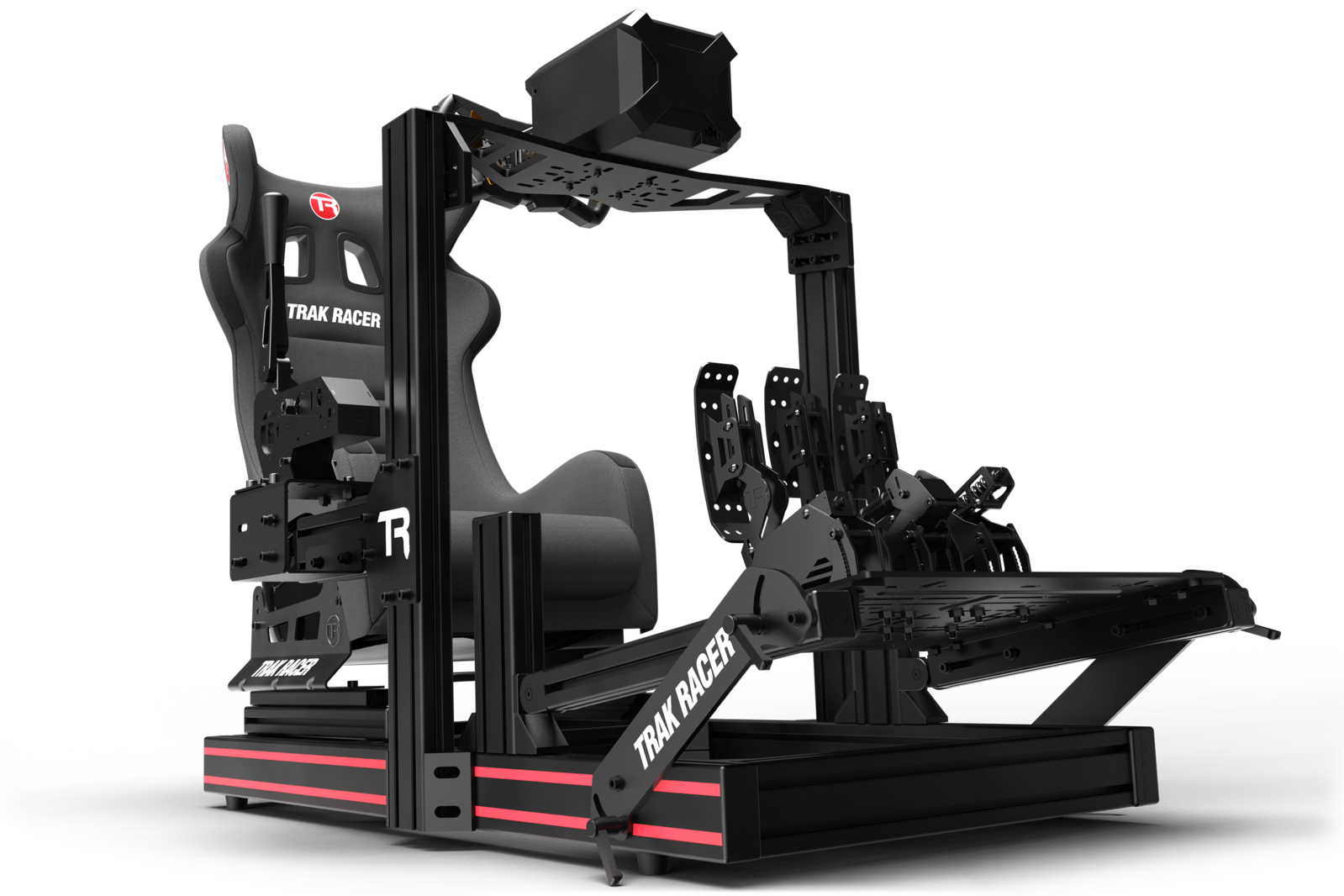

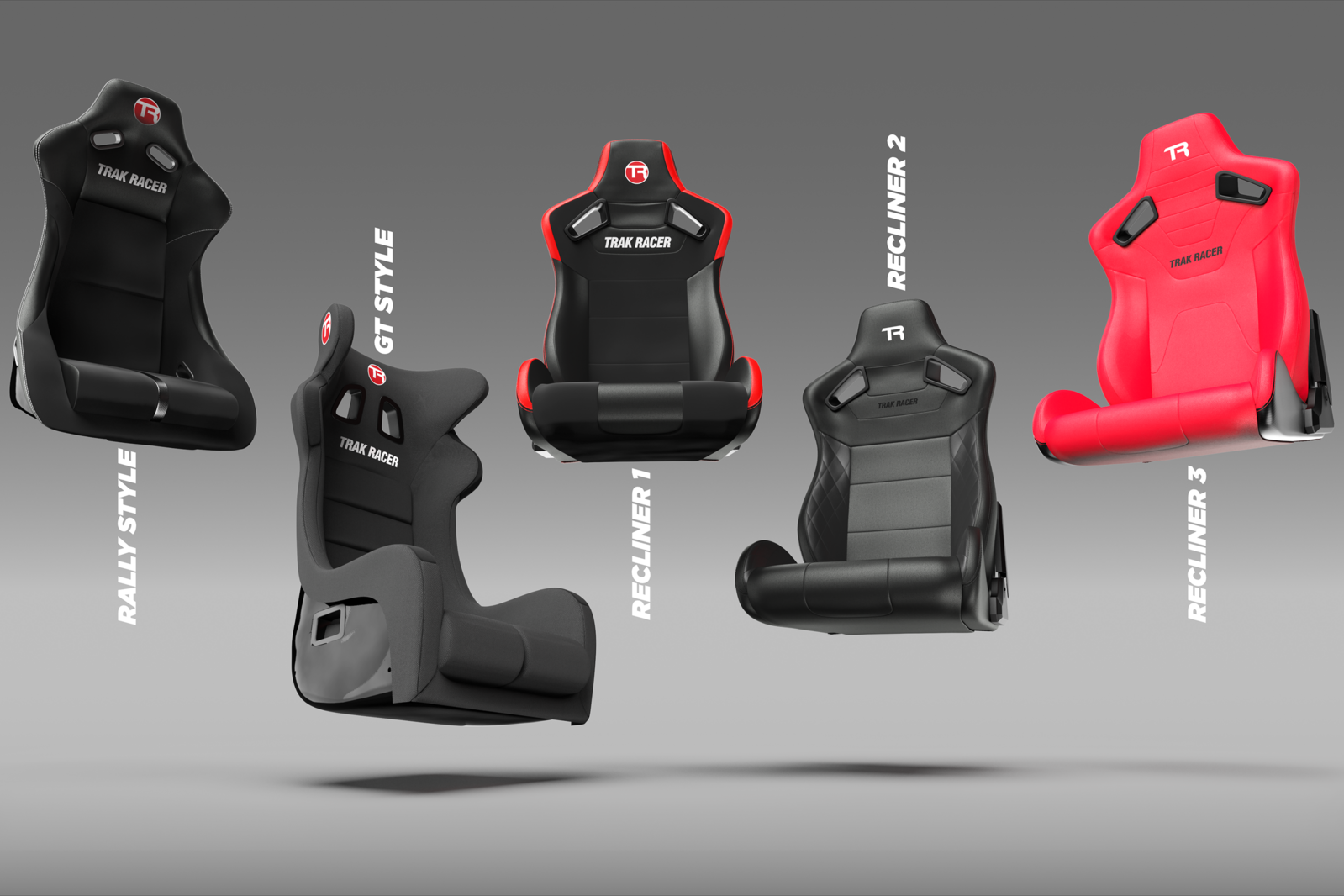

Optional Bucket or Recline Seat - Select a Seat and Seat Brackets from the Options

Select from the range of high-quality Trak Racer seats

• Premium race-ready high-grade seat with hardback
• Adjustable driving position seat
• Ergonomically designed for extended periods of use
• High-density foam construction
• Weight Restrictions: Up to 160kg (352 lbs)
• Suggested Waist Size: GT-Style (up to 38"), Rally-Style (up to 44") and Recline seats (up to 50")
• Contact Trak Racer for other available seat sizes

Specifications:

• Includes all aluminium profiles and mounting gear
• The main Chassis is an 6-Slot 80 x 40mm profile
• Steering wheel uprights are 6-Slot 80 x 40mm profiles

Compatible Wheel Bases

Wheel Deck/Plate Compatibility

• Thrustmaster T500, T300, T150, TC-PS, TS-XW, TX, 248, T-GT, T80, TMX and T-GT II
• Logitech G25, G27, G29, G920, G923
• Fanatec Elite, Clubsport, Podium DD1/DD2 and CSL DD
• AccuForce V1/V2
• SIMAGIC M10

Also, Flight/Heavy Equipment

• Logitech Flight Yoke System (by clamp)
• Logitech Flight Switch/Multi/Instrument Panels
• Logitech Heavy Equipment
