Tyre Pressure Monitoring System LCD TPMS 4 External Sensors Wireless 4x4 Car Psi Bar Diagnostic Tools
Item Number: TP-14
Monitor the critical information of your tyres to increase your vehicle safety and the life of your tires with TP-14. install directly in your car, 4x4, caravan, trailer etc to provide accurate pressure and temperature readings with PSI Diagnostic Tools
Have Questions? Contact Us Here
Waterproof Rating: IP69K - Sensors can be kept under 1m of water for short period of time. Ensure caps are tight before taking sensors under water - if damage occurs due to sensors not be tigthened warranty is void.
With new IP ratings, Masten's rearview cameras and tyre sensors are even more advantageous in environments requiring a high degree of protection from dust, submersion, and high-pressure, high-temperature spray-down. This level of protection is essential in many food & beverage, pharmaceutical, and petrochemical markets but also applies to off road activities namely river crossing.

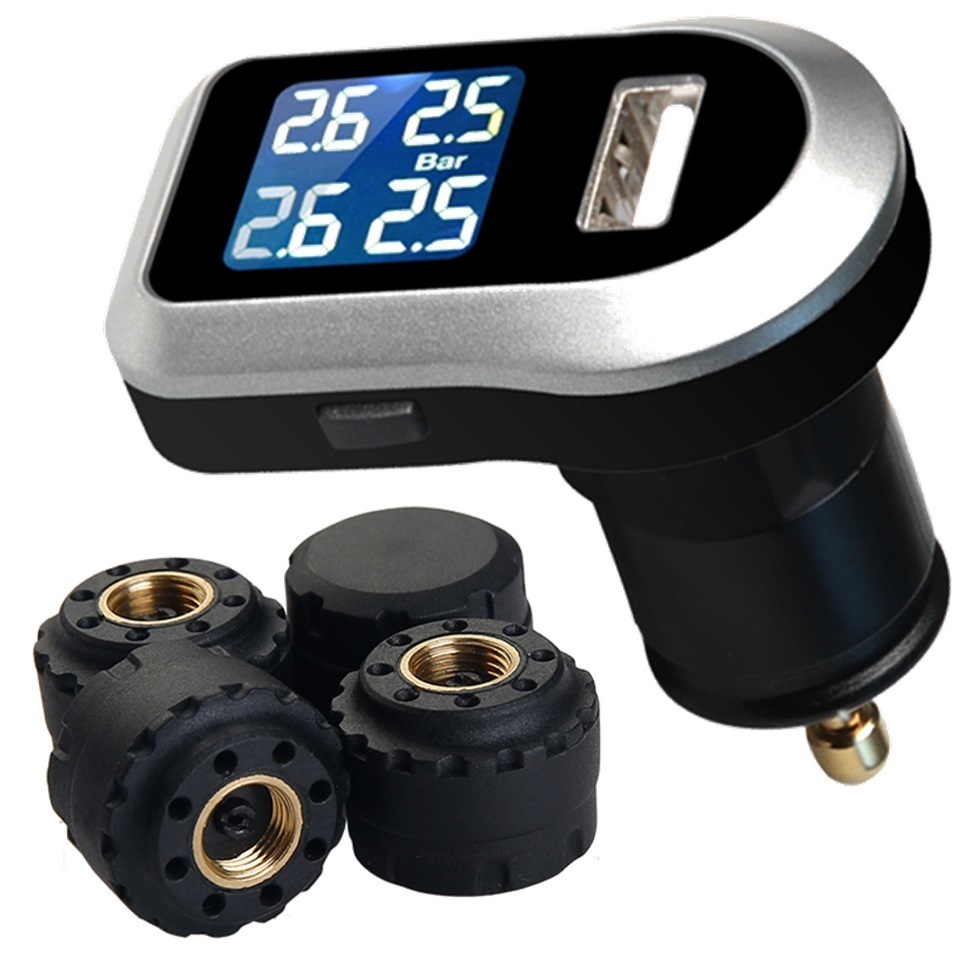

IMPORTANT - This Listing includes everything you need to monitor the condition of your tyre pressure and temperature. It includes the following parts:
- Universal Dash/Cigarette Socket TPMS Monitor x 1
- Premium External Cap Sensors x 4

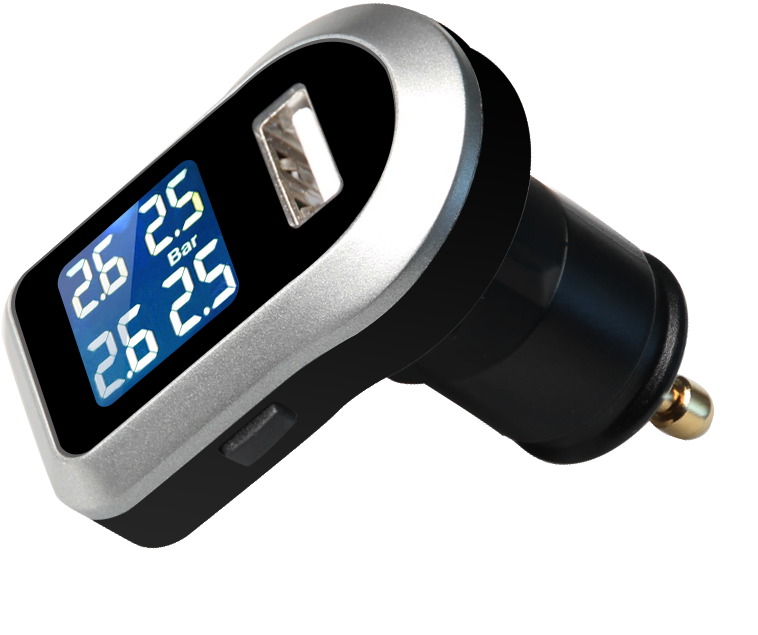

Mini TPMS monitor. With Premium DIY Cap Sensors and Replacement Battery

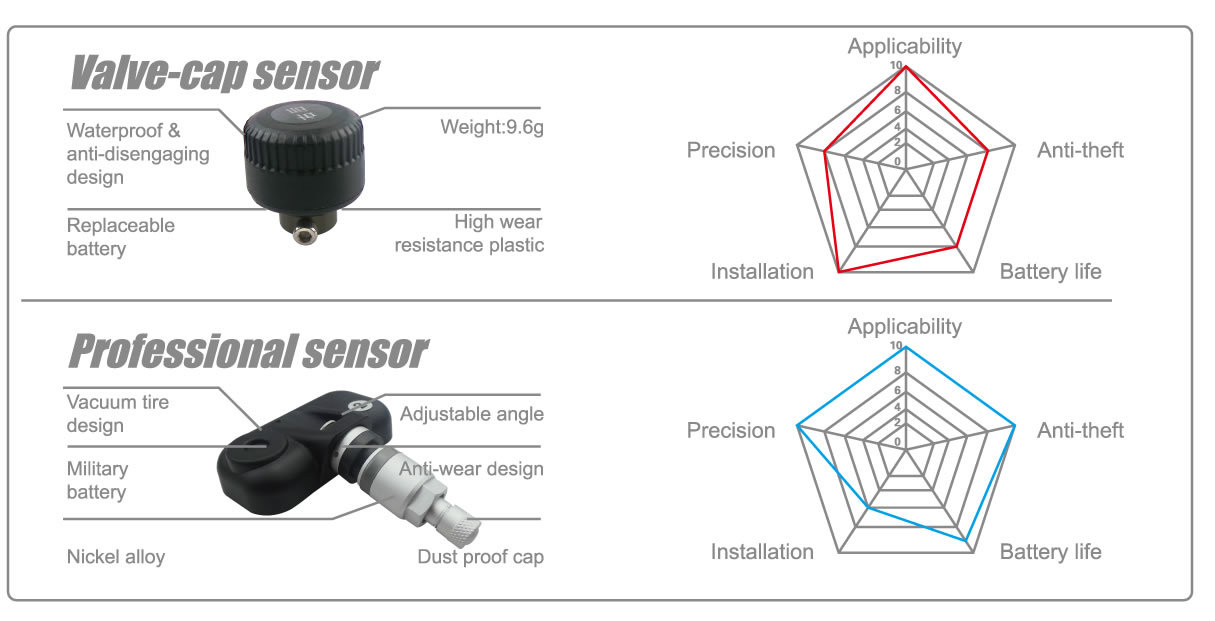

If you're after spare sensors the part numbers are TP-09S (internal valve) and TP-10S (external cap)
The Masten TP-14 TPMS Tyre Pressure Monitor System is specifically designed for for those wanting to monitor their tyre pressure in a non-obscure way due to the conpact design of this monitor. .
The TPMS module simply works silently and alerts you if there is a problem with your tyres. The Tyre data can be viewed at all times.
- Sensor Pressure Range: 0 ~ 116PSI (0~8 BAR)
- Monitorable Range: 2 ~ 99PSI
- Simple DIY installation!
- Masten improved wireless signal
- Attractive design with visual and audible alarm
- 7 Metre Wireless Range
- PSI and BAR Adjustable Units
- Adjustable Front and rear sensors high/low pressure alarm range
- Real-time Tire Pressure and Temperature Display of all 4 Tyres Simultaneously
- TPMS information screen will automatically appear if a tyre problem is detected
- The multi colour interface allows you to easily identify problem tyres in red for fast evaluation
- Premium quality sensors
- 3 Year Battery Life for External Cap Sensors (Battery can be changed) and over 6 Years Battery Life on Internal Valve Sensors
- User friendly programming functions
If the sensors have not been moved for 1 hour or more they will be in sleep mode. After around 5 seconds of movement the sensors will 'wake' up and start sending the tyre information data (pressure/temperature) every 6 seconds to the monitor.
Please contact us for the usual manual if you require but it will be included with all items when sent out.
Will this system work with my In Dash Car DVD?
Yes. If your current system has an RCA camera input, and a trigger line input (used for sending power from the reverse lamp to the stereo), it will work.

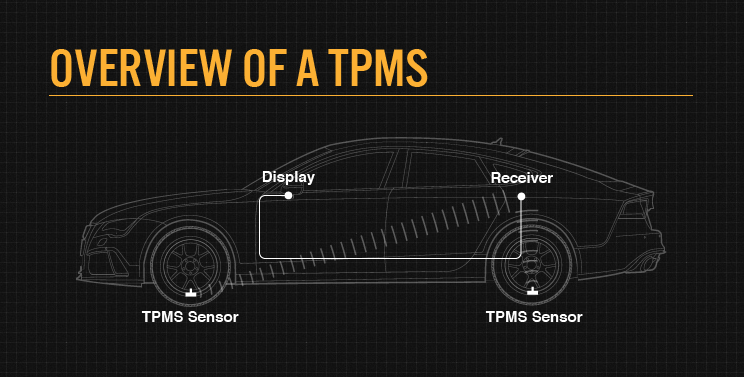

What are Tyre Pressure Monitor Systems?
passenger vehicles in the 1980s and today is a mandatory feature in the United States.
Benefits of a Masten TPMS?
The dynamic behavior of a pneumatic tire is closely connected to its inflation pressure. Key factors like braking distance and lateral stability require the inflation pressures to be adjusted and kept as specified by the vehicle manufacturer. Extreme under-inflation can even lead to thermal and mechanical overload caused by overheating and subsequent, sudden destruction of the tire itself. Additionally, fuel efficiency and tire wear are severely affected by under-inflation. Tires do not only leak air if punctured, they also leak air naturally, and over a year, even a typical new, properly mounted tire can lose from 20 to 60 kPa (3 to 9 psi), roughly 10% or even more of its initial pressure.
The significant advantages of TPMS are summarized as follows:
Fuel savings: According to the GITI, for every 10% of under-inflation on each tire on a vehicle, a 1% reduction in fuel economy will occur. In the United States alone, the Department of Transportation estimates that under inflated tires waste 2 billion US gallons (7,600,000 m3) of fuel each year.
Extended tire life: Under inflated tires are the #1 cause of tire failure and contribute to tire disintegration, heat buildup, ply separation and sidewall/casing breakdowns. Further, a difference of 10 lbs. in pressure on a set of duals literally drags the lower pressured tire 13 feet per mile. Moreover, running a tire even briefly on inadequate pressure breaks down the casing and prevents the ability to retread. It is important to note that not all sudden tire failures are caused by under-inflation. Structural damages caused, for example, by hitting sharp curbs or potholes, can also lead to sudden tire failures, even a certain time after the damaging incident. These cannot be proactively detected by any TPMS.
Decreased downtime and maintenance: Under-inflated tires lead to costly hours of downtime and maintenance.
Improved safety: Under-inflated tires lead to tread separation and tire failure, resulting in 40,000 accidents, 33,000 injuries and over 650 deaths per year. Further, tires properly inflated add greater stability, handling and braking efficiencies and provide greater safety for the driver, the vehicle, the loads and others on the road.
Environmental efficiency: Under-inflated tires, as estimated by the Department of Transportation, release over 57.5 billion pounds of unnecessary carbon-monoxide pollutants into the atmosphere each year in the United States alone.
- Operational Temperature: -20 to 80°C
- Storage Temperature: -30 to 85°C
- Transmission Frequency: 433.92MHz
- Input Voltage: DC 12 to 24V
- Output charging current: 2A
- Size: 47 x 29 x 55mm
- Weight: 27g
External Cap Specifications
Operational Temperature: -40 to 80°C
Storage Temperature: -40 to 85°C
Pressure Range: 0 to 8BAR, 0~116PSI
Pressure Accuracy: ±0.1BAR, ±1.5PSI
Temperature Accuracy: ±3°C
Transmission Frequency: 433.92MHz
Battery life: Up to 3 years(CR1632, -40 to 80°C)
Size: 21mm(diameter) x 17.5mm(height)
Internal Valve Sensor Specifications
Operating Temperature: - 40℃ ~ + 125℃
Operating Humidity: 5 ~ 98%
Sensor Weight: 43g (24g excluding the valve)
Sensor Size: 60.5* 30* 20mm
Battery Lifetime: > 6 years
Pressure Range: 0 ~ 5 1Psi (0 ~ 3.5Bar)
Temperature Range: - 40℃ ~ + 90℃
Working Frequency: FSK 433. 92MHz
2 Year Warranty
1 Year Warranty on Sensors
