IMPORTANT. This camera uses a Sony Image Sensor component. The quality of image is what you would expect from Sony but without the high price tag for Sony Branded cameras. This is a Masten branded camera.

Specially designed CCD 700TVL Heavy Duty camera for Utes and Canopies

TV FORMAT: NTSC

Kit includes Masten CCD Ute/Canopy Camera and 5m Cable with RCA plug.



Premium full-colour quality doesn't come at a premium price with the new range of Masten Heavy Duty Cameras with a world-class 2 year Melbourne-based warranty.



Product Description

Overview

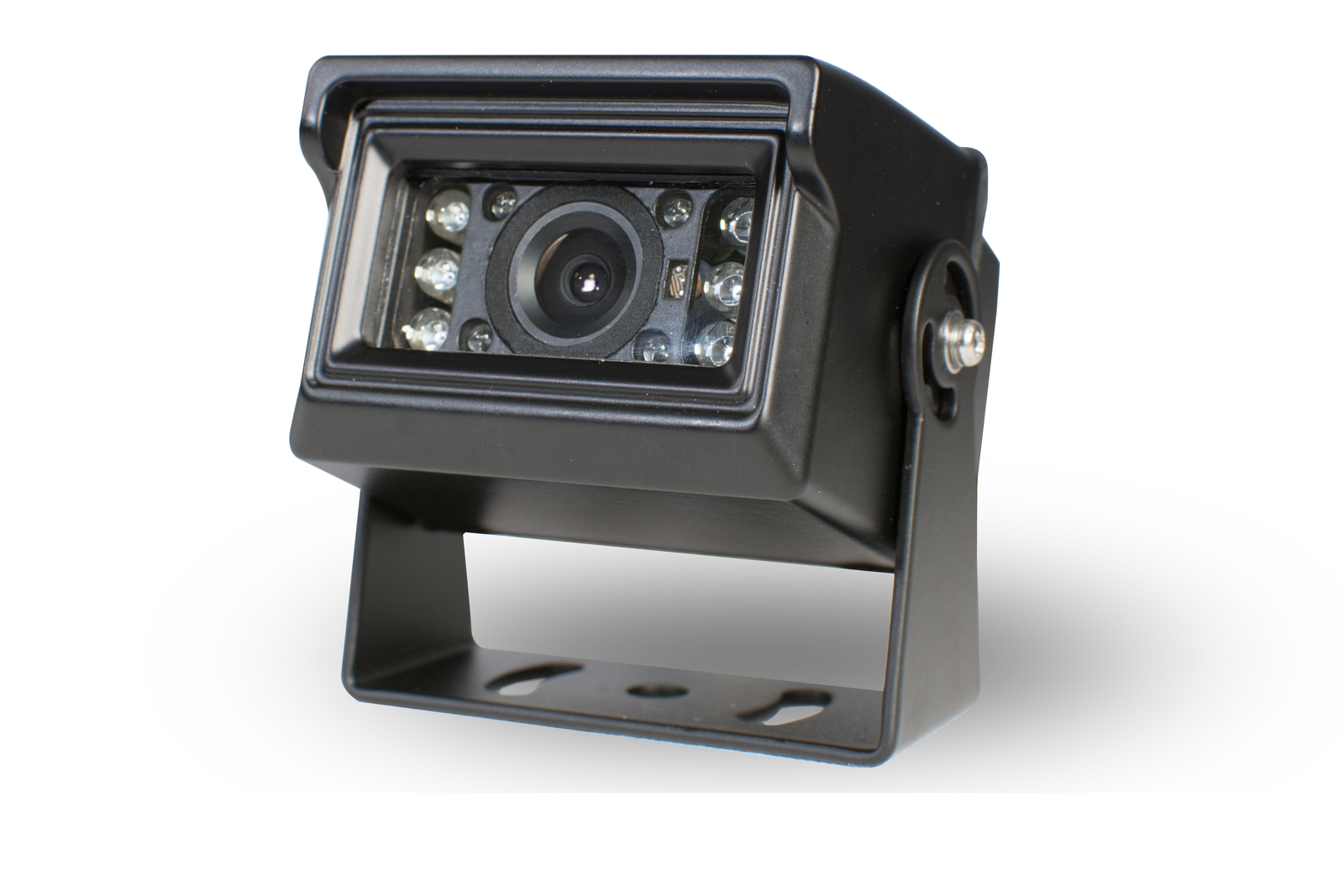

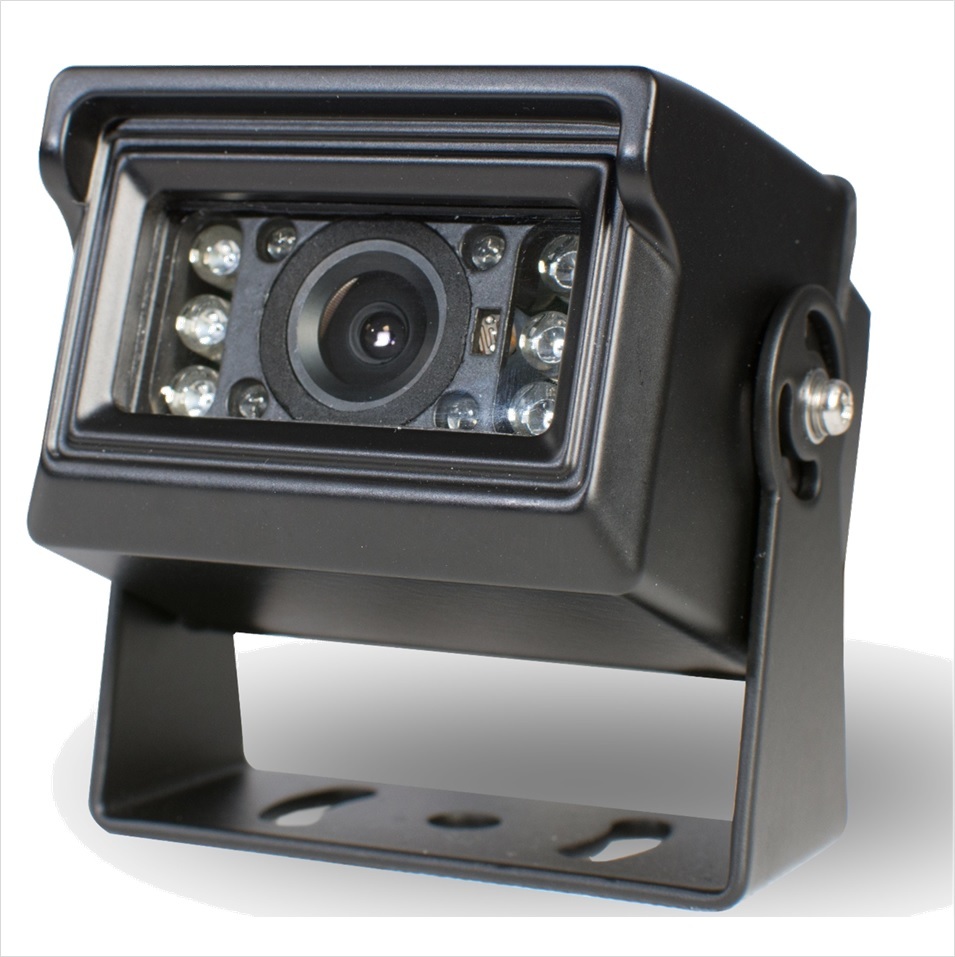

Ute/Canopy CCD Heavy Duty Reversing Camera Kit

Introducing the industry-first Masten Caravan Reverse Camera Kit from Masten with unbeatable IP69K Water/Dust Proof Certification and Two-Year Replacement Warranty. Finally, an inclusive and easily installed way of connecting a top-quality Masten Reverse Camera to your In-Dash or On-Dash monitor!

Add this kit to your existing in-dash or on-dash monitor to help eliminate your reversing blind spot.

Included in this kit:

- Masten Premium Ute / Canopy Camera with HD Masten CCD Sony 700TVL

5m Video Cable



Camera Features

World-class and Certified IP69K Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications

Stylish Patented Design

PixelPerfect® High-Grade image sensors feature Sony CCD 700TVL Resolution HD CCD for clear viewing day and night

Perfectly adjusted 120° viewing angle for safer reversing and more accurate imagery

Safer driving at night with a long 15m night vision viewing distance supported by 10 infrared LED lights

Wide working temperature of Working temperature: -20°C~70°C.

Unique IR-CUT effectively avoids color aberration in daylight

Equipped with a White Balance sensor which enables the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor

Suitable for all applications including buses, mini vans, caravans, trailers, trucks, agriculture equipment and much more

INSTALL TIP. To remove grid lines from the camera please remove the white cap from the white and black wires.



Unbeatable Melbourne-Based 2-Year Warranty!





General Camera Specifications
Description: Premium Heavy Duty Camera - included in this kit Premium CCD Heavy Duty Camera (optional)
Image Device: CMOS 1/4 SONY CCD
Resolution: 420TV lines 700TV lines
Lens: 2.5mm 2.5mm
Lens Angle: 120 Degrees 120 Degrees
Infrared LED light: Depends on model Depends on model
IR Distance: Depends on model Depends on model
Waterproof Rating: IP69K IP69K
Audio Microphone: No No
Technical Specifications
TV System: NTSC NTSC
Manual Mirror Image Switch
Effective Pixels: 512 x 582 pixels / 512 x 492 pixels 512 x 582 pixels / 512 x 492 pixels
Sensing Area: 3.6mm x 2.7mm 3.6mm x 2.7mm
Scanning System: 2:1 Interlace 2:1 Interlace
Sync. System: Internal Internal
Horizontal Sync. Frequency: 15.625 KHz / 15.734KHz 15.625 KHz / 15.734KHz
Vertical Sync. Frequency: 50Hz / 60Hz 50Hz / 60Hz
Minimum Illumination: 0Lux (Infrared lamps on)  0Lux (Infrared lamps on)
0 .1Lux(day) / F1.2 0 .1Lux(day) / F1.2
Video Output: 1.0vp-p, 75Ohm 1.0vp-p, 75Ohm
Gamma Consumption: 0.45 0.45
AGC: Auto Auto
S/N Ratio: Better than 48dB Better than 48dB
White Balance: Auto Auto
Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto Auto
Shell material: Aluminum alloy Aluminum alloy
Current Consumption: Max. 220mA Max. 220mA
Power Supply: DC12V DC12V
Operating Temperature: -20°C~70°C , RH95% MAX -20°C~70°C , RH95% MAX
Storage Temperature: -40°C~80°C,RH95% MAX -40°C~80°C,RH95% MAX

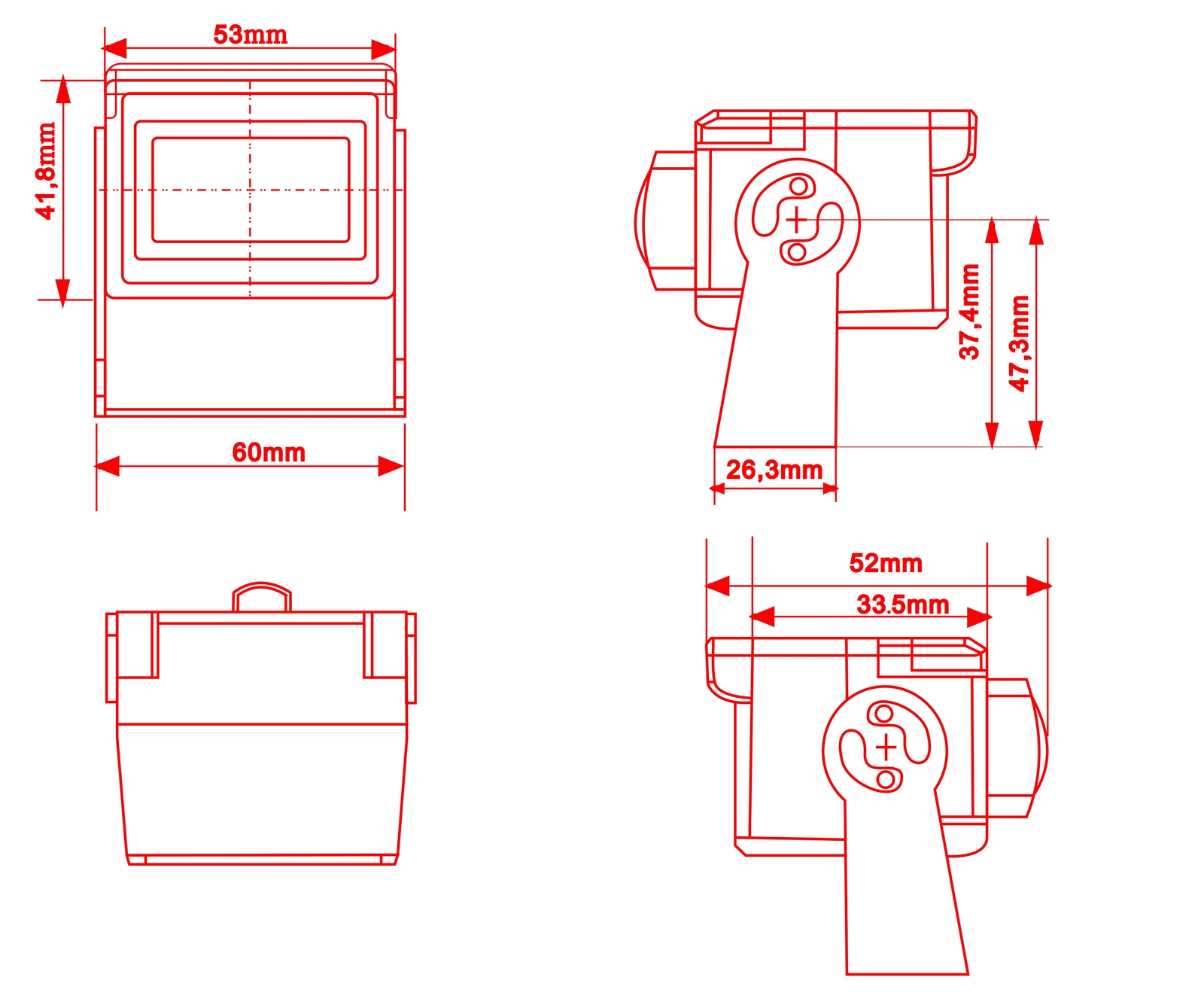

Dimensions : Depends on model Depends on model
SKU RC-HD10-B
Barcode # 9357423017773
Brand Masten
Shipping Weight 0.1500kg
Shipping Width 0.130m
Shipping Height 0.070m
Shipping Length 0.035m
Assembled Width 0.130m

Unbeatable Masten 2 Year Replacement Warranty
