IMPORTANT - THIS IS A TRUE DIGITAL WIRELESS KIT UNLIKE SOME OTHERS THE ARE SELLING ANALOGUE KITS AS DIGITAL. DIGITAL IS A STRONGER SIGNAL WITHOUT INTERFERENCE. DON'T BE FOOLED.

Why select a Masten Product?

Masten is 100% Australian owned and engineered. Masten offers a range of high quality products to the market at very affordable prices, something the Australian market is currently missing. Masten have been developing products primarily for the 4WD Off Road market since 2008 so we understand how to make a product that lasts.

WARNING

The power inlet of the monitor is a Micro USB. ONLY power the monitor with the SUPPLIED power supply. If you power with another power supply, for example an AC 240V/110V mobile phone power supply you will damage the monitor and void warranty. Only power the monitor in your vehicle (as intended).

Ensure you tightly screw on the antenna as not doing this will allow water to enter the camera which is not covered under warranty if this happens due to not installing the antenna correctly (tight).

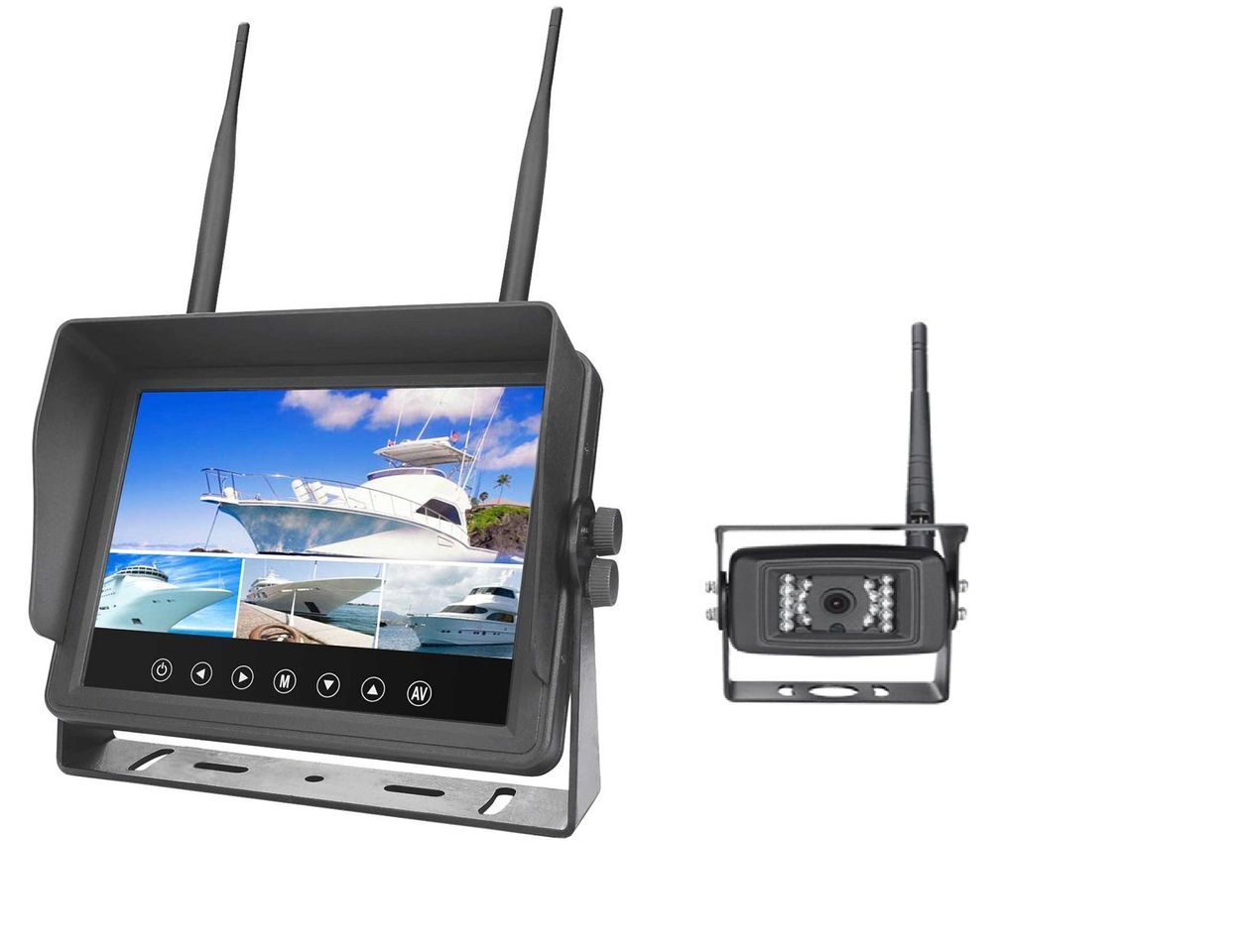

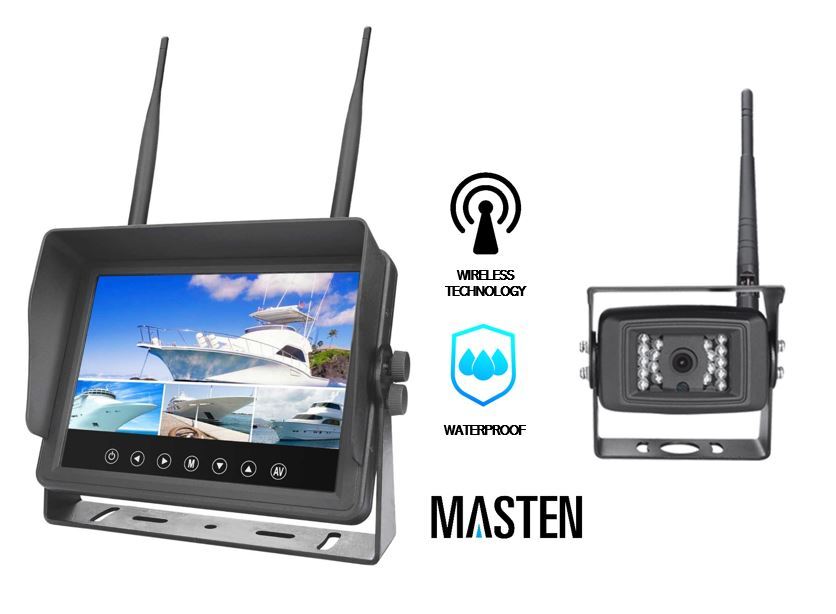

Masten Digital (not Analogue) Wireless Truck, Car, Horse Float, Bus (and more) 7" Quadview Monitor and Wireless CCD Camera Set

Main Features

  • LCD size :7"
  • Compatible with up to 4 Cameras
  • Resolution :800 x RGB x 480
  • Contrast :500:1
  • Brightness :400 cd/m²
  • Viewing Angle:U: 50 / D: 70, R/L: 70
  • Aspect Ratio:16:09
  • Channel : 3channels
  • Operating Frequency :2400 - 2483.5 MHz
  • Transmitting Distance :120 M
  • Recieving Sensitivity : 89 dBm
  • Decompression Form :MPEG4
  • Emitting Frequency :17 dBm
  • Modulation :2.4G FSK/GFSK
  • Time Delay:120ms
  • System Format :PAL / NTSC
  • Power Consumption :Max. 6W
  • Loudspeaker :1.5W/8Ω
  • Operating Temperature :-20~+70ºC, RH 90%
  • Storage Temperature :-30~+80℃, RH 90%
  • Easy to Install
  • Great for Large Trucks and Vans
  • Includes dash board mount - note the weight of the screen is too much for windscreen mount
  • Power the Monitor through the power adapter



What's in the Box:

  • Premium Wireless Waterproof Monitor x1

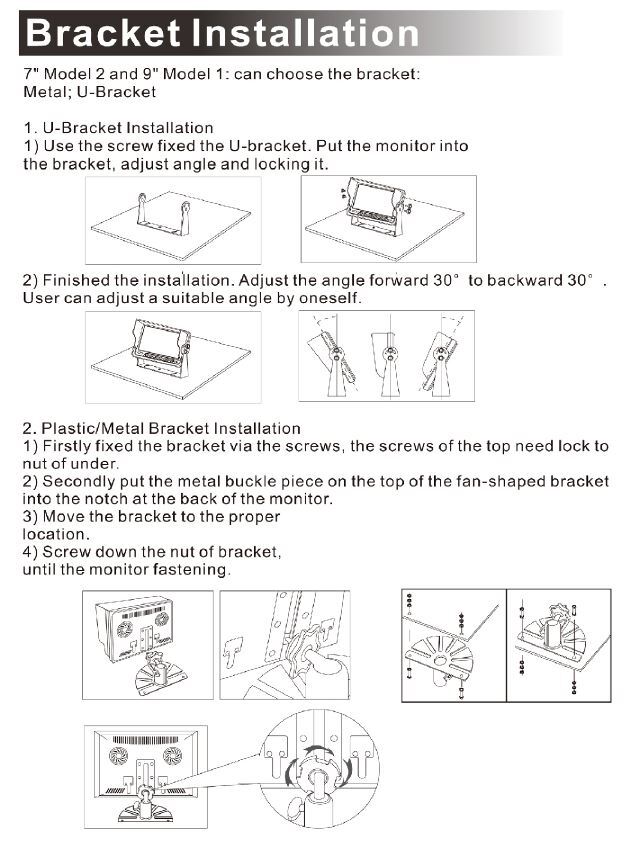

  • Dash mount
  • power adapter
  • User Manual

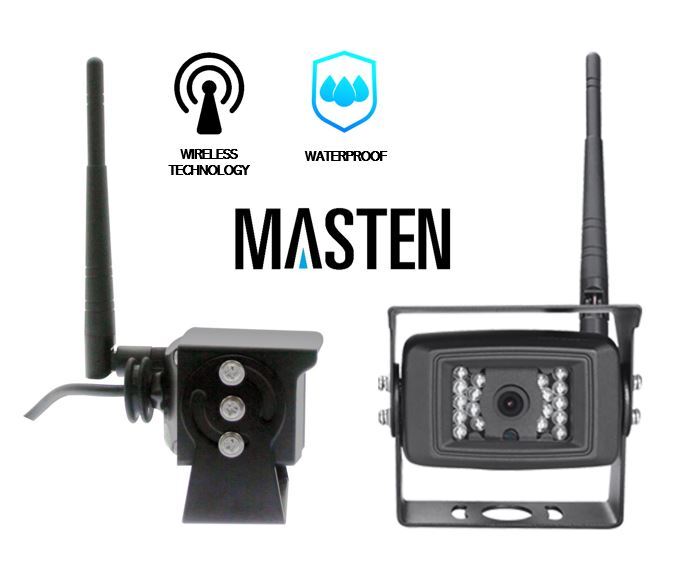

  • HD Wireless Camera x1



  • LCD size :7"
  • Compatible with up to 4 Cameras
  • Resolution :800 x RGB x 480
  • Contrast :500:1
  • Brightness :400 cd/m²
  • Viewing Angle:U: 50 / D: 70, R/L: 70
  • Aspect Ratio:16:09
  • Channel : 3channels
  • Operating Frequency :2400 - 2483.5 MHz
  • Transmitting Distance :120 M
  • Recieving Sensitivity : 89 dBm
  • Decompression Form :MPEG4
  • Emitting Frequency :17 dBm
  • Modulation :2.4G FSK/GFSK
  • Time Delay:120ms
  • System Format :PAL / NTSC
  • Power Consumption :Max. 6W
  • Loudspeaker :1.5W/8Ω
  • Operating Temperature :-20~+70ºC, RH 90%
  • Storage Temperature :-30~+80℃, RH 90%
  • Easy to Install
  • Great for Large Trucks and Vans
  • Includes dash board mount - note the weight of the screen is too much for windscreen mount
  • Power the Monitor through the power adapter

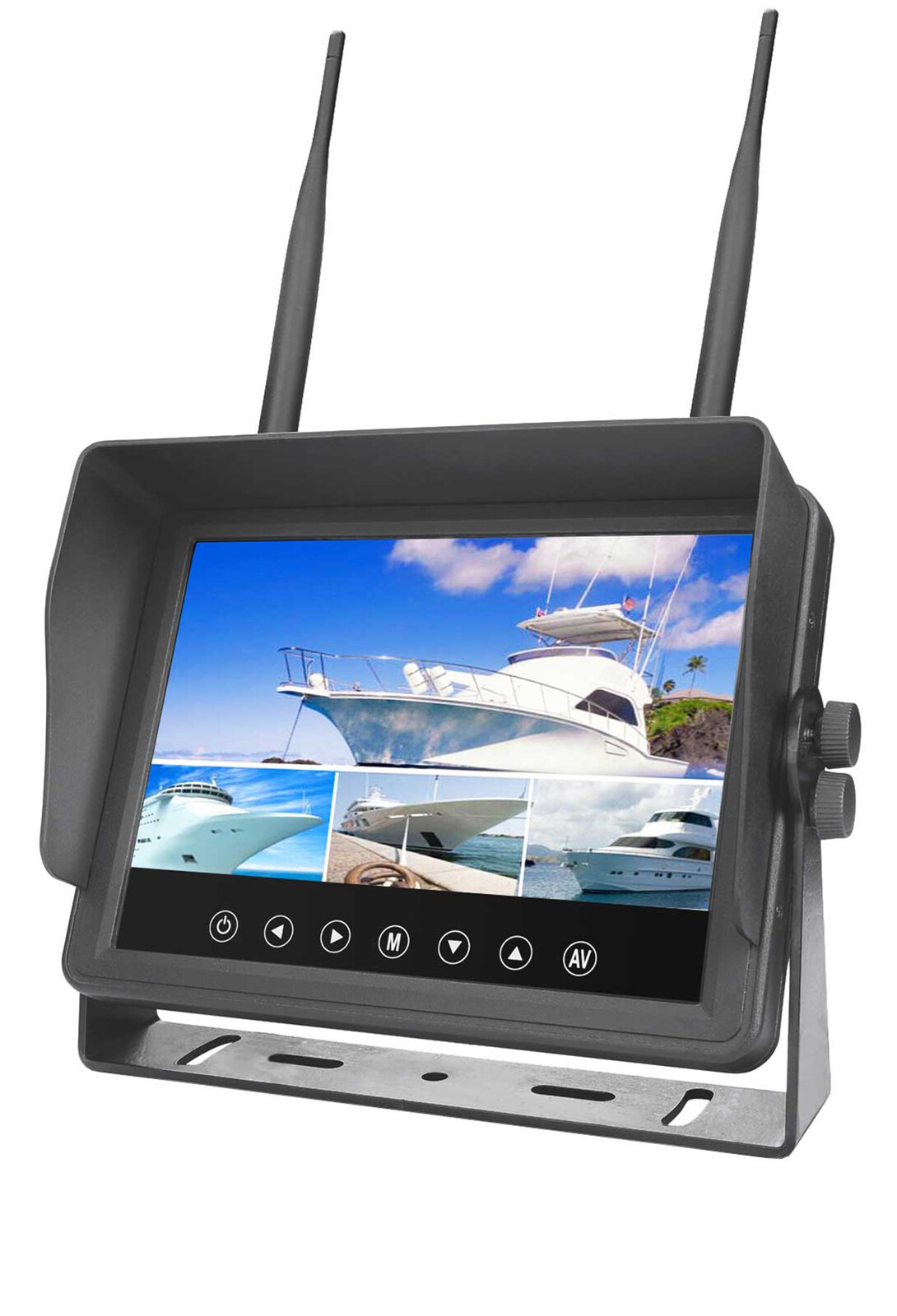

Monitor (including antenna)

  • Operating frequency: 2400 – 2483.5 MHz
  • Operation temperature: -10°C to +60°C
  • Monitor brightness: 400 cd/m2
  • Monitor resolution: 800 x 480
  • Power supply: 6V – 32V
  • Power consumption: 5.3W
  • Size (W x H x D): 15cm x 9cm x 5.5cm
  • Weight: 176g
SKU RK-W770-1
Barcode # 9357423018329
Brand Masten
Shipping Weight 1.3000kg
Shipping Width 0.130m
Shipping Height 0.070m
Shipping Length 0.035m
Assembled Width 0.130m

2 Year Warranty
