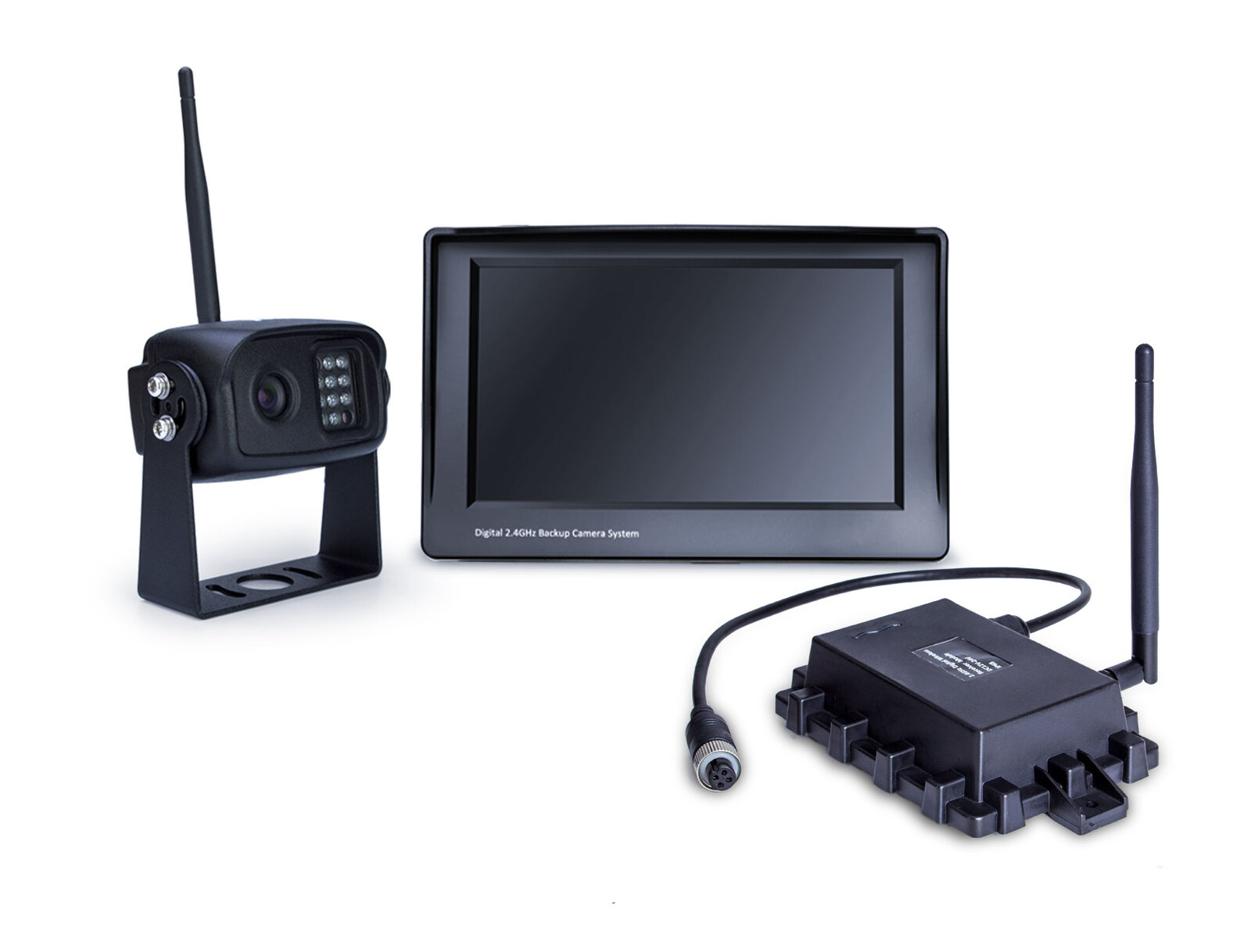

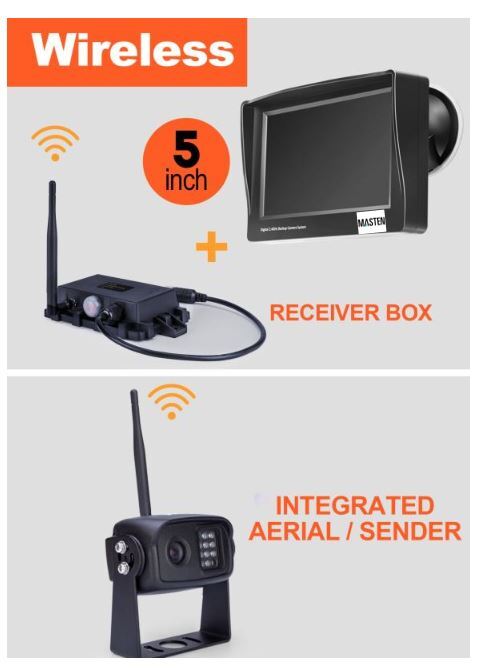

Package Include:

1 x 1/4 IR CCD Heavy Duty Wireless Camera

1 x 5" Wireless Car LCD monitor

1 x wireless Transmitter & Receiver Kit

1 x user guide


Description:

  • 2.4GHZ wireless A/V transmission
  • 5 inch Wireless Monitor with Stand holder
  • 14 IR LED Night Vision Metal heavy Duty car rear view camera
  • Easy installation for DIY usage
  • Real-time rear view while back up

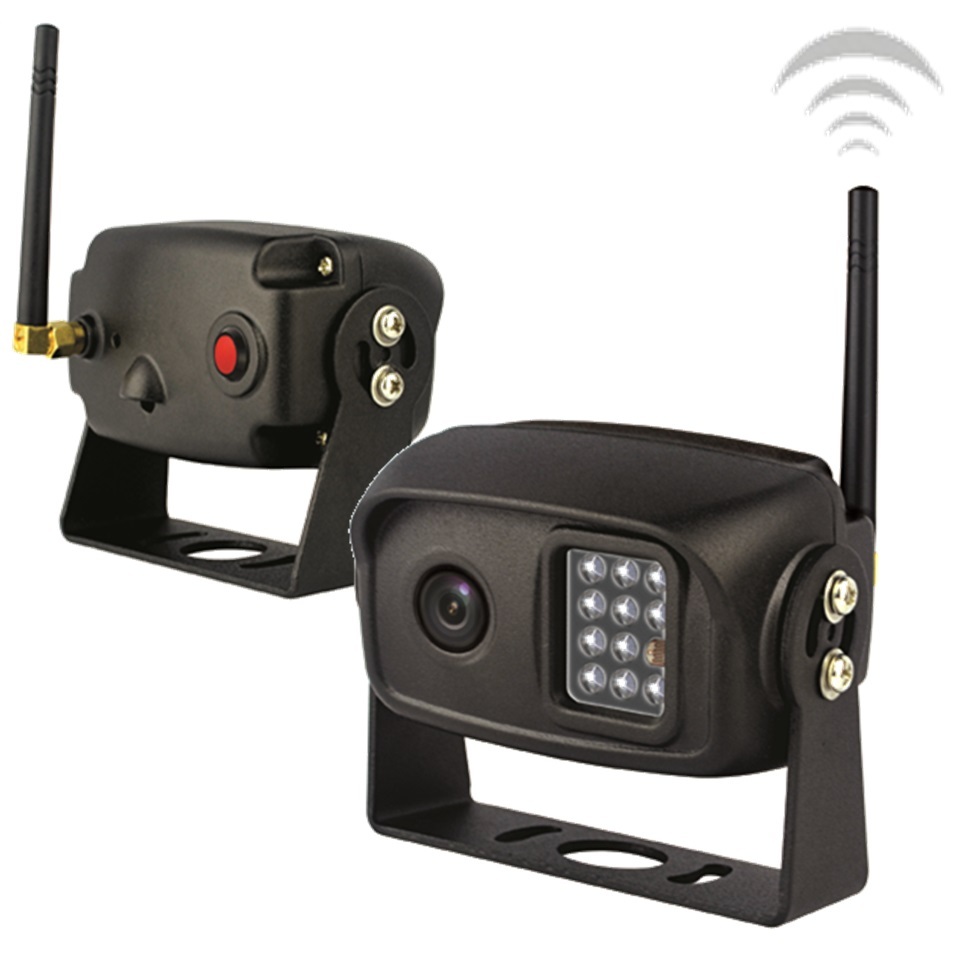

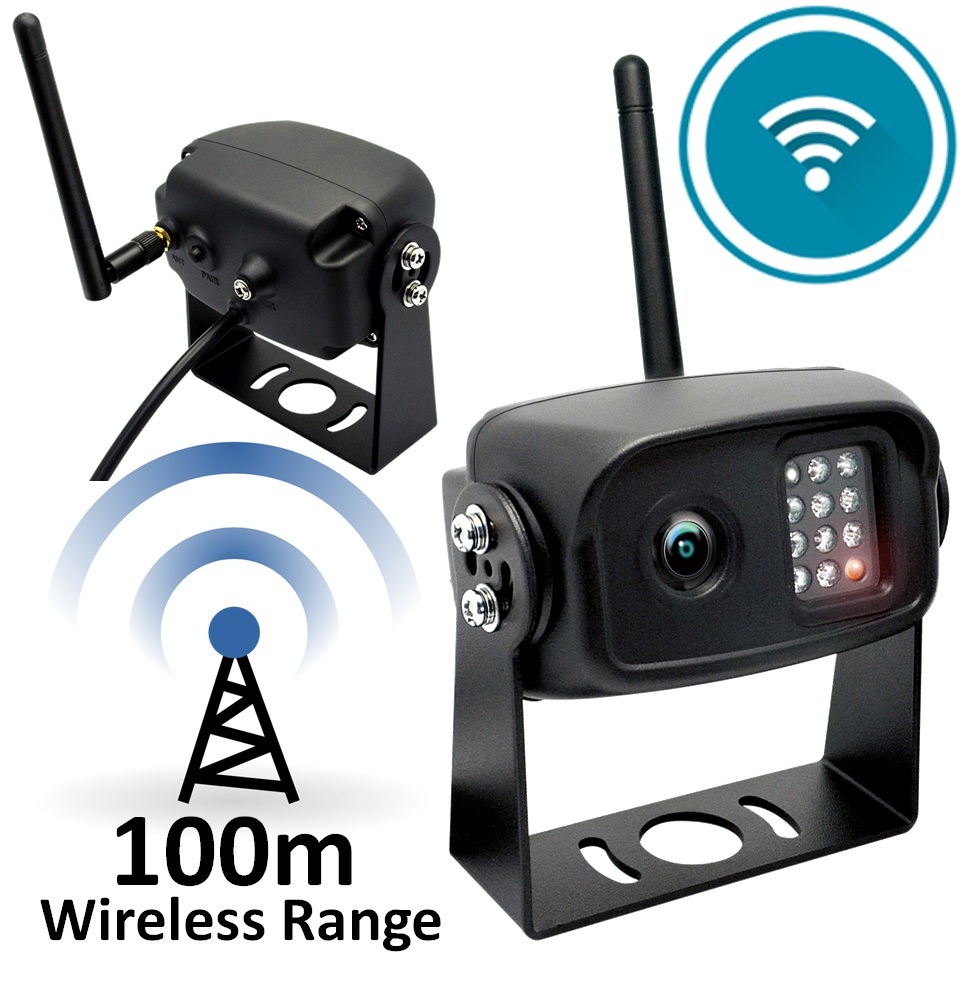

CCD COLOR CAMERA

  • 120 degree Wide angle viewing helps avoid accidents & injuries
  • Colour infrared night vision waterproof CCD reverse camera
  • Suitable for use with trucks / caravans / cars etc. Thanks to this heavy duty CCD crystal clear 12/24-volt applicable reverse camera
  • Clear view day or night
  • The CCD image sensor (made by SHARP company) outputs digital signals that has better picture's clarity color contrasting and sharpness.
  • This heavy duty CCD camera is hard metal cased waterproof and mud proof.
  • Can last for longer without heating up so you can show the rearview at all time.





Camera Specifications

  • 1 / 3” COLOR CCD SENSOR SPECIFICATIONS
  • Image Device:  SHARP
  • TV System:  NTSC
  • Effective Pixels:  512 x 582 pixels / 512 x 492 pixels
  • Sensing Area:  4.9mm x 3.7mm
  • Scanning System: 2:1Interlace
  • Sync. System:   Internal
  • Resolution:  700TV lines
  • Horizontal Sync. Frequency: 15.734KHz
  • Vertical Sync. Frequency:   60Hz
  • Minimum Illumination: 0 Lux/F1.2 with IR
  • Video Output: 1.0vp-p, 75Ohm
  • Gamma Consumption:  0.45
  • AGC:  Auto
  • S/N Ratio:  Better than 48dB
  • White Balance:  Auto
  • Electronic Shutter: 1/60(NTSC) /   1/10,000 Seconds
  • BLC:  Auto
  • Current Consumption: Max. 300mA
  • Power Supply:  DC12V
  • Operating Temperature:  －20°C~70°C , RH95％ MAX
  • Storage Temperature:   －40°C~80°C，RH95％ MAX
  • Lens: f=3.6mm/F=2.0
  • Lens Angle: 92°


LCD Monitor

  • Screen size: 4.3" inch
  • visible Area :95mm*55mm
  • Operating Temp:-20°C~75°C
  • Power Supply:12 v
  • Consumption:2W
  • Video:2 video input
  • Weight:160g (Monitor only)
SKU RK-5RW
Barcode # 9357423018176
Brand DIG Options
Shipping Weight 0.1000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Assembled Width 0.100m
