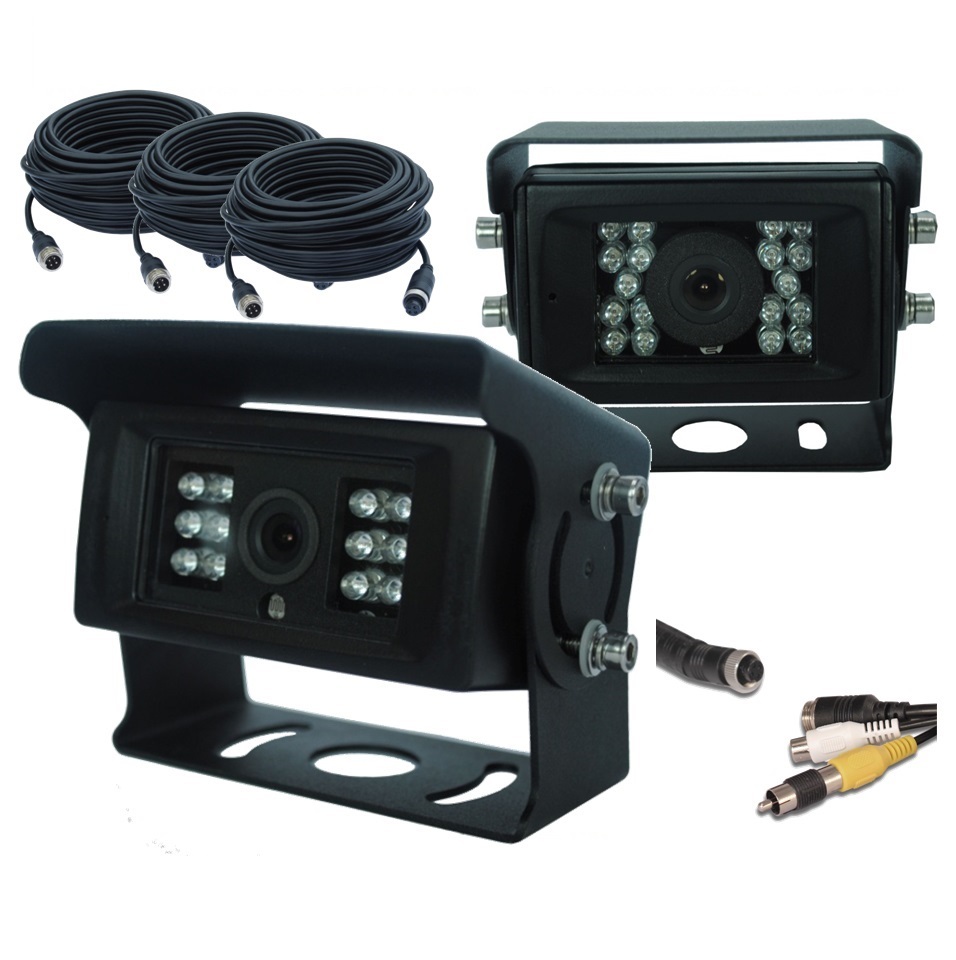

Premium All-round 2 Camera Horsefloat Camera Kit. Includes Heavy Duty Camera with Super Night Vision for inside the float, and standard Heavy Duty Camera for the rear of the float as well as all required Cabling.


Product Description


Caravan Heavy Duty Reversing Camera Kit

Introducing the industry-first Masten Caravan Reverse Camera Kit from Masten with unbeatable IP69K Water/Dust Proof Certification and Two-Year Replacement Warranty. Finally, an inclusive and easily installed way of connecting a top-quality Masten Reverse Camera to your In-Dash or On-Dash monitor!

Add this kit to your existing in-dash or on-dash monitor to help eliminate your reversing blind spot.

Included in this kit:

For Inside Horse Float:

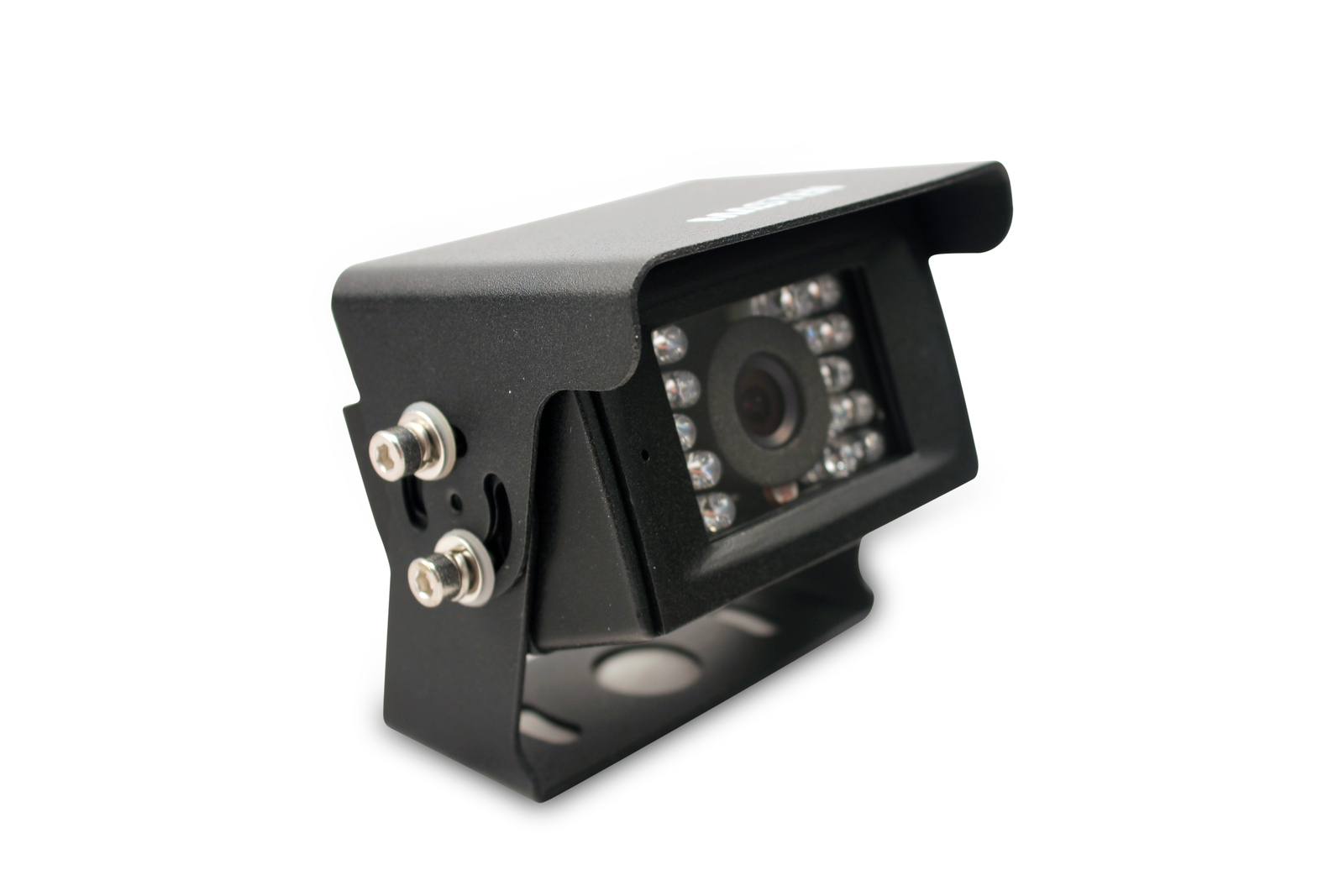

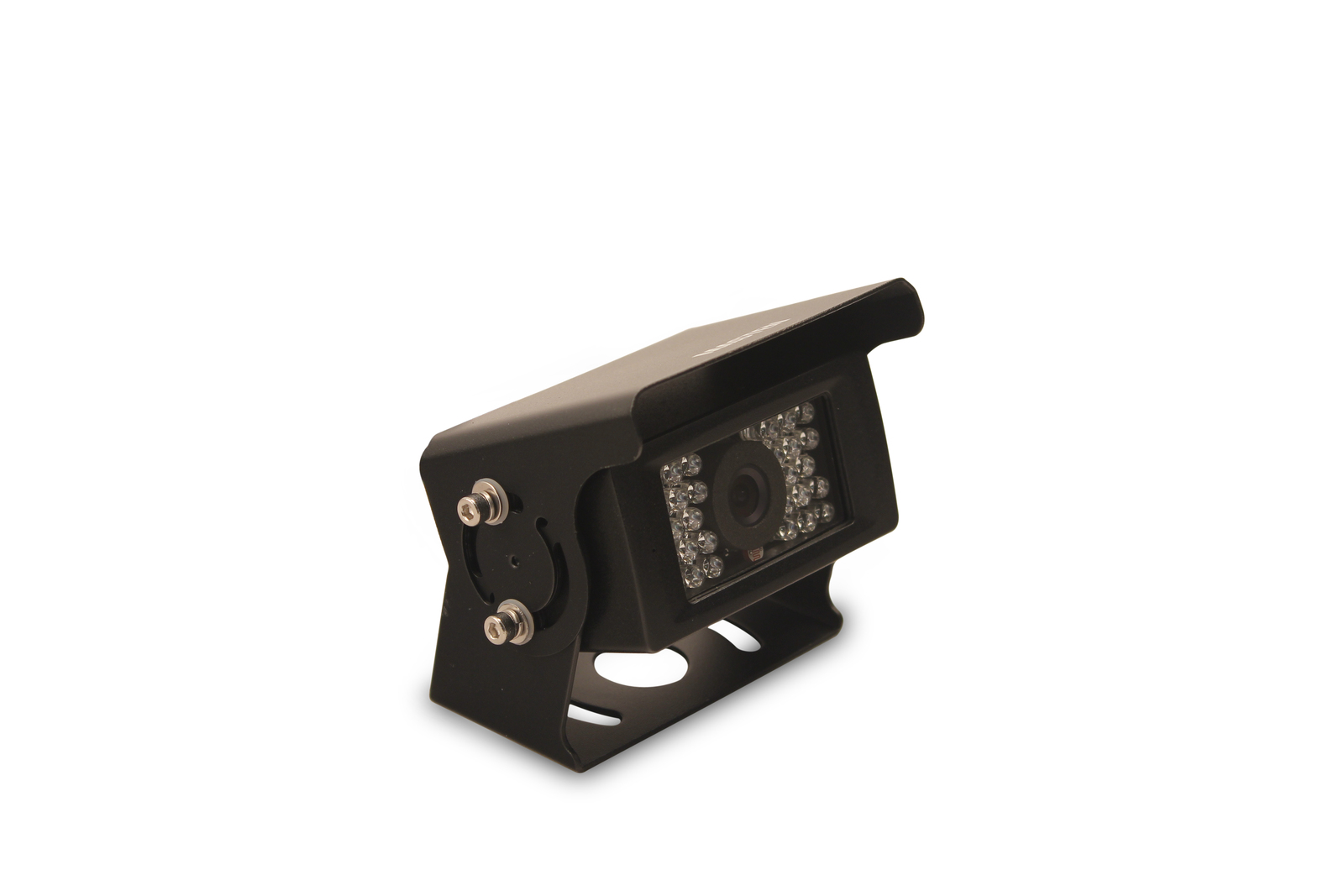

Masten Premium Heavy Duty Super Night Vision Camera with Masten CMOS 420TVL HD Image Sensors (Sony CCD 700TVL Optional)


For Rear Horse of Horse Float:

Masten Premium Heavy Duty Camera with Masten CMOS 420TVL HD Image Sensors (Sony CCD 700TVL Optional)

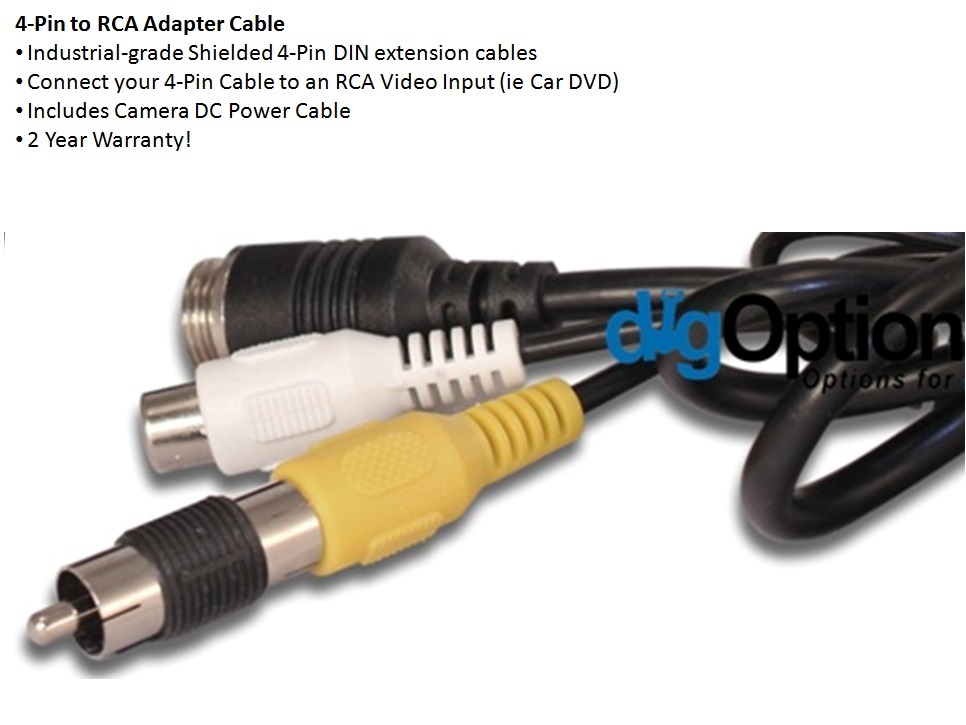

- Four Pin Female to RCA Plug Adapter

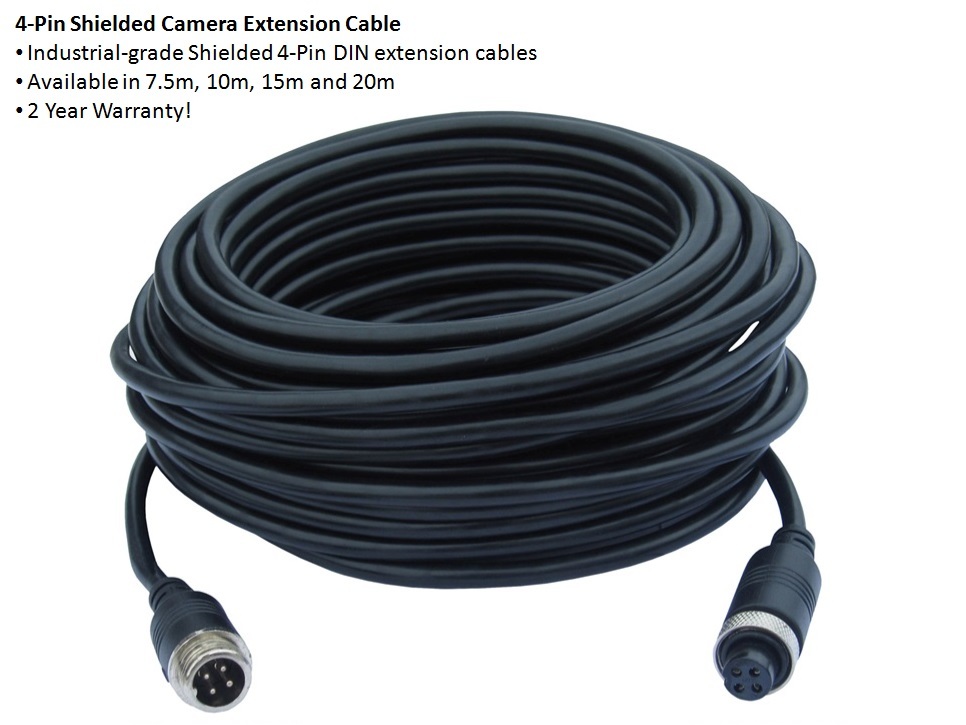

- Twin 7.5m 4-Pin Shielded Camera Extension Cable

- Single 7.5m 4-Pin Shielded Camera Extension Cable

- Single 10m 4-Pin Shielded Camera Extension Cable


Camera Features

World-class and Certified IP69K Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications

Stylish Patented Design

PixelPerfect® High-Grade image sensors feature Masten CMOS 420TVL for clear viewing day and night

(Sony® 1/4 CCD Sensor with 650 TV Lines also available).

Perfectly adjusted 120° viewing angle for safer reversing and more accurate imagery

Safer driving at night with a long 15m night vision viewing distance supported by 18 infrared LED lights

Built-in Audio Microphone for greater safety

Convenient Mirror / Normal image selection via a rear switch

Wide working temperature of Working temperature: -20°C~70°C.

Unique IR-CUT effectively avoids color aberration in daylight

Equipped with a White Balance sensor which enables the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor

Suitable for all applications including buses, mini vans, caravans, trailers, trucks, agriculture equipment and much more

Unbeatable Melbourne-Based 2-Year Warranty!


Cable Features

Industrial-grade Shielded 4-Pin DIN extension cables from DIG Options are the ideal choice when looking for a long lasting Rear View Camera Video/Audio/Power cable.

The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.

Camera Specifications (Sony CCD Camera also available from Dig Options)
Critical Specifications
Description: Premium Heavy Duty Camera - included in this kit Premium CCD Heavy Duty Camera (optional)
Image Device: CMOS 1/4 SONY CCD
Resolution: 420TV lines 700TV lines
Lens: 2.5mm 2.5mm
Lens Angle: 120 Degrees 120 Degrees
Infrared LED light: 18 LEDs 18 LEDs
IR Distance: 15m 15m
Waterproof Rating: IP69K IP69K
Audio Microphone: Yes Yes
Technical Specifications
Manual Mirror Image Switch Yes Yes
Effective Pixels: 512 x 582 pixels / 512 x 492 pixels 512 x 582 pixels / 512 x 492 pixels
Sensing Area: 3.6mm x 2.7mm 3.6mm x 2.7mm
Scanning System: 2:1 Interlace 2:1 Interlace
Sync. System: Internal Internal
Horizontal Sync. Frequency: 15.625 KHz / 15.734KHz 15.625 KHz / 15.734KHz
Vertical Sync. Frequency: 50Hz / 60Hz 50Hz / 60Hz
Minimum Illumination: 0Lux (Infrared lamps on)
0 .1Lux(day) / F1.2 0Lux (Infrared lamps on)
0 .1Lux(day) / F1.2
Video Output: 1.0vp-p, 75Ohm 1.0vp-p, 75Ohm
Gamma Consumption: 0.45 0.45
AGC: Auto Auto
S/N Ratio: Better than 48dB Better than 48dB
White Balance: Auto Auto
Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto Auto
Shell material: Aluminum alloy Aluminum alloy
Current Consumption: Max. 180mA Max. 180mA
Power Supply: DC12V DC12V
Operating Temperature: -20°C~70°C MAX -20°C~70°C MAX
Storage Temperature: -40°C~80° MAX -40°C~80° MAX
Barcode # 729436059887
Brand Masten
Shipping Weight 0.1500kg
Shipping Width 0.130m
Shipping Height 0.070m
Shipping Length 0.035m

Unbeatable Masten 2 Year Replacement Warranty
