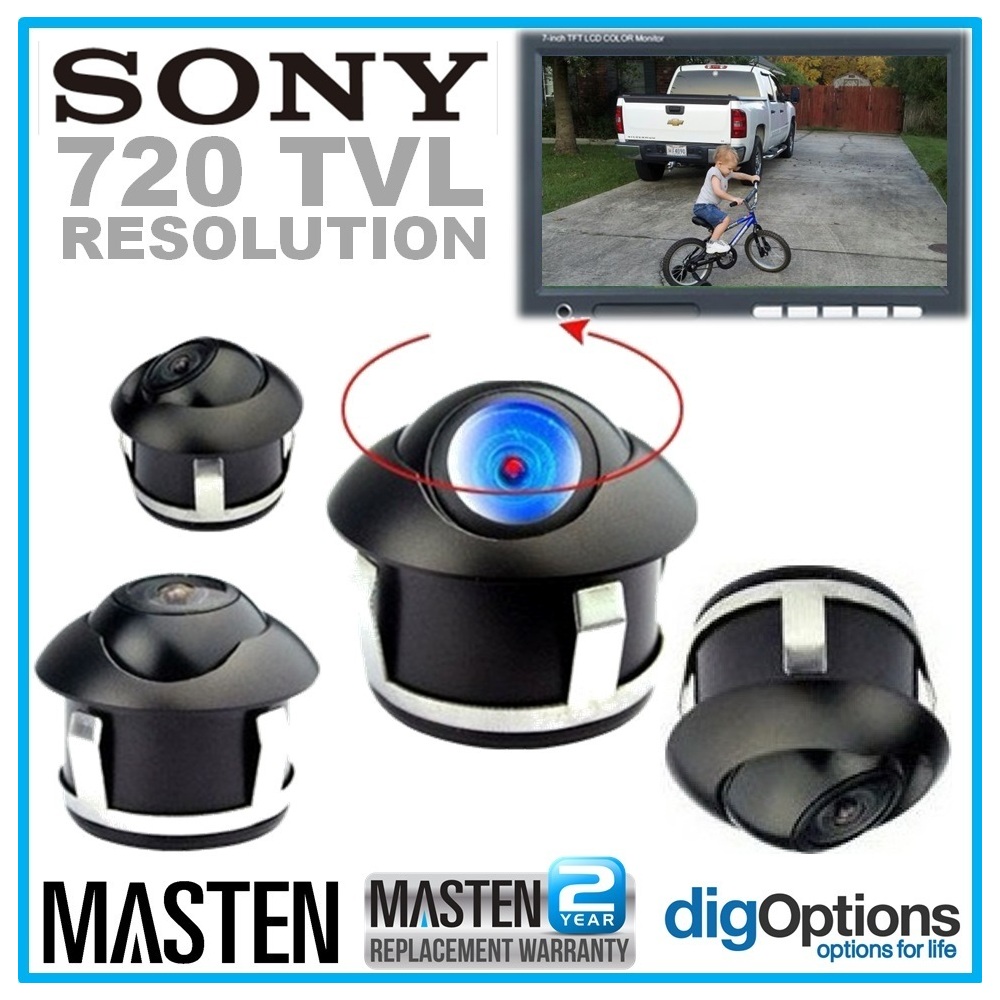

IMPORTANT. This camera uses a Sony Image Sensor component. The quality of image is what you would expect from Sony but without the high price tag for Sony Branded cameras. This is a Masten branded camera.

Universal Adjustable Flush Mount Camera with Bonus Hole Saw (22.5mm)

IMPORTANT: This camera has a 4 pin mini plug. Do NOT plug this camera into an existing 4 pin not supplied by us as the pin configuration may vary.

TV FORMAT: PAL

Short description

DIG Options has become the "Installer's Choice" for car audio equipment. We listen to our customers so that they keep listening with us. DIG Options provide the automotive electronics, dash kits, cables, adapters and more so you can keep your vehicle updated with the latest technology.

Cameras from DIG Options are vigorously tested in harsh Australian conditions and backed for an Australia 12 month warranty.

Description

This listing includes 3 parts which are:

  • A Premium Universal CCD Camera
  • 5m Video Cable and Integrated Trigger Wire
  • Hole saw

About the Camera

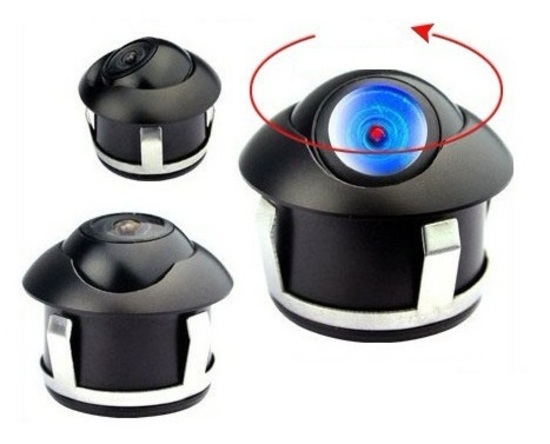

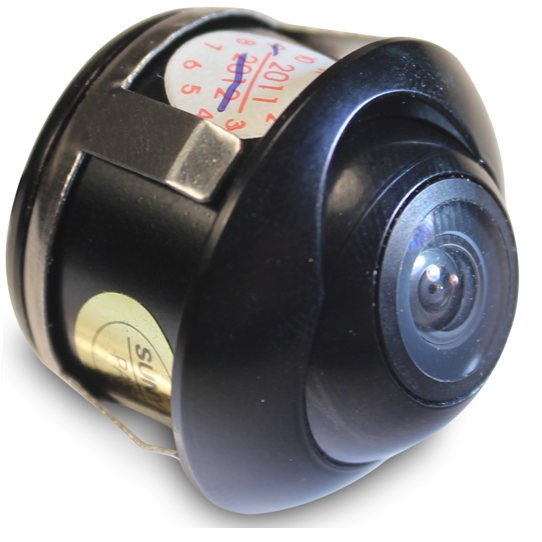

170° (vertical viewing angle) High Resolution Mini CCD Reversing Park Camera

  • High Resolution Colour CCD Image Sensor with crisp colour display and the latest sensor technology for improved visibility
  • Best-in-Class PAL 976 (H) 576 (V) pixel Resolution

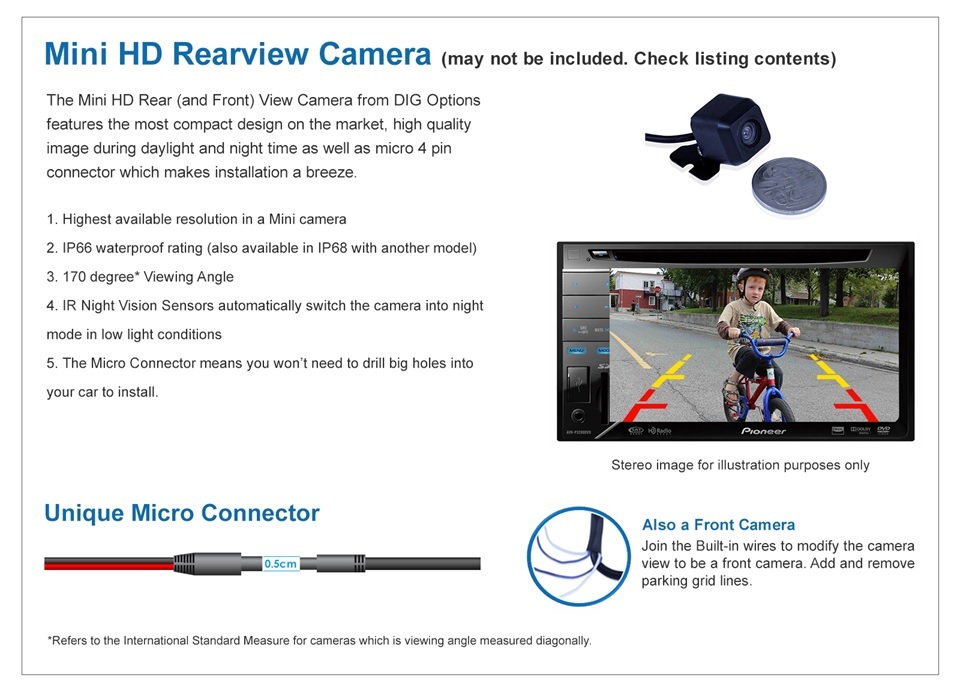

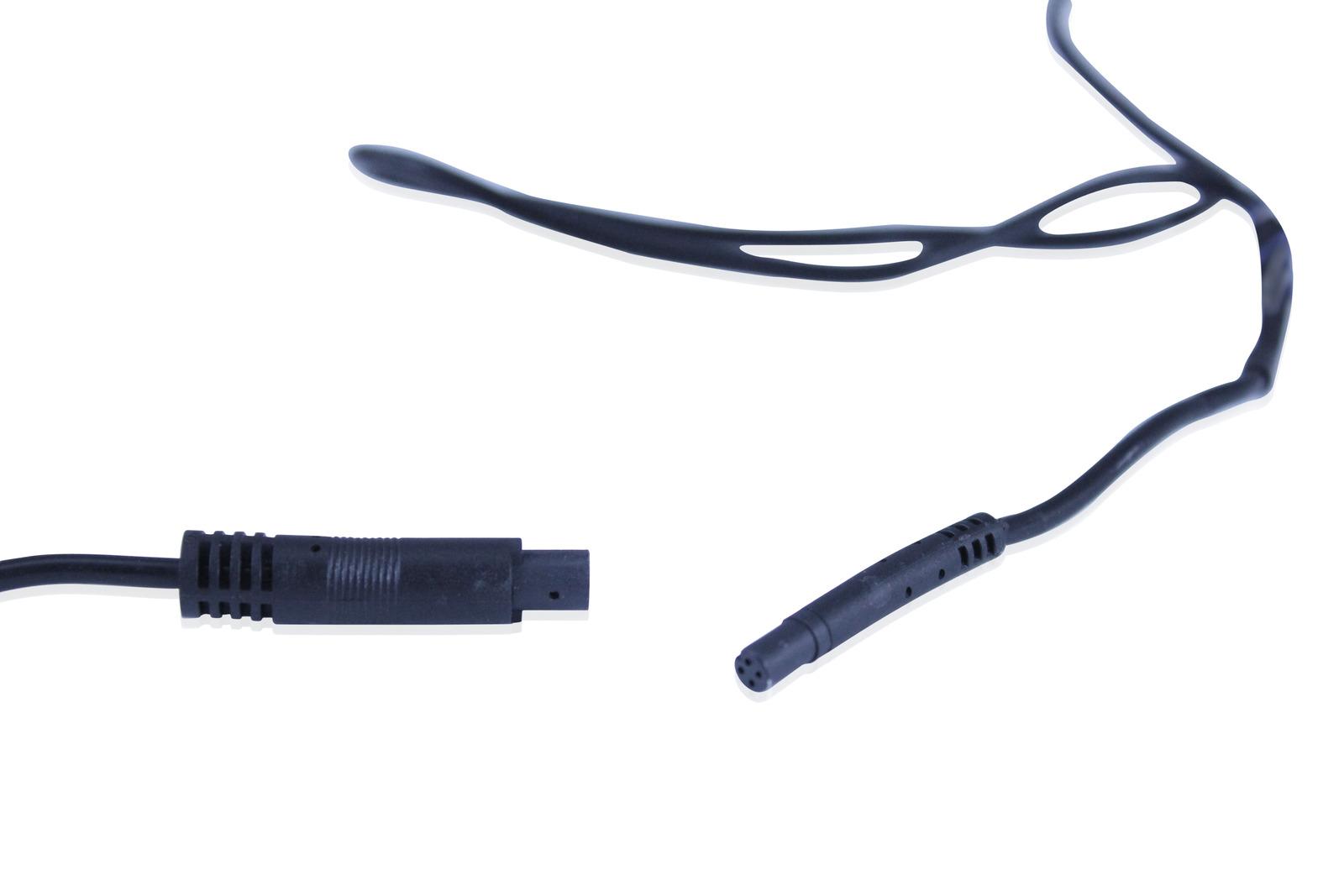

  • Special trouble-free micro 4-pin connector means you don’t need to drill huge holes and it makes the install easier
  • High Water/Dust Proof Rating
  • Distance guidelines are built into the camera to offer approximate distance grid lines which range from safe to STOP THE CAR!
  • The 170 degree viewing range with advanced CCD Image Sensor provides the latest technology in reverse cameras.
  • Due to the cameras low light properties it works brilliantly at night using the light generated from your reverse lights and the camera is water resistant.

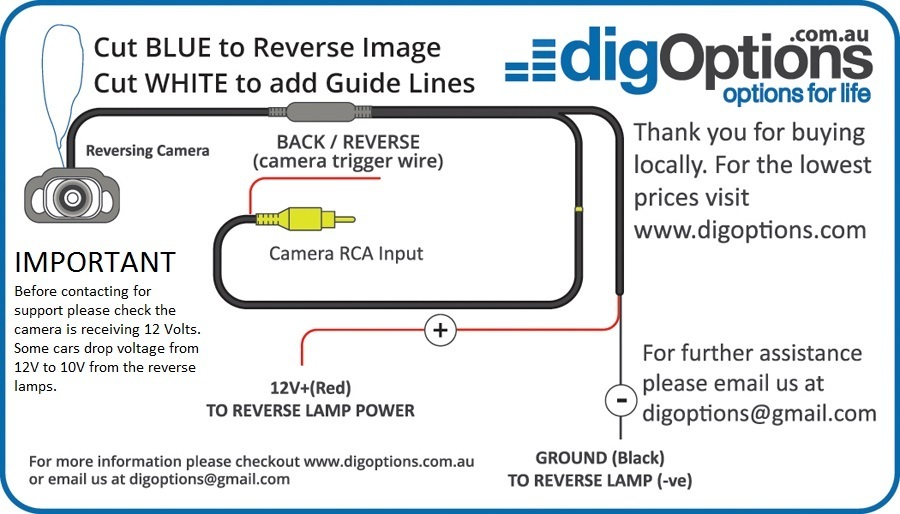

  • The camera features an RCA plug for connection into your monitor video input as well as built in trigger line which means you won't need to run a separate wire for the reverse power trigger input.

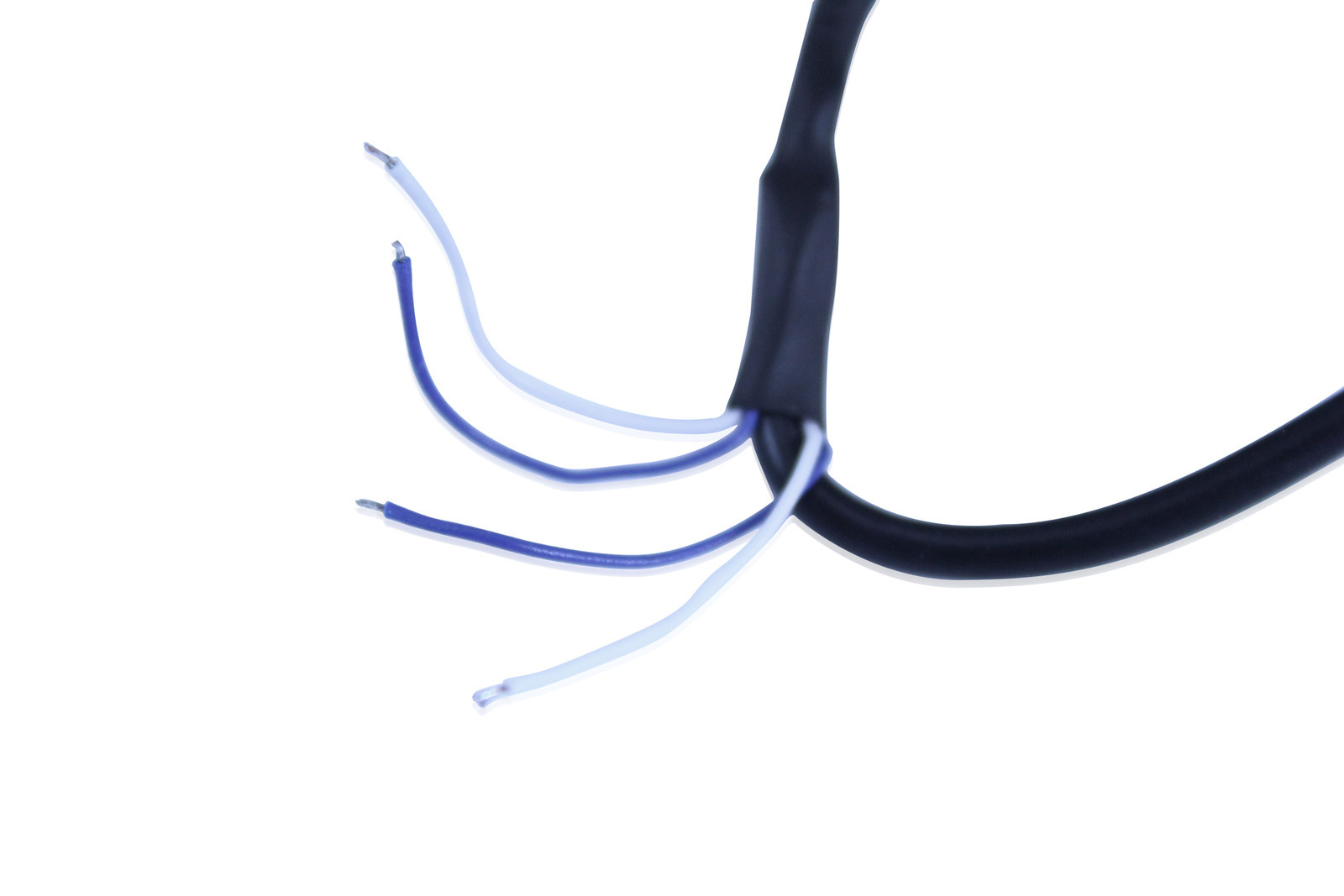

  • Cutting the in-built connectors allows the camera to be both a reverse camera (mirror image) or front view camera (True view)



Vehicle Compatibility

This part is suitable for all vehicles. Please note that due to this being an aftermarket accessory, some minor work may be required however, you will end up with a good result.



Looking for a Premium Navigation DVD Bluetooth IN-DASH System? Checkout our store categories for a suitable solution or contact us.



Other Accessories for your Vehicle are in our store including:

  1. Plug and Play Premium Integrated Navigation DVD Bluetooth System
  2. Fascia Stereo Surround
  3. Premium Reverse Camera
  4. In-Car Entertainment Monitors
  5. Dash Removal Tools
  6. Tyre Pressure Monitor Systems
  7. Off Road Navigation Software
  8. Home Electronics and much more



Total Pixels 976 (H) X 592(V)
Effect Pixels 900 (H) X 576 (V)
Pixel size 5.00 um X 7.40 um
Image Area 4.88 mm X 3.67 MM
Image Sensor 1/3 inch CCD
Resolution 720TV
Dark Signal 48.8[mv/sec]@60℃
Illuminance 9.67[V/Lux.sec]
Max Gain 0.5-16 Times
Datarate Both:27 MB / S
NTSC :60 MB/S
PAL :50 MB/S
Power Supply 12V DC (3.3V  IN)
Current 3.3V/60mA,  12V/120mA
Capacity 〈350mw
Working Temperature –30°C to 80°C
Store Temperature –50°C to +105°C
S/N Ratio >45.3dB
Pixel dynamic range  > 63.2dB
IP Rating IP67
Lens Angle 130 degree (Horizontal) ; 170 degree (diagonal)
SKU RC-09
Barcode # 729436060746
Brand DIG Options
Shipping Weight 0.2000kg
Shipping Width 0.130m
Shipping Height 0.070m
Shipping Length 0.035m
Shipping Cubic 0.000319000m3
Assembled Width 0.130m

Shipping and Handling

Important. Although many sellers may state they are located in Australia, they may not be. Before any purchase check that the goods are in Australia. If the goods are shipped from overseas you may need to wait longer for your item, need to pay customs taxes and return a faulty product back overseas. Unless otherwise stated, ALL Factory Fit items are warehoused in Melbourne, Australia.

Factory Fit will ship to confirmed Paypal addresses only. In most cases you will receive your item within 4 days. If there is a delay Factory Fit will be in contact with you. Please advise your phone number at checkout so we can get in touch with you if there is any problem.

If requested, we can supply the tracking number to you. If we are shipping outside Australia then the buyer is responsible for destination import tax/charges. We will reduce this where possible by nominating a low value and sending as a 'gift'. Factory Fit reserves the right not to be held responsible for a delay caused by import customs as this is out of our control.

Factory Fit will supply all international customers and in most cases ship direct from our freight forwarder in China. If you have any concerns please ask.



Payment Policy

Immediate Payment is required after the Winning Bid via paypal. If you do not have a Paypal account, please message us for another payment option. Discounts apply for direct deposit and cash with local pickups. If you require our Company Bank Account details for direct deposit please email or message us.



Returns Policy

Factory Fit products are covered by a minimum 1 year warranty from the original purchase date. Following any repairs or replacement you will be covered by a minimum 1 month warranty or the remainder of your new product warranty, whichever is greater. If you do find a product purchased from Factory Fit becomes faulty within 12-months of your purchase, simply send the faulty part back for repair or replacement (at our discretion). Non-manufacture faults (neglect, improper installation, misuse or incorrect service) and consumables are not be covered by this warranty. Freight  to and from our service centre in Melbourne to be covered by the buyer. Please message Factory Fit for detailed terms of this warranty.

Note. The limited Factory Fit warranty is not transferable and all warranties should be handled through the original purchaser. Factory Fit reserves the right to refuse warranty in such cases.

Factory Fit guarantees that all items sold are brand new and quality tested before shipment (unless otherwise stated).

Important: If a non-manufacturing fault is found during a Factory Fit inspection, Factory Fit will request from the purchaser the repair cost plus two way postage before the product is returned.

Factory Fit offers a 7 day return policy. In the unlikely event that you receive an incorrect item, please ensure you return it to Factory Fit within 7 days, in original packaging and in brand new, un-installed, resalable condition. Please contact us for a Return Authorisation Form (RTA) before sending anything back to Factory Fit.


About Us

Factory Fit is a Melbourne, Australia based operation and since 2008, a proud supplier to the Car Audio/Video industry on a wholesale base. Factory Fit are now going direct to offer consumers and installers the best value for money on car audio fitting accessories to become the number one supplier. We have over 10 years experience in electronics, tooling, industrial design and engineering, and we are proud to acknowledge our commitment to offering a high level of After Sales service, even years after your purchase. We provide an Australian phone number on request and unlimited support during business hours.

Factory Fit will strive to offer a large range of accessories for any vehicle. If you have an item you are looking for please message us and if we can get it, we will order it in for you.

LEGAL DISCLAIMER:

It is an offence to copy the descriptions and/or images of another business/seller. If you copy any of our descriptions or images we will contact eBay and your account will be suspended. Factory Fit reserves the right of all descriptions and images listed in this listing.

Backed for an Australia 12 month warranty.

Rear View Flush Mount CCD Reverse Camera HD Colour Cam Night Monitor Wit RC-09 has a rating of 5/5 based on 1 reviews.

Mini Flush Mount Camera

By: on 9 December 2015
Great little camera. Ideal for unobtrusive fitting.
(5)
