Solar Tyre Pressure Monitoring System LCD TPMS 4 Internal Sensors Car 4x4 PSI Diagnostic Tools Bar

Display your Critical Tyre Information on your Dash

$176.00
RRP $202.40
SAVE $26.40 (13%)

Item Number: TP-17

In Stock

Monitor the critical information of your tyres to increase your vehicle safety and the life of your tires with TP-17. install directly in your car, 4x4, caravan, trailer etc to provide accurate pressure and temperature readings with PSI Diagnostic Tools

Have Questions? Contact Us Here

Calculate Shipping

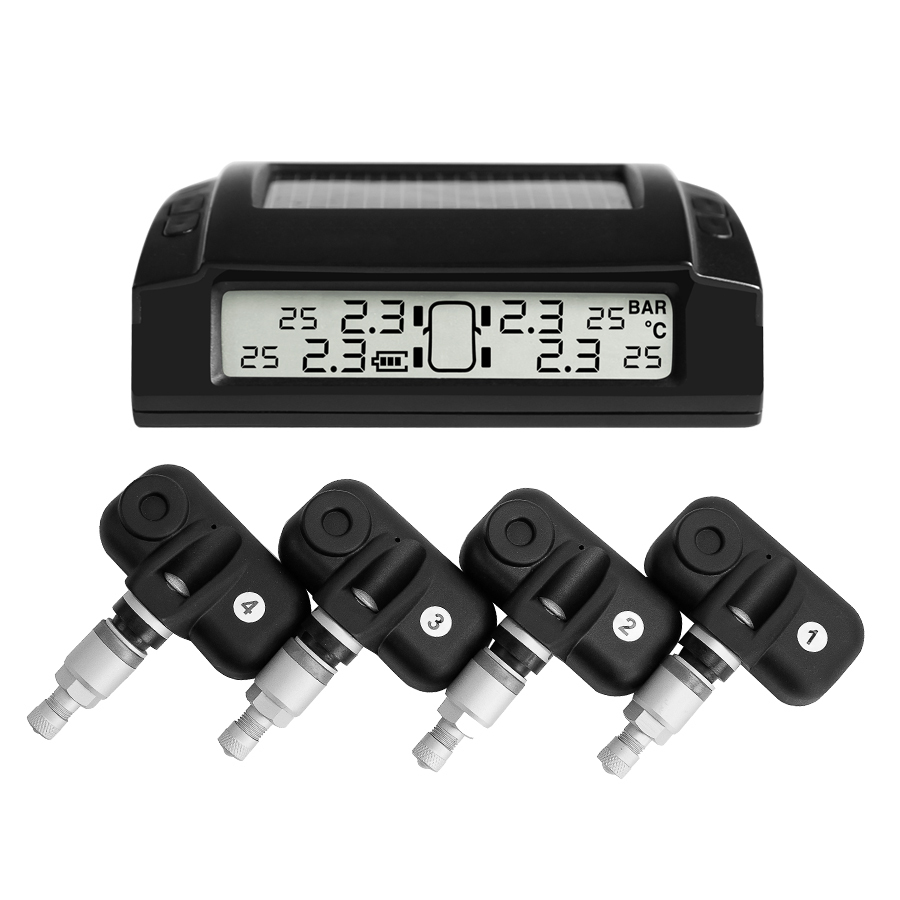

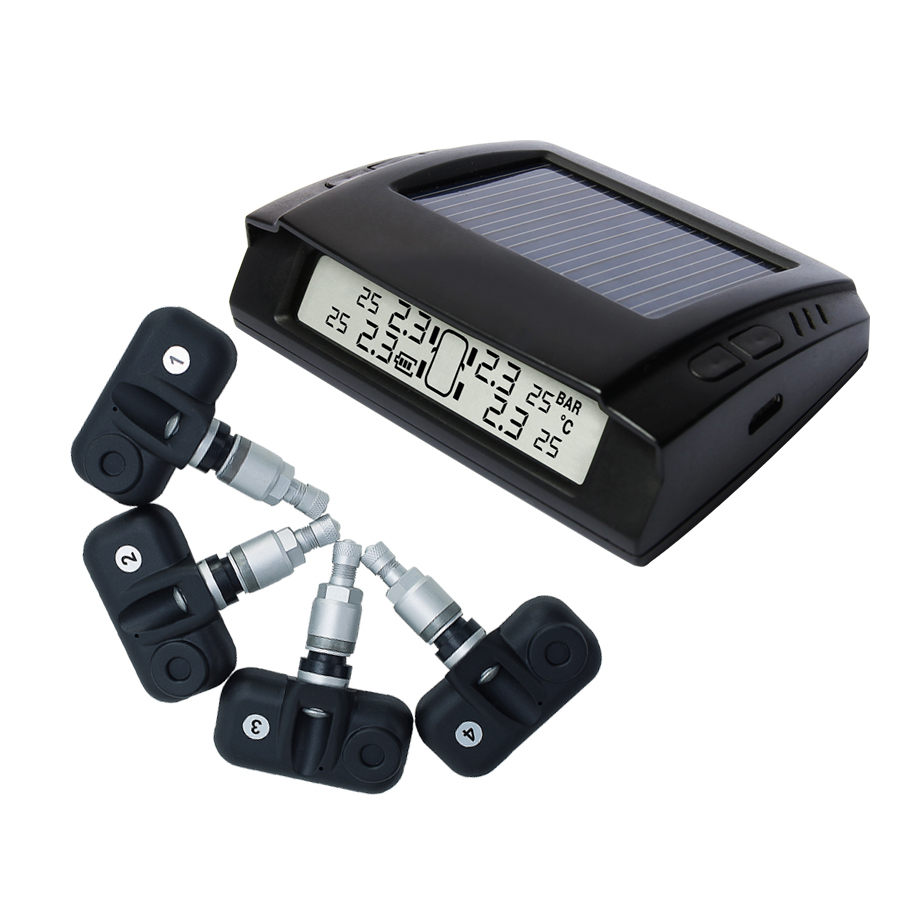

IMPORTANT - This Listing includes everything you need to monitor (with Solar Power) the condition of your tyre pressure and temperature. It includes the following parts:

  1. Solar Powered Dash Mount TPMS Monitor x 1
  2. Premium Internal Valve Sensors x 4
  3. Installation wiring x 1 set

Mini TPMS monitor. With Premium Internal Valve Sensors

Spare Sensors:

If you're after spare sensors the part numbers are TP-09S (internal valve) and TP-10S (external cap)



Overview:

The Masten TP-15 (external sensors)/TP-17 (internal sensors) TPMS Tyre Pressure Monitor System is specifically designed for for those wanting to monitor their tyre pressure in a non-obscure way with the convenience of Solar Power.

The TPMS module simply works silently and alerts you if there is a problem with your tyres. The Tyre data can be viewed at all times.

Feature List:

  • Monitorable Pressure range for this system (1-99psi)
  • Pressure Range: 0~116PSI (0~8 BAR)
  • Simple DIY installation!
  • Solar Powered Monitor for Simple and Cable-free Installation
  • Masten improved wireless signal
  • Attractive design with visual and audible alarm
  • 7 Metre Wireless Range
  • PSI and BAR Adjustable Units
  • Adjustable Front and rear sensors high/low pressure alarm range
  • Real-time Tire Pressure and Temperature Display of all 7 Tyres Simultaneously
  • TPMS information screen will automatically appear if a tyre problem is detected
  • The multi colour interface allows you to easily identify problem tyres in red for fast evaluation
  • Premium quality sensors
  • 3 Year Battery Life for External Cap Sensors (Battery can be changed) and over 6 Years Battery Life on Internal Valve Sensors
  • User friendly programming functions

Sleep Function:

If the sensors have not been moved for 1 hour or more they will be in sleep mode. After around 5 seconds of movement the sensors will 'wake' up and start sending the tyre information data (pressure/temperature) every 6 seconds to the monitor.



User Manual:

Included in box - also available upon request



FAQ's:

Will this system work with my In Dash Car DVD?

Yes. If your current system has an RCA camera input, and a trigger line input (used for sending power from the reverse lamp to the stereo), it will work.

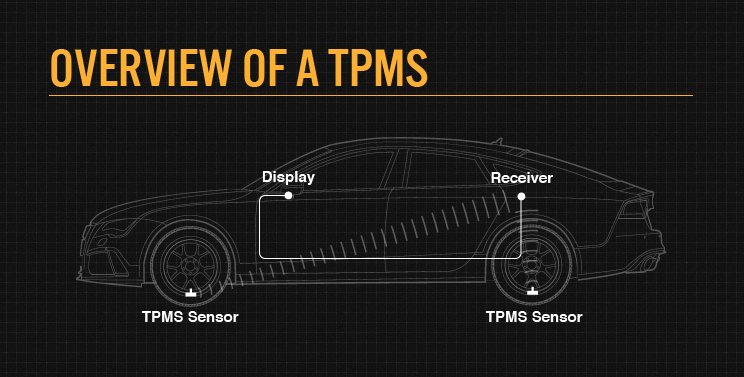

What are Tyre Pressure Monitor Systems?

passenger vehicles in the 1980s and today is a mandatory feature in the United States.



Benefits of a Masten TPMS?

The dynamic behavior of a pneumatic tire is closely connected to its inflation pressure. Key factors like braking distance and lateral stability require the inflation pressures to be adjusted and kept as specified by the vehicle manufacturer. Extreme under-inflation can even lead to thermal and mechanical overload caused by overheating and subsequent, sudden destruction of the tire itself. Additionally, fuel efficiency and tire wear are severely affected by under-inflation. Tires do not only leak air if punctured, they also leak air naturally, and over a year, even a typical new, properly mounted tire can lose from 20 to 60 kPa (3 to 9 psi), roughly 10% or even more of its initial pressure.

The significant advantages of TPMS are summarized as follows:

Fuel savings: According to the GITI, for every 10% of under-inflation on each tire on a vehicle, a 1% reduction in fuel economy will occur. In the United States alone, the Department of Transportation estimates that under inflated tires waste 2 billion US gallons (7,600,000 m3) of fuel each year.

Extended tire life: Under inflated tires are the #1 cause of tire failure and contribute to tire disintegration, heat buildup, ply separation and sidewall/casing breakdowns. Further, a difference of 10 lbs. in pressure on a set of duals literally drags the lower pressured tire 13 feet per mile. Moreover, running a tire even briefly on inadequate pressure breaks down the casing and prevents the ability to retread. It is important to note that not all sudden tire failures are caused by under-inflation. Structural damages caused, for example, by hitting sharp curbs or potholes, can also lead to sudden tire failures, even a certain time after the damaging incident. These cannot be proactively detected by any TPMS.

Decreased downtime and maintenance: Under-inflated tires lead to costly hours of downtime and maintenance.

Improved safety: Under-inflated tires lead to tread separation and tire failure, resulting in 40,000 accidents, 33,000 injuries and over 650 deaths per year. Further, tires properly inflated add greater stability, handling and braking efficiencies and provide greater safety for the driver, the vehicle, the loads and others on the road.

Environmental efficiency: Under-inflated tires, as estimated by the Department of Transportation, release over 57.5 billion pounds of unnecessary carbon-monoxide pollutants into the atmosphere each year in the United States alone.





Features

  1. Automatically solar power battery re-charger.
  2. Pressure and temperature alarm.
  3. Visible and audible alarm.
  4. Selectable pressure units: BAR or PSI.
  5. Selectable temperature units: °C or 0F
  6. Configurable high / low pressure and high temperature alarm.
  7. Tire position exchange.
  8. Automatic awake feature.
  9. Automatic backlighting.
  10. Built in rechargeable lithium battery.
  11. Monitor up to 7 tires(including one spare tire).
  12. Display temperature and pressure simultaneously.
  13. Fast leakage alert.
  14. High stability and easy to install.



6 Good Reasons to Install a TPMS

1. Prevent tire puncture

When the tire is high or low, or high temperature, the system will send a trigger warning in time to reduce the puncture possibility

2. Tire leaking warning

When the tire is leaking, the system will immediately send a trigger warning

3. Reduce tire wear

It will accelerate tire wear when the tire pressure is too high or too low. Keep the tire pressure correct to extend tire life.

4. Tire balance

Vehicle deviation will easily occur if tires are unbalanced. Maintain the pressure balance of the 4 tires to improve vehicle handling and shorten the braking distance

5. Save fuel

When the tire pressure is low, the fuel consumption will be increased due to the high rolling resistance of the tire.

6. Govenment Legislation

In 2007 the US government legislated the mandatory installation of TPMS to new vehicles.

In 2012, 27 countries in the European Union plus Japan and Korea legistalted the mandatory installation of a TPMS to new vehicles.

In 2016, China, Australia and several South East Asian countries will legislate the mandatory installation of TPMS to new vehicles.

Monitor Specifications


Battery Life without Sun Power - 45 Days or less

Operational Temperature: -20 to 80°C

Storage Temperature: -30 to 85°C

Transmission Frequency: 433.92MHz

Output Voltage/Current: DC 5V/1A

Pressure setting range: 1.0 to 9.9 BAR, 16 to 99 PSI

Temperature setting range: -25 °C to 93 °C

Size: 84(L) x 66(W) x23 (H)mm

Weight: 82g

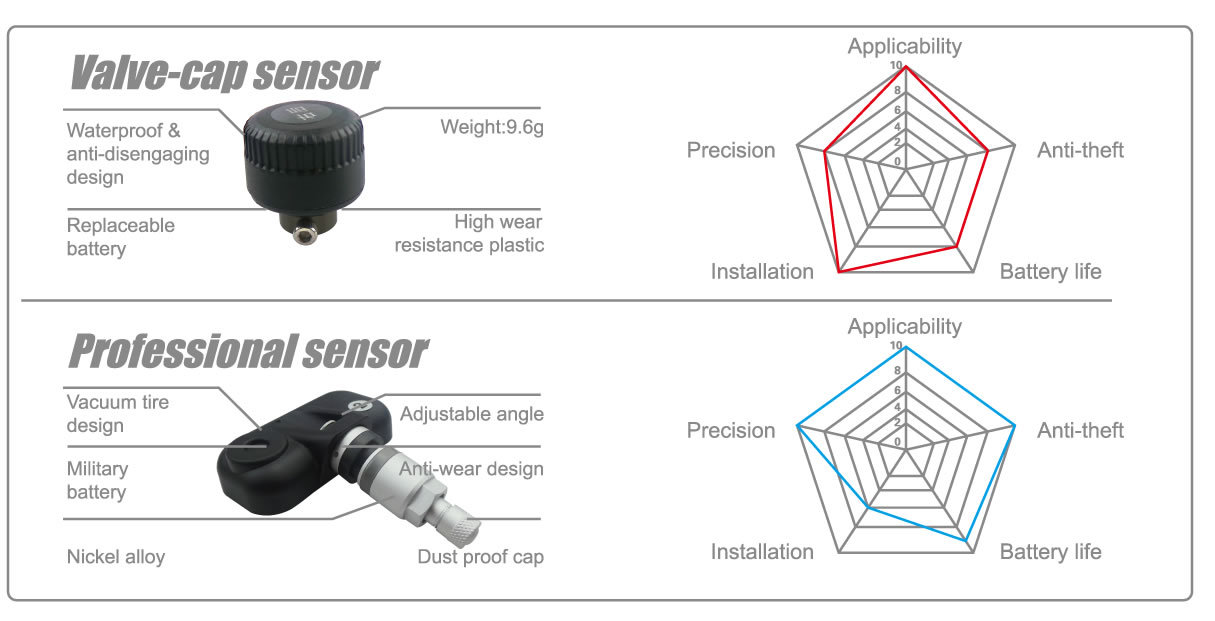

External Cap Specifications

Operational Temperature: -40 to 80°C

Storage Temperature: -40 to 85°C

Pressure Range: 0 to 8BAR, 0~116PSI

Pressure Accuracy: ±0.1BAR, ±1.5PSI

Temperature Accuracy: ±3°C

Transmission Power:<10dBm

Transmission Frequency: 433.92MHz

Battery life: Up to 3 years(CR1632, -40 to 80°C)

Size: 21mm(diameter) x 17.5mm(height)

Weight: 9g

Internal Valve Sensor Specifications

Operational Temperature: -40 to 80°C

Storage Temperature: -40 to 85°C

Pressure Range: 0 to 8BAR, 0~116PSI

Pressure Accuracy: ±0.1BAR, ±1.5PSI

Temperature Accuracy: 3°C

Transmission Power:<10dBm

Transmission Frequency: 433.92MHz

Battery life: Uo to 5 years

Size: Size: 60(L) x 35(W) x21(H)mm

Weight: 48g

SKU TP-17
Barcode # 792019218506
Brand Masten
Shipping Weight 0.5000kg
Shipping Width 0.175m
Shipping Height 0.130m
Shipping Length 0.060m
Assembled Width 0.175m

2 Year Warranty

1 Year Warranty on Sensors
