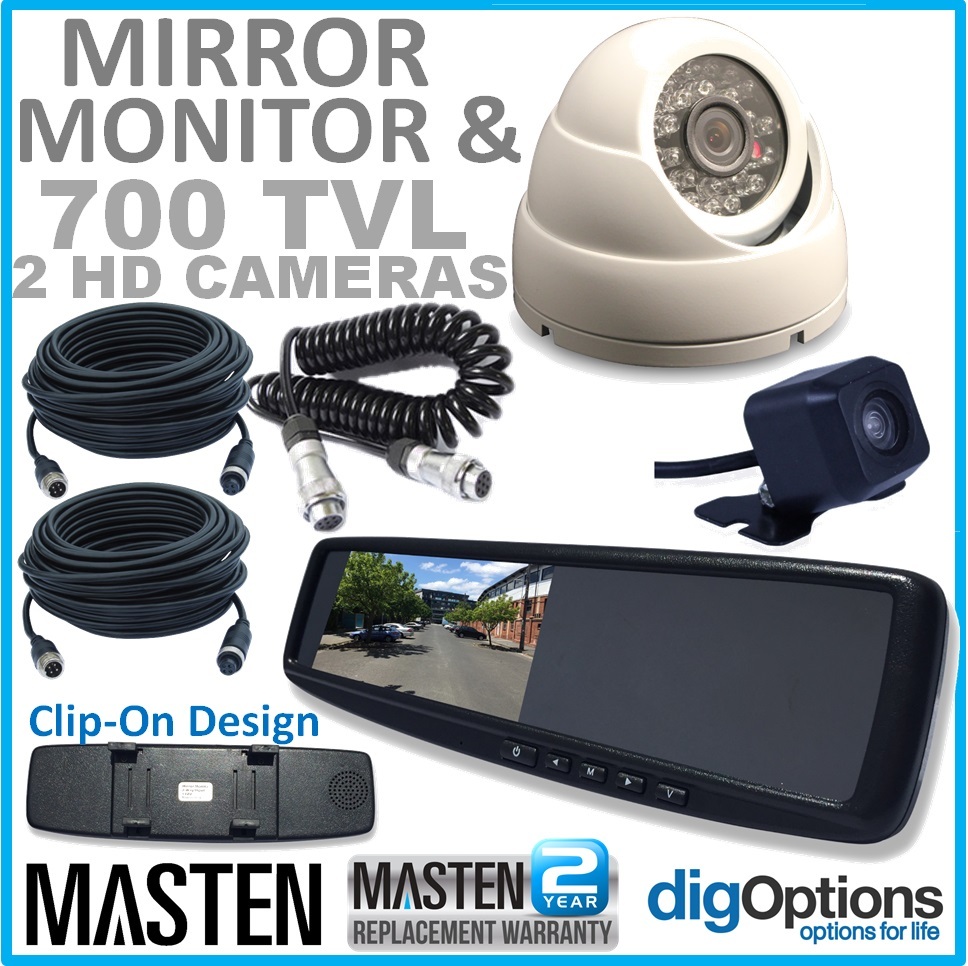

This premium rear camera safety kit combines versatile and durable cables with a 4.3" full colour replacement mirror monitor and heavy duty dual CCD camera,  this kit is a one-stop shop for all your needs.

This kit includes:

Heavy Duty Dome Masten White Rear Camera

Camera Style: Dome
Camera Image Sensor: Sony CCD 700 TV Lines of Resolution
Camera Colour: White
Waterproof Rating Certification: IP68
Infrared Night Vision LED Lights: Yes - 24 LEDs
Night Vision Distance: 10 metres
Viewing Angle: 120°
White Balance Sensor: Yes
Application: Ideal for Caravans and Motor Homes

  • World-class and Certified Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications
  • Stylish Design available in White or Black
  • PixelPerfect® High-Grade image sensors feature 420 TV Lines with Masten CMOS Image Sensor or massive 700 TV Lines with Sony® 1/4 CCD Sensor for clear viewing in day and night (check Specs)
  • Perfectly adjusted viewing angle for safer reversing and more accurate imagery
  • Safer driving at night with the built-in high quality infrared LED lights and long range viewing distance
  • Wide working temperature of Working temperature: -20°C~70°C.
  • Unique IR-CUT effectively avoids color aberration in daylight
  • Equipped with a White Balance sensor which enables the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor
  • Suitable for all applications including buses, mini vans, caravans, trailers, trucks, agriculture equipment and much more

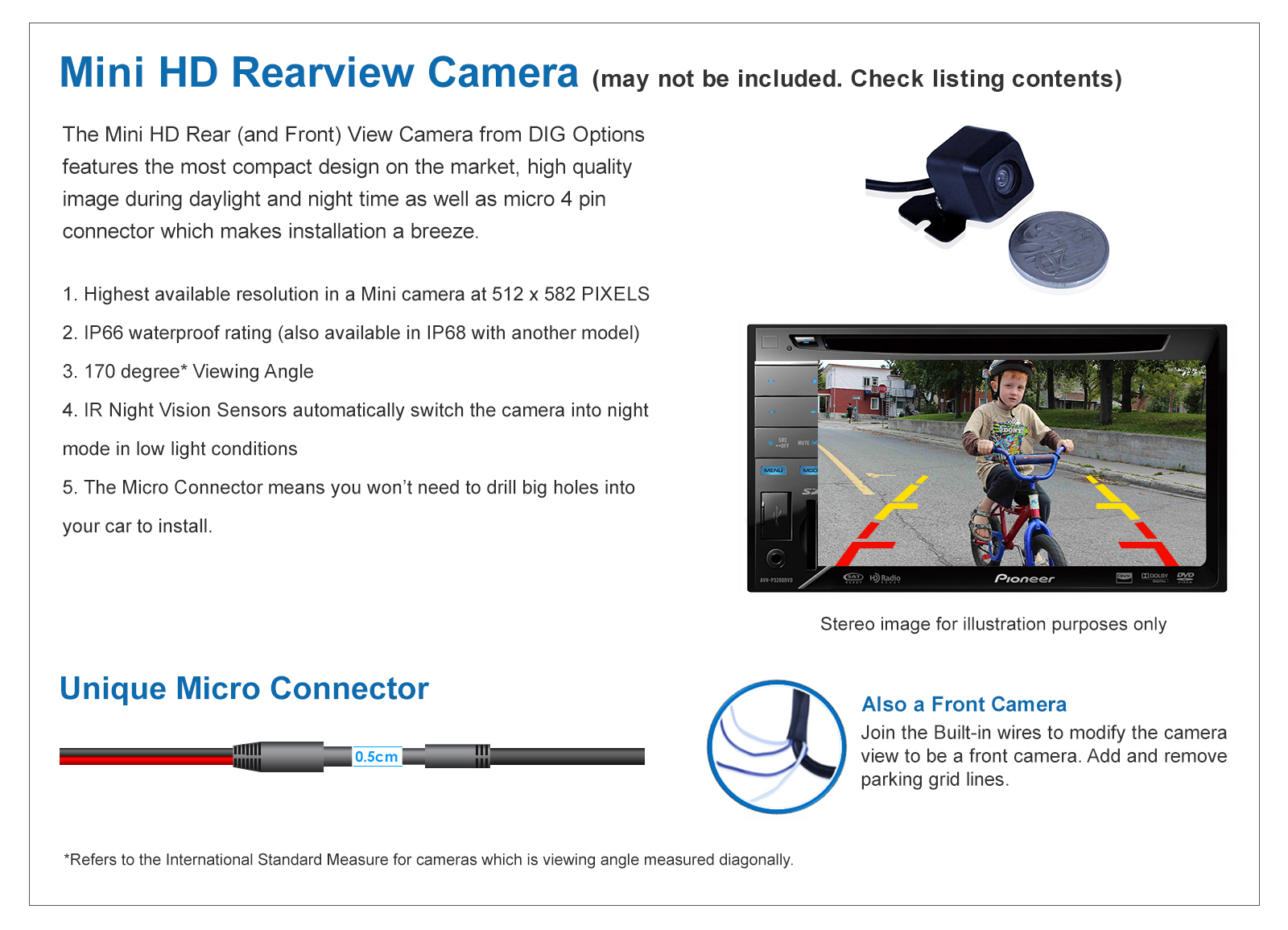

Mini CCD Universal Camera

170° (vertical viewing angle) High Resolution Mini CCD Reversing Park Camera

  • High Resolution Colour CCD Image Sensor with crisp colour display and the latest sensor technology for improved visibility
  • Best-in-Class PAL 976 (H) 496 (V) pixel Resolution
  • Special trouble-free micro 4-pin connector means you don’t need to drill huge holes and it makes the install easier
  • High Water/Dust Proof Rating
  • Distance guidelines are built into the camera to offer approximate distance grid lines which range from safe to STOP THE CAR!
  • The 170 degree viewing range with advanced CCD Image Sensor provides the latest technology in reverse cameras.
  • Due to the cameras low light properties it works brilliantly at night using the light generated from your reverse lights and the camera is water resistant.
  • The camera features an RCA plug for connection into your monitor video input as well as built in trigger line which means you won't need to run a separate wire for the reverse power trigger input.
  • Cutting the in-built connectors allows the camera to be both a reverse camera (mirror image) or front view camera (True view)



7.5m 4-Pin Shielded Camera Extension Cable (Single)

Industrial-grade Shielded 4-Pin DIN extension cables from DIG Options are the ideal choice when looking for a long lasting Rear View Camera Video/Audio/Power cable.
The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.
This cable combines video, audio and power within the same wire and is designed to simplify the rear view camera installation process.
Ideal for connecting cameras to monitors for a range of applications: cars, buses, trucks, farm machinery, mining and much more.

15m 4-Pin Shielded Camera Extension Cable (Single

Industrial-grade Shielded 4-Pin DIN extension cables from DIG Options are the ideal choice when looking for a long lasting Rear View Camera Video/Audio/Power cable.
The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.
This cable combines video, audio and power within the same wire and is designed to simplify the rear view camera installation process.
Ideal for connecting cameras to monitors for a range of applications: cars, buses, trucks, farm machinery, mining and much more.


Premium Spiral Hitch Suzi Cable with 4m curley cable

Industrial-grade Shielded 5-Pin DIN spiral hitch cables from DIG Options are well designed and robust for all conditions and ideal if you're looking for a long lasting cable capable of carrying Video, Audio and Power cable signals for 2 cameras. The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection. This cable combines video, audio and power within the same cable and is designed to simplify the rear view camera hitch and un-hitch process. Ideal for connecting cameras to monitors in a range of applications for cars, buses, trucks, farm machinery, mining and much more.

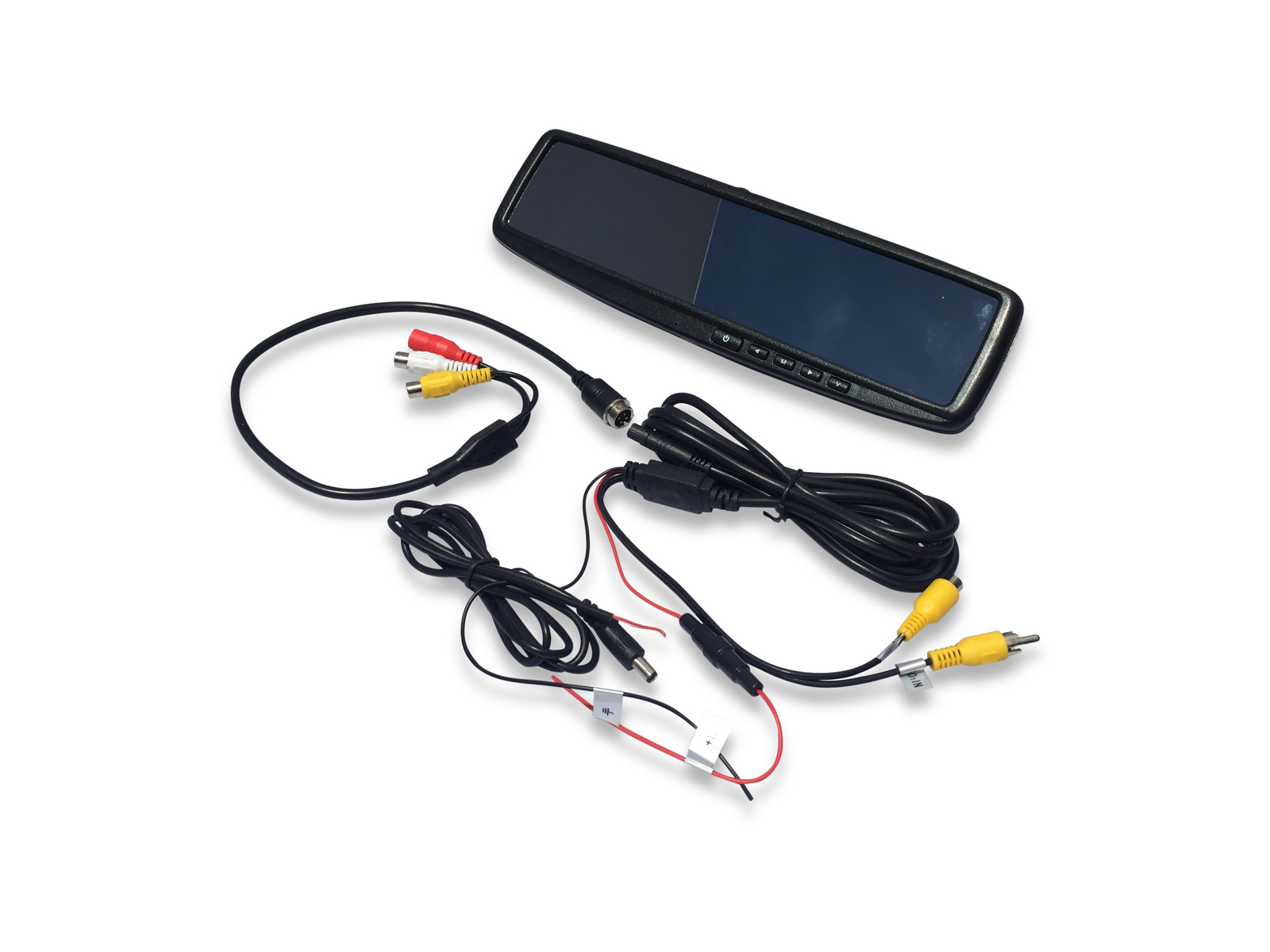

4.3" LCD Replacement Rearview mirror monitor with 2 Inputs - Universal Clip-on Style

The Premium Masten Rear View Camera Mirror replacement displays your camera image conveniently to the side of a highly reflective mirror. Avoid the clutter of screens on your dash, by simply upgrading your existing mirror to the Masten rear view camera mirror and connecting to power. The screen can be switched on automatically when your vehicle is put into reverse or can be left on while driving. Also features 2 Inputs meaning you can add 2 cameras for additional safety.

  • Left-Side 4.3” High-Quality LCD Colour HD Monitor for maximum visibility
  • Large highly reflective mirror
  • 2 Camera Video/Audio Inputs
  • Automatic Camera Display. Both camera inputs have a separate power trigger control wire allowing automatic display of cameras when required. The monitor will automatically switch-over to the image of the corresponding triggered camera, then back to the original mode when the trigger stops
  • Upgraded universal clamps for a durable and quality install
  • 350CD/m2 Bright Upgraded Digital LCD Panel Built-In
  • Convenient Normal/Mirror View switch allows you to assign cameras to a forward facing position (Normal View) or rear facing position (Mirror View) at the touch a button
  • Compatible with PAL and NTSC



Intruction Manual.

Please download by clicking here.

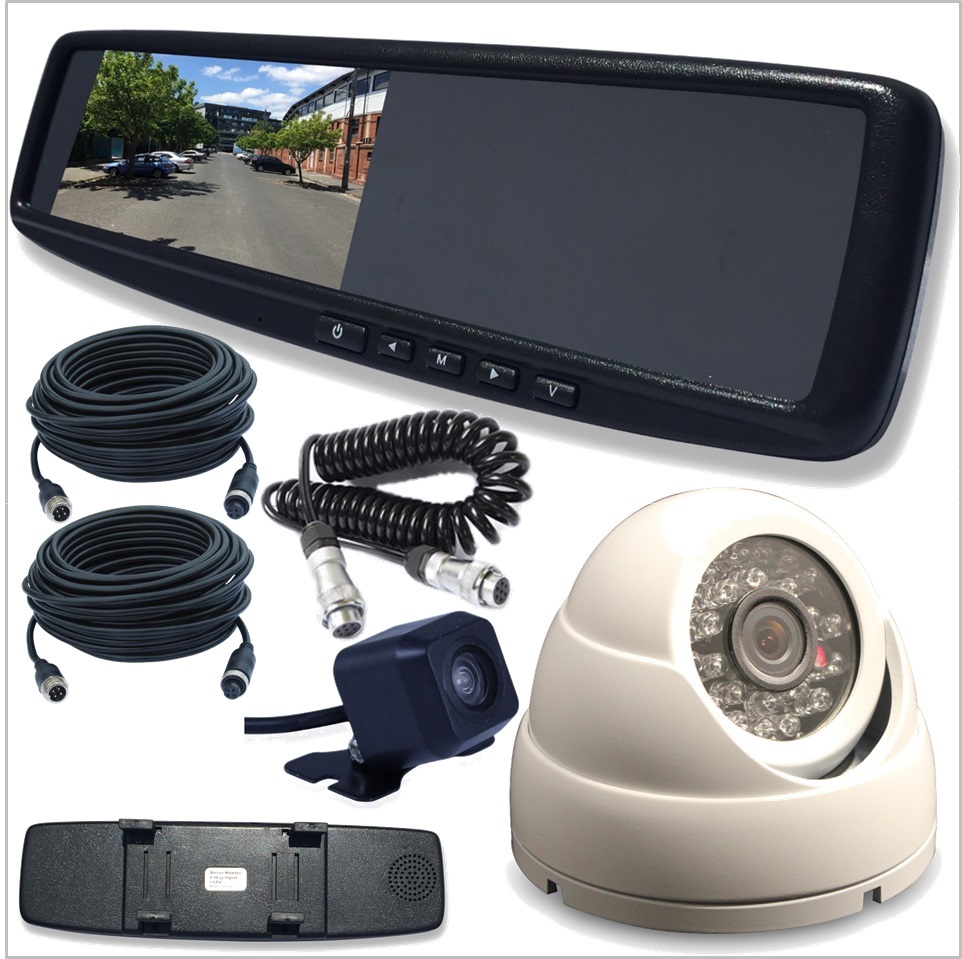

Parts included

  • RC-DV03-W - Masten CCD Heavy Duty Camera White
  • EC-71 - 7.5m 4-Pin Shielded Camera Extension Cable (Single)
  • EC-151 - 15m 4-Pin Shielded Camera Extension Cable (Single)
  • MM-01 Masten Premium 4.3" HD LCD Full Colour Mirror Monitor
  • EC-4M RCA Adapters
  • EC-S01 Spiral Cable
  • RC-08 Mini CCD Camera



Panel Specifications
Display/Monitor Size: 4.3 Inch
Monitor Panel Type: Upgraded Digital LCD Panel
Display Colour: Full Colour
Waterproof Rating (with Certification): Not applicable
TV System:  NTSC/PAL AUTO
Resolution: 480 x R.G.B x 272 Pixels
Aspect ratio: 16:9
Viewing angle: U:50°/ D:60°, R/L: 70°
Brightness: 350cd/㎡
Contrast: 500:1
Lattice Distance:
Physical Specifications
Monitor Housing Material: Plastic
Monitor Bracket Type: Replace existing mirror arm
Monitor Bracket Material: Steel arm
Camera Specifications
Camera Inputs: No
Camera Connection Type: RCA
Automatic Camera Display (separate trigger wire): Yes - 1 Cameras via Trigger Line from Power Source
4 (Quad) Camera View: No
Other Specifications
Mirror Size: 247*53
Built-in Speaker: No
Bilingual Menu System: Yes
Day/Night Mode Switch: NA
Mirror/Natural Camera View Selection: NA
Remote Control: Yes
Working voltage: 12V
DC Power Overload Protection Yes
Working Current: 0.12
Operating Temperature -10℃'~+50℃
Storage Temperature -30℃~+70℃
Operating humidity: 20-85%
Product Net Weight: 0.40KG
Product Dimensions: 275*80*30



Dome Camera Specifications

Description:

Premium CMOS Metal Dome Camera

Also Available

Premium CCD Metal Dome Camera

Image Device: CMOS 1/4 SONY CCD
Resolution: 420TV lines 700TV lines
Lens: 2.5mm 2.5mm
Lens Angle: 120 Degrees 120 Degrees
Infrared LED light: 24 LEDs 24 LEDs
IR Distance: 10m 10m
Waterproof Rating: IP68 IP68

Technical Specifications
TV System: PAL/ NTSC PAL/ NTSC
Manual Mirror Image Switch N/A N/A
Effective Pixels: 512 x 582 pixels / 512 x 492 pixels  512 x 582 pixels / 512 x 492 pixels
Sensing Area: 3.6mm x 2.7mm 3.6mm x 2.7mm
Scanning System: 2:1 Interlace 2:1 Interlace
Sync. System: Internal Internal
Horizontal Sync. Frequency: 15.625 KHz / 15.734KHz 15.625 KHz / 15.734KHz
Vertical Sync. Frequency: 50Hz / 60Hz 50Hz / 60Hz
Minimum Illumination: 0Lux (Infrared lamps on)  0Lux (Infrared lamps on)
0 .1Lux(day) / F1.2 0 .1Lux(day) / F1.2
Video Output: 1.0vp-p, 75Ohm 1.0vp-p, 75Ohm
Gamma Consumption: 0.45 0.45
AGC: Auto Auto
S/N Ratio: Better than 48dB Better than 48dB
White Balance: Auto Auto
Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto Auto
Shell material: Aluminum alloy Aluminum alloy
Current Consumption: Max. 220mA Max. 220mA
Power Supply: DC12V DC12V
Operating Temperature: -20°C~70°C , RH95% MAX -20°C~70°C , RH95% MAX
Storage Temperature: -40°C~80°C,RH95% MAX -40°C~80°C,RH95% MAX
Dimensions : 85 (L) ×50 (w) ×75(H) mm 85 (L) ×50 (w) ×75(H) mm



Mini CCD Camera Specifications

Total Pixels 976 (H) X 496(V)
Effect Pixels 960 (H) X 480 (V)
Pixel size 5.00 um X 7.40 um
Image Area 4.88 mm X 3.67 MM
Image Sensor 1/3 inch CCD
Resolution 720TV
Dark Signal 48.8[mv/sec]@60℃
Illuminance 9.67[V/Lux.sec]
Max Gain 0.5-16 Times
Datarate Both:27 MB / S
NTSC :60 MB/S
PAL :50 MB/S
Power Supply 12V DC (3.3V  IN)
Current 3.3V/60mA,  12V/120mA
Capacity 〈350mw
Working Temperature –30°C to 80°C
Store Temperature –50°C to +105°C
S/N Ratio >45.3dB
Pixel dynamic range  > 63.2dB
IP Rating IP67
Lens Angle 130 degree (Horizontal) ; 170 degree (diagonal)
SKU KIT-CAM20-M
Barcode # 9357423016479
Brand Masten
Shipping Weight 4.0430kg
Shipping Width 0.060m
Shipping Height 0.300m
Shipping Length 0.170m
