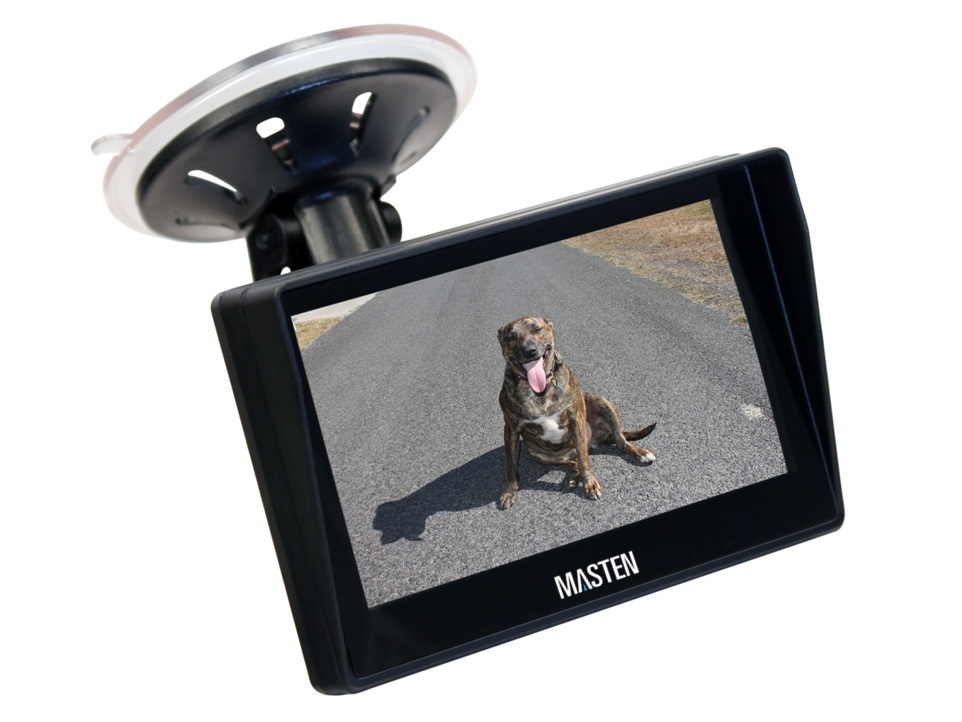

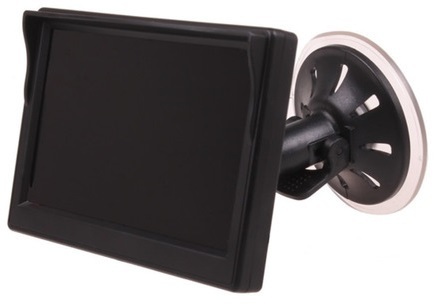

5 inch Digital TFT-LCD Car Monitor Backup Camera 2 Inputs HD Full Colour CM-51
Item Number: CM-51
Sold Out
Compact 5” High-Quality LCD Colour Monitor with 1440 x 272 Pixel Resolution for maximum visibility.2 Camera Inputs with High Quality RCA Plugs for a secure connection. Separate power trigger control wire for each camera allowing automatic display of camer
Have Questions? Contact Us Here
Compact 5â HD LCD Monitor with 2 - Camera Inputs
- Compact 5â High-Quality LCD Colour Monitor with 1440 x 272 Pixel Resolution for maximum visibility
- 2 Camera Inputs with High Quality RCA Plugs for a secure connection
- Separate power trigger control wire for each camera allowing automatic display of cameras when required. The monitor will automatically switch-over to the image of the corresponding triggered camera, then back to the original mode when the trigger stops
- Compatible with PAL and NTSC

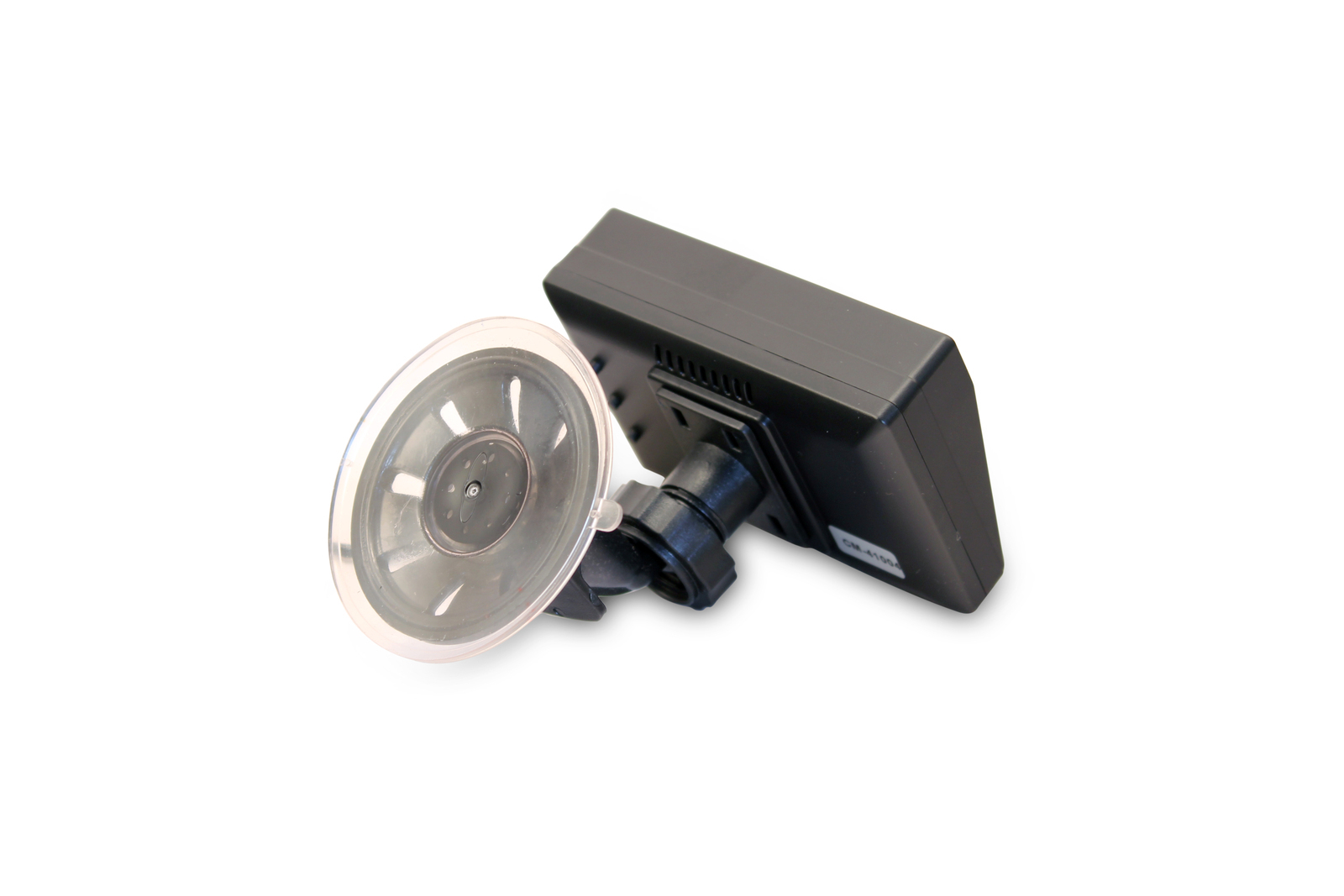

- Window-Suction Cup Mount for a secure fit in line of sight
- Easy to install
- 12-Month Melbourne-Based Warranty!
Optional Reverse Cameras â If youâre investing in a DIG Options Monitor itâs also recommended that you invest in a DIG Options Camera for peace of mind. Please note, the Masten Premium 4-Pin Connector cameras will need a 4-Pin to RCA Adapter Cable. Click here for more information.

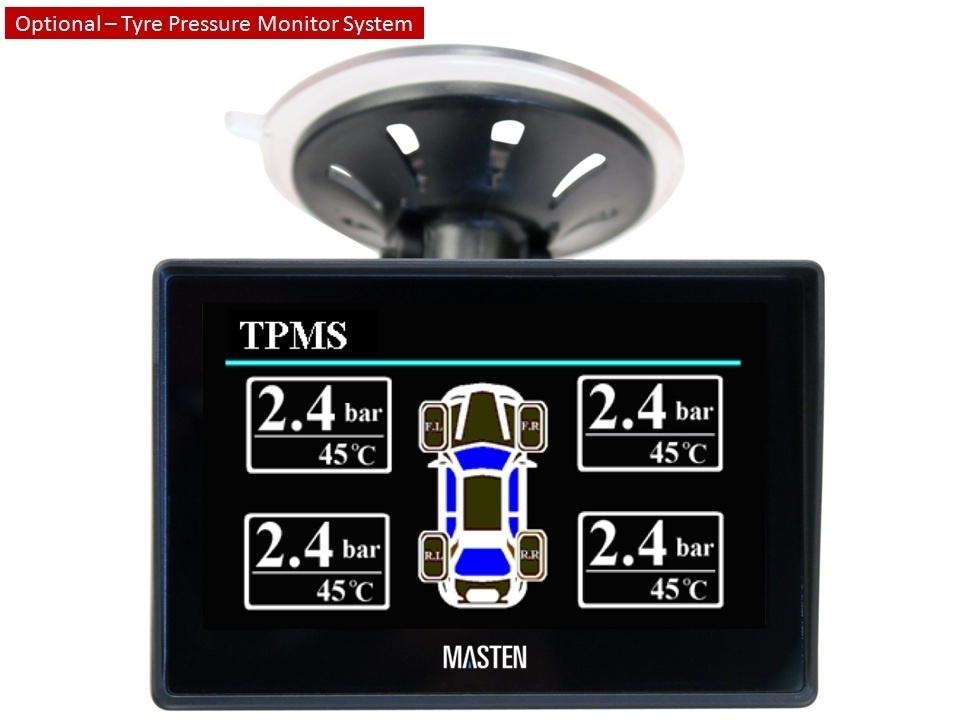

Optional TPMS â For additional safety why not add the Masten Professional Tyre Pressure Monitor System (TPMS) to monitor up to 4 tyres on your vehicle or whatever youâre towing. Available with hidden valve-type sensors or convenient cap-style sensors. Click here for more information.
| Technical Specifications | |
| Display/Monitor Size: | 5 Inch |
| Monitor Panel Type: | Digital LCD Panel |
| Display Colour: | Full |
| Waterproof Rating (with Certification): | NA |
| Camera Inputs: | 2 |
| Quad Camera View: | NA |
| TV System: | NTSC/PAL AUTO |
| Resolution: | 480 x R.G.B x 272 Pixels |
| Aspect ratio: | 16:09 |
| Viewing angle: | U:50°/ D:60°, R/L: 70° |
| Brightness: | 350cd/㎡. |
| Contrast: | 500:1 |
| Lattice Distance: | NA |
| Monitor Housing Material: | Plastic |
| Monitor Bracket Type: | Window Suction Mount |
| Monitor Bracket Material: | Plastic |
| Camera Connection Type: | RCA |
| Automatic Camera Display: | Yes - 2 Cameras via Trigger Line from Power Sourc |
| Built-in Speaker: | NA |
| Bilingual Menu System: | NA |
| Day/Night Mode Switch: | NA |
| Mirror/Natural Camera View: | NA |
| Remote Control: | NA |
| Working voltage: | 12V |
| DC Power Overload Protection | NA |
| Working Current: | NA |
| Operating Temperature | -20℃'~+50℃ |
| Storage Temperature | -30℃~+70℃ |
| Operating humidity: | 10% |
| Product Net Weight: | 0.25KG |
| Product Dimensions: | 104mm*18mm*70mm |
| SKU | CM-51 |
| Barcode # | 729436059146 |
| Brand | Masten |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.070m |
| Shipping Length | 0.100m |
| Assembled Width | 0.200m |
12 Months Warranty
